Commercial
Non-Insulated
Terminals

Filter
10-466-2-044
10-466-2-044
10-466-2-044
0.340" - TURRET/THREAD Swage Mount 0.082" 1/16 0.076 Brass Bright Tin YES
10-492-2-01
10-492-2-01
10-492-2-01
0.386" - Slotted/Slotted Swage Mount 0.105" 1/16 0.120 Brass Silver YES
10-506-1-04
10-506-1-04
10-506-1-04
0.343" - Turret/Turret Swage Mount 0.062" 1/32 0.120 Brass Electro-Tin YES
10-512-1-04
10-512-1-04
10-512-1-04
0.446" - Double Turret/Double Turret Swage Mount 0.075" 1/32 0.129 Brass Electro-Tin YES
10-521-2-04
10-521-2-04
10-521-2-04
0.558" 0.094 Pin/Pin Swage Mount 0.105" 1/16 0.185 Brass Electro-Tin YES

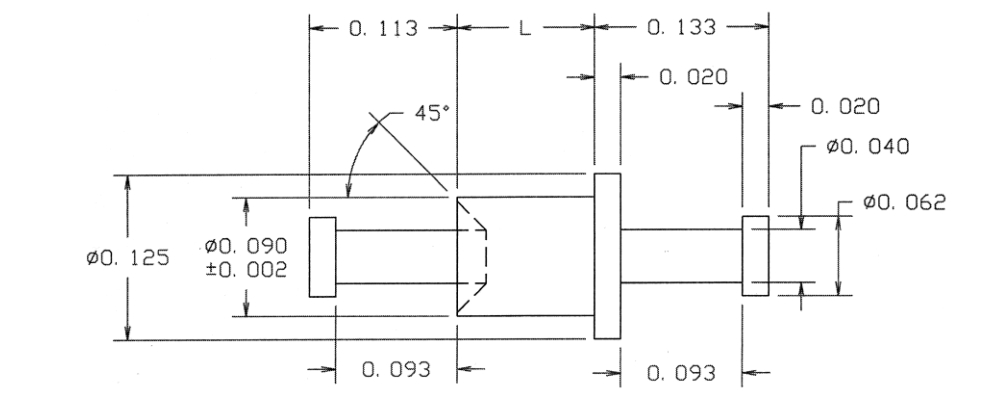

10-533-3-04
10-533-3-04
10-533-3-04
0.381" - Turret/Turret Swage Mount 0.135" 3/32 0.094 Brass Electro-Tin YES
10-554-2-04
10-554-2-04
10-554-2-04
0.427" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.094 Brass Electro-Tin YES

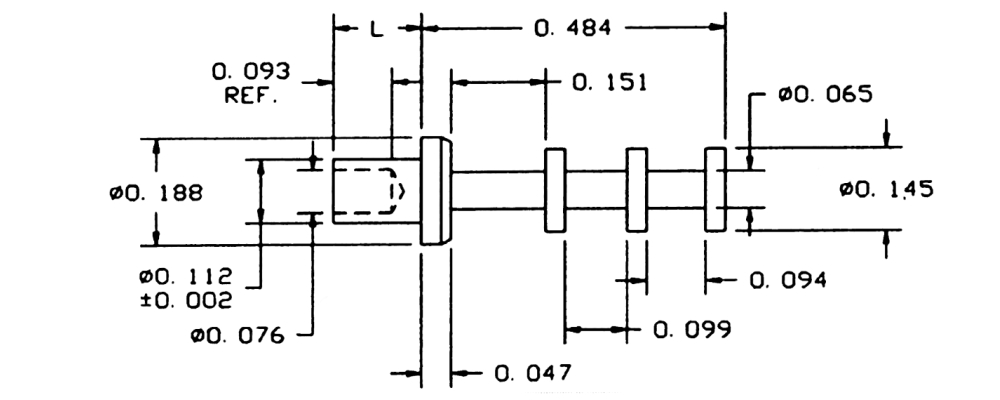

10-602-6-04
10-602-6-04
10-602-6-04
0.718" - - Swage Mount 0.234" 3/16 0.116 Brass Electro-Tin YES
10-703-2-05
10-703-2-05
10-703-2-05
0.244" - - 2-56 - - 2-56 THREAD Brass Electro Solder NO
10-8008-4-035
10-8008-4-035
10-8008-4-035
0.556" 0.080 - Swage Mount 0.156" 1/8 0.094 Brass Gold YES
10-8020-2-01
10-8020-2-01
10-8020-2-01
0.652" 0.025 - Swage Mount 0.082" 1/16 0.035 Brass Silver YES

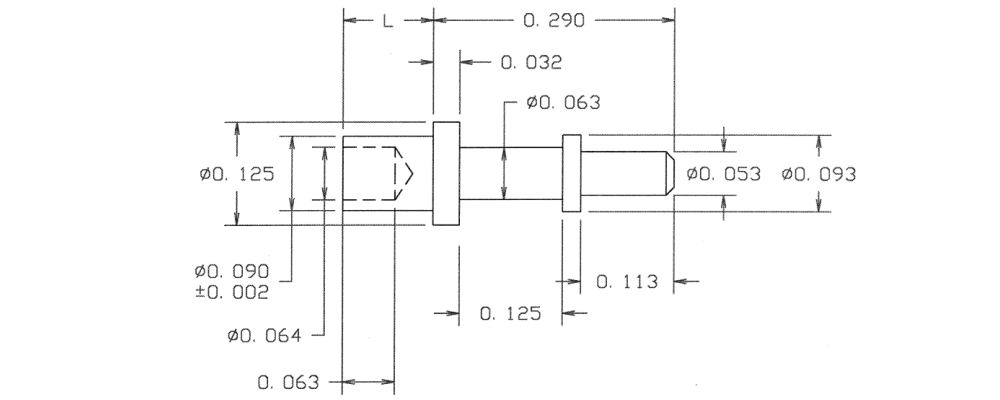

10-805-3-088
10-805-3-088
10-805-3-088
0.431" - - Swage Mount 0.141" 3/32 0.094 Brass Bright Tin-Lead NO
10-811-1-035
10-811-1-035
10-811-1-035
0.390" - - Swage Mount 0.078" 1/32 0.1495 Brass Gold YES
10-820-1-088
10-820-1-088
10-820-1-088
0.248" 0.040 - Swage Mount 0.075" 1/32 0.094 Brass Bright Tin-Lead NO
10-831-11-044
10-831-11-044
10-831-11-044
0.235" 0.050 - Swage Mount 0.047" 1/64 0.064 Brass Bright Tin YES
10-838-8-03
10-838-8-03
10-838-8-03
0.813" 0.050 Pin/Pin Swage Mount 0.281" 1/4 0.111 Brass Gold YES

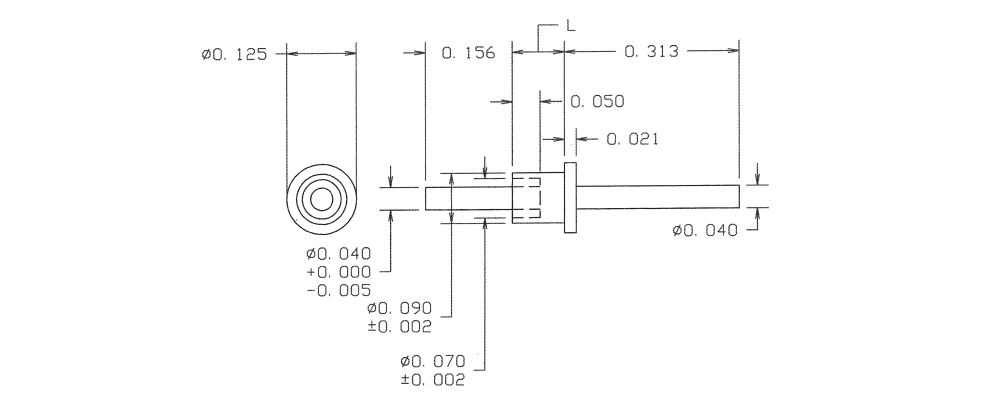

10-858-3-05
10-858-3-05
10-858-3-05
0.594" 0.040 Pin/Pin Swage Mount 0.125" 3/32 0.094 Brass Electro Solder NO
10-877-1-04
10-877-1-04
10-877-1-04
0.393" 0.032 - Swage Mount 0.051" 1/32 0.055 Brass Electro-Tin YES
10-895-7-044
10-895-7-044
10-895-7-044
0.400" 0.040 - - - - - Brass Bright Tin YES
10-915-2-03
10-915-2-03
10-915-2-03
0.232" 0.025 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES
