Commercial
Non-Insulated
Terminals

Filter
10-413-6-05
10-413-6-05
10-413-6-05
0.363" - - Swage Mount 0.207" 3/16 0.052 Brass Electro Solder NO
10-448-2-035
10-448-2-035
10-448-2-035
0.396" - - Swage Mount 0.084" 1/16 0.063 Brass Gold YES
10-464-4-088
10-464-4-088
10-464-4-088
0.217" - - Swage Mount 0.147" 1/8 0.035 Brass Bright Tin-Lead NO
10-948-1-04
10-948-1-04
10-948-1-04
0.235" - - Swage Mount 0.062" 1/32 0.0635 Brass Electro-Tin YES
09-0043-2-044
09-0043-2-044
09-0043-2-044
0.249" - - Swage Mount 0.099" 1/16 0.094 Brass Bright Tin YES

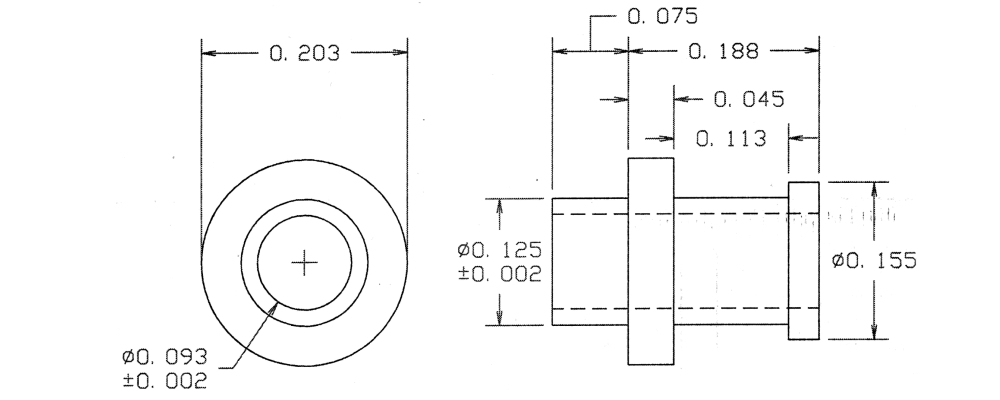

09-0109-2-03
09-0109-2-03
09-0109-2-03
0.263" - - Swage Mount 0.075" 1/32 0.129 Brass Gold YES
09-0175-1-088
09-0175-1-088
09-0175-1-088
0.209" - - Swage Mount 0.053" 1/32 0.063 Brass Bright Tin-Lead NO
09-0210-8-088
09-0210-8-088
09-0210-8-088
0.400" - - 2-56 - - 2-56 THREAD Brass Bright Tin-Lead NO
09-0257-1-035
09-0257-1-035
09-0257-1-035
0.346" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Gold YES
09-0303-4-095
09-0303-4-095
09-0303-4-095
0.307" - - Swage Mount 0.150" 1/8 0.063 Brass Hot Solder Dip NO
09-0365-2-035
09-0365-2-035
09-0365-2-035
0.285" - - 2-56 - - 2-56 THREAD Brass Gold YES
09-7016-4-01
09-7016-4-01
09-7016-4-01
0.310" - - Swage Mount 0.150" 1/8 0.055 Brass Silver YES
09-7127-1-088
09-7127-1-088
09-7127-1-088
0.674" 0.0405 - RIVET MOUNT 0.056" 1/32 0.044 Brass Bright Tin-Lead NO

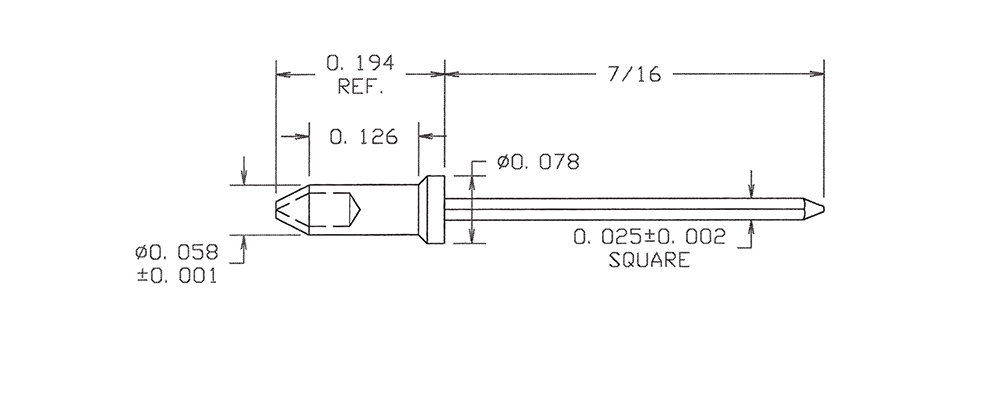

09-7157-2-04
09-7157-2-04
09-7157-2-04
0.6315" 0.025 SQ. - RIVET MOUNT 0.126" 3/32 0.0625 Brass Electro-Tin YES
09-7188-2-01
09-7188-2-01
09-7188-2-01
0.276" - - RIVET MOUNT 0.091" 1/16 0.052 Brass Silver YES

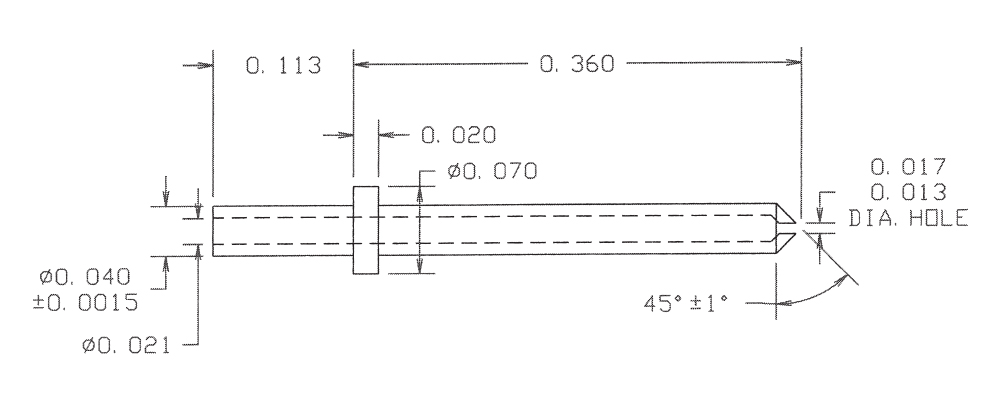

09-8037-3-044
09-8037-3-044
09-8037-3-044
0.473" 0.0405 - Swage Mount 0.113" 3/32 0.043 Brass Bright Tin YES

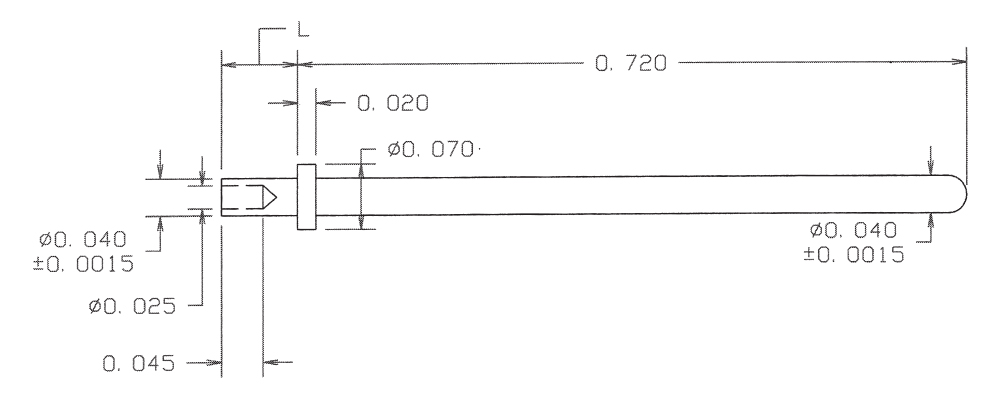

09-8067-1-01
09-8067-1-01
09-8067-1-01
0.771" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES
09-8117-2-044
09-8117-2-044
09-8117-2-044
0.532" 0.041 DOUBLE TURRET/PIN Swage Mount 0.094" 1/16 0.119 Brass Bright Tin YES
09-8161-1-03
09-8161-1-03
09-8161-1-03
1.051" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES
09-8188-2A-05
09-8188-2A-05
09-8188-2A-05
0.150" 0.025 - Swage Mount 0.060" 3/64 0.035 Brass Electro Solder NO
