Commercial
Non-Insulated
Terminals

Filter
10-101-3-03
10-101-3-03
10-101-3-03
0.217" - - Swage Mount 0.113" 3/32 0.076 Brass Gold YES
10-107-3-05
10-107-3-05
10-107-3-05
0.218" - - Swage Mount 0.125" 3/32 0.067 Brass Electro Solder NO

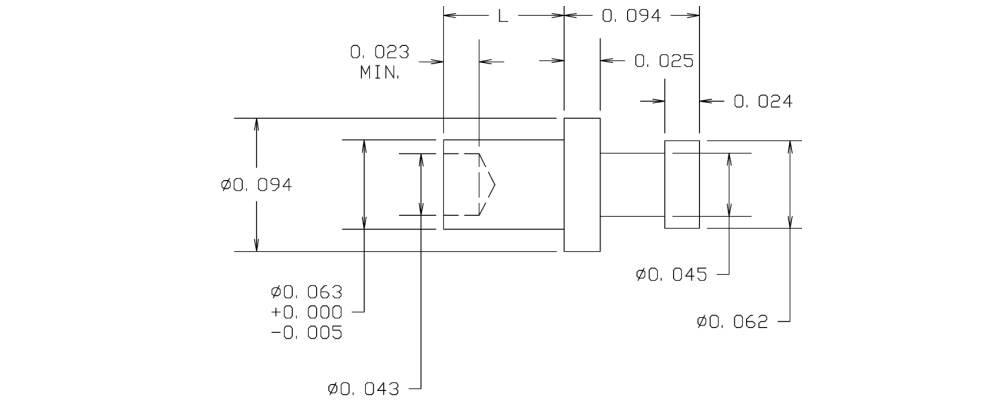

10-117-1-03
10-117-1-03
10-117-1-03
0.147" - - Swage Mount 0.053" 1/32 0.067 Brass Gold YES
10-137-2-04
10-137-2-04
10-137-2-04
0.268" - - Swage Mount 0.109" 1/16 0.094 Brass Electro-Tin YES
10-206-2-095
10-206-2-095
10-206-2-095
0.275" - - Swage Mount 0.084" 1/16 0.076 Brass Hot Solder Dip NO
10-214-6-095
10-214-6-095
10-214-6-095
0.365" - - Swage Mount 0.209" 3/16 0.067 Brass Hot Solder Dip NO
10-224-1-01
10-224-1-01
10-224-1-01
0.453" - - Press Fit/Solder 0.130" 3/32 0.195 Brass Silver YES
10-236-5-044
10-236-5-044
10-236-5-044
0.608" - - Swage Mount 0.188" 5/32 0.116 Brass Bright Tin YES
10-259-8-088
10-259-8-088
10-259-8-088
0.500" - - Swage Mount 0.281" 1/4 0.094 Brass Bright Tin-Lead NO
10-308-3-03
10-308-3-03
10-308-3-03
0.218" - - Swage Mount 0.125" 3/32 0.067 Brass Gold YES
10-316-4-05
10-316-4-05
10-316-4-05
0.625" - - Swage Mount 0.165" 1/8 0.116 Brass Electro Solder NO
10-331-4-035
10-331-4-035
10-331-4-035
0.500" - - Swage Mount 0.172" 1/8 0.086 Brass Gold YES

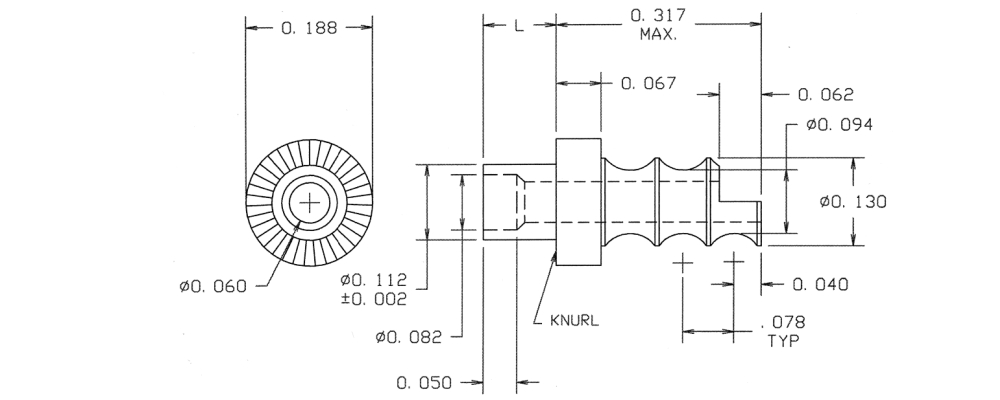

10-405-6-088
10-405-6-088
10-405-6-088
0.551" - - Swage Mount 0.234" 3/16 0.116 Brass Bright Tin-Lead NO
10-420-4-01
10-420-4-01
10-420-4-01
0.547" - - Swage Mount 0.172" 1/8 0.154 Brass Silver YES
10-433-8-01
10-433-8-01
10-433-8-01
0.985" - - Swage Mount 0.297" 1/4 0.182 Brass Silver YES
10-454-3-044
10-454-3-044
10-454-3-044
0.375" - - Swage Mount 0.125" 3/32 0.067 Brass Bright Tin YES
10-466-2-04
10-466-2-04
10-466-2-04
0.340" - TURRET/THREAD Swage Mount 0.082" 1/16 0.076 Brass Electro-Tin YES
10-492-1-088
10-492-1-088
10-492-1-088
0.356" - Slotted/Slotted Swage Mount 0.075" 1/32 0.120 Brass Bright Tin-Lead NO
10-506-1-035
10-506-1-035
10-506-1-035
0.343" - Turret/Turret Swage Mount 0.062" 1/32 0.120 Brass Gold YES

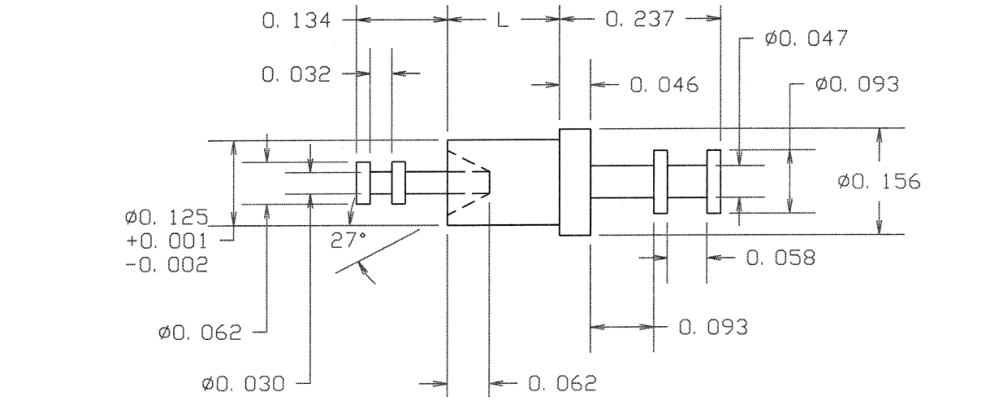

10-512-1-035
10-512-1-035
10-512-1-035
0.446" - Double Turret/Double Turret Swage Mount 0.075" 1/32 0.129 Brass Gold YES
