Commercial
Non-Insulated
Terminals

Filter
09-0043-2-04
09-0043-2-04
09-0043-2-04
0.249" - - Swage Mount 0.099" 1/16 0.094 Brass Electro-Tin YES

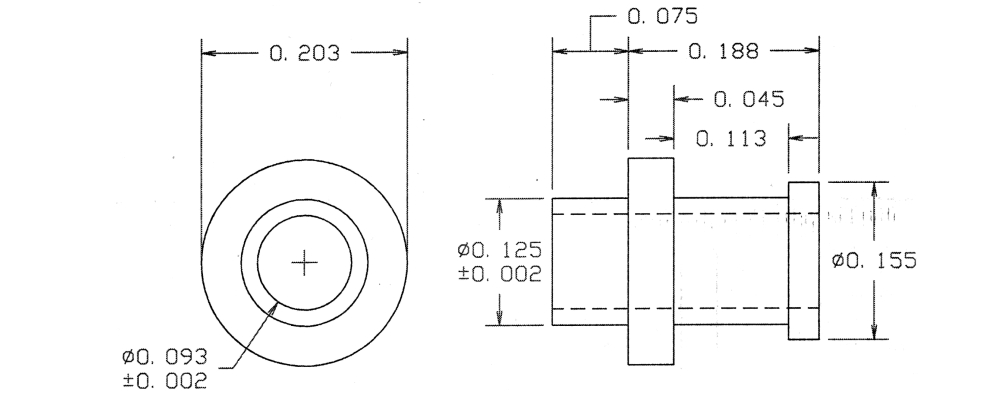

09-0109-2-01
09-0109-2-01
09-0109-2-01
0.263" - - Swage Mount 0.075" 1/32 0.129 Brass Silver YES
09-0175-1-05
09-0175-1-05
09-0175-1-05
0.209" - - Swage Mount 0.053" 1/32 0.063 Brass Electro Solder NO
09-0210-8-05
09-0210-8-05
09-0210-8-05
0.400" - - 2-56 - - 2-56 THREAD Brass Electro Solder NO

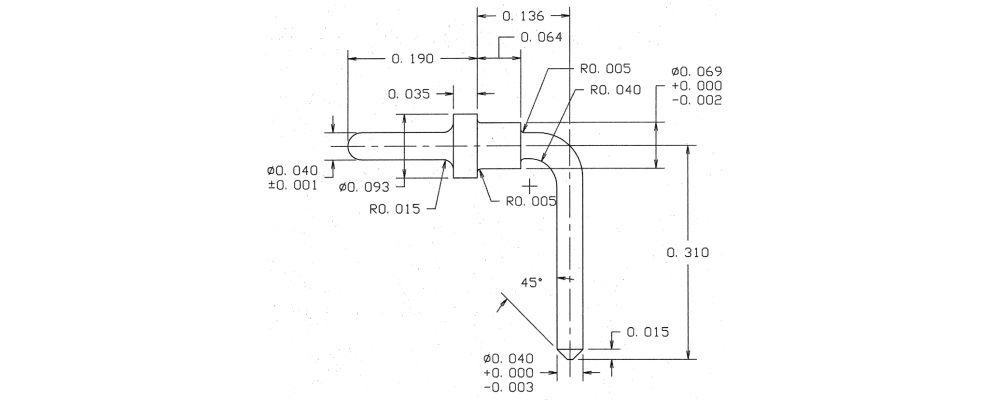

09-0257-1-03
09-0257-1-03
09-0257-1-03
0.346" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Gold YES
09-0303-4-088
09-0303-4-088
09-0303-4-088
0.307" - - Swage Mount 0.150" 1/8 0.063 Brass Bright Tin-Lead NO
09-0365-2-03
09-0365-2-03
09-0365-2-03
0.285" - - 2-56 - - 2-56 THREAD Brass Gold YES
09-7016-3-095
09-7016-3-095
09-7016-3-095
0.285" - - Swage Mount 0.125" 3/32 0.055 Brass Hot Solder Dip NO
09-7127-1-05
09-7127-1-05
09-7127-1-05
0.674" 0.0405 - RIVET MOUNT 0.056" 1/32 0.044 Brass Electro Solder NO
09-7157-2-035
09-7157-2-035
09-7157-2-035
0.6315" 0.025 SQ. - RIVET MOUNT 0.126" 3/32 0.0625 Brass Gold YES
09-7186-4-088
09-7186-4-088
09-7186-4-088
0.300" - - RIVET MOUNT 0.150" 1/8 0.044 Brass Bright Tin-Lead NO
09-8037-3-04
09-8037-3-04
09-8037-3-04
0.473" 0.0405 - Swage Mount 0.113" 3/32 0.043 Brass Electro-Tin YES
09-8065-1-088
09-8065-1-088
09-8065-1-088
1.191" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO
09-8117-2-04
09-8117-2-04
09-8117-2-04
0.532" 0.041 DOUBLE TURRET/PIN Swage Mount 0.094" 1/16 0.119 Brass Electro-Tin YES

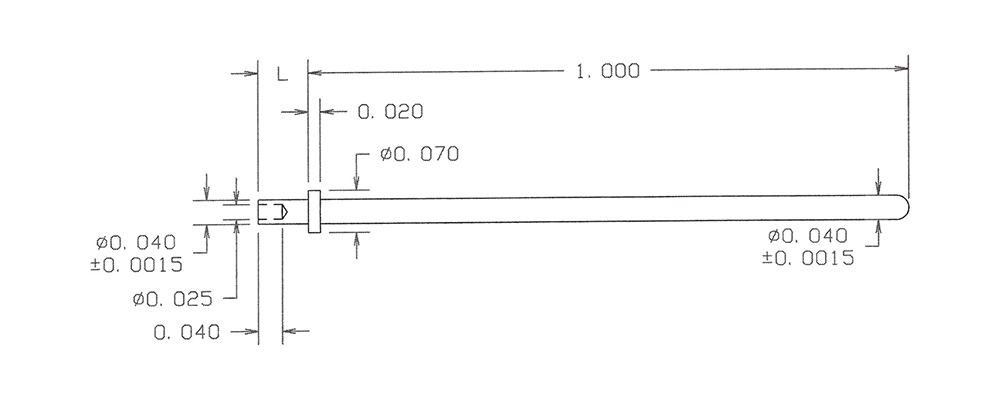

09-8161-1-01
09-8161-1-01
09-8161-1-01
1.051" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES
09-8188-2A-044
09-8188-2A-044
09-8188-2A-044
0.150" 0.025 - Swage Mount 0.060" 3/64 0.035 Brass Bright Tin YES
09-8421-3-035
09-8421-3-035
09-8421-3-035
0.338" 0.025 - Swage Mount 0.125" 3/32 0.035 Brass Gold YES

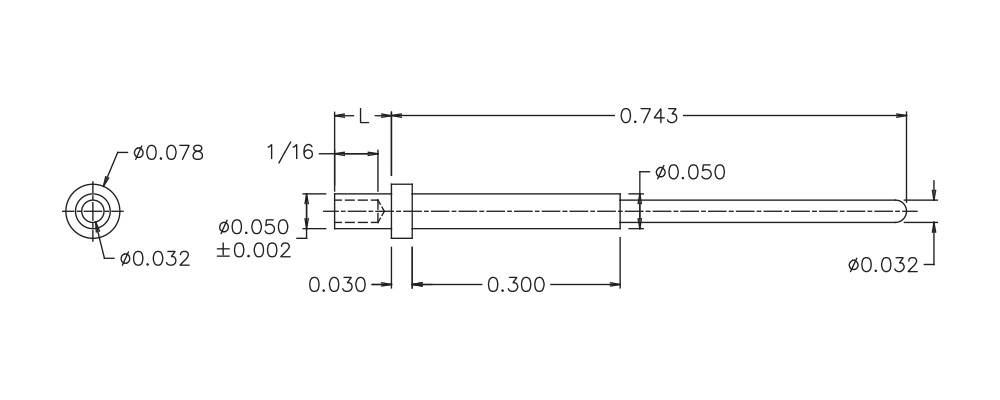

09-8632-1-05
09-8632-1-05
09-8632-1-05
0.794" 0.032 - Swage Mount 0.051" 1/32 0.055 Brass Electro Solder NO
09-8743-2-01
09-8743-2-01
09-8743-2-01
0.530" 0.080 - Swage Mount 0.090" 1/16 0.086 Brass Silver YES
09-8837-11-03
09-8837-11-03
09-8837-11-03
0.242" 0.040 - Swage Mount 0.039" 1/64 0.043 Brass Gold YES
