Commercial
Non-Insulated
Terminals

Filter

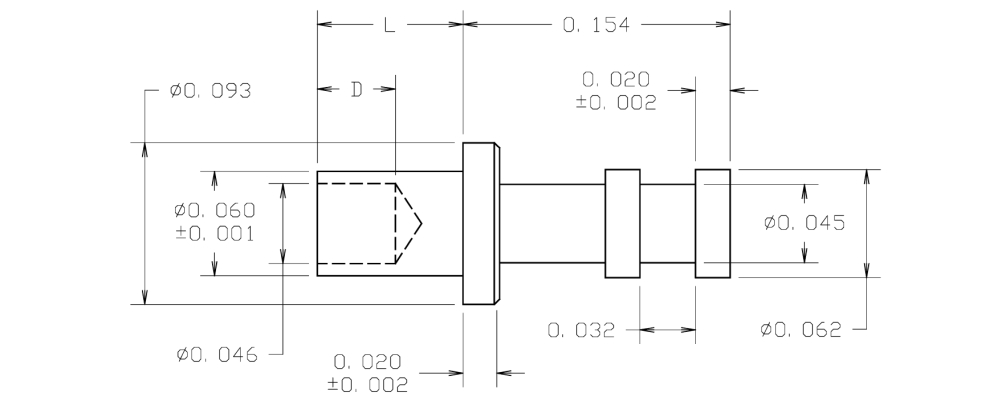

10-254-2-088
10-254-2-088
10-254-2-088
0.240" - - Swage Mount 0.084" 1/16 0.063 Brass Bright Tin-Lead NO

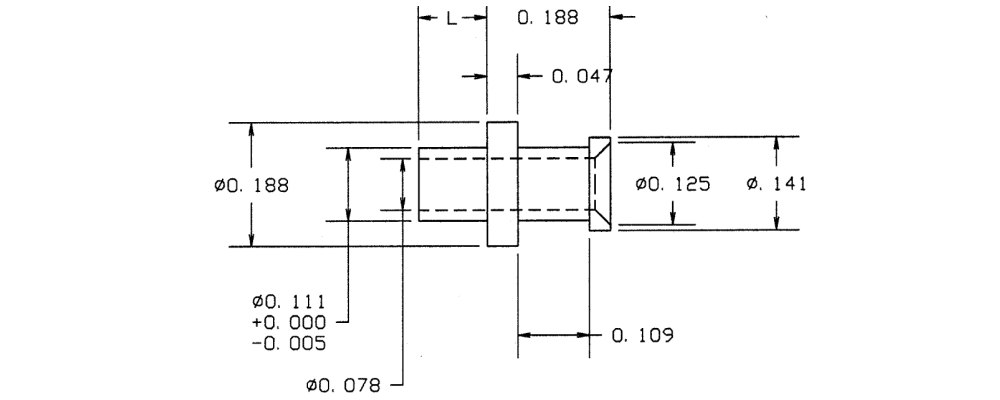

10-306-1-088
10-306-1-088
10-306-1-088
0.263" - - Swage Mount 0.075" 1/32 0.113 Brass Bright Tin-Lead NO

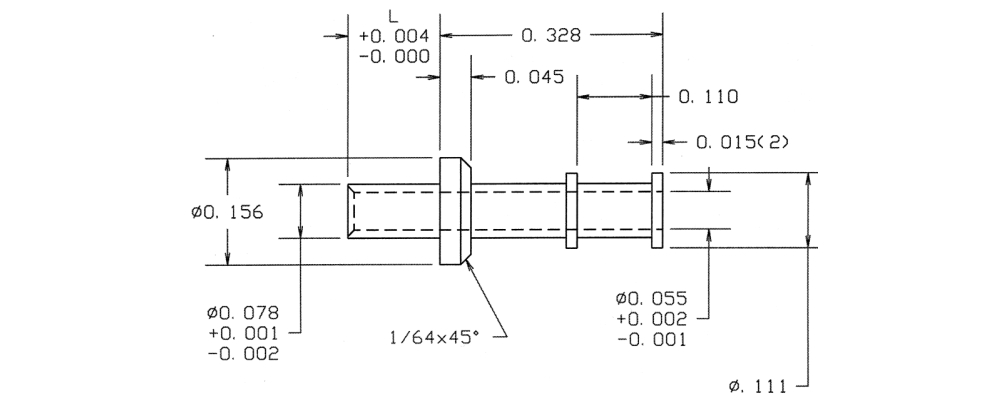

10-313-2-04
10-313-2-04
10-313-2-04
0.433" - - Swage Mount 0.105" 1/16 0.081 Brass Electro-Tin YES

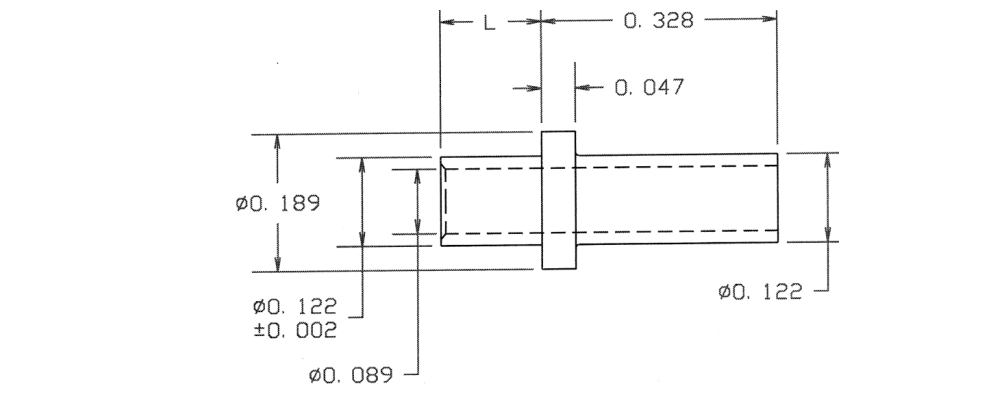

10-329-2-01
10-329-2-01
10-329-2-01
0.437" - - Swage Mount 0.109" 1/16 0.125 Brass Silver YES

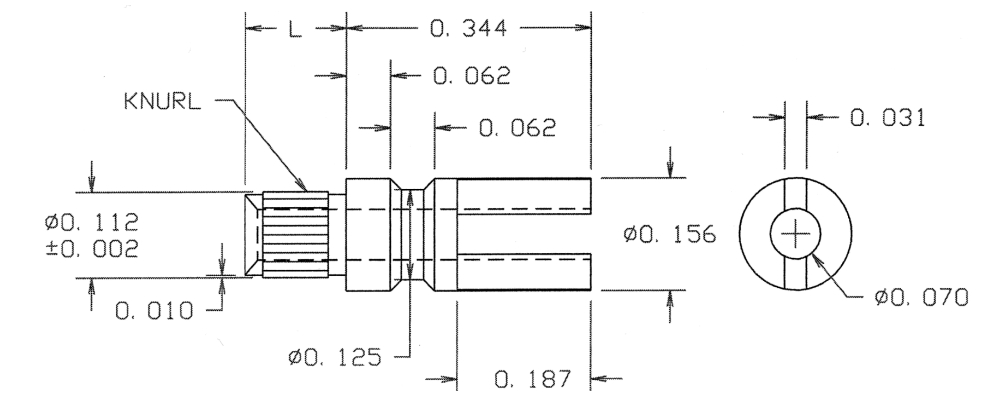

10-402-3-044
10-402-3-044
10-402-3-044
0.485" - - Swage Mount 0.141" 3/32 0.116 Brass Bright Tin YES

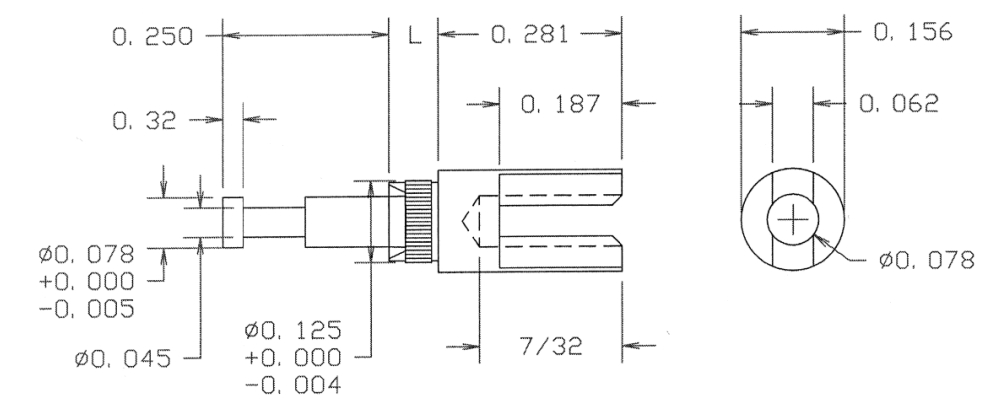

10-418-3-035
10-418-3-035
10-418-3-035
0.666" - Turret/Turret Swage Mount 0.135" 3/32 0.120 Brass Gold YES

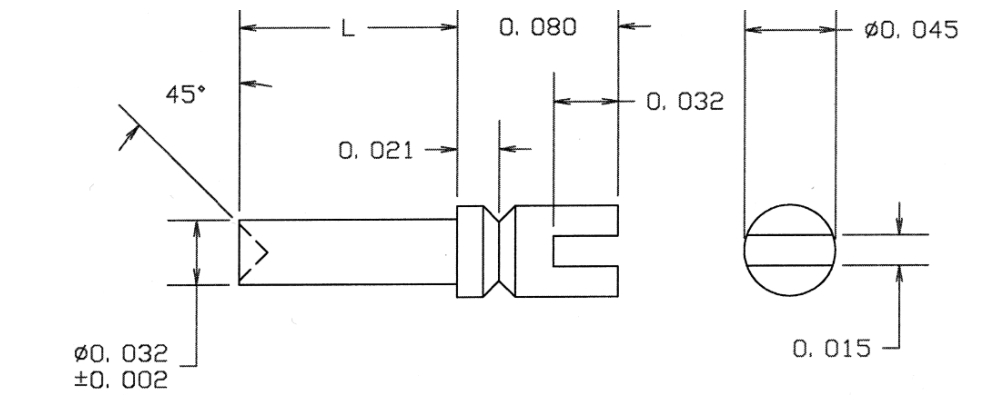

10-431-3-05
10-431-3-05
10-431-3-05
0.188" - - Swage Mount 0.108" 3/32 0.036 Brass Electro Solder NO

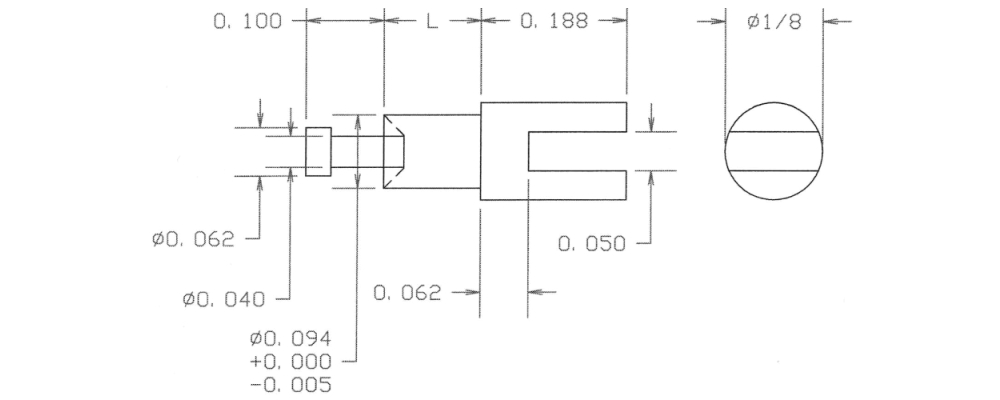

10-445-4-01
10-445-4-01
10-445-4-01
0.444" - SLOTTED/TURRET Swage Mount 0.156" 1/8 0.096 Brass Silver YES

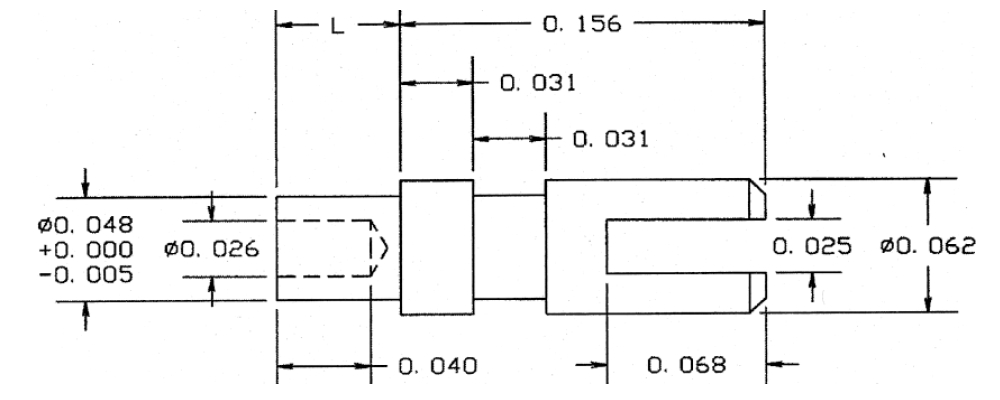

10-462-11-01
10-462-11-01
10-462-11-01
0.193" - - Swage Mount 0.037" 1/64 0.052 Brass Silver YES

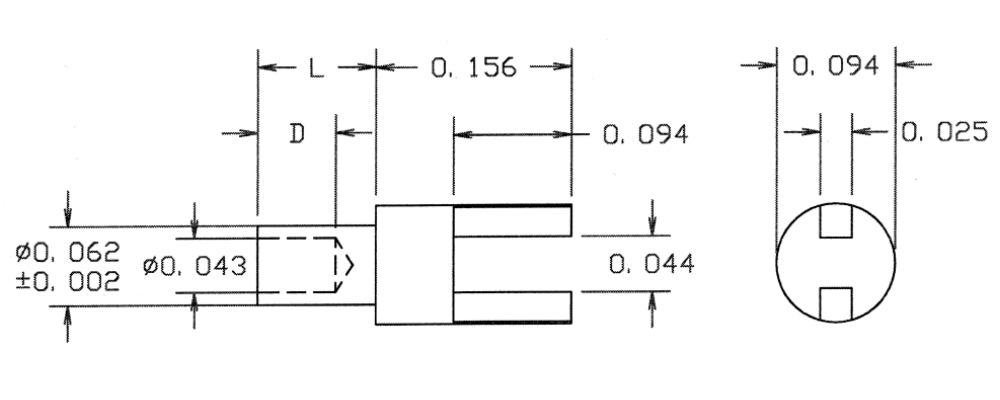

10-489-2-01
10-489-2-01
10-489-2-01
0.250" - - Swage Mount 0.094" 1/16 0.067 Brass Silver YES

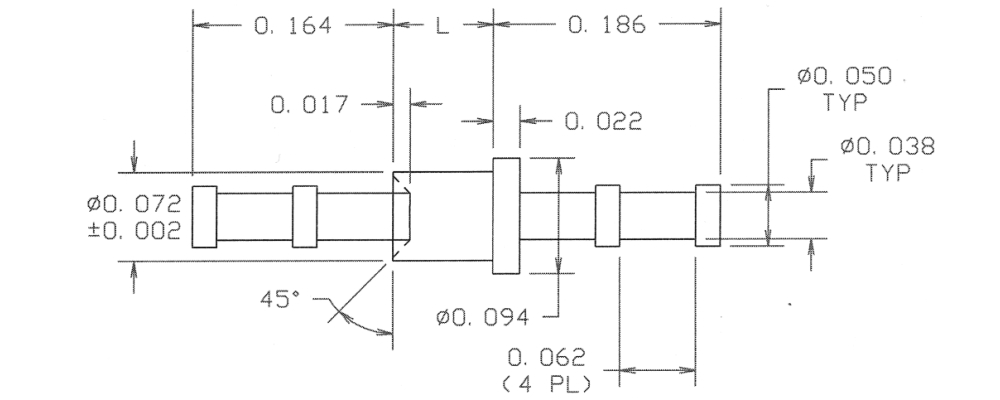

10-503-8-035
10-503-8-035
10-503-8-035
0.620" - Double Turret/Double Turret Swage Mount 0.270" 1/4 0.076 Brass Gold YES

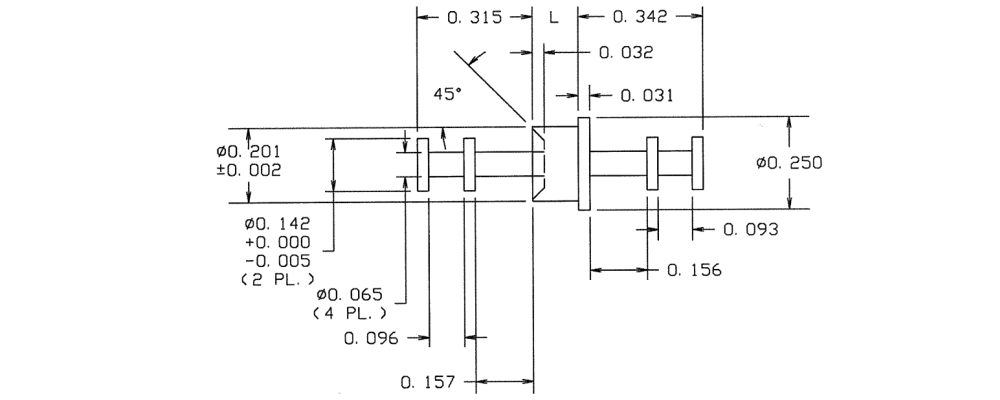

10-509-8-035
10-509-8-035
10-509-8-035
0.938" - Double Turret/Double Turret Swage Mount 0.281" 1/4 0.204 Brass Gold YES

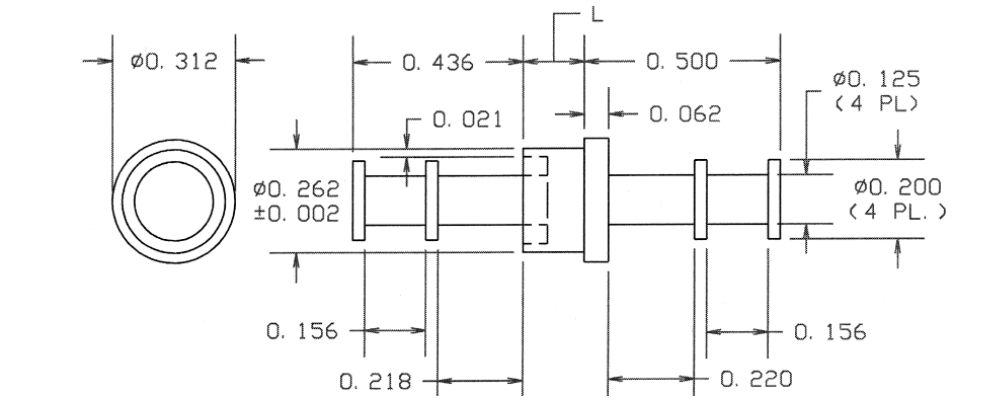

10-519-4-035
10-519-4-035
10-519-4-035
1.092" - Double Turret/Double Turret Swage Mount 0.156" 1/8 0.266 Brass Gold YES

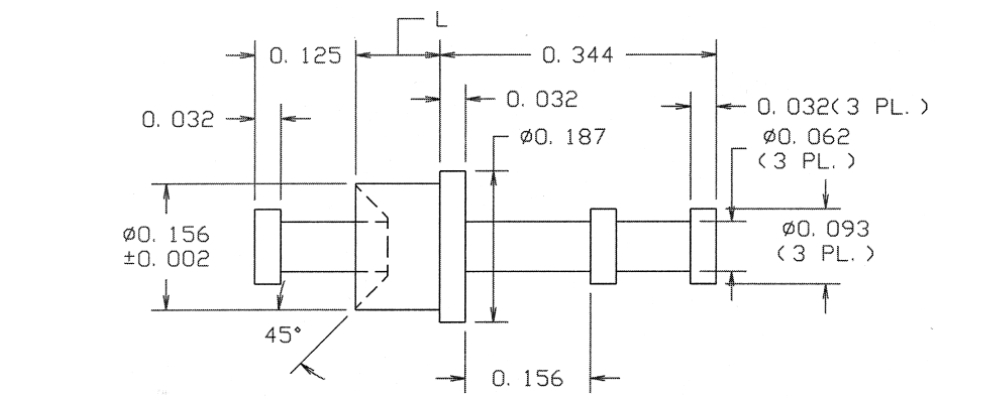

10-530-6-035
10-530-6-035
10-530-6-035
0.694" - TURRET/DOUBLE TURRET Swage Mount 0.230" 3/16 0.159 Brass Gold YES

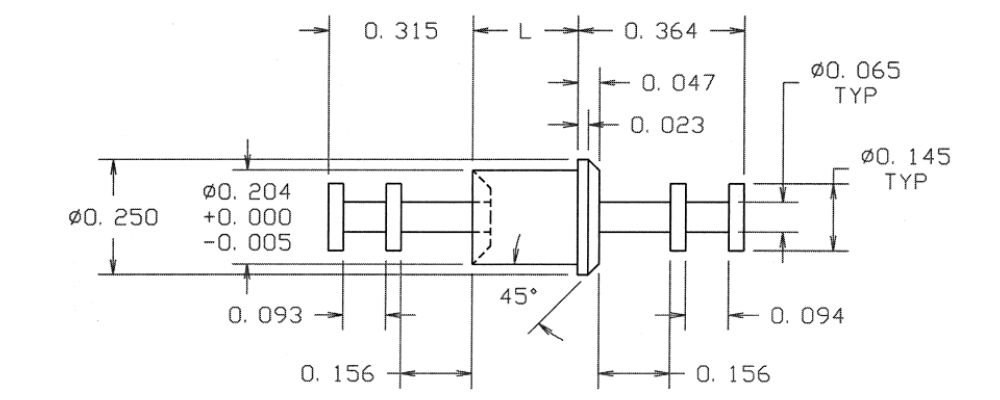

10-549-5-035
10-549-5-035
10-549-5-035
0.874" - Double Turret/Double Turret Swage Mount 0.195" 5/32 0.206 Brass Gold YES

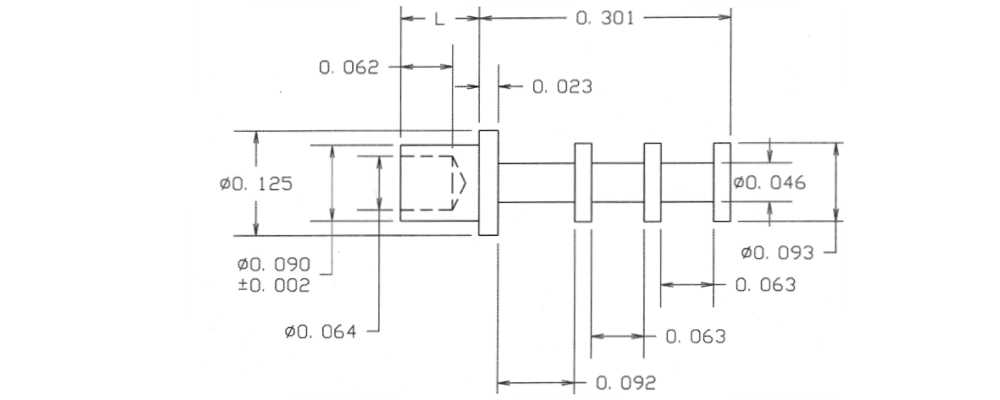

10-601-1-035
10-601-1-035
10-601-1-035
0.363" - - Swage Mount 0.062" 1/32 0.094 Brass Gold YES

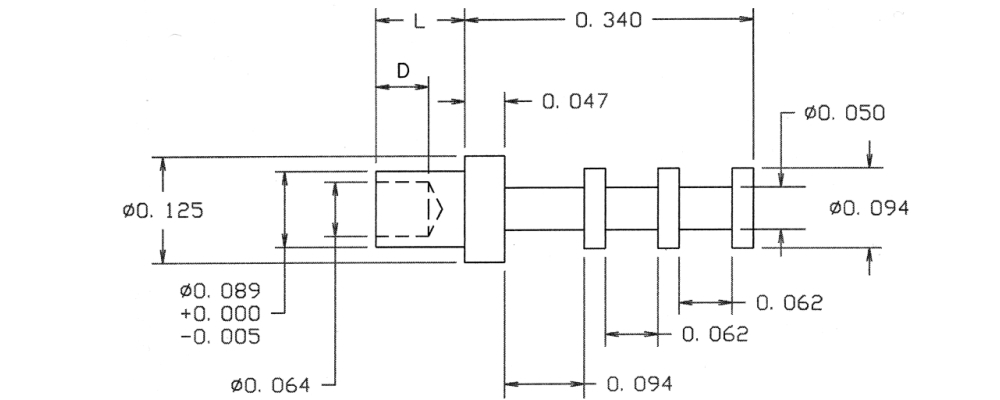

10-615-1-088
10-615-1-088
10-615-1-088
0.415" - - Swage Mount 0.075" 1/32 0.090 Brass Bright Tin-Lead NO

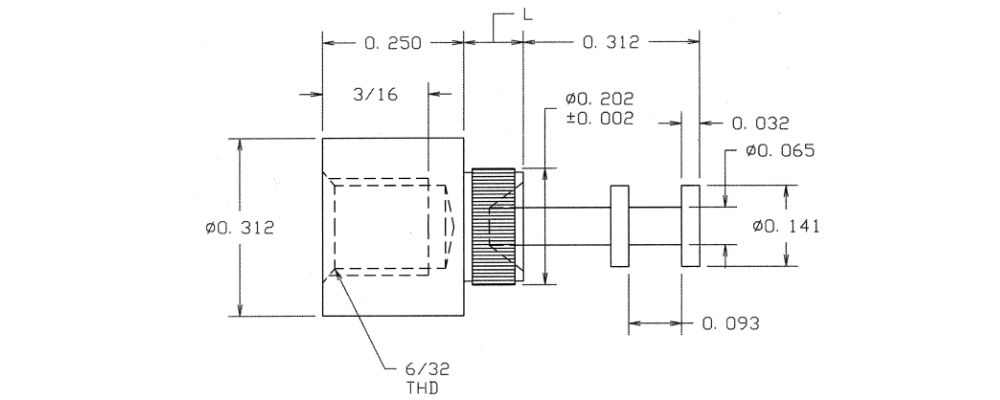

10-714-6-088
10-714-6-088
10-714-6-088
0.792" - DOUBLE TURRET/THREAD Swage Mount 0.230" 3/16 0.204 Brass Bright Tin-Lead NO

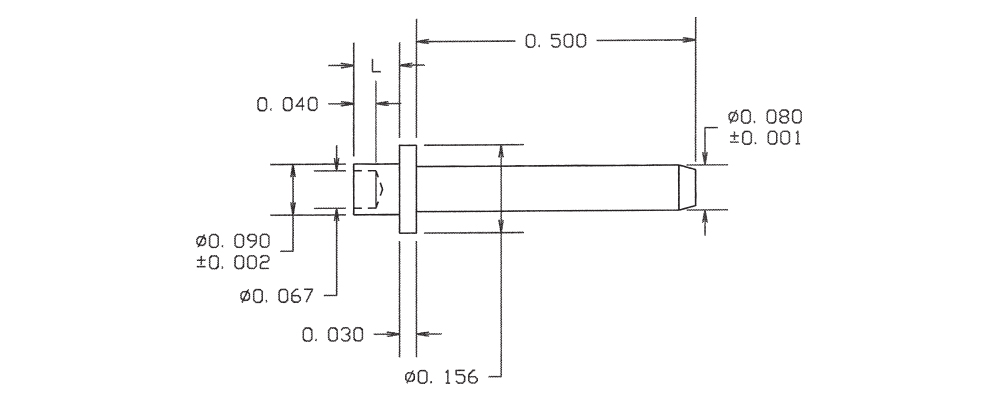

10-8016-2-05
10-8016-2-05
10-8016-2-05
0.612" 0.080 - Swage Mount 0.082" 1/16 0.094 Brass Electro Solder NO

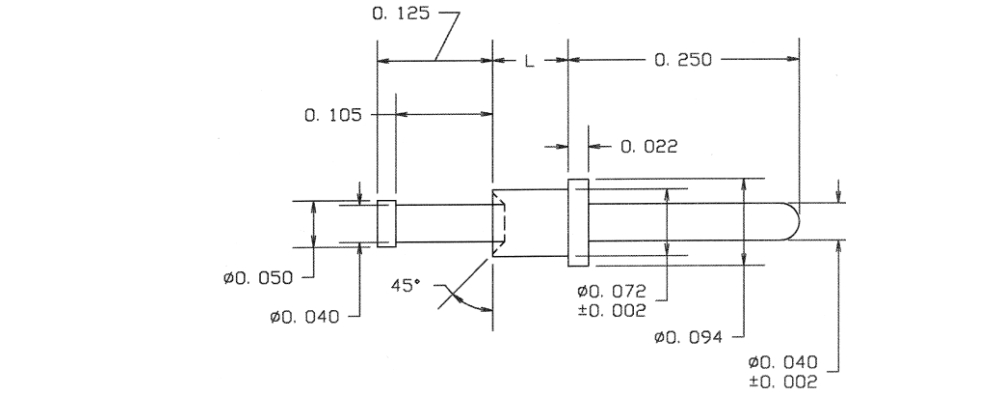

10-803-4-03
10-803-4-03
10-803-4-03
0.520" 0.040 TURRET/PIN Swage Mount 0.145" 1/8 0.076 Brass Gold YES
