Commercial
Non-Insulated
Terminals

Filter
09-0241-2-035
09-0241-2-035
09-0241-2-035
0.355" - - 2-56 - - 2-56 THREAD Brass Gold YES

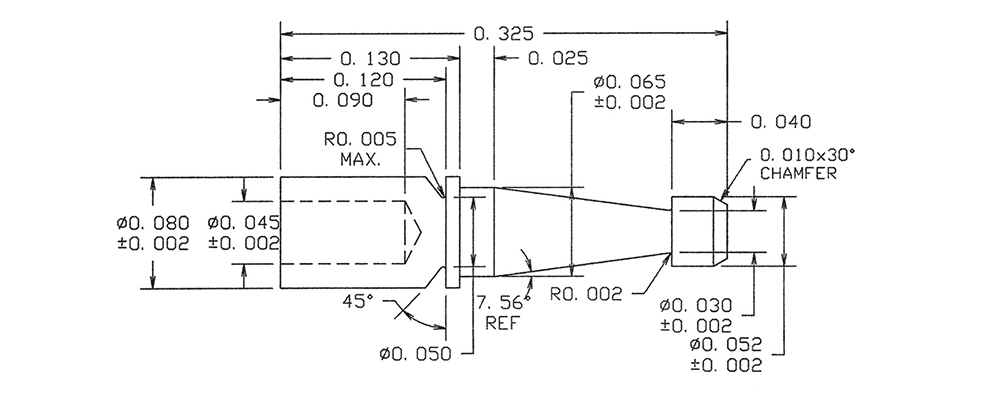

09-0287-2-035
09-0287-2-035
09-0287-2-035
0.325" 0.052 - - - - - Brass Gold YES
09-0353-2-044
09-0353-2-044
09-0353-2-044
0.375" - - Swage Mount 0.085" 1/16 0.067 Brass Bright Tin YES
09-7012-3-01
09-7012-3-01
09-7012-3-01
0.285" - - Swage Mount 0.125" 3/32 0.067 Brass Silver YES
09-7117-2-044
09-7117-2-044
09-7117-2-044
0.516" 0.030 - RIVET MOUNT 0.083" 1/16 0.035 Brass Bright Tin YES

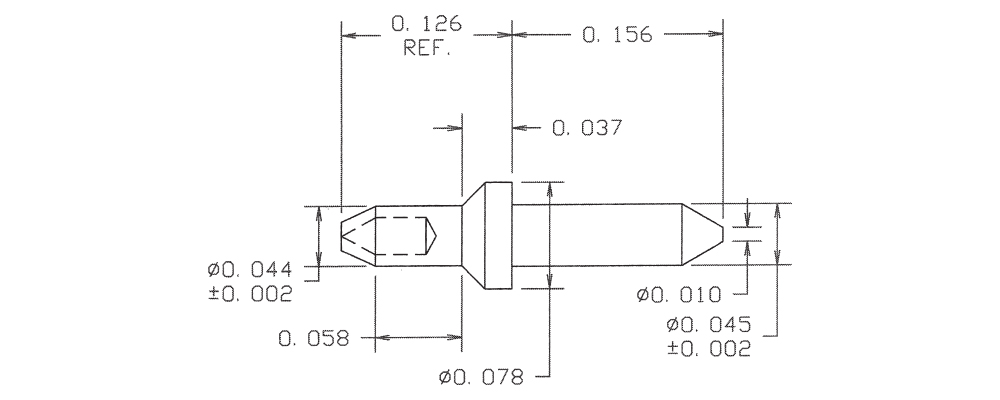

09-7149-1-03
09-7149-1-03
09-7149-1-03
0.282" 0.045 - RIVET MOUNT 0.058" 1/32 0.048 Brass Gold YES

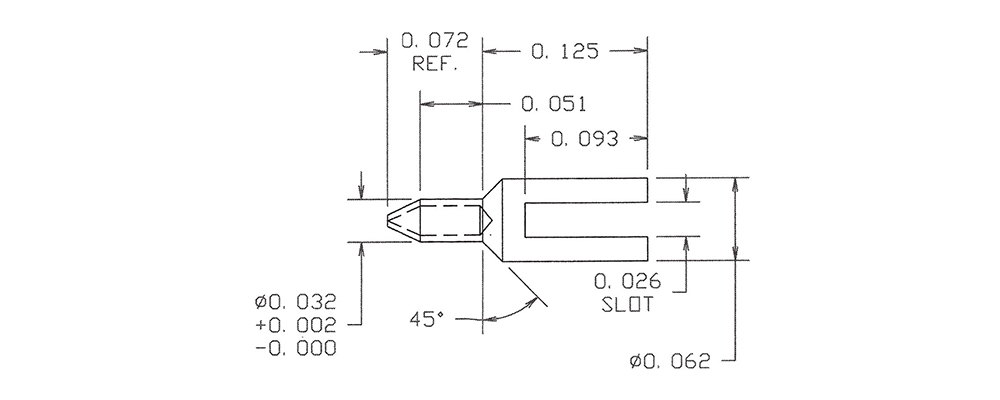

09-7181-1-05
09-7181-1-05
09-7181-1-05
0.197" - - RIVET MOUNT 0.052" 1/32 0.036 Brass Electro Solder NO

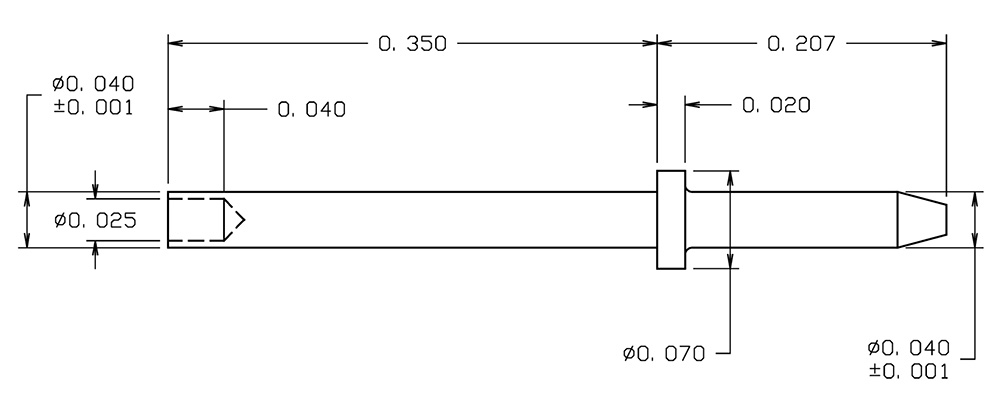

09-8022-10-035
09-8022-10-035
09-8022-10-035
0.538" 0.040 - Swage Mount 0.350" 10/32 0.043 Brass Gold YES

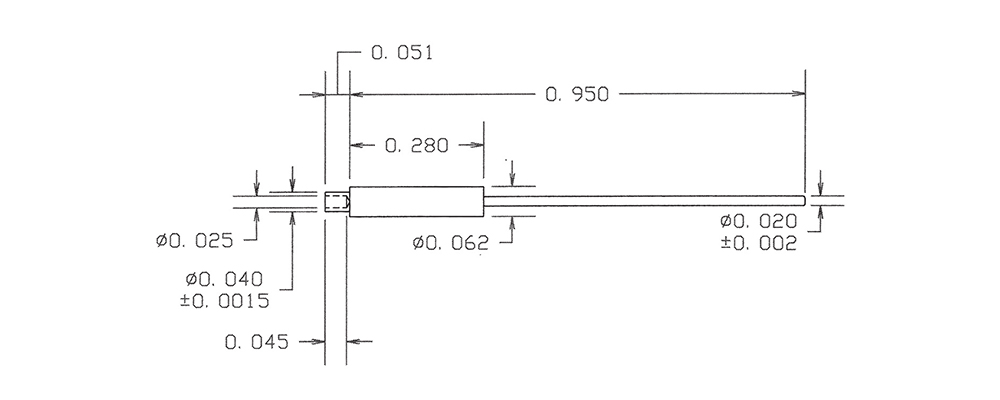

09-8058-1-05
09-8058-1-05
09-8058-1-05
1.001" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO

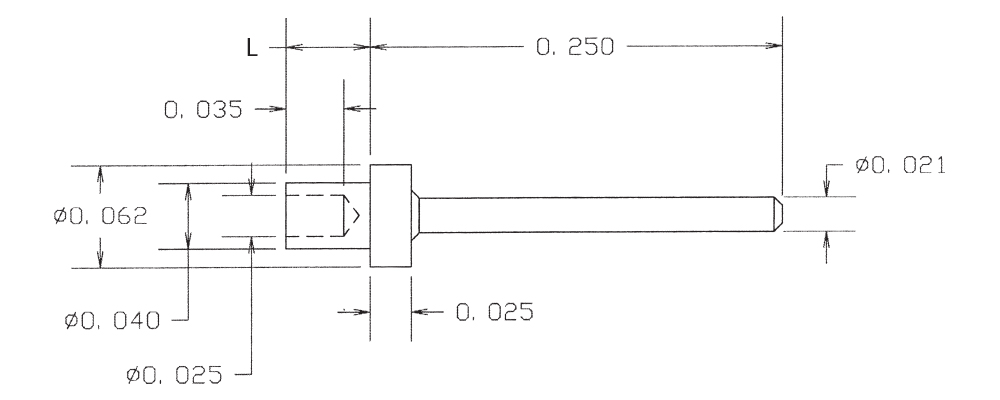

09-8096-2-035
09-8096-2-035
09-8096-2-035
0.332" 0.021 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES

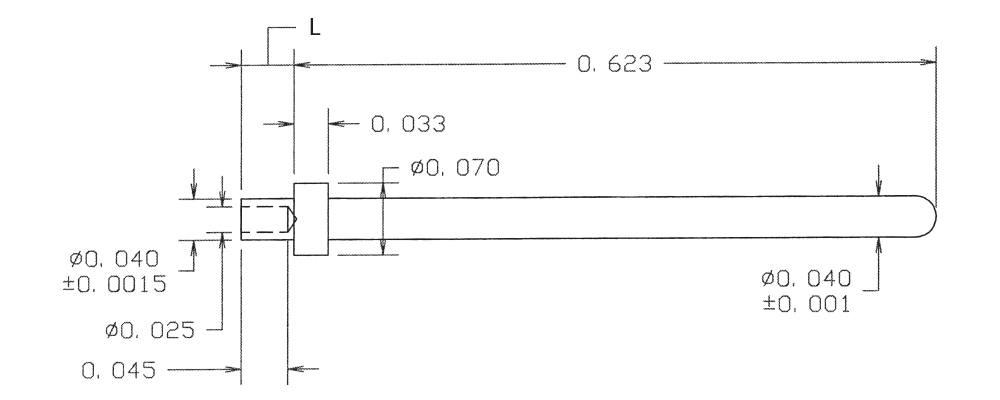

09-8154-1-088
09-8154-1-088
09-8154-1-088
0.674" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO

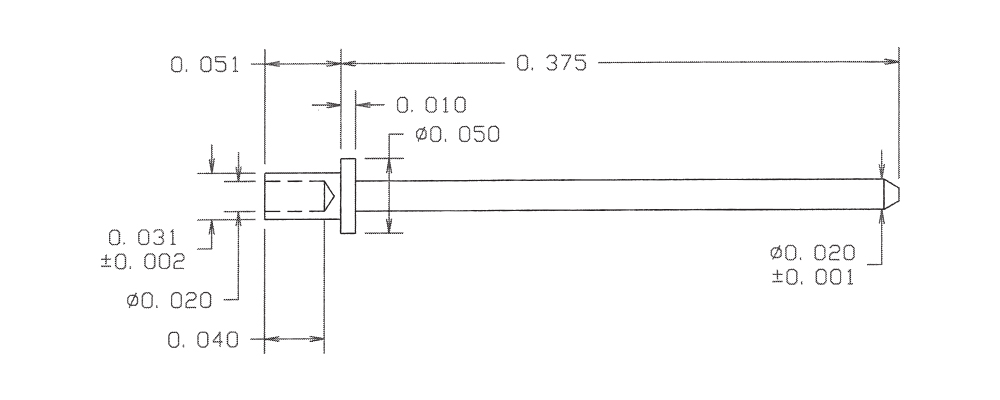

09-8182-1-04
09-8182-1-04
09-8182-1-04
0.426" 0.020 - Swage Mount 0.051" 1/32 0.035 Brass Electro-Tin YES

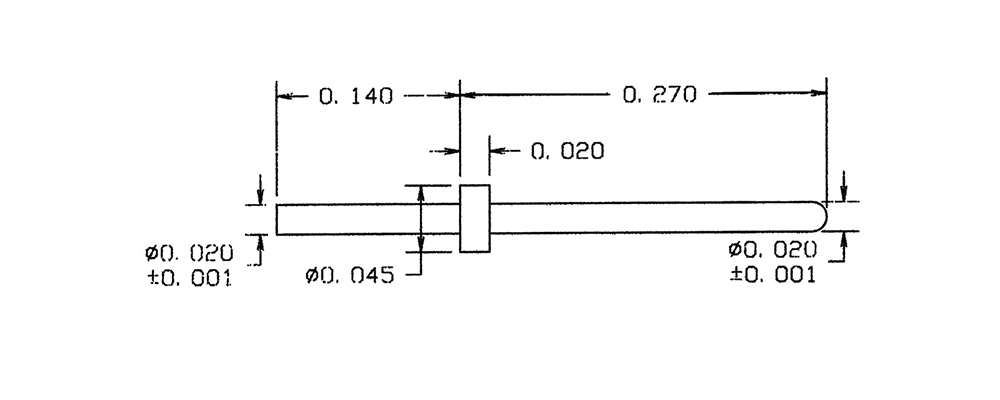

09-8348-3-035
09-8348-3-035
09-8348-3-035
0.410" 0.020 - Solder 0.140" 1/64 TO 1/8 0.0225 Brass Gold YES

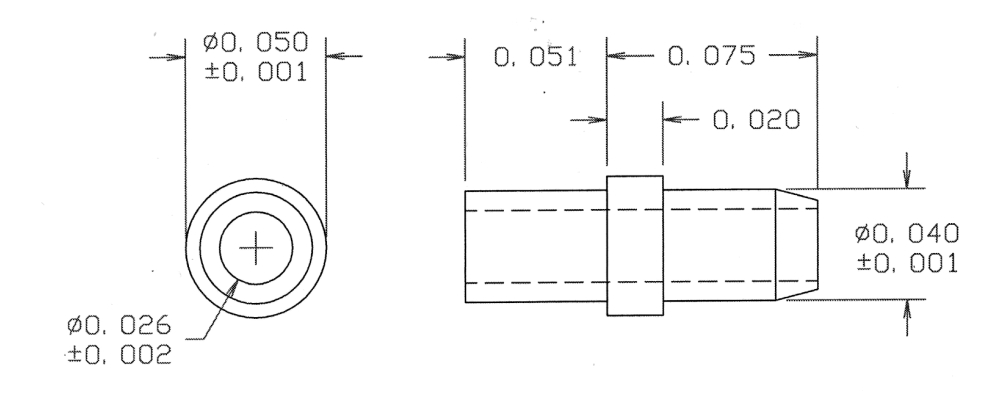

09-8588-1-03
09-8588-1-03
09-8588-1-03
0.126" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES
09-8705-3-088
09-8705-3-088
09-8705-3-088
0.471" - - Swage Mount 0.141" 3/32 0.094 LEADED Red Brass Bright Tin-Lead NO
09-8816-2A-04
09-8816-2A-04
09-8816-2A-04
0.324" 0.040 - Swage Mount 0.100" 1/16 0.094 Brass Electro-Tin YES

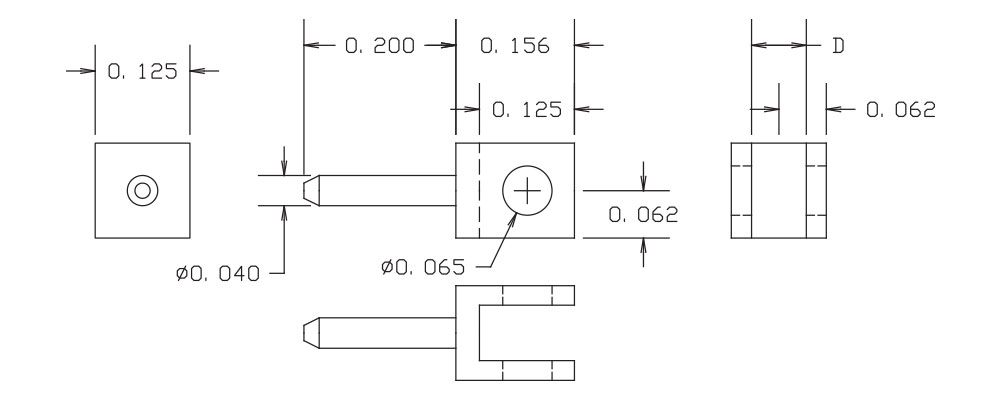

09-9502-1-035
09-9502-1-035
09-9502-1-035
0.356" 0.040 - 0-80 Screw - 1/32 CLEARANCE FOR #0 Screw Brass Gold YES
10-105-3-035
10-105-3-035
10-105-3-035
0.224" - - Swage Mount 0.115" 3/32 0.076 Brass Gold YES
10-112-4-035
10-112-4-035
10-112-4-035
0.346" - - Swage Mount 0.165" 1/8 0.082 Brass Gold YES
10-134-3-044
10-134-3-044
10-134-3-044
0.282" - - Swage Mount 0.125" 3/32 0.081 Brass Bright Tin YES
