Commercial
Non-Insulated
Terminals

Filter

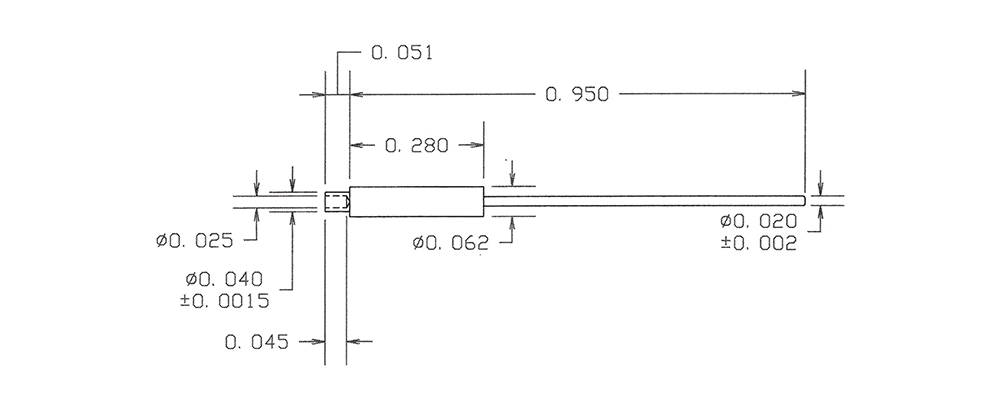

09-8058-1-04
09-8058-1-04
09-8058-1-04
1.001" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Electro-Tin YES

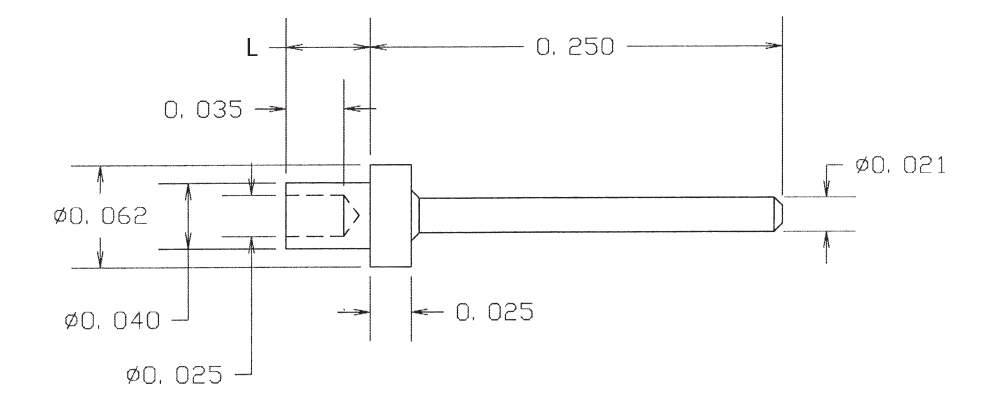

09-8096-2-01
09-8096-2-01
09-8096-2-01
0.332" 0.021 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES

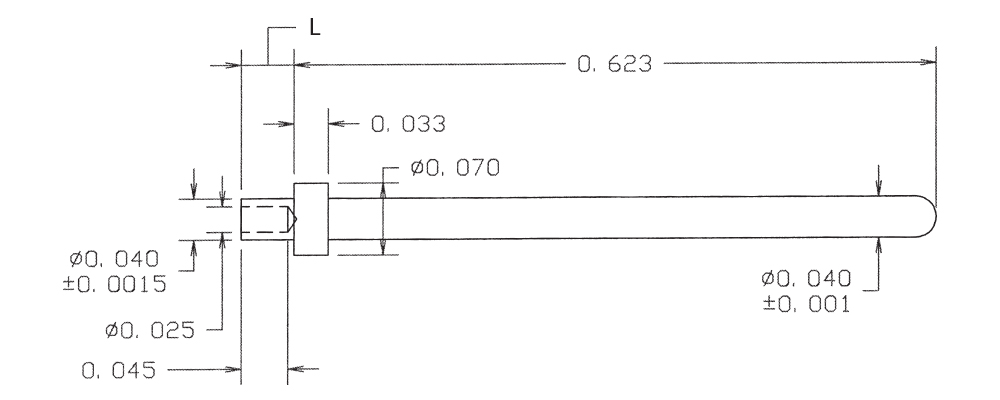

09-8154-1-044
09-8154-1-044
09-8154-1-044
0.674" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin YES

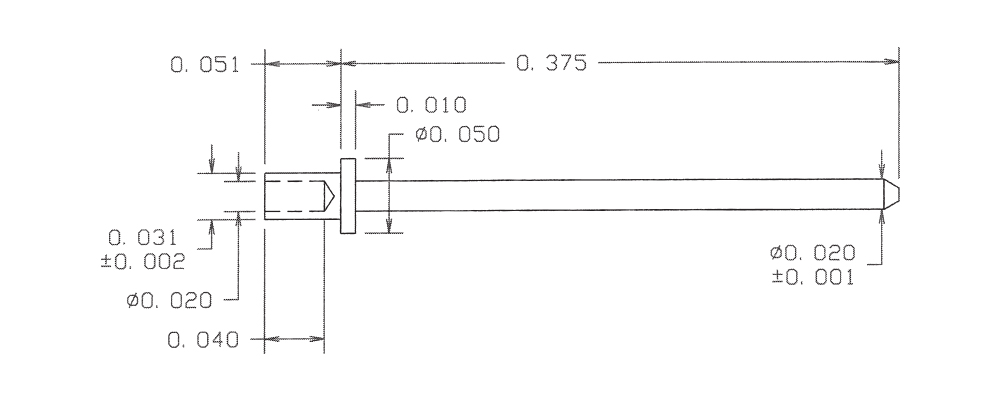

09-8182-1-03
09-8182-1-03
09-8182-1-03
0.426" 0.020 - Swage Mount 0.051" 1/32 0.035 Brass Gold YES

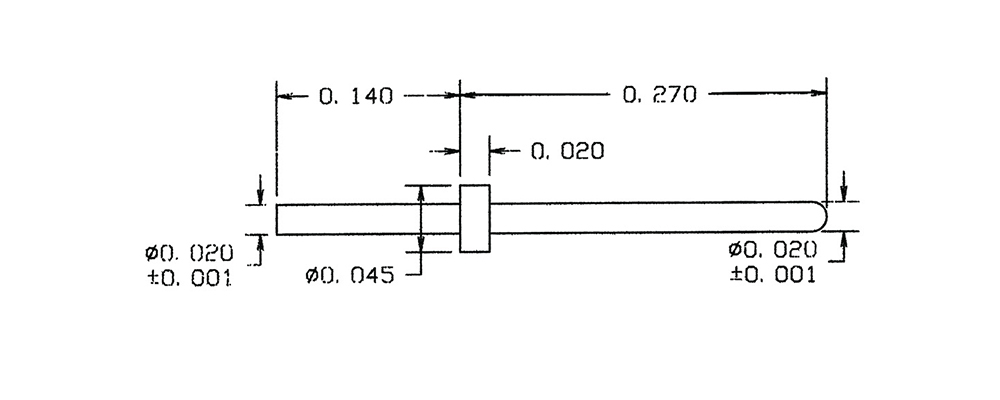

09-8348-3-01
09-8348-3-01
09-8348-3-01
0.410" 0.020 - Solder 0.140" 1/64 TO 1/8 0.0225 Brass Silver YES

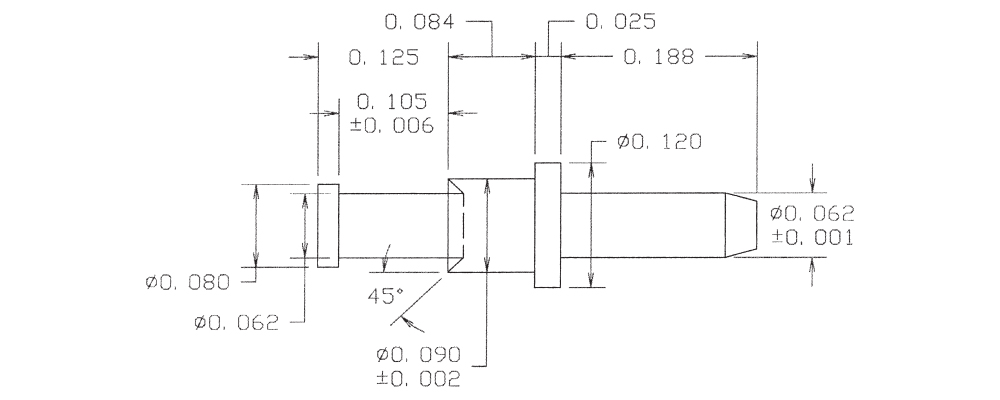

09-8586-2-088
09-8586-2-088
09-8586-2-088
0.422" 0.062 TURRET/PIN Swage Mount 0.084" 1/16 0.094 Brass Bright Tin-Lead NO
09-8705-3-044
09-8705-3-044
09-8705-3-044
0.471" - - Swage Mount 0.141" 3/32 0.094 LEADED Red Brass Bright Tin YES

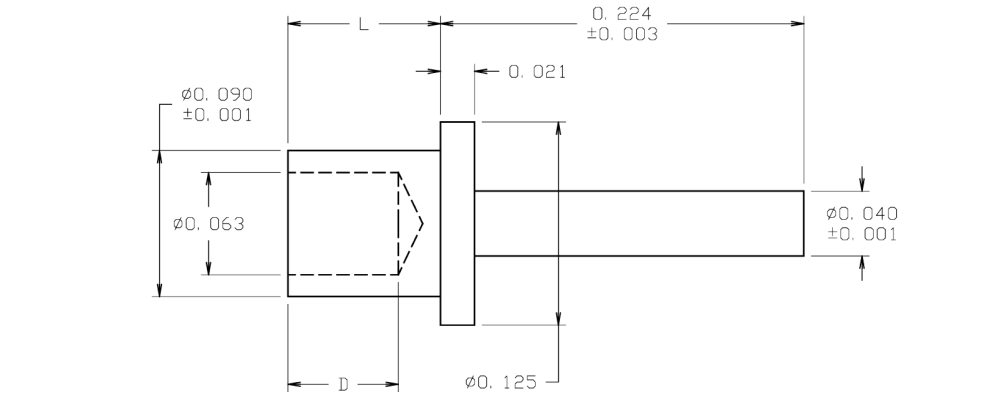

09-8816-2A-03
09-8816-2A-03
09-8816-2A-03
0.324" 0.040 - Swage Mount 0.100" 1/16 0.094 Brass Gold YES

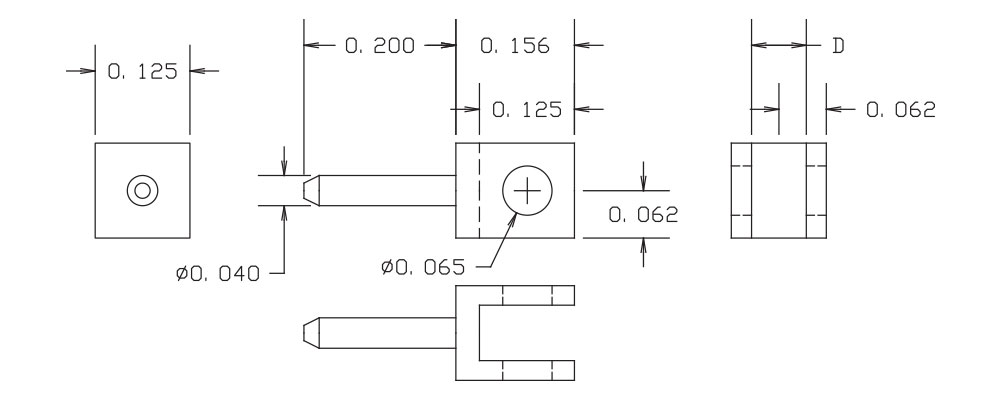

09-9502-1-01
09-9502-1-01
09-9502-1-01
0.356" 0.040 - 0-80 Screw - 1/32 CLEARANCE FOR #0 Screw Brass Silver YES
10-105-3-01
10-105-3-01
10-105-3-01
0.224" - - Swage Mount 0.115" 3/32 0.076 Brass Silver YES
10-112-4-01
10-112-4-01
10-112-4-01
0.346" - - Swage Mount 0.165" 1/8 0.082 Brass Silver YES
10-134-3-035
10-134-3-035
10-134-3-035
0.282" - - Swage Mount 0.125" 3/32 0.081 Brass Gold YES
10-204-6-01
10-204-6-01
10-204-6-01
0.593" - - Swage Mount 0.234" 3/16 0.116 Brass Silver YES

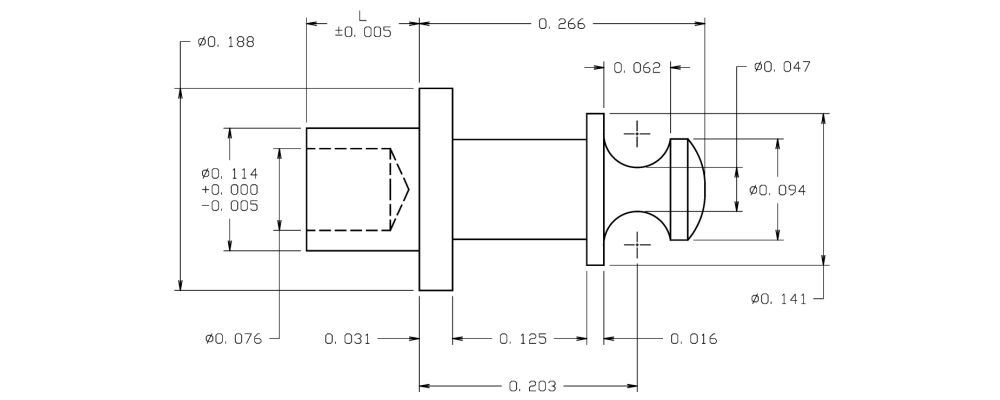

10-212-3-044
10-212-3-044
10-212-3-044
0.401" - - Swage Mount 0.135" 3/32 0.116 Brass Bright Tin YES
10-220-11-03
10-220-11-03
10-220-11-03
0.193" - - Swage Mount 0.037" 1/64 0.064 Brass Gold YES
10-230-4-044
10-230-4-044
10-230-4-044
0.399" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin YES
10-254-2-05
10-254-2-05
10-254-2-05
0.240" - - Swage Mount 0.084" 1/16 0.063 Brass Electro Solder NO
10-306-1-05
10-306-1-05
10-306-1-05
0.263" - - Swage Mount 0.075" 1/32 0.113 Brass Electro Solder NO
10-313-2-035
10-313-2-035
10-313-2-035
0.433" - - Swage Mount 0.105" 1/16 0.081 Brass Gold YES

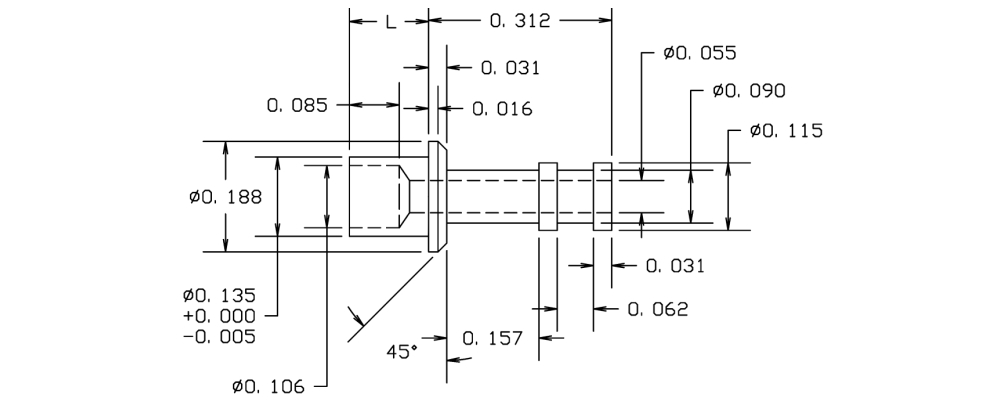

10-325-4-088
10-325-4-088
10-325-4-088
0.372" - - Swage Mount 0.165" 1/8 0.1405 Brass Bright Tin-Lead NO
