Commercial
Non-Insulated
Terminals

Filter

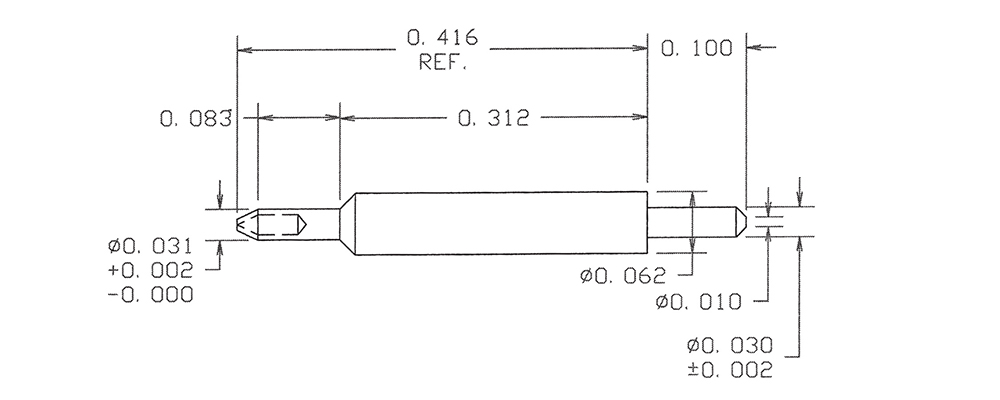

09-7117-2-04
09-7117-2-04
09-7117-2-04
0.516" 0.030 - RIVET MOUNT 0.083" 1/16 0.035 Brass Electro-Tin YES

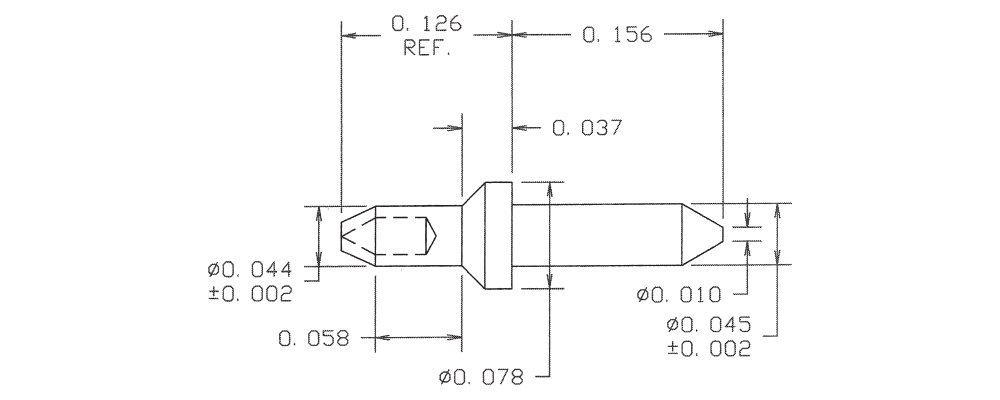

09-7149-1-01
09-7149-1-01
09-7149-1-01
0.282" 0.045 - RIVET MOUNT 0.058" 1/32 0.048 Brass Silver YES

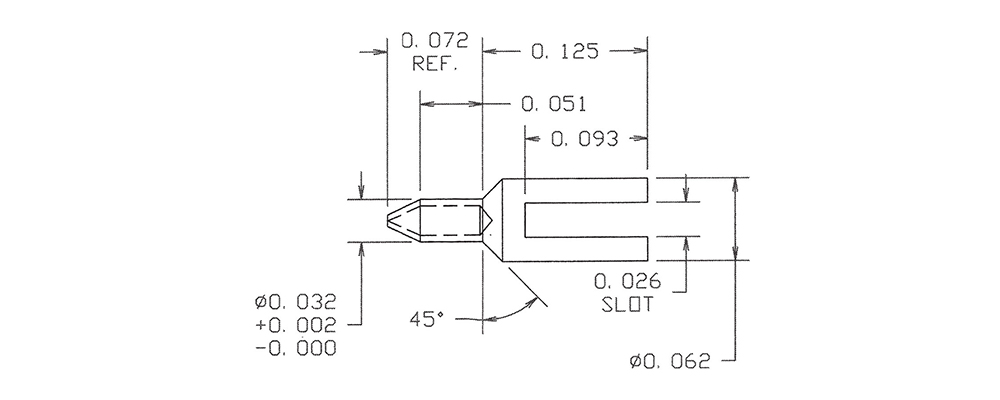

09-7181-1-044
09-7181-1-044
09-7181-1-044
0.197" - - RIVET MOUNT 0.052" 1/32 0.036 Brass Bright Tin YES

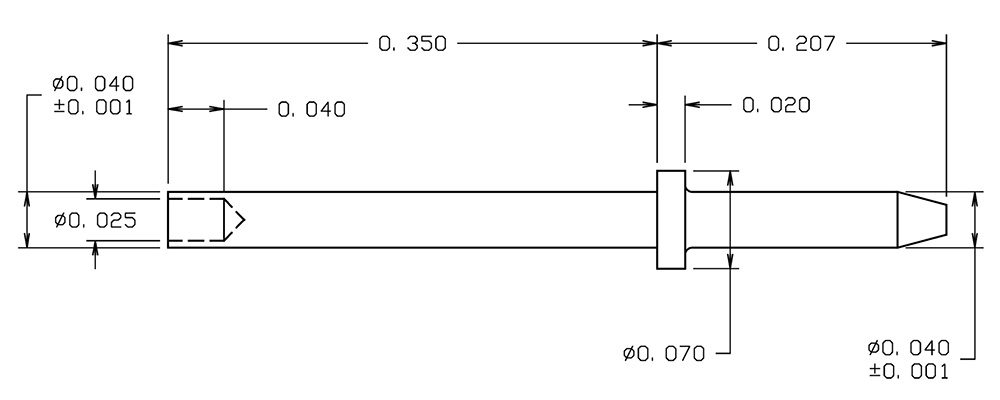

09-8022-10-03
09-8022-10-03
09-8022-10-03
0.538" 0.040 - Swage Mount 0.350" 10/32 0.043 Brass Gold YES

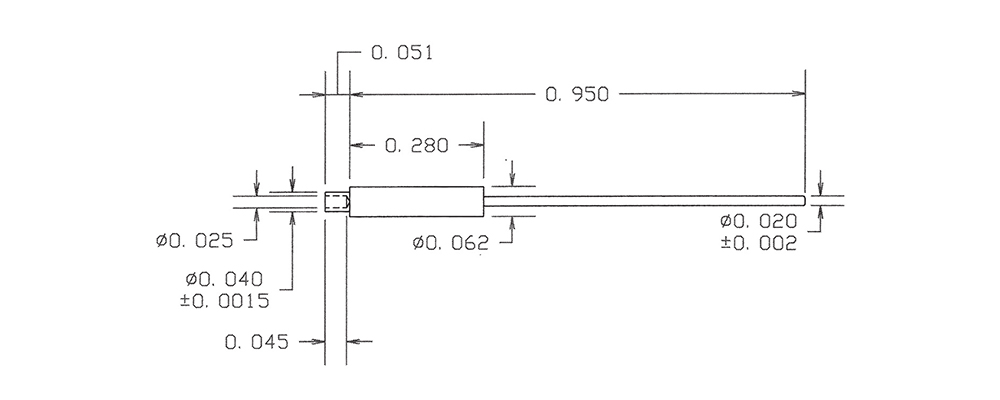

09-8058-1-044
09-8058-1-044
09-8058-1-044
1.001" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin YES

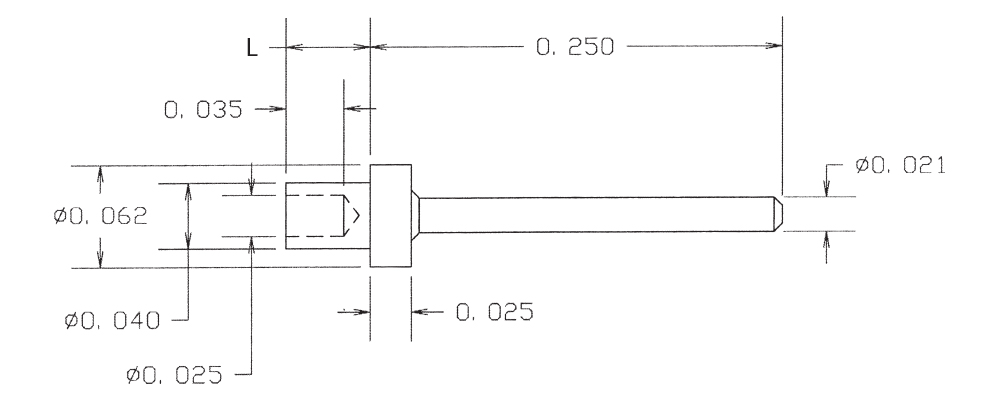

09-8096-2-03
09-8096-2-03
09-8096-2-03
0.332" 0.021 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES

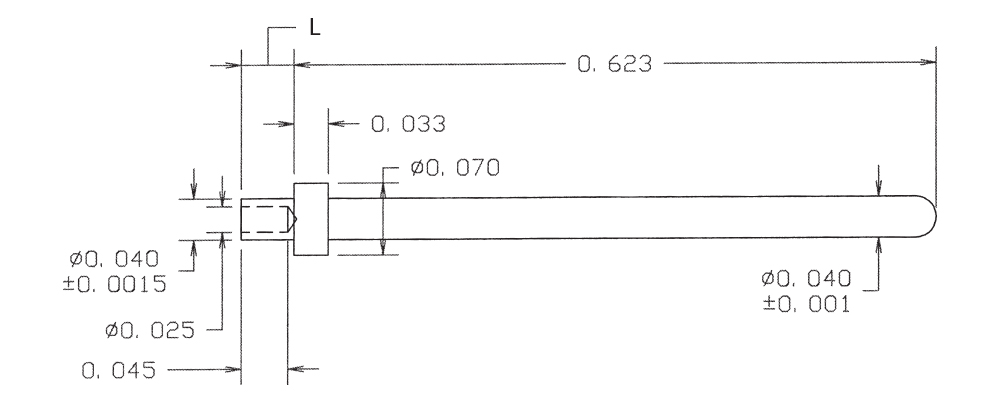

09-8154-1-05
09-8154-1-05
09-8154-1-05
0.674" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO

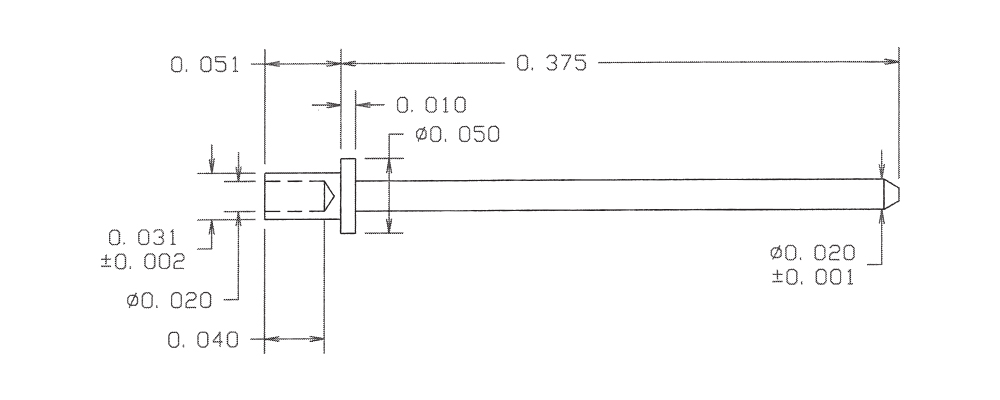

09-8182-1-035
09-8182-1-035
09-8182-1-035
0.426" 0.020 - Swage Mount 0.051" 1/32 0.035 Brass Gold YES

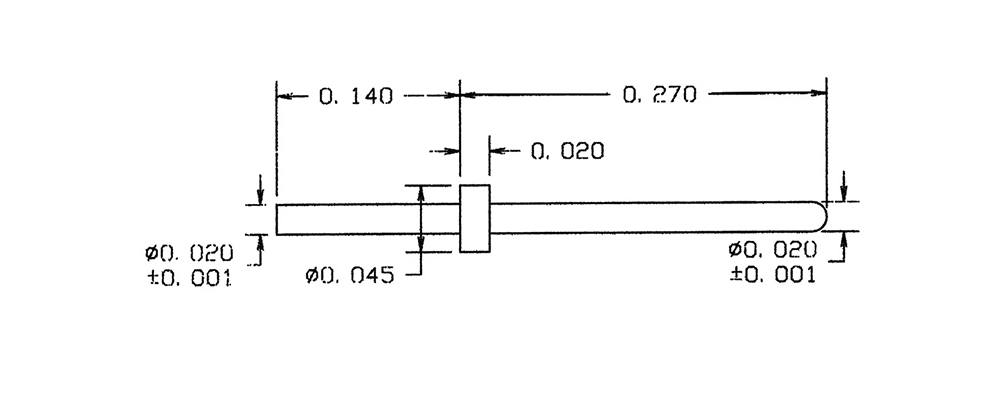

09-8348-3-03
09-8348-3-03
09-8348-3-03
0.410" 0.020 - Solder 0.140" 1/64 TO 1/8 0.0225 Brass Gold YES

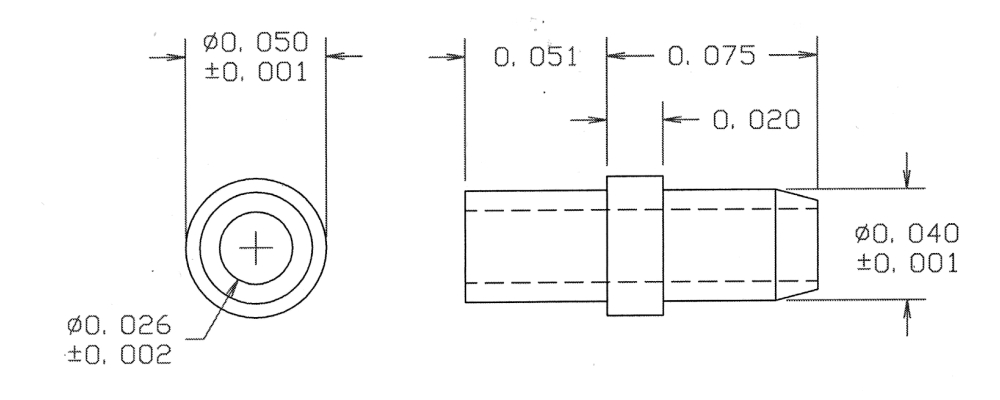

09-8588-1-01
09-8588-1-01
09-8588-1-01
0.126" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES

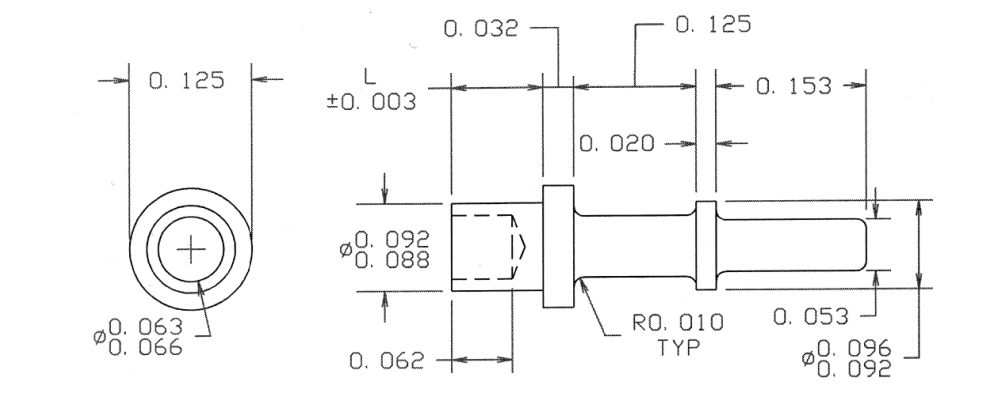

09-8705-3-05
09-8705-3-05
09-8705-3-05
0.471" - - Swage Mount 0.141" 3/32 0.094 LEADED Red Brass Electro Solder NO

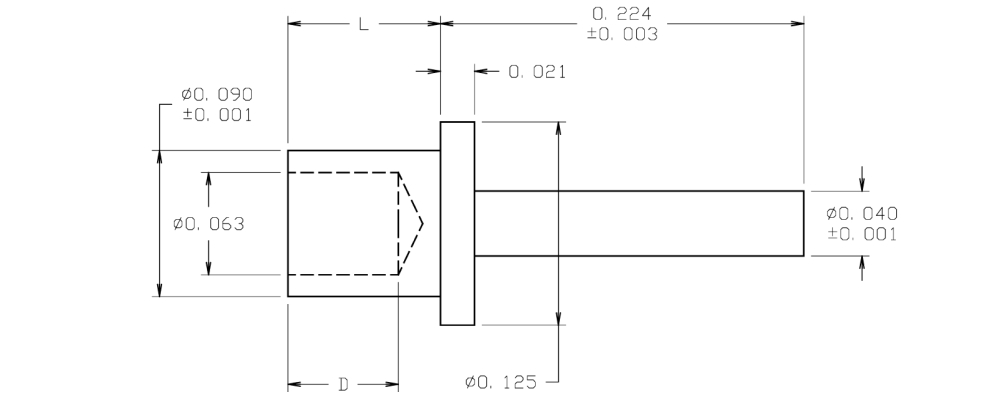

09-8816-2A-035
09-8816-2A-035
09-8816-2A-035
0.324" 0.040 - Swage Mount 0.100" 1/16 0.094 Brass Gold YES

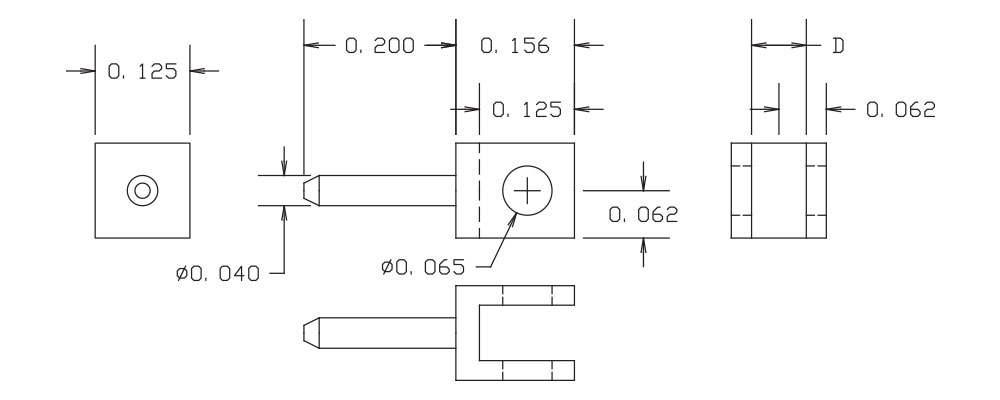

09-9502-1-03
09-9502-1-03
09-9502-1-03
0.356" 0.040 - 0-80 Screw - 1/32 CLEARANCE FOR #0 Screw Brass Gold YES

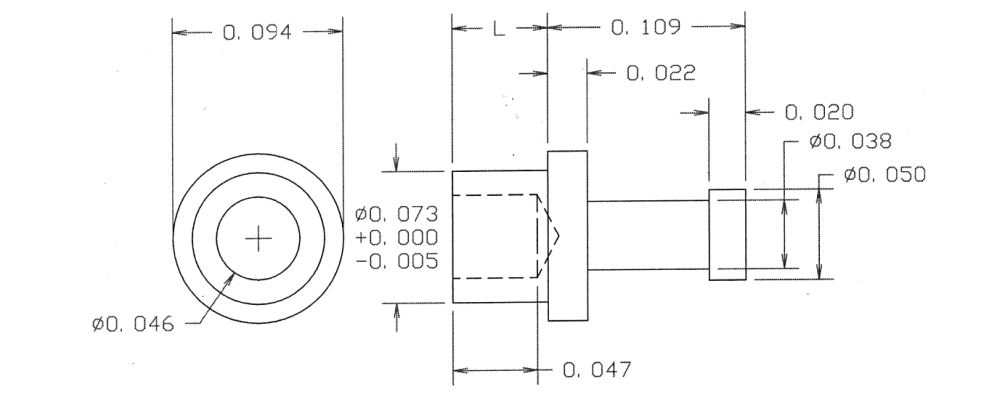

10-105-3-03
10-105-3-03
10-105-3-03
0.224" - - Swage Mount 0.115" 3/32 0.076 Brass Gold YES

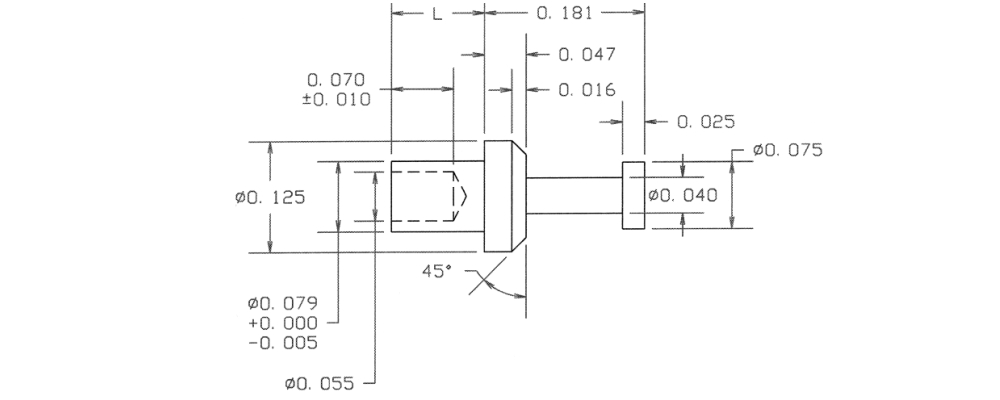

10-112-4-03
10-112-4-03
10-112-4-03
0.346" - - Swage Mount 0.165" 1/8 0.082 Brass Gold YES

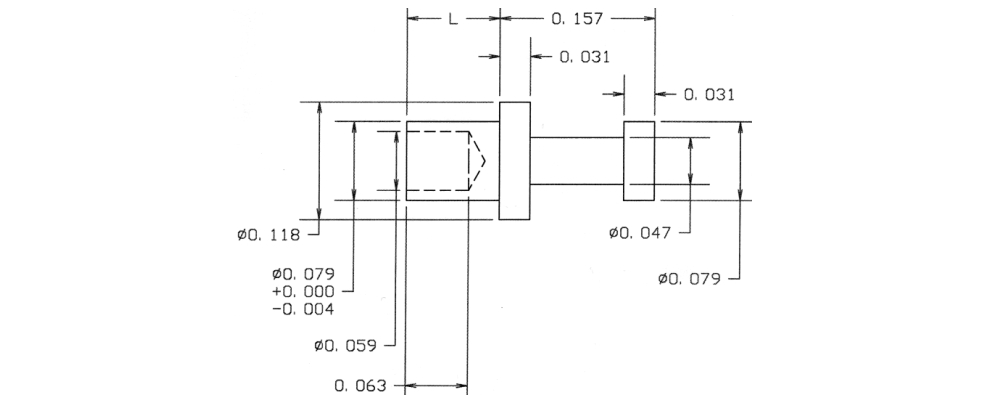

10-134-3-04
10-134-3-04
10-134-3-04
0.282" - - Swage Mount 0.125" 3/32 0.081 Brass Electro-Tin YES

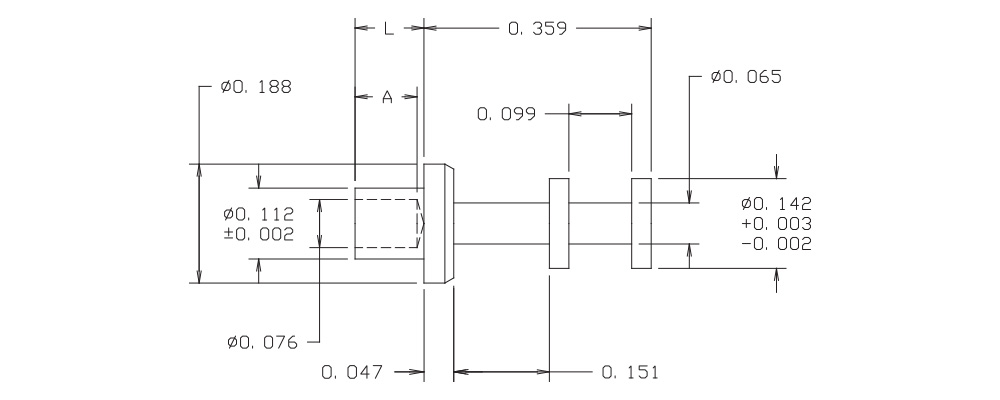

10-204-6-03
10-204-6-03
10-204-6-03
0.593" - - Swage Mount 0.234" 3/16 0.116 Brass Gold YES

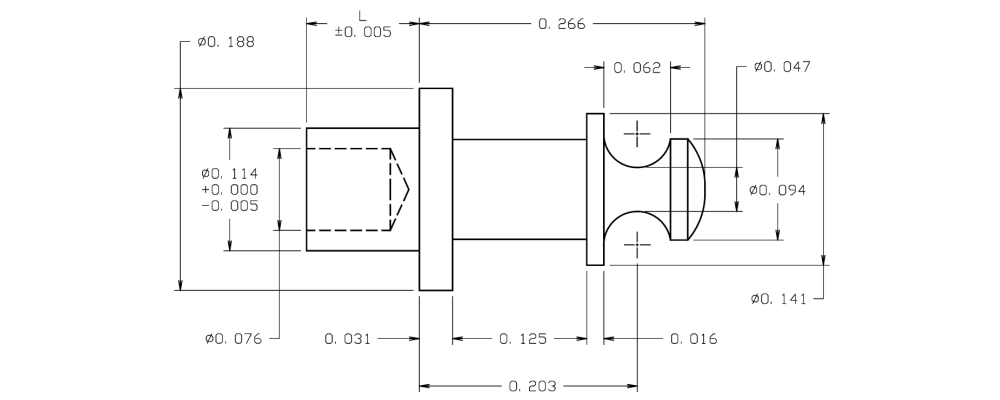

10-212-3-05
10-212-3-05
10-212-3-05
0.401" - - Swage Mount 0.135" 3/32 0.116 Brass Electro Solder NO

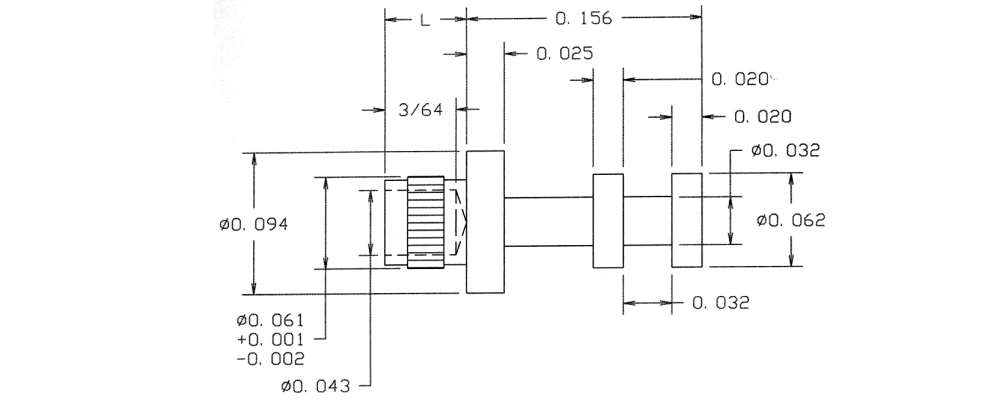

10-220-11-035
10-220-11-035
10-220-11-035
0.193" - - Swage Mount 0.037" 1/64 0.064 Brass Gold YES

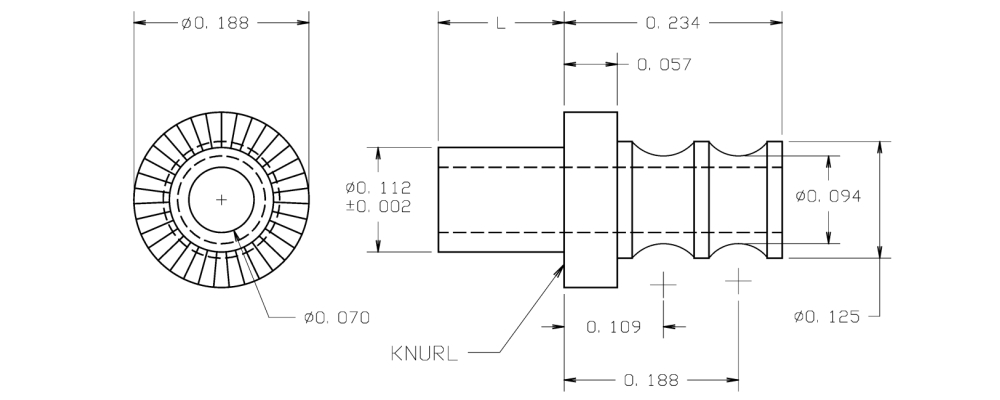

10-230-4-05
10-230-4-05
10-230-4-05
0.399" - - Swage Mount 0.165" 1/8 0.116 Brass Electro Solder NO
