Commercial
Non-Insulated
Terminals

Part No	Length	Pin Diameter	Feed Thru Combination	Mounting	Shank Length	Board Thickness	Hole Size	Terminal Material	Terminal Finish	RoHS

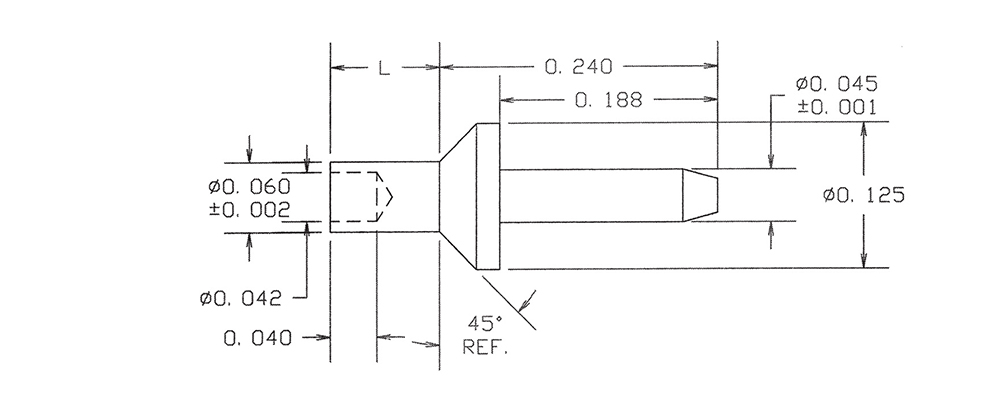

10-922-4-01	0.396"	0.045	-	Swage Mount	0.156"	1/8	0.064	Brass	Silver	YES

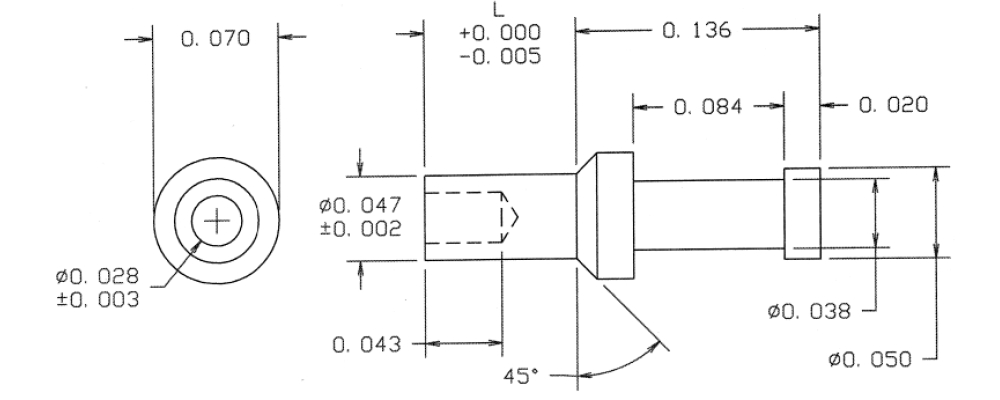

10-939-2-035	0.221"	-	-	Swage Mount	0.085"	1/16	0.052	Brass	Gold	YES

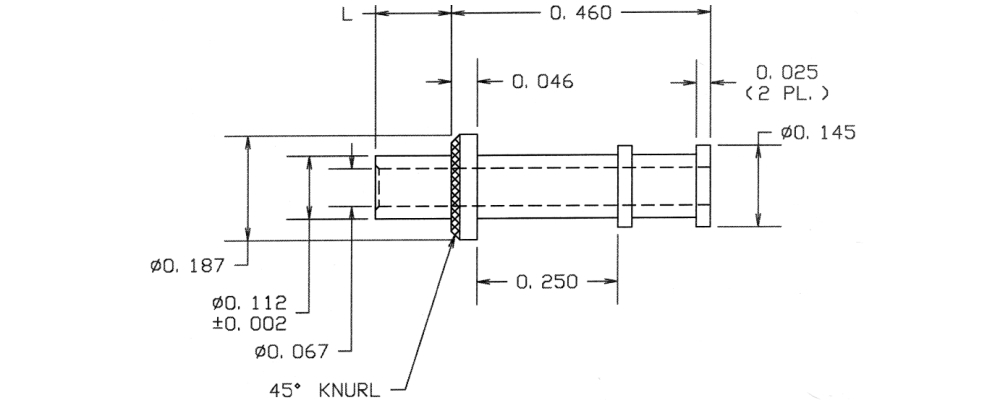

14-347-3-044	0.595"	-	-	Swage Mount	0.135"	3/32	0.116	LEADED Red Brass	Bright Tin	YES

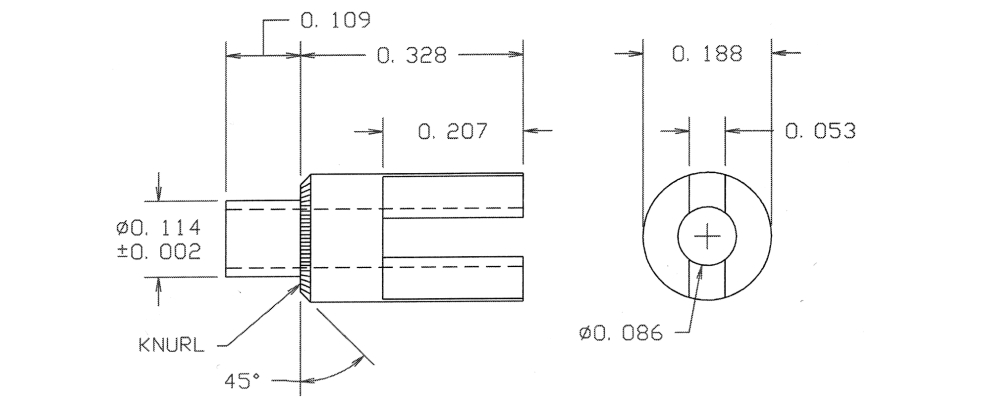

09-0028-2-05	0.437"	-	-	Swage Mount	0.109"	1/16	0.116	Brass	Electro Solder	NO

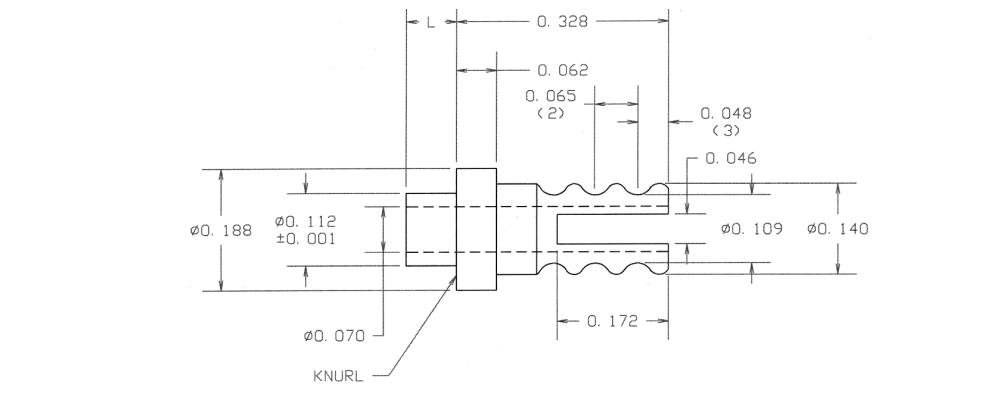

10-410-4-03	0.493"	-	-	Swage Mount	0.165"	1/8	0.116	Brass	Gold	YES

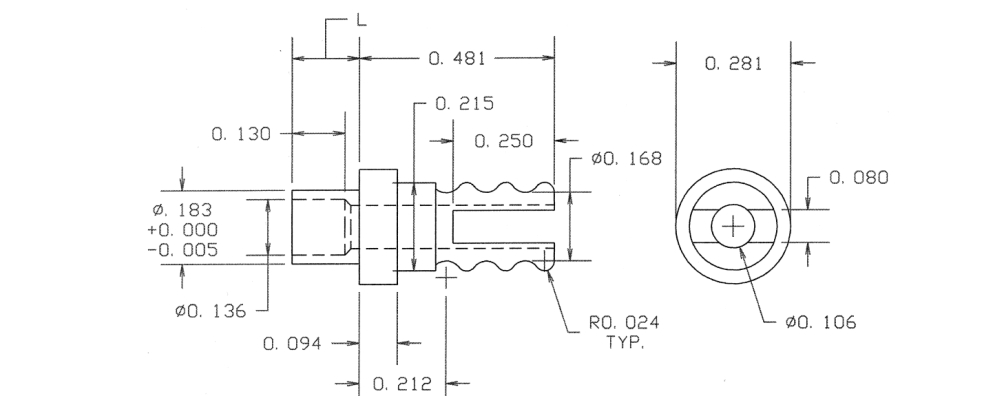

10-439-3-05	0.616"	-	-	Swage Mount	0.135"	3/32	0.1875	Brass	Electro Solder	NO

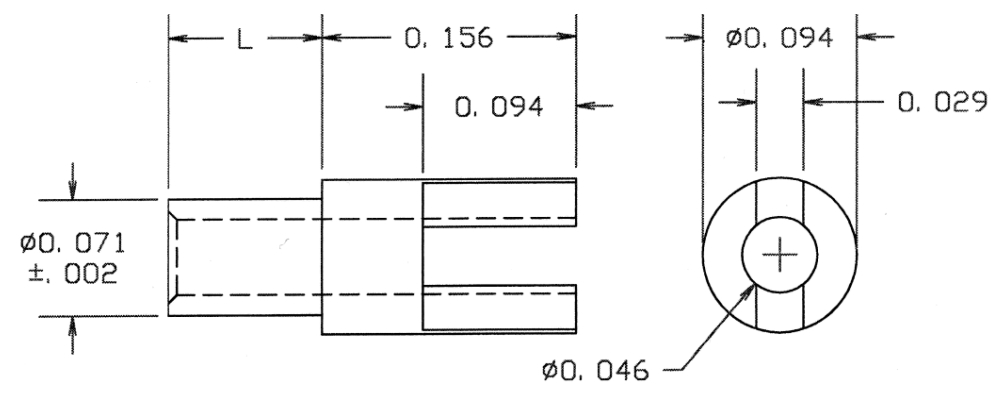

10-457-8-035	0.437"	-	-	Swage Mount	0.281"	1/4	0.076	Brass	Gold	YES

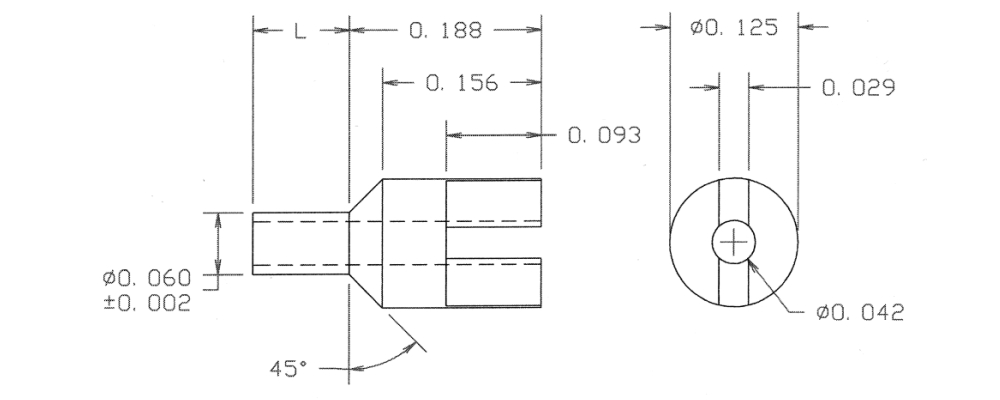

10-903-2-088	0.282"	-	-	Swage Mount	0.094"	1/16	0.063	Brass	Bright Tin-Lead	NO

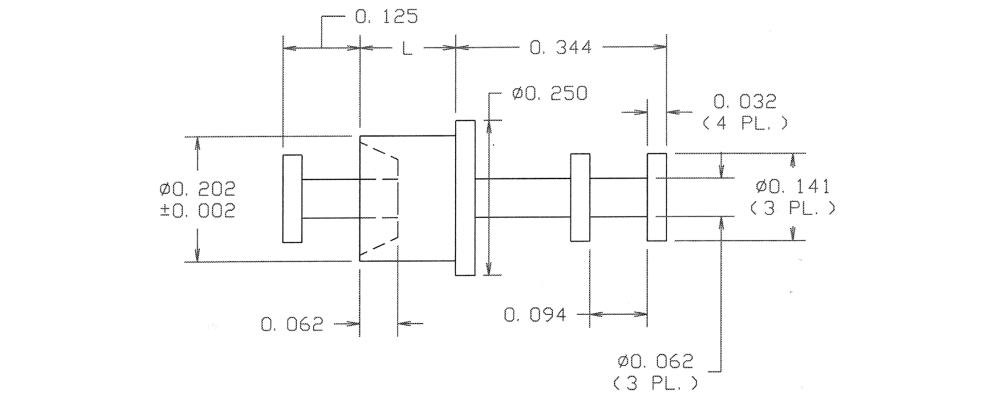

09-0033-1-088	0.563"	-	TURRET/DOUBLE TURRET	Swage Mount	0.094"	1/16	0.206	Brass	Bright Tin-Lead	NO

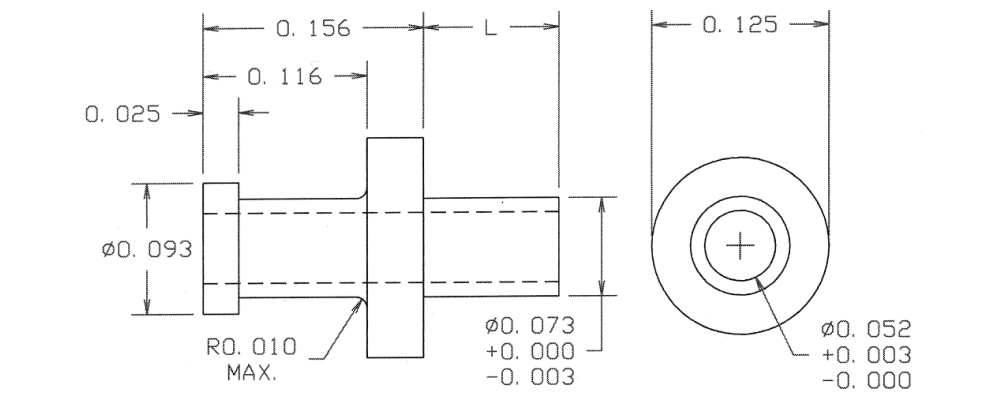

09-0078-4-088	0.303"	-	-	Swage Mount	0.147"	1/8	0.076	Brass	Bright Tin-Lead	NO

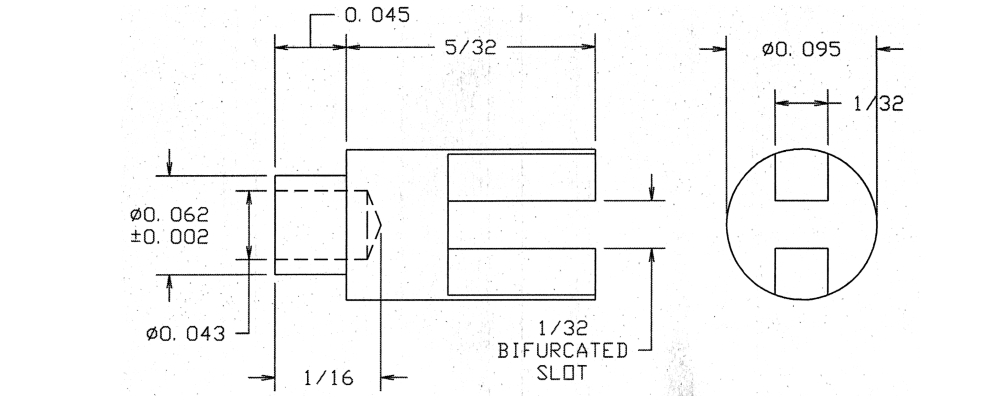

09-0166-1-095	0.201"	-	-	Swage Mount	0.045"	1/32	0.067	Brass	Hot Solder Dip	NO

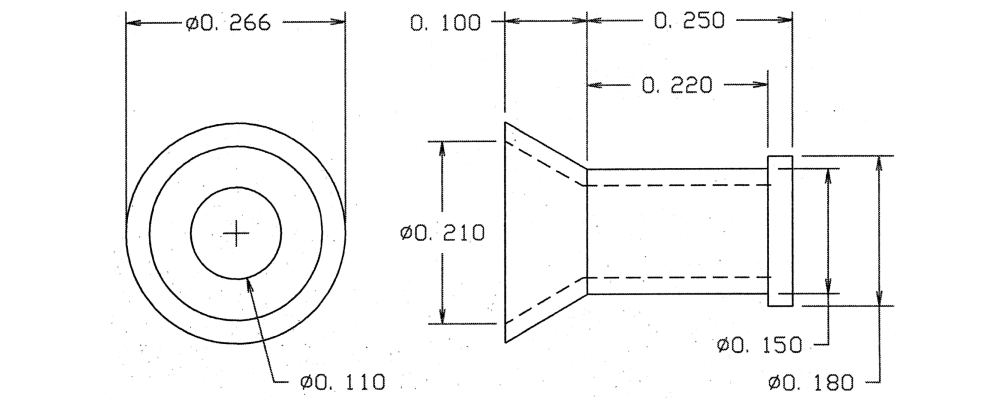

09-0206-1-035	0.350"	-	-	Solder	-	-	-	Brass	Gold	YES

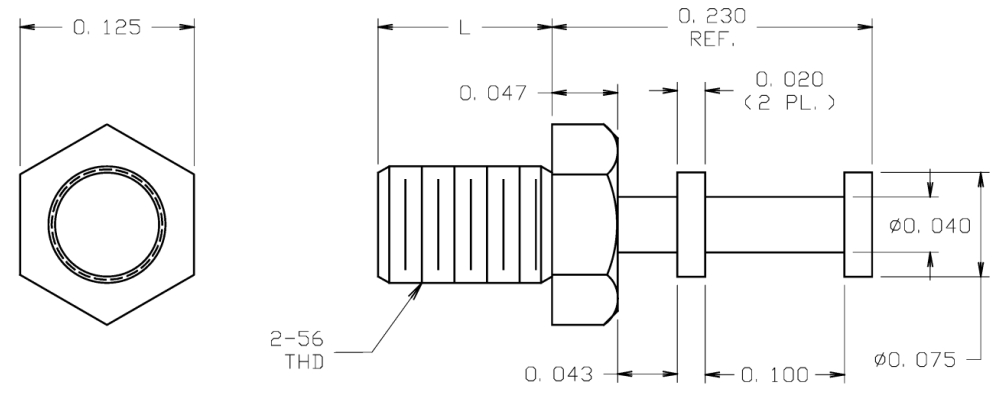

09-0241-2-01	0.355"	-	-	2-56	-	-	2-56 THREAD	Brass	Silver	YES

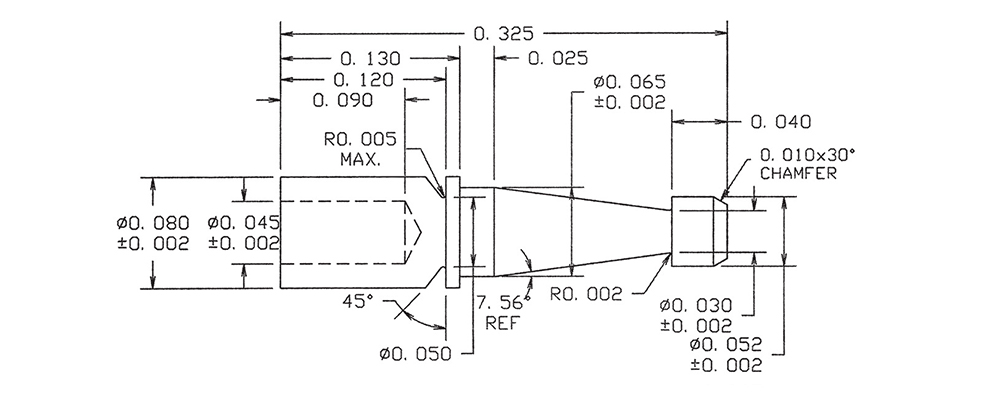

09-0287-2-01	0.325"	0.052	-	-	-	-	-	Brass	Silver	YES

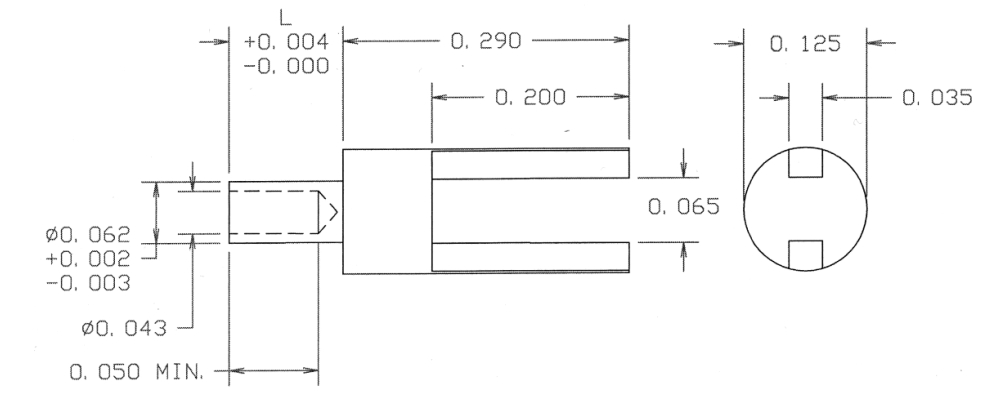

09-0353-2-035	0.375"	-	-	Swage Mount	0.085"	1/16	0.067	Brass	Gold	YES

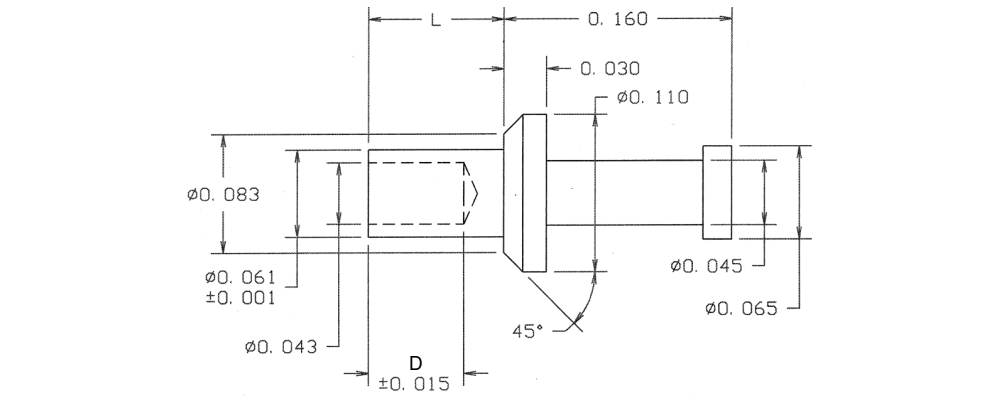

09-7012-2-088	0.255"	-	-	Swage Mount	0.095"	1/16	0.067	Brass	Bright Tin-Lead	NO

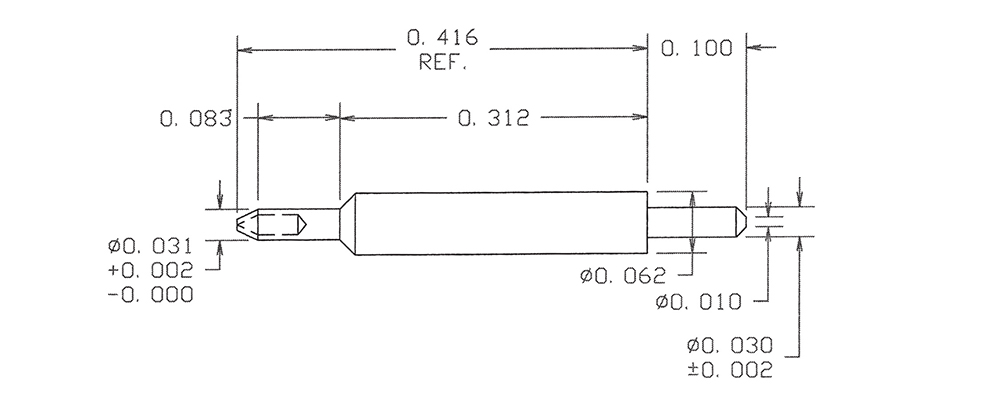

09-7117-2-035	0.516"	0.030	-	RIVET MOUNT	0.083"	1/16	0.035	Brass	Gold	YES
09-7148-3-088	0.453"	0.040	-	RIVET MOUNT	0.152"	3/32	0.048	Brass	Bright Tin-Lead	NO

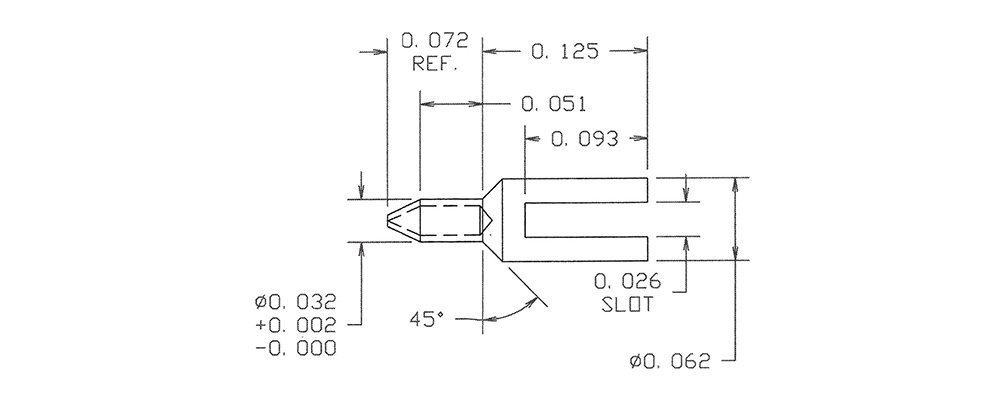

09-7181-1-04	0.197"	-	-	RIVET MOUNT	0.052"	1/32	0.036	Brass	Electro-Tin	YES

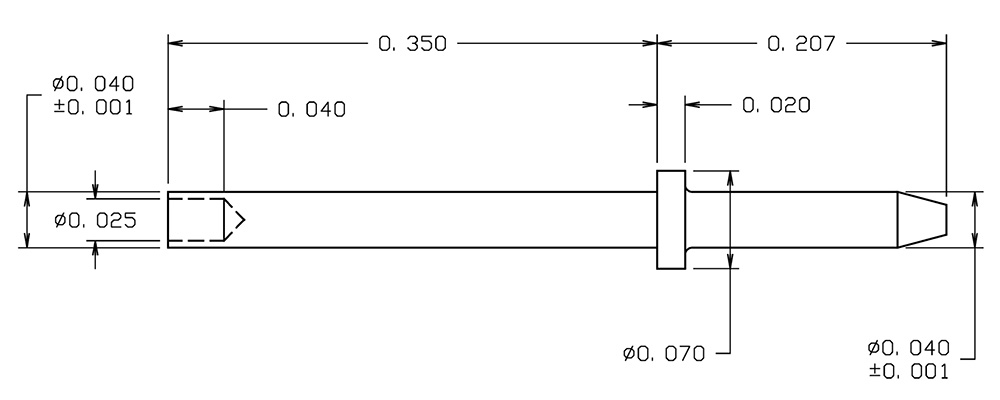

09-8022-10-01	0.538"	0.040	-	Swage Mount	0.350"	10/32	0.043	Brass	Silver	YES
