Commercial
Non-Insulated
Terminals

Filter
10-329-4-05
10-329-4-05
10-329-4-05
0.500" - - Swage Mount 0.172" 1/8 0.125 Brass Electro Solder NO
10-419-3-05
10-419-3-05
10-419-3-05
0.526" - SLOTTED/DOUBLE TURRET Swage Mount 0.135" 3/32 0.094 Brass Electro Solder NO

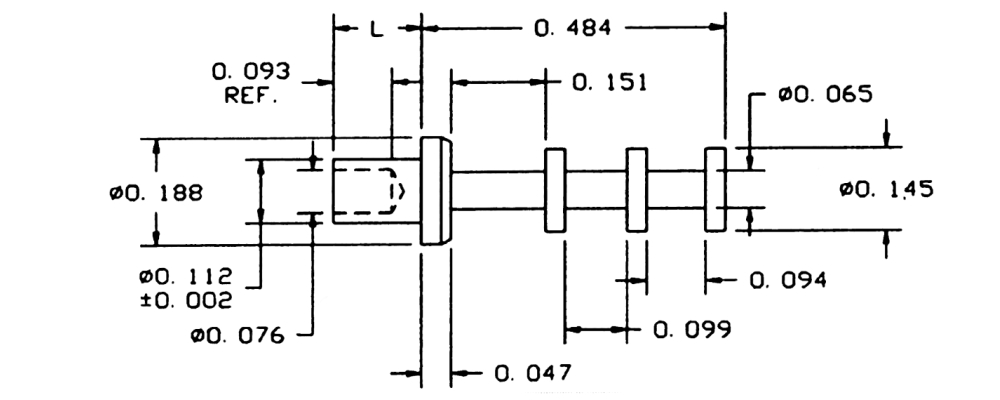

10-602-1-05
10-602-1-05
10-602-1-05
0.562" - - Swage Mount 0.078" 1/32 0.116 Brass Electro Solder NO
10-935-1-035
10-935-1-035
10-935-1-035
0.284" 0.025 TURRET/PIN Swage Mount 0.051" 1/32 0.0625 Brass Gold YES
10-312-3-05
10-312-3-05
10-312-3-05
0.463" - - Swage Mount 0.135" 3/32 0.082 Brass Electro Solder NO
10-816-6-05
10-816-6-05
10-816-6-05
0.430" - - Swage Mount 0.230" 3/16 0.1495 Brass Electro Solder NO
10-216-2-05
10-216-2-05
10-216-2-05
0.342" - - Swage Mount 0.105" 1/16 0.094 Brass Electro Solder NO
10-807-2-05
10-807-2-05
10-807-2-05
0.452" - - Swage Mount 0.109" 1/16 0.094 Brass Electro Solder NO
10-335-3-05
10-335-3-05
10-335-3-05
0.343" - - Swage Mount 0.125" 3/32 0.081 Brass Electro Solder NO
10-313-2-05
10-313-2-05
10-313-2-05
0.433" - - Swage Mount 0.105" 1/16 0.081 Brass Electro Solder NO
10-816-4-05
10-816-4-05
10-816-4-05
0.365" - - Swage Mount 0.165" 1/8 0.1495 Brass Electro Solder NO
09-8633-2-05
09-8633-2-05
09-8633-2-05
0.578" 0.080 - Swage Mount 0.082" 1/16 0.086 Brass Electro Solder NO
09-0024-1-05
09-0024-1-05
09-0024-1-05
0.507" - - Swage Mount 0.062" 1/32 0.094 Brass Electro Solder NO
10-8025-4-05
10-8025-4-05
10-8025-4-05
0.442" 0.040 TURRET/PIN Swage Mount 0.145" 1/8 0.076 Brass Electro Solder NO
10-816-1-05
10-816-1-05
10-816-1-05
0.275" - - Swage Mount 0.075" 1/32 0.1495 Brass Electro Solder NO
10-209-1-05
10-209-1-05
10-209-1-05
0.297" - - Swage Mount 0.078" 1/32 0.094 Brass Electro Solder NO
10-543-2-05
10-543-2-05
10-543-2-05
0.539" - Double Turret/Double Turret Swage Mount 0.094" 1/16 0.094 Brass Electro Solder NO
10-341-11-05
10-341-11-05
10-341-11-05
0.224" - - Swage Mount 0.037" 1/64 0.076 Brass Electro Solder NO
10-805-2-05
10-805-2-05
10-805-2-05
0.399" - - Swage Mount 0.109" 1/16 0.094 Brass Electro Solder NO
10-861-4-05
10-861-4-05
10-861-4-05
0.328" 0.040 - Swage Mount 0.156" 1/8 0.094 Brass Electro Solder NO

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
