Commercial
Non-Insulated
Terminals

Part No	Length	Pin Diameter	Feed Thru Combination	Mounting	Shank Length	Board Thickness	Hole Size	Terminal Material	Terminal Finish	RoHS

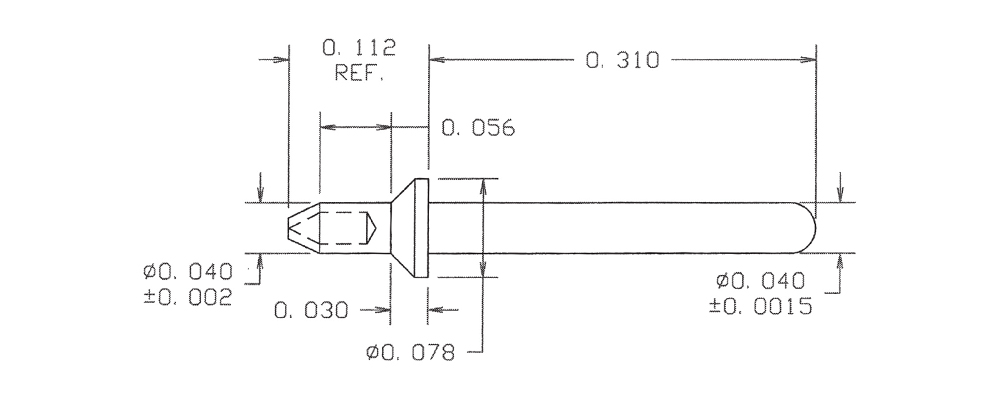

09-7126-1-05	0.422"	0.0405	-	RIVET MOUNT	0.056"	1/32	0.044	Brass	Electro Solder	NO
09-7156-2-035	0.402"	0.053	-	RIVET MOUNT	0.095"	1/16	0.0625	Brass	Gold	YES

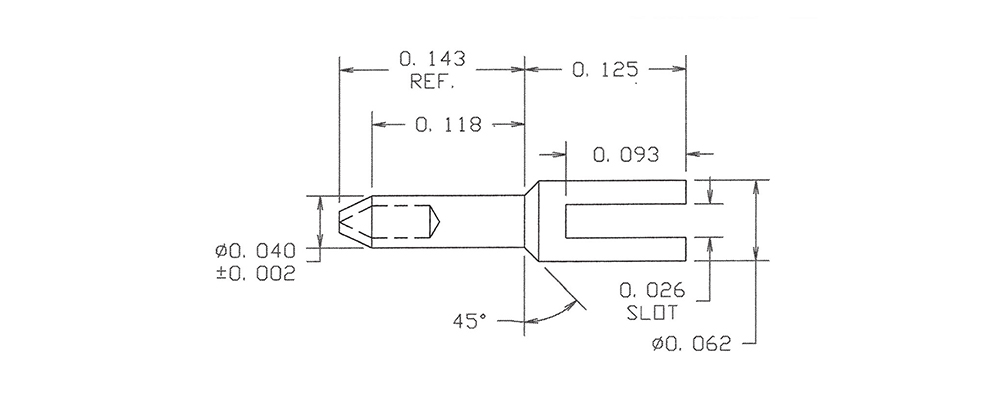

09-7186-3-088	0.268"	-	-	RIVET MOUNT	0.118"	3/32	0.044	Brass	Bright Tin-Lead	NO
09-8035-1-04	1.125"	0.0625	-	-	-	-	-	Brass	Electro-Tin	YES
09-8064-5-088	0.190"	0.020 (+0.000/-0.001)	-	Swage Mount	0.051"	1/32	0.033	Brass	Bright Tin-Lead	NO
09-8116-2-04	0.267"	0.025	-	Swage Mount	0.082"	1/16	0.043	Brass	Electro-Tin	YES
09-8160-2-01	0.792"	0.0405	-	Swage Mount	0.082"	1/16	0.043	Brass	Silver	YES

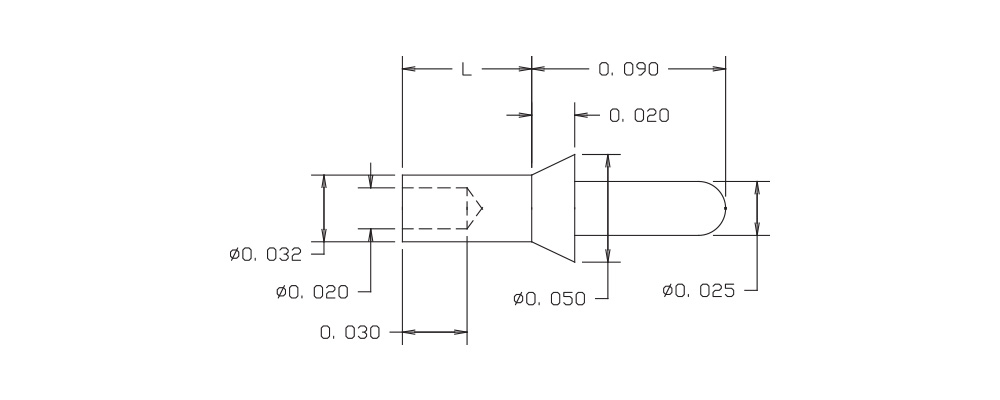

09-8188-2-044	0.165"	0.025	-	Swage Mount	0.075"	1/16	0.035	Brass	Bright Tin	YES
09-8420-2-035	0.150"	0.040	-	Solder	-	-	0.042	Brass	Gold	YES
09-8631-2-05	0.735"	0.032	-	Swage Mount	0.082"	1/16	0.055	Brass	Electro Solder	NO
09-8738-1-02	0.250"	0.020	-	-	-	-	-	Brass	Nickel	YES
09-8836-1-03	0.760"	0.040	-	Swage Mount	0.053"	1/32	0.043	Brass	Gold	YES

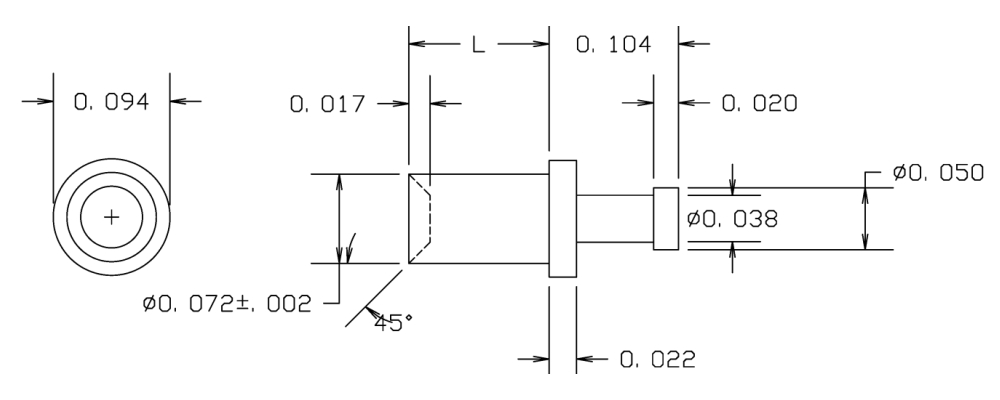

10-101-2-035	0.186"	-	-	Swage Mount	0.082"	1/16	0.076	Brass	Gold	YES

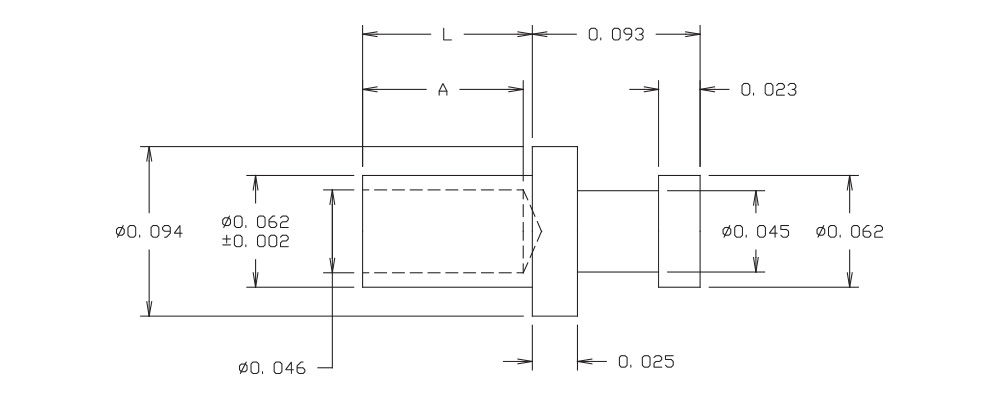

10-107-2-088	0.187"	-	-	Swage Mount	0.094"	1/16	0.067	Brass	Bright Tin-Lead	NO

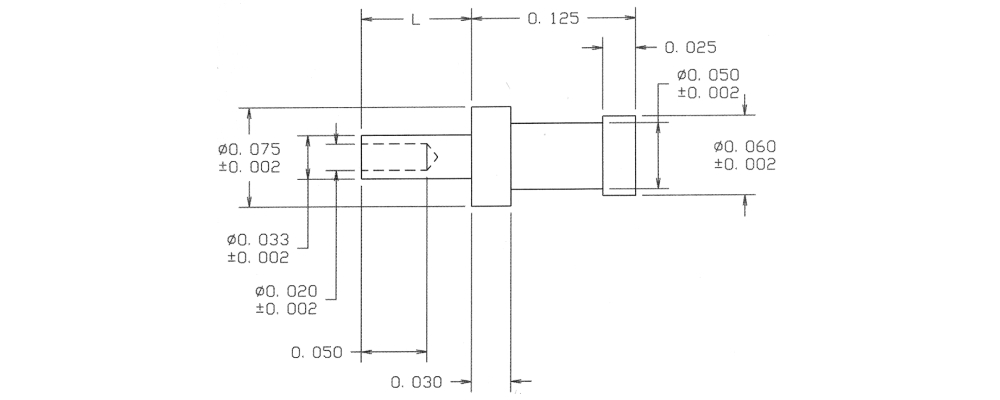

10-115-2B-035	0.221"	-	-	Swage Mount	0.096"	1/16	0.037	Brass	Gold	YES
10-137-1-044	0.237"	-	-	Swage Mount	0.078"	1/32	0.094	Brass	Bright Tin	YES
10-206-2-01	0.275"	-	-	Swage Mount	0.084"	1/16	0.076	Brass	Silver	YES
10-214-6-01	0.365"	-	-	Swage Mount	0.209"	3/16	0.067	Brass	Silver	YES
10-223-1-01	0.359"	-	-	Press Fit/Solder	0.117"	3/32	0.161	Brass	Silver	YES

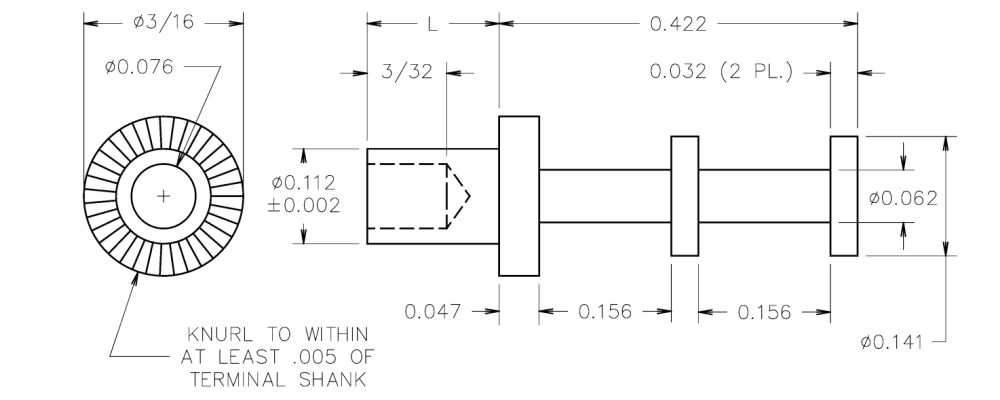

10-236-4-044	0.578"	-	-	Swage Mount	0.156"	1/8	0.116	Brass	Bright Tin	YES
