Commercial
Non-Insulated
Terminals

Filter

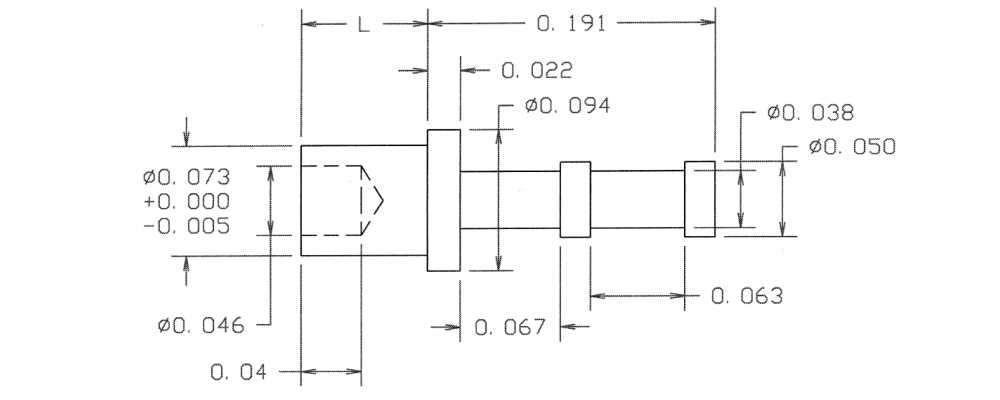

10-206-2-03
10-206-2-03
10-206-2-03
0.275" - - Swage Mount 0.084" 1/16 0.076 Brass Gold YES
10-214-6-03
10-214-6-03
10-214-6-03
0.365" - - Swage Mount 0.209" 3/16 0.067 Brass Gold YES

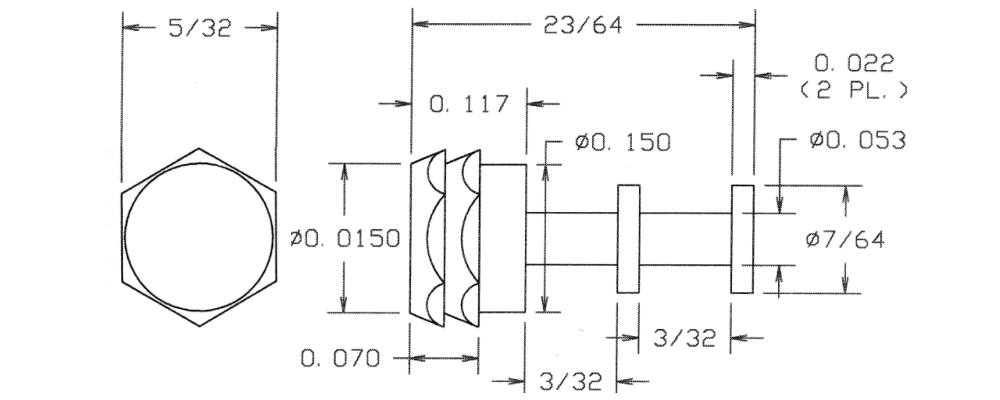

10-223-1-03
10-223-1-03
10-223-1-03
0.359" - - Press Fit/Solder 0.117" 3/32 0.161 Brass Gold YES
10-236-4-05
10-236-4-05
10-236-4-05
0.578" - - Swage Mount 0.156" 1/8 0.116 Brass Electro Solder NO
10-259-8-01
10-259-8-01
10-259-8-01
0.500" - - Swage Mount 0.281" 1/4 0.094 Brass Silver YES
10-308-2-035
10-308-2-035
10-308-2-035
0.187" - - Swage Mount 0.094" 1/16 0.067 Brass Gold YES
10-316-3-088
10-316-3-088
10-316-3-088
0.595" - - Swage Mount 0.135" 3/32 0.116 Brass Bright Tin-Lead NO
10-331-3-04
10-331-3-04
10-331-3-04
0.469" - - Swage Mount 0.141" 3/32 0.086 Brass Electro-Tin YES
10-405-6-01
10-405-6-01
10-405-6-01
0.551" - - Swage Mount 0.234" 3/16 0.116 Brass Silver YES
10-420-3-03
10-420-3-03
10-420-3-03
0.516" - - Swage Mount 0.141" 3/32 0.154 Brass Gold YES

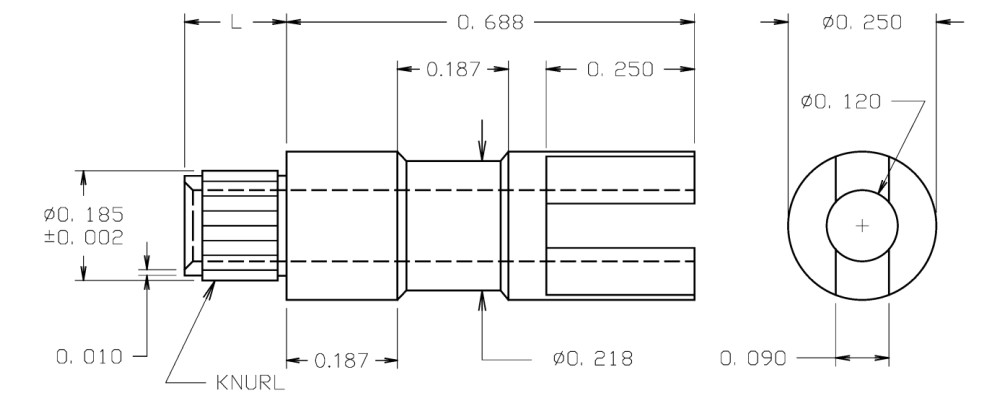

10-433-6-03
10-433-6-03
10-433-6-03
0.922" - - Swage Mount 0.234" 3/16 0.182 Brass Gold YES
10-454-2-05
10-454-2-05
10-454-2-05
0.339" - - Swage Mount 0.089" 1/16 0.067 Brass Electro Solder NO

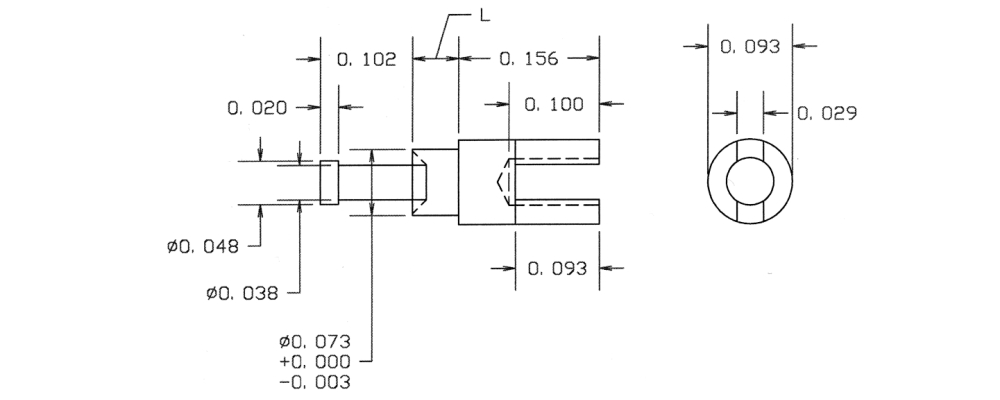

10-466-1-05
10-466-1-05
10-466-1-05
0.309" - TURRET/THREAD Swage Mount 0.051" 1/32 0.076 Brass Electro Solder NO

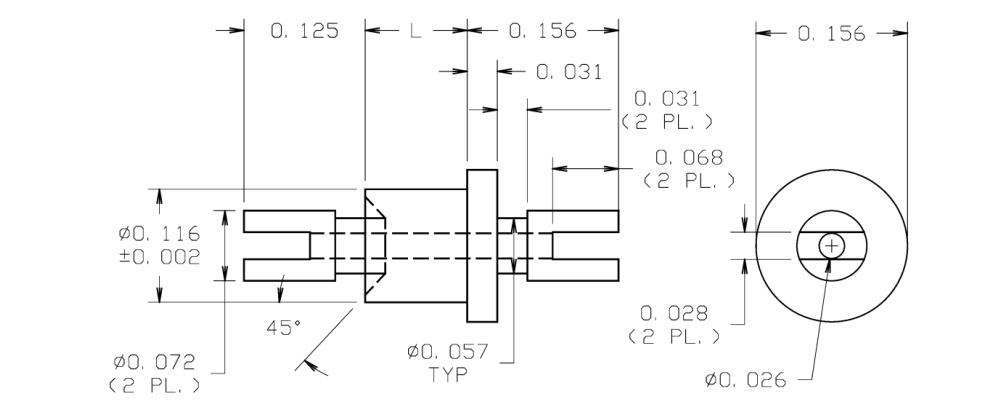

10-492-1-01
10-492-1-01
10-492-1-01
0.356" - Slotted/Slotted Swage Mount 0.075" 1/32 0.120 Brass Silver YES
10-505-4-044
10-505-4-044
10-505-4-044
0.479" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.094 Brass Bright Tin YES
10-511-6-044
10-511-6-044
10-511-6-044
0.902" - Double Turret/Double Turret Swage Mount 0.230" 3/16 0.116 Brass Bright Tin YES
10-520-8-044
10-520-8-044
10-520-8-044
1.230" - Double Turret/Double Turret Swage Mount 0.293" 1/4 0.266 Brass Bright Tin YES
10-533-2-044
10-533-2-044
10-533-2-044
0.351" - Turret/Turret Swage Mount 0.105" 1/16 0.094 Brass Bright Tin YES
10-554-1-044
10-554-1-044
10-554-1-044
0.397" - TURRET/DOUBLE TURRET Swage Mount 0.075" 1/32 0.094 Brass Bright Tin YES
10-602-4-044
10-602-4-044
10-602-4-044
0.656" - - Swage Mount 0.172" 1/8 0.116 Brass Bright Tin YES
