Commercial
Non-Insulated
Terminals

Part No	Length	Pin Diameter	Feed Thru Combination	Mounting	Shank Length	Board Thickness	Hole Size	Terminal Material	Terminal Finish	RoHS
10-927-1-035	0.260"	0.025	-	Swage Mount	0.047"	1/32	0.035	Brass	Gold	YES
10-971-2-035	0.602"	0.040	-	Swage Mount	0.082"	1/16	0.043	Brass	Gold	YES
14-350-4-088	0.693"	-	-	Swage Mount	0.172"	1/8	0.196	LEADED Red Brass	Bright Tin-Lead	NO
09-0243-1-088	0.550"	-	-	-	-	-	-	Beryllium Copper	Bright Tin-Lead	NO
10-413-4-04	0.301"	-	-	Swage Mount	0.145"	1/8	0.052	Brass	Electro-Tin	YES
10-448-11-01	0.349"	-	-	Swage Mount	0.037"	1/64	0.063	Brass	Silver	YES
10-464-3-044	0.185"	-	-	Swage Mount	0.115"	3/32	0.035	Brass	Bright Tin	YES
10-940-4-03	0.344"	-	-	Swage Mount	0.156"	1/8	0.0635	Brass	Gold	YES
09-0042-2-035	0.297"	-	-	Swage Mount	0.109"	1/16	0.116	Brass	Gold	YES
09-0107-4-088	0.291"	-	-	Swage Mount	0.150"	1/8	0.067	LEADED Red Brass	Bright Tin-Lead	NO
09-0174-1-044	0.205"	-	-	Press Fit/Solder	0.158"	3/32	0.094	Brass	Bright Tin	YES
09-0210-7-05	0.367"	-	-	2-56	-	-	2-56 THREAD	Brass	Electro Solder	NO
09-0255-1-01	0.344"	0.045	-	Press Fit/Solder	0.055"	1/16	0.052	Brass	Silver	YES
09-0303-3-088	0.271"	-	-	Swage Mount	0.115"	3/32	0.063	Brass	Bright Tin-Lead	NO
09-0364-3-01	0.641"	-	-	Swage Mount	0.141"	3/32	0.140	Brass	Silver	YES
09-7016-2-095	0.255"	-	-	Swage Mount	0.095"	1/16	0.055	Brass	Hot Solder Dip	NO

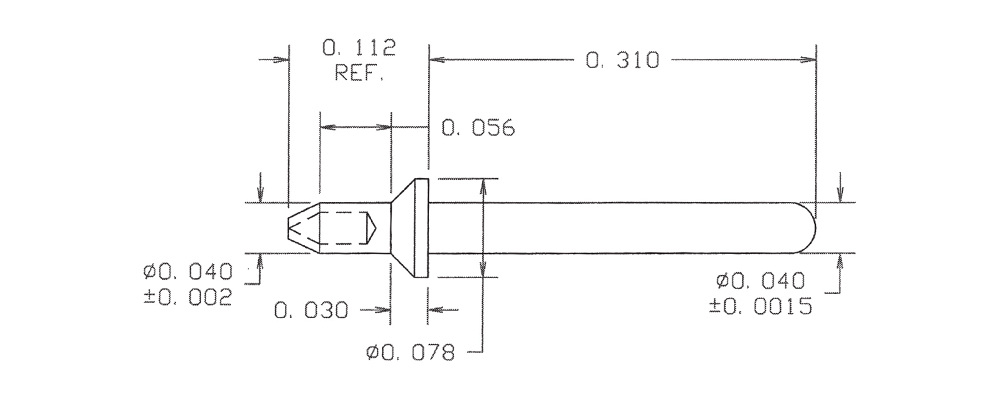

09-7126-1-044	0.422"	0.0405	-	RIVET MOUNT	0.056"	1/32	0.044	Brass	Bright Tin	YES
09-7156-2-03	0.402"	0.053	-	RIVET MOUNT	0.095"	1/16	0.0625	Brass	Gold	YES
09-7186-3-05	0.268"	-	-	RIVET MOUNT	0.118"	3/32	0.044	Brass	Electro Solder	NO

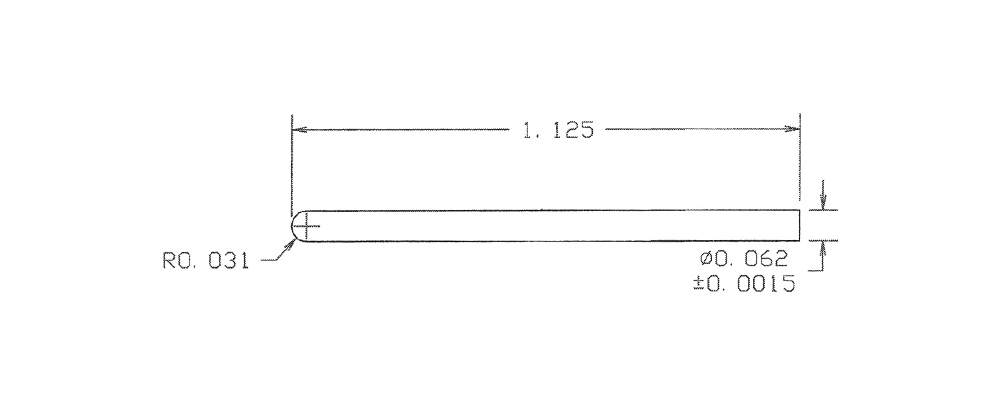

09-8035-1-035	1.125"	0.0625	-	-	-	-	-	Brass	Gold	YES
