Commercial
Non-Insulated
Terminals

Filter
09-8656-1-04
09-8656-1-04
09-8656-1-04
0.409" - - Swage Mount 0.078" 1/32 0.094 Brass Electro-Tin YES
09-8005-1-03
09-8005-1-03
09-8005-1-03
0.230" 0.040 - Swage Mount 0.055" 1/32 0.064 Brass Gold YES
09-0155-4-035
09-0155-4-035
09-0155-4-035
0.331" - - Swage Mount 0.145" 1/8 0.076 Brass Gold YES
10-134-1-035
10-134-1-035
10-134-1-035
0.219" - - Swage Mount 0.062" 1/32 0.081 Brass Gold YES
10-206-1-035
10-206-1-035
10-206-1-035
0.244" - - Swage Mount 0.053" 1/32 0.076 Brass Gold YES
09-8112-3-035
09-8112-3-035
09-8112-3-035
0.283" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Gold YES
10-490-6-04
10-490-6-04
10-490-6-04
0.634" - TURRET/SLOTTED Swage Mount 0.228" 3/16 0.120 Brass Electro-Tin YES
09-8187-2-03
09-8187-2-03
09-8187-2-03
0.645" 0.020 - Solder 0.100" 1/64 TO 1/16 0.024 Brass Gold YES
09-7135-2-03
09-7135-2-03
09-7135-2-03
0.483" 0.040 - RIVET MOUNT 0.087" 1/16 0.044 Brass Gold YES
10-513-2-03
10-513-2-03
10-513-2-03
0.424" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.129 Brass Gold YES
09-7126-1-03
09-7126-1-03
09-7126-1-03
0.422" 0.0405 - RIVET MOUNT 0.056" 1/32 0.044 Brass Gold YES
10-821-4-044
10-821-4-044
10-821-4-044
0.498" 0.040 Pin/Pin Swage Mount 0.165" 1/8 0.094 Brass Bright Tin YES
10-8022-1-03
10-8022-1-03
10-8022-1-03
0.621" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES
10-892-1-03
10-892-1-03
10-892-1-03
0.651" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

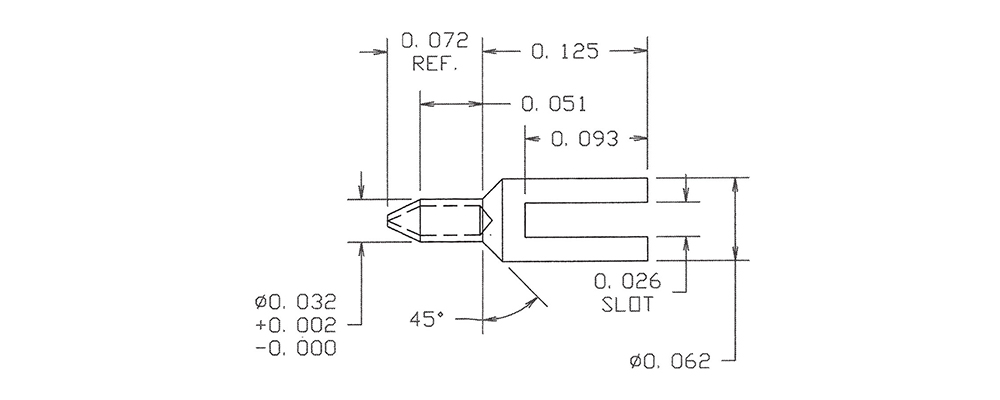

09-7181-1-035
09-7181-1-035
09-7181-1-035
0.197" - - RIVET MOUNT 0.052" 1/32 0.036 Brass Gold YES
10-859-2-04
10-859-2-04
10-859-2-04
0.595" 0.040 Pin/Pin Swage Mount 0.094" 1/16 0.094 Brass Electro-Tin YES
10-831-3-04
10-831-3-04
10-831-3-04
0.313" 0.050 - Swage Mount 0.125" 3/32 0.064 Brass Electro-Tin YES
10-836-3-04
10-836-3-04
10-836-3-04
0.625" 0.050 - Swage Mount 0.125" 3/32 0.064 Brass Electro-Tin YES
10-702-4-04
10-702-4-04
10-702-4-04
0.482" - - 4-40 - - 4-40 THREAD Brass Electro-Tin YES
10-823-2-05
10-823-2-05
10-823-2-05
0.564" 0.037 (TAPER) DOUBLE TURRET/TAPER PIN Swage Mount 0.087" 1/16 0.120 Brass Electro Solder NO

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
