Commercial
Non-Insulated
Terminals

Filter
09-8061-2-088
09-8061-2-088
09-8061-2-088
1.142" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO
09-8113-3-04
09-8113-3-04
09-8113-3-04
0.233" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Electro-Tin YES
09-8158-2-01
09-8158-2-01
09-8158-2-01
0.757" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES
09-8186-2A-044
09-8186-2A-044
09-8186-2A-044
0.130" 0.025 - Swage Mount 0.060" 3/64 0.035 Brass Bright Tin YES
09-8404-1-04
09-8404-1-04
09-8404-1-04
0.160" 0.025 - - - - - Brass Electro-Tin YES
09-8622-3-05
09-8622-3-05
09-8622-3-05
0.390" 0.040 - Swage Mount 0.140" 1/8 0.043 Brass Electro Solder NO

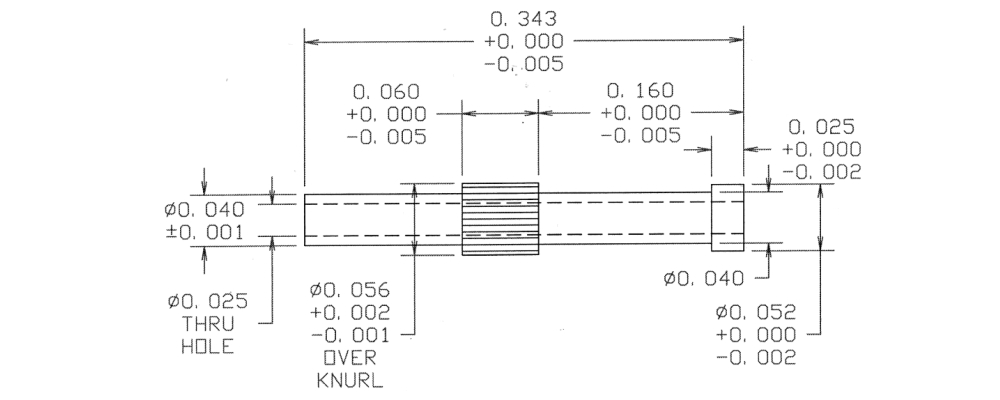

09-8730-1-04
09-8730-1-04
09-8730-1-04
0.343" 0.040 TURRET/PIN Press Fit/Solder 0.195" 7/32 TO 9/32 0.052 Brass Electro-Tin YES
09-8831-1-035
09-8831-1-035
09-8831-1-035
0.317" 0.090 - Swage Mount 0.075" 1/32 0.094 Brass Gold YES
09-9505-1-04
09-9505-1-04
09-9505-1-04
0.444" 0.045 - 0-80 Screw - 1/32 TO 1/16 CLEARANCE FOR #0 Screw Brass Electro-Tin YES
10-107-1-03
10-107-1-03
10-107-1-03
0.138" - - Swage Mount 0.045" 1/32 0.067 Brass Gold YES
10-114-4-05
10-114-4-05
10-114-4-05
0.241" - - Swage Mount 0.147" 1/8 0.043 Brass Electro Solder NO
10-135-4-095
10-135-4-095
10-135-4-095
0.530" - - Swage Mount 0.171" 1/8 0.116 Brass Hot Solder Dip NO
10-205-5-03
10-205-5-03
10-205-5-03
0.555" - - Swage Mount 0.195" 5/32 0.116 Brass Gold YES
10-214-3-04
10-214-3-04
10-214-3-04
0.271" - - Swage Mount 0.115" 3/32 0.067 Brass Electro-Tin YES
10-221-3-035
10-221-3-035
10-221-3-035
0.328" - - Swage Mount 0.115" 3/32 0.076 Brass Gold YES
10-233-3-05
10-233-3-05
10-233-3-05
0.344" - - Swage Mount 0.125" 3/32 0.073 Brass Electro Solder NO
10-259-3-035
10-259-3-035
10-259-3-035
0.344" - - Swage Mount 0.125" 3/32 0.094 Brass Gold YES
10-307-4-03
10-307-4-03
10-307-4-03
0.431" - - Swage Mount 0.165" 1/8 0.096 Brass Gold YES
10-315-4-05
10-315-4-05
10-315-4-05
0.493" - - Swage Mount 0.165" 1/8 0.082 Brass Electro Solder NO
10-330-2A-035
10-330-2A-035
10-330-2A-035
0.312" - - Swage Mount 0.094" 1/16 0.086 Brass Gold YES
