Commercial
Non-Insulated
Terminals

Filter
10-413-11-04
10-413-11-04
10-413-11-04
0.191" - - Swage Mount 0.035" 1/64 0.052 Brass Electro-Tin YES

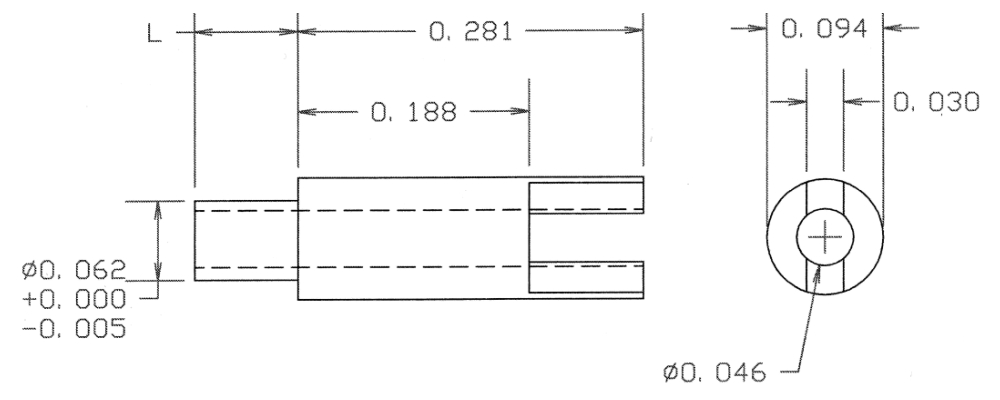

10-447-3-01
10-447-3-01
10-447-3-01
0.396" - - Swage Mount 0.115" 3/32 0.063 Brass Silver YES

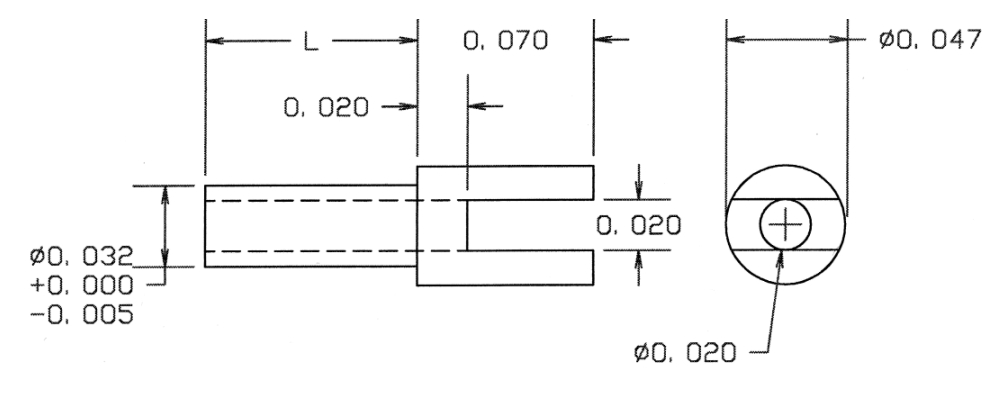

10-464-1-044
10-464-1-044
10-464-1-044
0.123" - - Swage Mount 0.053" 1/32 0.035 Brass Bright Tin YES

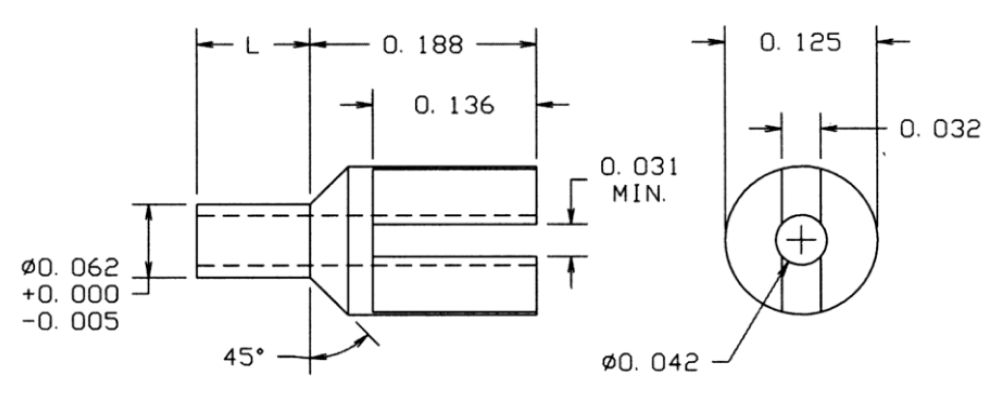

10-940-1-03
10-940-1-03
10-940-1-03
0.250" - - Swage Mount 0.062" 1/32 0.0635 Brass Gold YES
09-0038-4-044
09-0038-4-044
09-0038-4-044
0.971" 0.040 TURRET/PIN Swage Mount 0.165" 1/8 0.125 Brass Bright Tin YES
09-0104-4-088
09-0104-4-088
09-0104-4-088
0.281" - - 4-40 - - 4-40 THREAD Brass Bright Tin-Lead NO

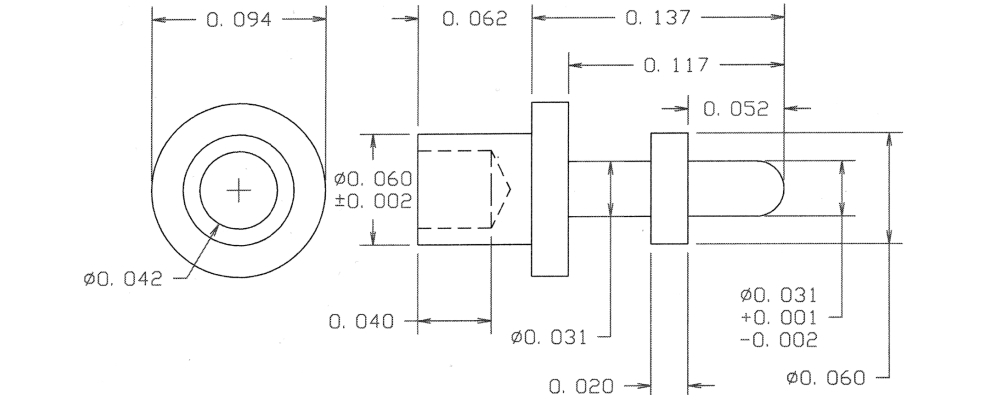

09-0170-1-095
09-0170-1-095
09-0170-1-095
0.199" - - Swage Mount 0.062" 1/32 0.063 Brass Hot Solder Dip NO
09-0210-5-01
09-0210-5-01
09-0210-5-01
0.330" - - 2-56 - - 2-56 THREAD Brass Silver YES
09-0252-2-03
09-0252-2-03
09-0252-2-03
0.186" - - Swage Mount 0.082" 1/16 0.081 Brass Gold YES
09-0298-1-01
09-0298-1-01
09-0298-1-01
0.344" 0.050 - Press Fit/Solder 0.055" 1/16 0.055 Brass Silver YES
09-0360-1-01
09-0360-1-01
09-0360-1-01
0.276" - - Press Fit/Solder 0.138" 3/32 0.052 Brass Silver YES
09-7013-4-035
09-7013-4-035
09-7013-4-035
0.310" - - Swage Mount 0.150" 1/8 0.067 LEADED Red Brass Gold YES
09-7123-3-044
09-7123-3-044
09-7123-3-044
0.328" 0.030 - RIVET MOUNT 0.114" 3/32 0.035 Brass Bright Tin YES
09-7153-2-03
09-7153-2-03
09-7153-2-03
0.271" 0.040 - RIVET MOUNT 0.103" 1/16 0.076 Brass Gold YES

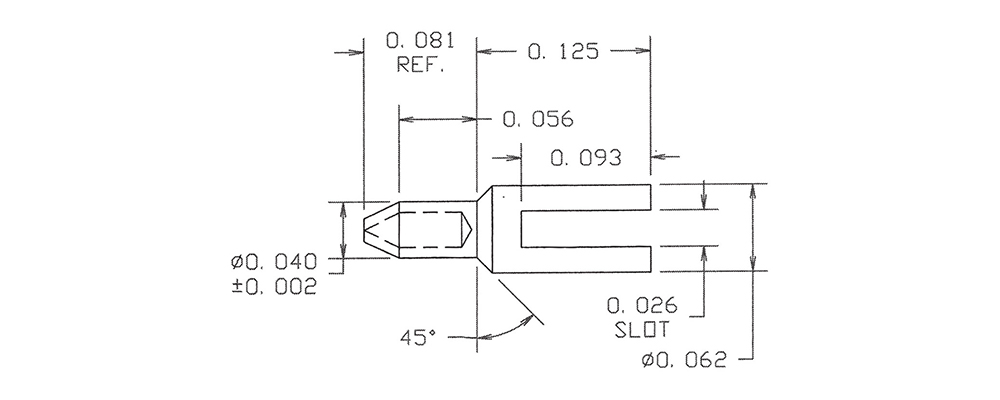

09-7186-1-05
09-7186-1-05
09-7186-1-05
0.206" - - RIVET MOUNT 0.056" 1/32 0.044 Brass Electro Solder NO

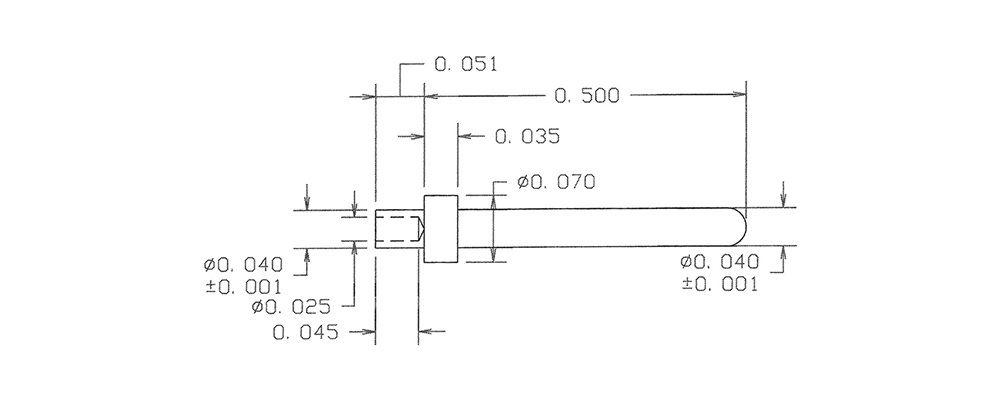

09-8030-1-035
09-8030-1-035
09-8030-1-035
0.551" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES
09-8061-2-05
09-8061-2-05
09-8061-2-05
1.142" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO
09-8113-3-035
09-8113-3-035
09-8113-3-035
0.233" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Gold YES

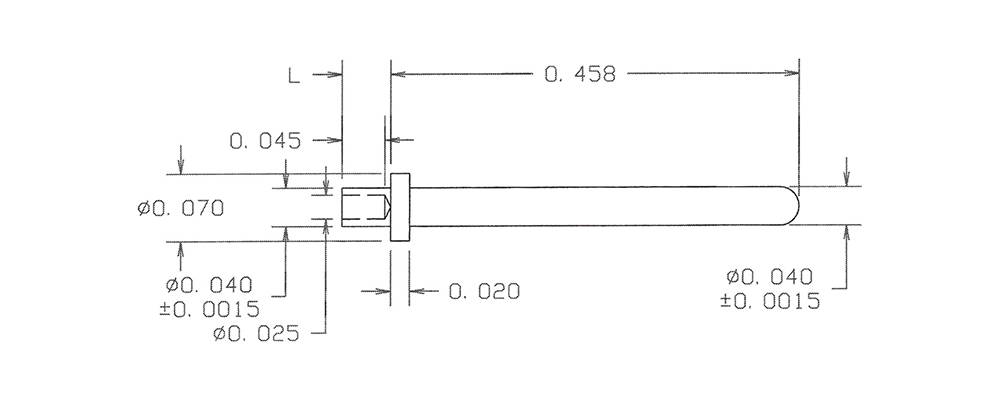

09-8157-2-088
09-8157-2-088
09-8157-2-088
0.540" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO
09-8186-2A-04
09-8186-2A-04
09-8186-2A-04
0.130" 0.025 - Swage Mount 0.060" 3/64 0.035 Brass Electro-Tin YES
