Commercial
Non-Insulated
Terminals

Filter

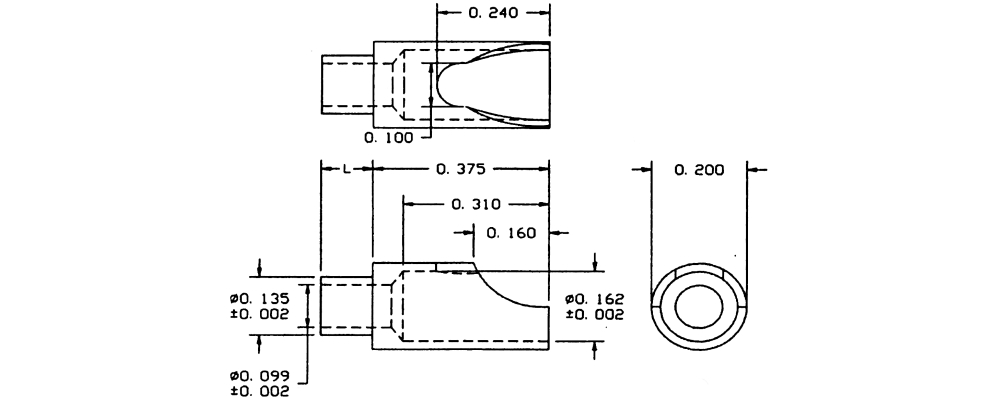

10-465-2-04
10-465-2-04
10-465-2-04
0.484" - - Swage Mount 0.109" 1/16 0.1405 Brass Electro-Tin YES
10-490-3-05
10-490-3-05
10-490-3-05
0.541" - TURRET/SLOTTED Swage Mount 0.135" 3/32 0.120 Brass Electro Solder NO
10-505-1-05
10-505-1-05
10-505-1-05
0.385" - TURRET/DOUBLE TURRET Swage Mount 0.062" 1/32 0.094 Brass Electro Solder NO
10-511-2-05
10-511-2-05
10-511-2-05
0.777" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.116 Brass Electro Solder NO
10-520-4-05
10-520-4-05
10-520-4-05
1.102" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.266 Brass Electro Solder NO
10-532-5-05
10-532-5-05
10-532-5-05
0.663" - Double Turret/Double Turret Swage Mount 0.195" 5/32 0.159 Brass Electro Solder NO
10-550-4-05
10-550-4-05
10-550-4-05
0.634" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.206 Brass Electro Solder NO
10-602-1-05
10-602-1-05
10-602-1-05
0.562" - - Swage Mount 0.078" 1/32 0.116 Brass Electro Solder NO
10-702-4-04
10-702-4-04
10-702-4-04
0.482" - - 4-40 - - 4-40 THREAD Brass Electro-Tin YES
10-8007-3-01
10-8007-3-01
10-8007-3-01
0.717" 0.080 DOUBLE TURRET/PIN Swage Mount 0.135" 3/32 0.120 Brass Silver YES
10-8018-1-05
10-8018-1-05
10-8018-1-05
0.371" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Electro Solder NO
10-804-3-088
10-804-3-088
10-804-3-088
0.563" 0.041 DOUBLE TURRET/PIN Swage Mount 0.125" 3/32 0.125 Brass Bright Tin-Lead NO

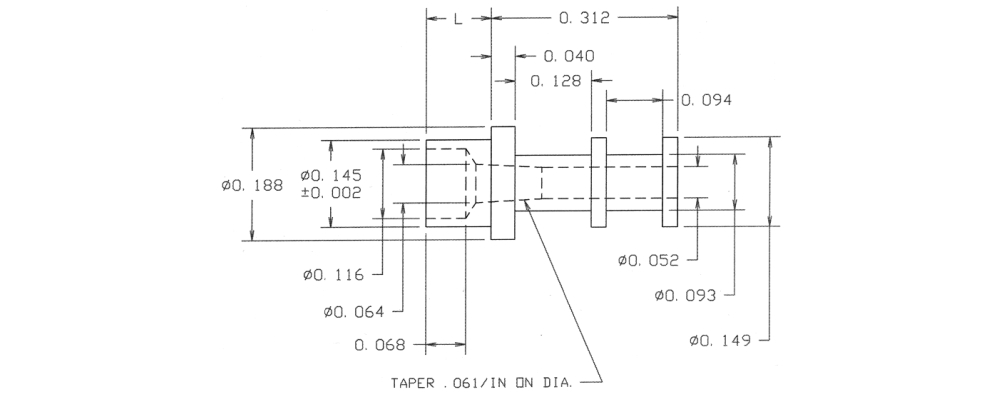

10-810-3-01
10-810-3-01
10-810-3-01
0.453" - - Swage Mount 0.141" 3/32 0.1495 Brass Silver YES
10-817-3-044
10-817-3-044
10-817-3-044
0.661" - - Swage Mount 0.141" 3/32 0.1495 Brass Bright Tin YES
10-829-2-05
10-829-2-05
10-829-2-05
0.219" 0.050 - Swage Mount 0.094" 1/16 0.063 Brass Electro Solder NO
10-838-1-088
10-838-1-088
10-838-1-088
0.594" 0.050 Pin/Pin Swage Mount 0.063" 1/32 0.111 Brass Bright Tin-Lead NO

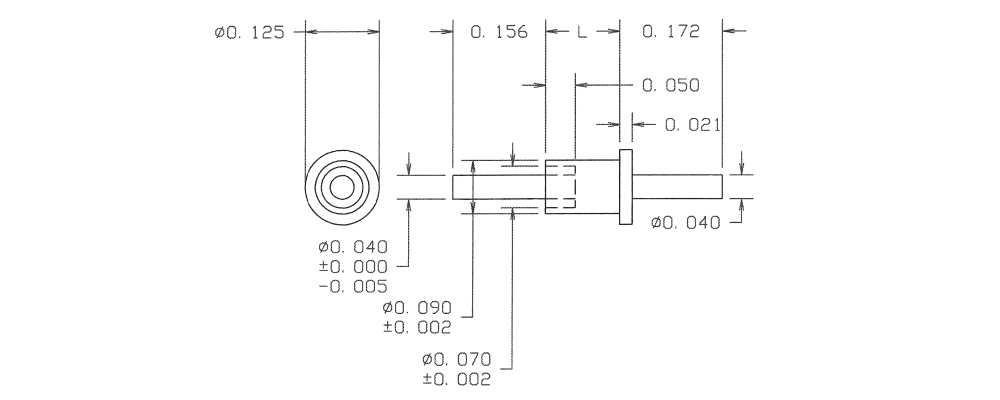

10-857-2-04
10-857-2-04
10-857-2-04
0.422" 0.040 Pin/Pin Swage Mount 0.094" 1/16 0.094 Brass Electro-Tin YES
10-876-1-03
10-876-1-03
10-876-1-03
0.251" 0.025 - Swage Mount 0.051" 1/32 0.052 Brass Gold YES
10-895-3-088
10-895-3-088
10-895-3-088
0.900" 0.020 - - - - - Brass Bright Tin-Lead NO

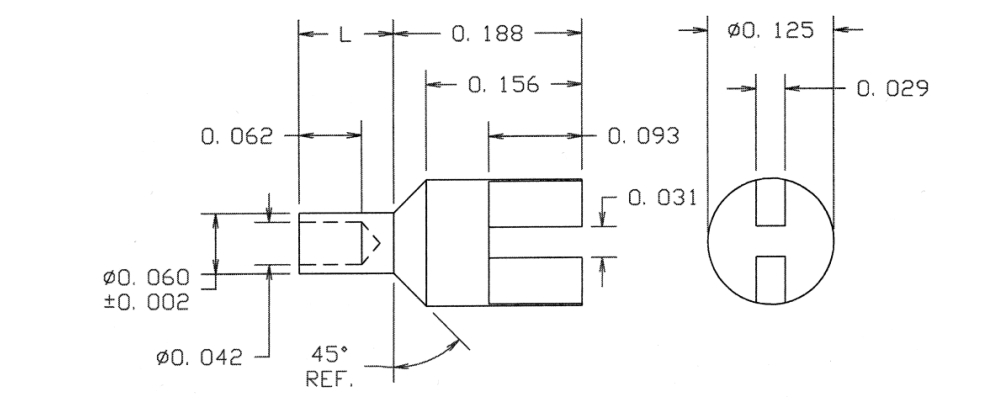

10-914-2-035
10-914-2-035
10-914-2-035
0.282" - - Swage Mount 0.094" 1/16 0.0635 Brass Gold YES
