Commercial
Non-Insulated
Terminals

Filter
10-259-3-04
10-259-3-04
10-259-3-04
0.344" - - Swage Mount 0.125" 3/32 0.094 Brass Electro-Tin YES
10-307-4-035
10-307-4-035
10-307-4-035
0.431" - - Swage Mount 0.165" 1/8 0.096 Brass Gold YES
10-315-4-088
10-315-4-088
10-315-4-088
0.493" - - Swage Mount 0.165" 1/8 0.082 Brass Bright Tin-Lead NO
10-330-2A-04
10-330-2A-04
10-330-2A-04
0.312" - - Swage Mount 0.094" 1/16 0.086 Brass Electro-Tin YES
10-405-2-01
10-405-2-01
10-405-2-01
0.426" - - Swage Mount 0.109" 1/16 0.116 Brass Silver YES

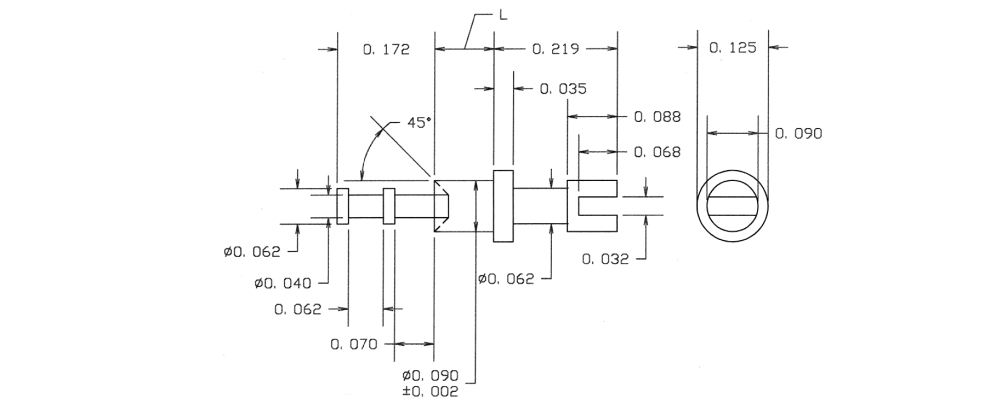

10-419-3-04
10-419-3-04
10-419-3-04
0.526" - SLOTTED/DOUBLE TURRET Swage Mount 0.135" 3/32 0.094 Brass Electro-Tin YES
10-432-8-03
10-432-8-03
10-432-8-03
0.730" - - Swage Mount 0.293" 1/4 0.161 Brass Gold YES
10-451-2-05
10-451-2-05
10-451-2-05
0.453" - - Swage Mount 0.109" 1/16 0.116 Brass Electro Solder NO
10-465-2-05
10-465-2-05
10-465-2-05
0.484" - - Swage Mount 0.109" 1/16 0.1405 Brass Electro Solder NO
10-490-4-01
10-490-4-01
10-490-4-01
0.571" - TURRET/SLOTTED Swage Mount 0.165" 1/8 0.120 Brass Silver YES
10-505-1-095
10-505-1-095
10-505-1-095
0.385" - TURRET/DOUBLE TURRET Swage Mount 0.062" 1/32 0.094 Brass Hot Solder Dip NO

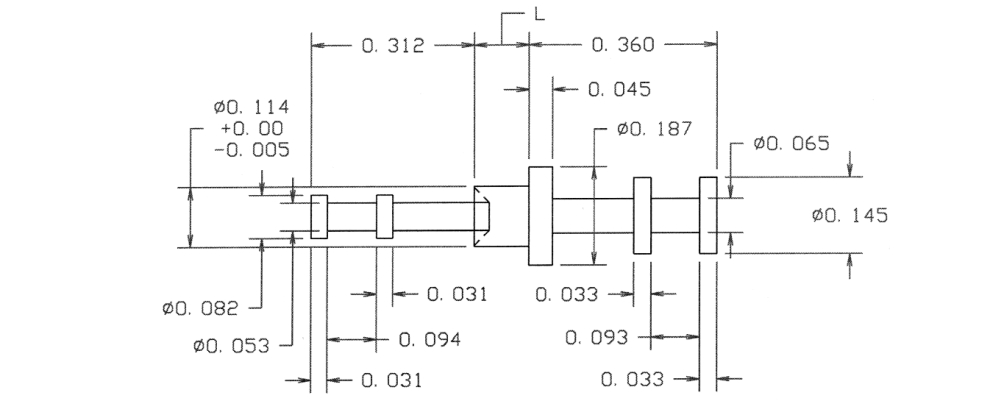

10-511-2-095
10-511-2-095
10-511-2-095
0.777" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.116 Brass Hot Solder Dip NO
10-520-4-095
10-520-4-095
10-520-4-095
1.102" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.266 Brass Hot Solder Dip NO
10-532-5-095
10-532-5-095
10-532-5-095
0.663" - Double Turret/Double Turret Swage Mount 0.195" 5/32 0.159 Brass Hot Solder Dip NO
10-550-4-095
10-550-4-095
10-550-4-095
0.634" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.206 Brass Hot Solder Dip NO
10-602-1-095
10-602-1-095
10-602-1-095
0.562" - - Swage Mount 0.078" 1/32 0.116 Brass Hot Solder Dip NO

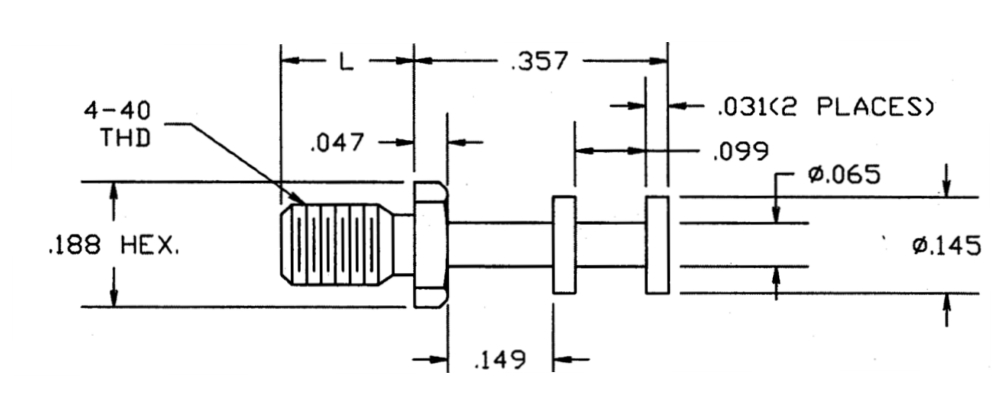

10-702-4-05
10-702-4-05
10-702-4-05
0.482" - - 4-40 - - 4-40 THREAD Brass Electro Solder NO
10-8007-3-035
10-8007-3-035
10-8007-3-035
0.717" 0.080 DOUBLE TURRET/PIN Swage Mount 0.135" 3/32 0.120 Brass Gold YES
10-8018-2-01
10-8018-2-01
10-8018-2-01
0.402" 0.025 - Swage Mount 0.082" 1/16 0.035 Brass Silver YES
10-804-4-03
10-804-4-03
10-804-4-03
0.594" 0.041 DOUBLE TURRET/PIN Swage Mount 0.156" 1/8 0.125 Brass Gold YES
