Commercial
Non-Insulated
Terminals

Filter
10-205-4-05
10-205-4-05
10-205-4-05
0.525" - - Swage Mount 0.165" 1/8 0.116 Brass Electro Solder NO
10-214-3-01
10-214-3-01
10-214-3-01
0.271" - - Swage Mount 0.115" 3/32 0.067 Brass Silver YES
10-221-2-095
10-221-2-095
10-221-2-095
0.297" - - Swage Mount 0.084" 1/16 0.076 Brass Hot Solder Dip NO
10-233-3-035
10-233-3-035
10-233-3-035
0.344" - - Swage Mount 0.125" 3/32 0.073 Brass Gold YES

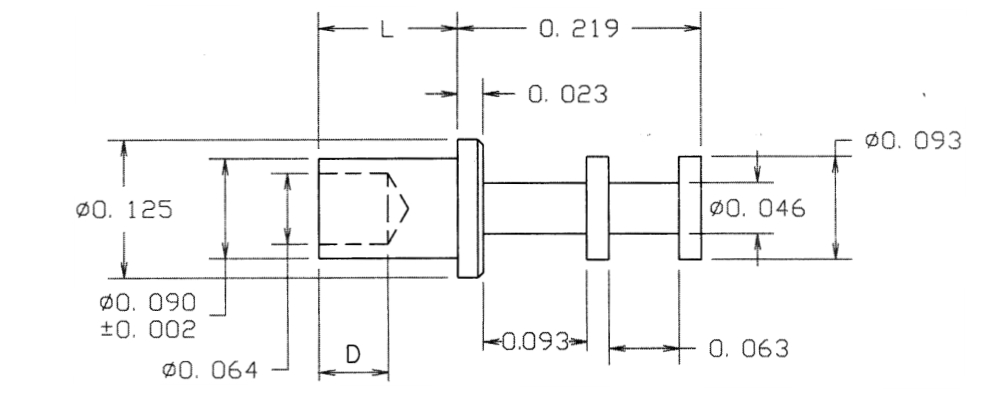

10-259-2-095
10-259-2-095
10-259-2-095
0.312" - - Swage Mount 0.093" 1/16 0.094 Brass Hot Solder Dip NO
10-307-3-05
10-307-3-05
10-307-3-05
0.401" - - Swage Mount 0.135" 3/32 0.096 Brass Electro Solder NO
10-315-4-035
10-315-4-035
10-315-4-035
0.493" - - Swage Mount 0.165" 1/8 0.082 Brass Gold YES

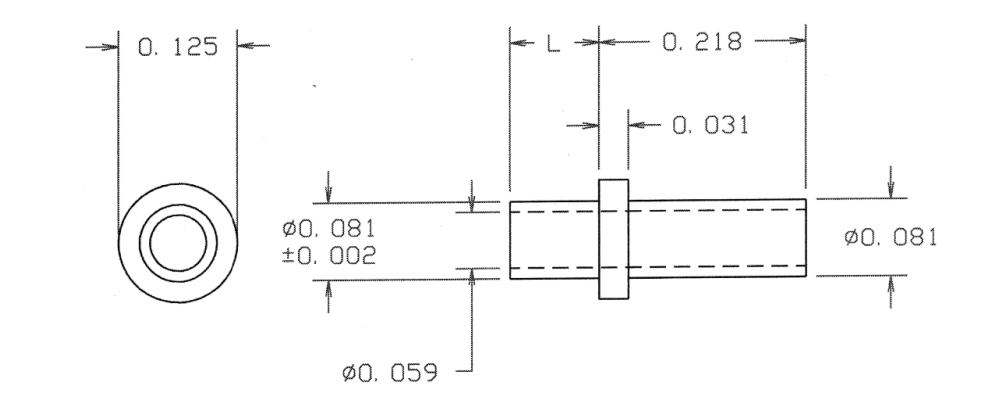

10-330-2-088
10-330-2-088
10-330-2-088
0.327" - - Swage Mount 0.109" 1/16 0.086 Brass Bright Tin-Lead NO
10-405-1-04
10-405-1-04
10-405-1-04
0.395" - - Swage Mount 0.078" 1/32 0.116 Brass Electro-Tin YES
10-419-2-095
10-419-2-095
10-419-2-095
0.496" - SLOTTED/DOUBLE TURRET Swage Mount 0.105" 1/16 0.094 Brass Hot Solder Dip NO
10-432-6-044
10-432-6-044
10-432-6-044
0.667" - - Swage Mount 0.230" 3/16 0.161 Brass Bright Tin YES
10-451-2-03
10-451-2-03
10-451-2-03
0.453" - - Swage Mount 0.109" 1/16 0.116 Brass Gold YES
10-465-2-03
10-465-2-03
10-465-2-03
0.484" - - Swage Mount 0.109" 1/16 0.1405 Brass Gold YES
10-490-3-04
10-490-3-04
10-490-3-04
0.541" - TURRET/SLOTTED Swage Mount 0.135" 3/32 0.120 Brass Electro-Tin YES
10-505-1-04
10-505-1-04
10-505-1-04
0.385" - TURRET/DOUBLE TURRET Swage Mount 0.062" 1/32 0.094 Brass Electro-Tin YES
10-511-2-04
10-511-2-04
10-511-2-04
0.777" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.116 Brass Electro-Tin YES

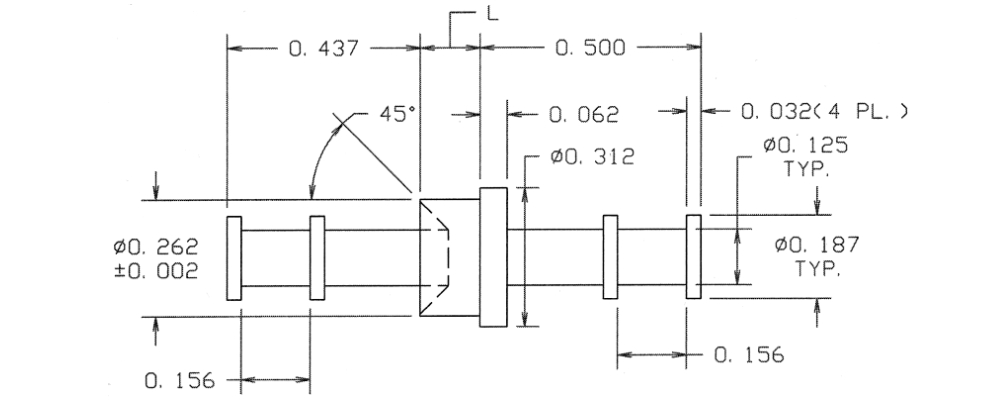

10-520-4-04
10-520-4-04
10-520-4-04
1.102" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.266 Brass Electro-Tin YES

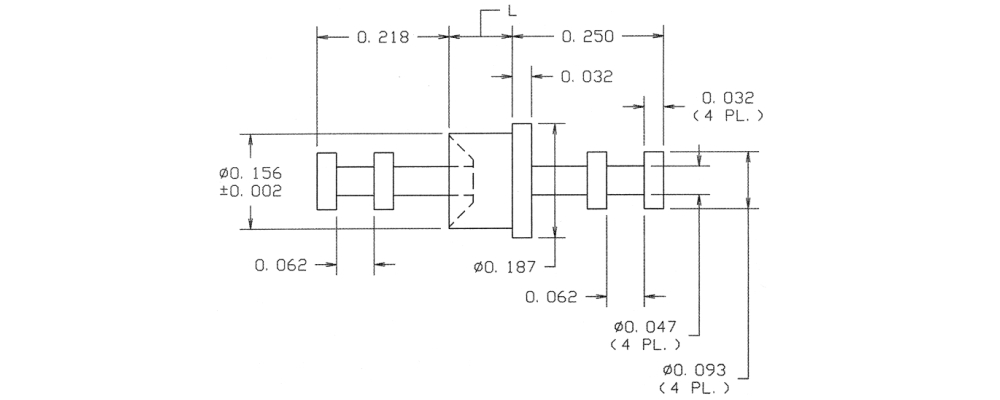

10-532-5-04
10-532-5-04
10-532-5-04
0.663" - Double Turret/Double Turret Swage Mount 0.195" 5/32 0.159 Brass Electro-Tin YES

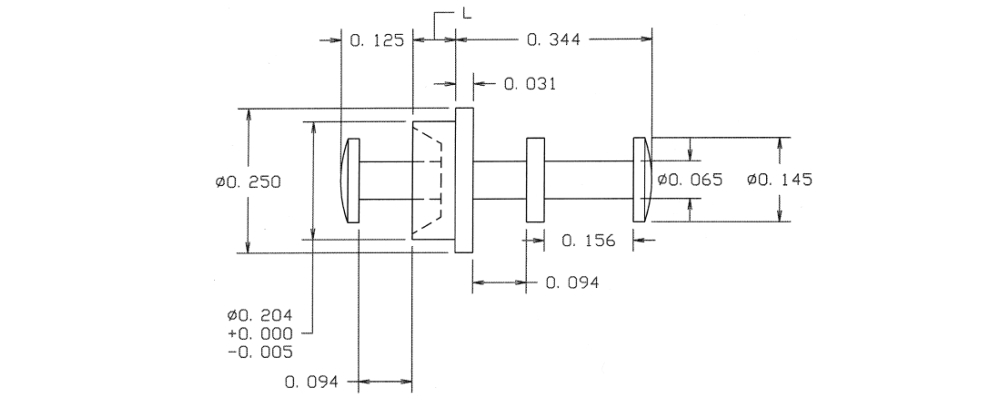

10-550-4-04
10-550-4-04
10-550-4-04
0.634" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.206 Brass Electro-Tin YES
10-602-1-04
10-602-1-04
10-602-1-04
0.562" - - Swage Mount 0.078" 1/32 0.116 Brass Electro-Tin YES
