Commercial
Non-Insulated
Terminals

Filter

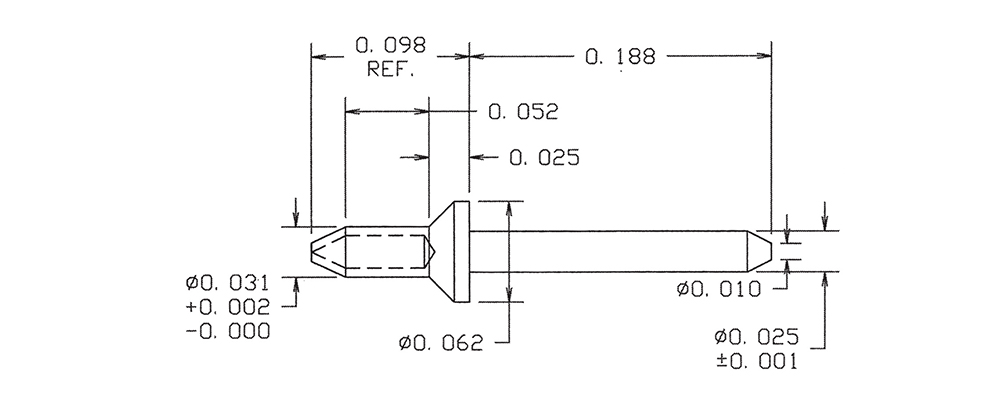

09-7121-1-01
09-7121-1-01
09-7121-1-01
0.286" 0.025 - RIVET MOUNT 0.052" 1/32 0.035 Brass Silver YES

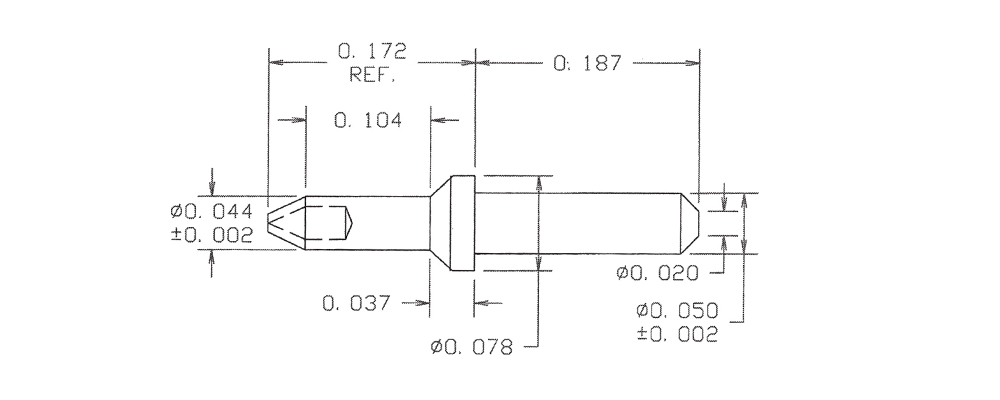

09-7150-2-044
09-7150-2-044
09-7150-2-044
0.359" 0.050 - RIVET MOUNT 0.104" 1/16 0.048 Brass Bright Tin YES

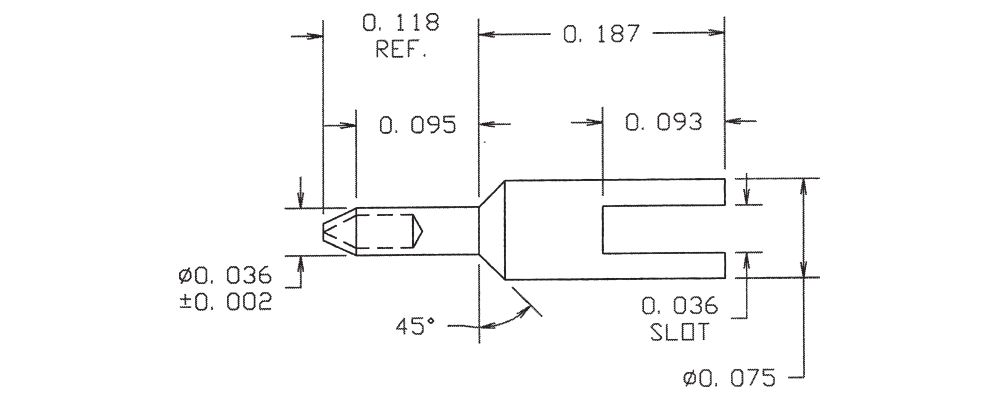

09-7183-2B-03
09-7183-2B-03
09-7183-2B-03
0.305" - - RIVET MOUNT 0.095" 9/128 0.040 Brass Gold YES

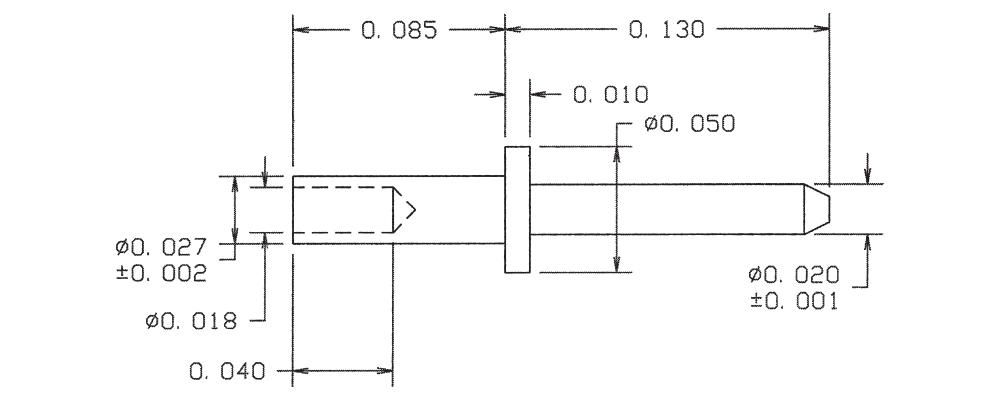

09-8027-2-05
09-8027-2-05
09-8027-2-05
0.215" 0.020 - Swage Mount 0.085" 1/16 0.031 Brass Electro Solder NO

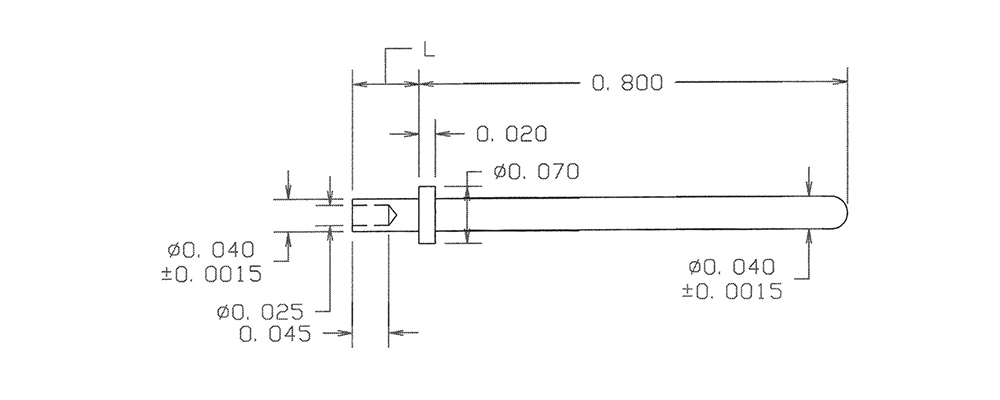

09-8060-2-03
09-8060-2-03
09-8060-2-03
0.882" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES
09-8112-3-05
09-8112-3-05
09-8112-3-05
0.283" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Electro Solder NO

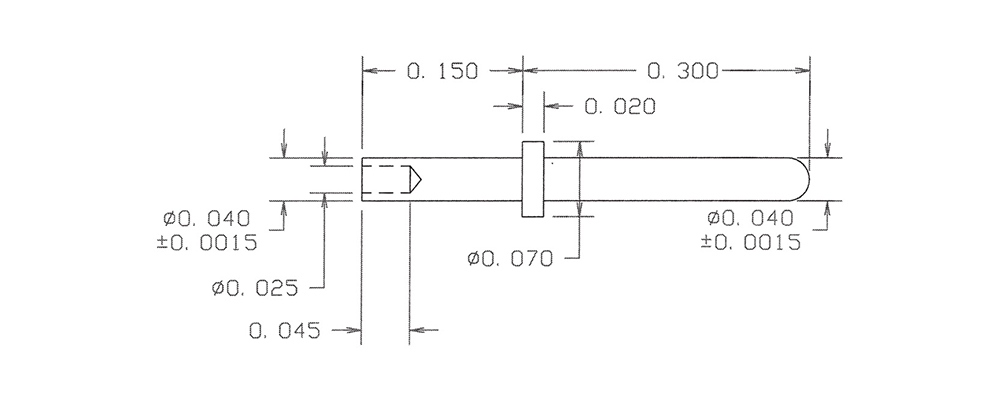

09-8156-4-035
09-8156-4-035
09-8156-4-035
0.450" 0.0405 - Swage Mount 0.150" 1/8 0.043 Brass Gold YES
09-8185-2-088
09-8185-2-088
09-8185-2-088
0.927" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Bright Tin-Lead NO

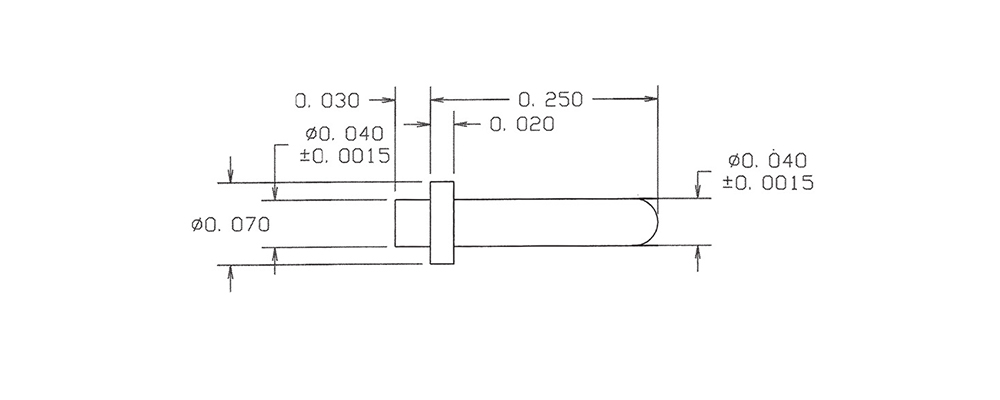

09-8370-1-05
09-8370-1-05
09-8370-1-05
0.280" 0.0405 - Solder 0.030" 1/64 0.043 Brass Electro Solder NO

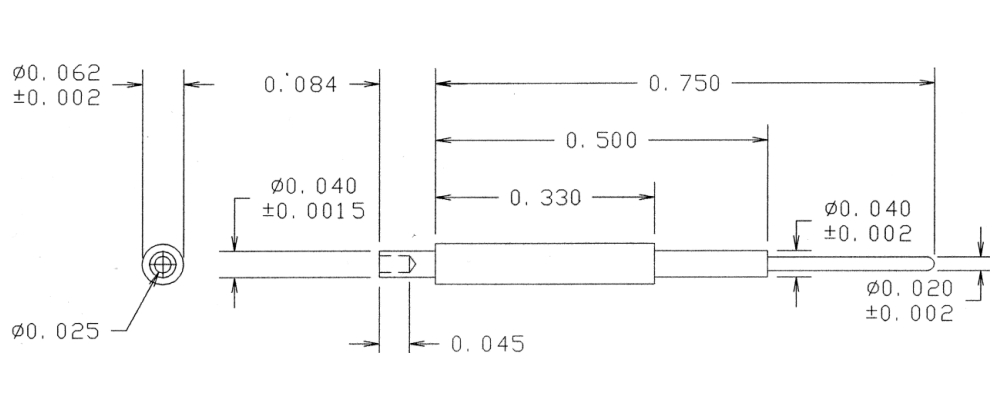

09-8617-2-035
09-8617-2-035
09-8617-2-035
0.834" 0.020 - Swage Mount 0.084" 1/16 0.043 Brass Gold YES
09-8722-4-088
09-8722-4-088
09-8722-4-088
0.375" - - Swage Mount 0.156" 1/8 0.094 Brass Bright Tin-Lead NO

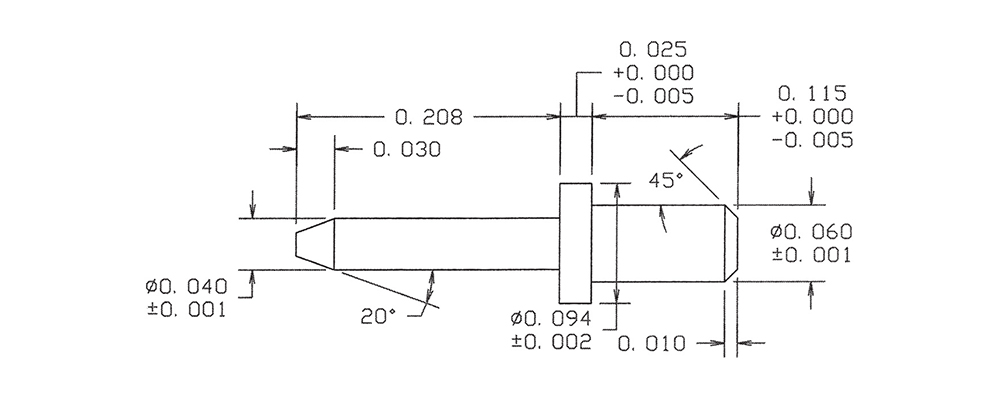

09-8826-4-044
09-8826-4-044
09-8826-4-044
0.348" 0.040 - Solder 0.115" 1/64 TO 3/32 0.0625 Brass Bright Tin YES

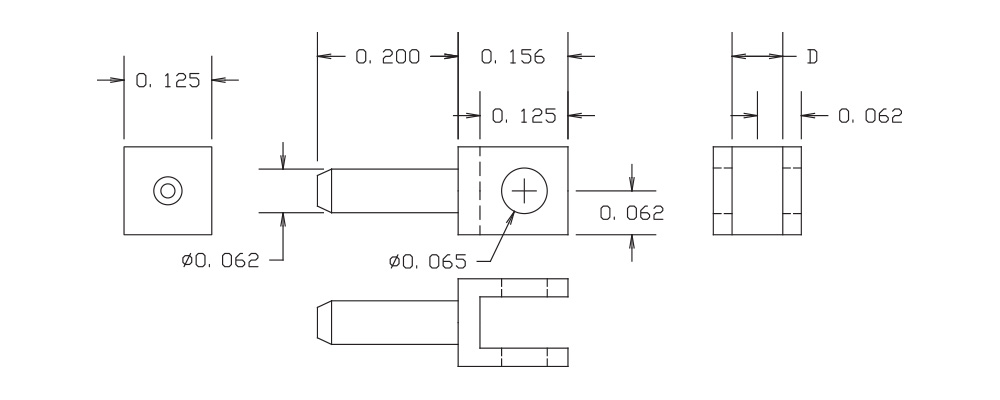

09-9503-2-05
09-9503-2-05
09-9503-2-05
0.356" 0.062 - 0-80 Screw - 1/16 CLEARANCE FOR #0 Screw Brass Electro Solder NO

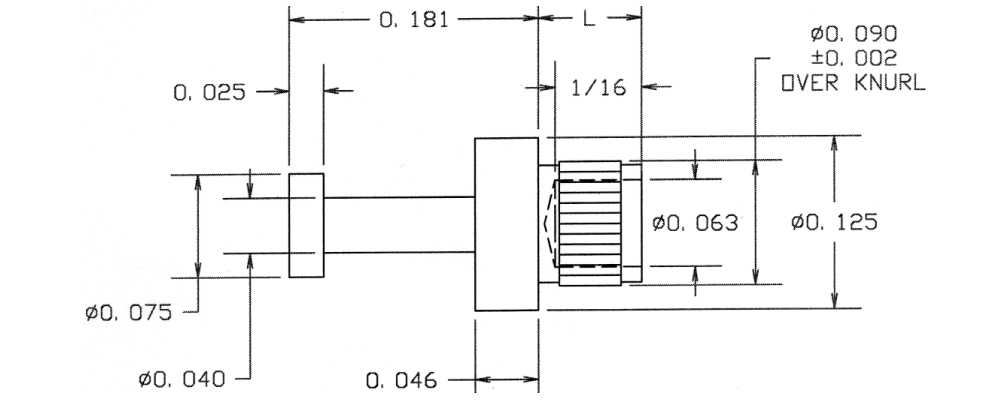

10-106-2-04
10-106-2-04
10-106-2-04
0.286" - - Swage Mount 0.105" 1/16 0.094 Brass Electro-Tin YES
10-114-2-035
10-114-2-035
10-114-2-035
0.178" - - Swage Mount 0.084" 1/16 0.043 Brass Gold YES
10-135-2-044
10-135-2-044
10-135-2-044
0.468" - - Swage Mount 0.109" 1/16 0.116 Brass Bright Tin YES
10-205-2-04
10-205-2-04
10-205-2-04
0.465" - - Swage Mount 0.105" 1/16 0.116 Brass Electro-Tin YES
10-214-2-01
10-214-2-01
10-214-2-01
0.240" - - Swage Mount 0.084" 1/16 0.067 Brass Silver YES
10-220-4-088
10-220-4-088
10-220-4-088
0.303" - - Swage Mount 0.147" 1/8 0.064 Brass Bright Tin-Lead NO

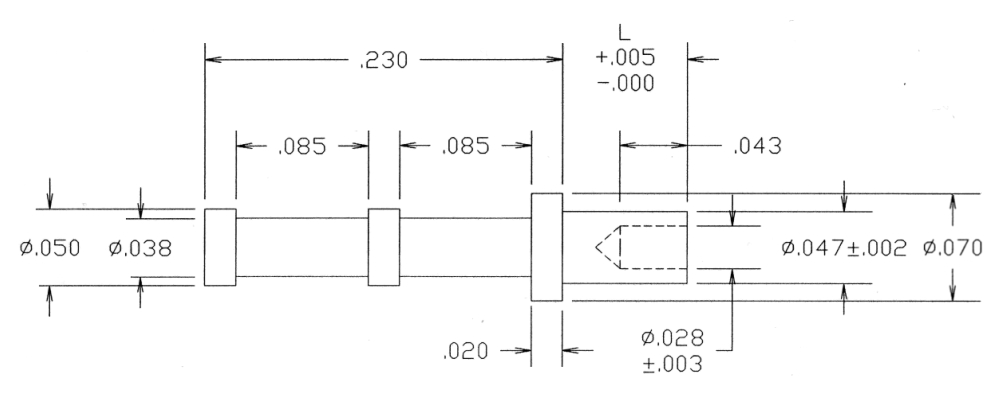

10-232-1-035
10-232-1-035
10-232-1-035
0.277" - - Swage Mount 0.047" 1/32 0.052 Brass Gold YES
