Commercial
Non-Insulated
Terminals

Filter
09-8356-2-05
09-8356-2-05
09-8356-2-05
0.332" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO

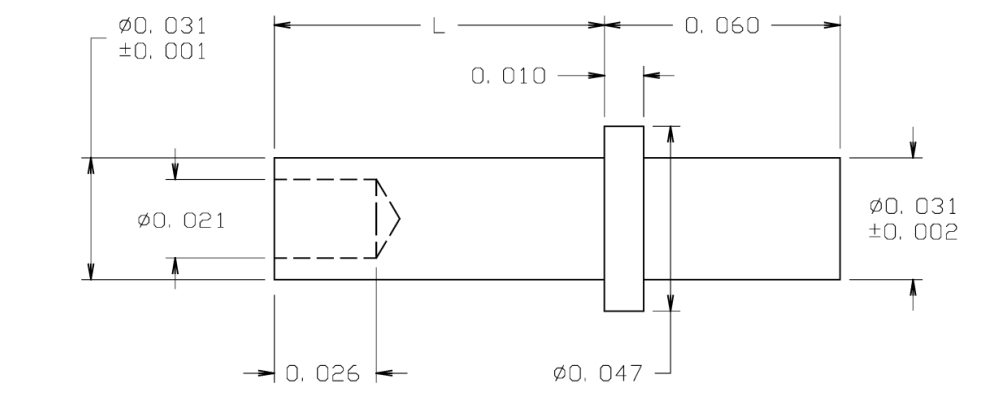

09-8598-3A-04
09-8598-3A-04
09-8598-3A-04
0.182" - - Swage Mount 0.122" 3/32 0.035 Brass Electro-Tin YES

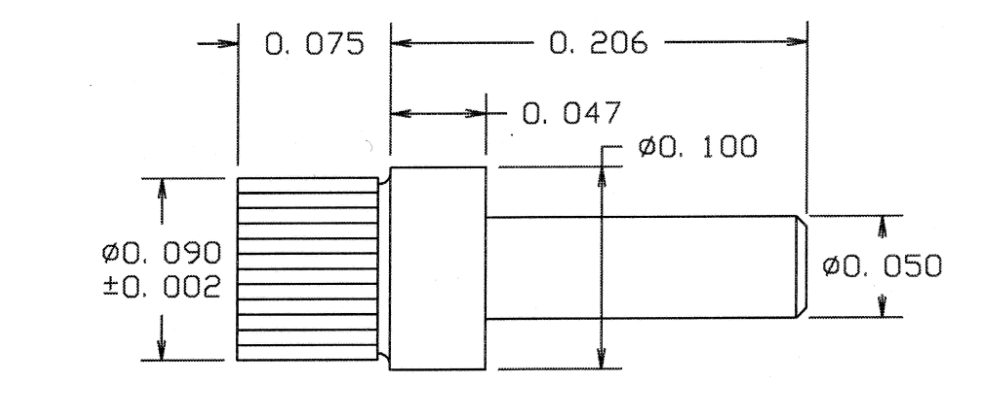

09-8706-1-095
09-8706-1-095
09-8706-1-095
0.281" 0.050 - Press Fit/Solder 0.075" 1/16 0.086 Brass Hot Solder Dip NO

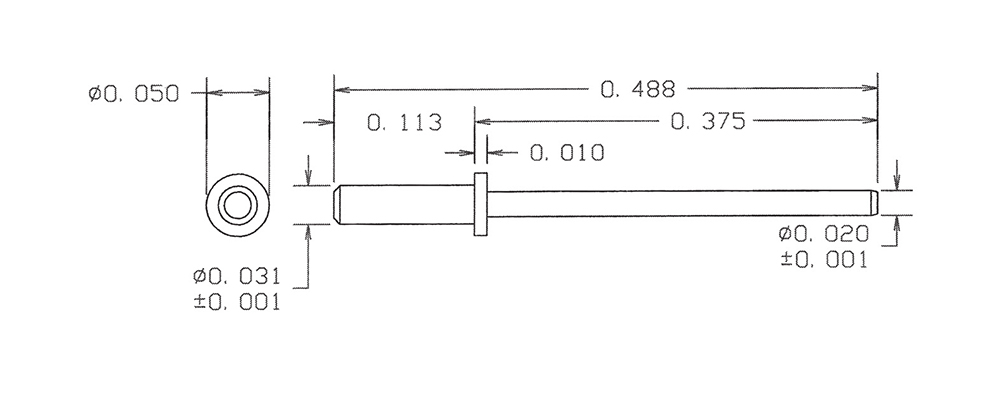

09-8825-1-044
09-8825-1-044
09-8825-1-044
0.488" 0.020 - Solder 0.113" 1/64 TO 3/32 0.035 Brass Bright Tin YES

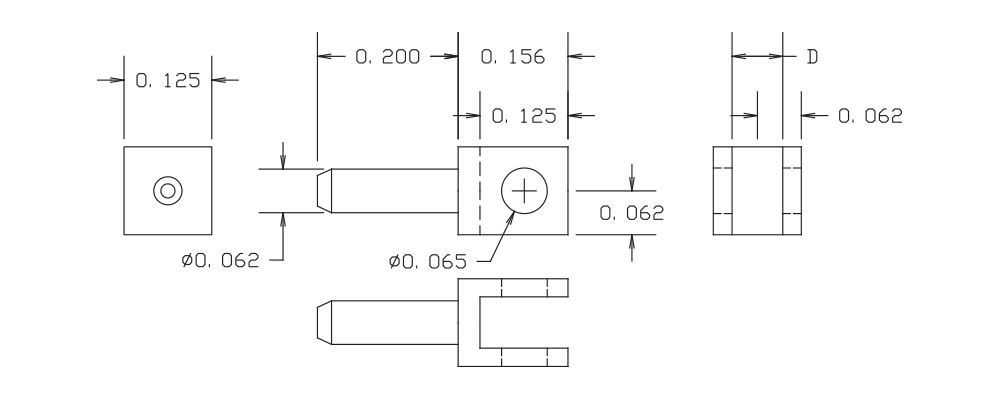

09-9503-1-05
09-9503-1-05
09-9503-1-05
0.356" 0.062 - 0-80 Screw - 1/32 CLEARANCE FOR #0 Screw Brass Electro Solder NO

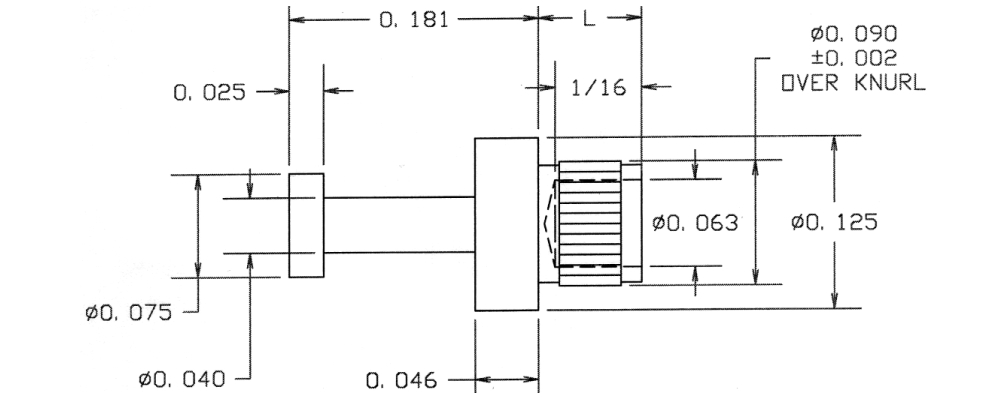

10-106-1-04
10-106-1-04
10-106-1-04
0.256" - - Swage Mount 0.075" 1/32 0.094 Brass Electro-Tin YES
10-114-11-04
10-114-11-04
10-114-11-04
0.131" - - Swage Mount 0.037" 1/64 0.043 Brass Electro-Tin YES
10-135-1-05
10-135-1-05
10-135-1-05
0.437" - - Swage Mount 0.078" 1/32 0.116 Brass Electro Solder NO
10-205-1-04
10-205-1-04
10-205-1-04
0.435" - - Swage Mount 0.075" 1/32 0.116 Brass Electro-Tin YES
10-214-11-03
10-214-11-03
10-214-11-03
0.193" - - Swage Mount 0.037" 1/64 0.067 Brass Gold YES
10-220-3-088
10-220-3-088
10-220-3-088
0.271" - - Swage Mount 0.115" 3/32 0.064 Brass Bright Tin-Lead NO
10-231-4-035
10-231-4-035
10-231-4-035
0.320" - - Swage Mount 0.165" 1/8 0.116 Brass Gold YES
10-254-4-01
10-254-4-01
10-254-4-01
0.303" - - Swage Mount 0.147" 1/8 0.063 Brass Silver YES
10-306-4-04
10-306-4-04
10-306-4-04
0.353" - - Swage Mount 0.165" 1/8 0.113 Brass Electro-Tin YES
10-315-1-01
10-315-1-01
10-315-1-01
0.403" - - Swage Mount 0.075" 1/32 0.082 Brass Silver YES
10-329-4-044
10-329-4-044
10-329-4-044
0.500" - - Swage Mount 0.172" 1/8 0.125 Brass Bright Tin YES
10-404-2-03
10-404-2-03
10-404-2-03
0.422" - - Swage Mount 0.105" 1/16 0.116 Brass Gold YES
10-418-4-088
10-418-4-088
10-418-4-088
0.696" - Turret/Turret Swage Mount 0.165" 1/8 0.120 Brass Bright Tin-Lead NO
10-432-3-035
10-432-3-035
10-432-3-035
0.572" - - Swage Mount 0.135" 3/32 0.161 Brass Gold YES
10-446-2-035
10-446-2-035
10-446-2-035
0.476" - SLOTTED/DOUBLE TURRET Swage Mount 0.094" 1/16 0.096 Brass Gold YES
