Commercial
Non-Insulated
Terminals

Filter

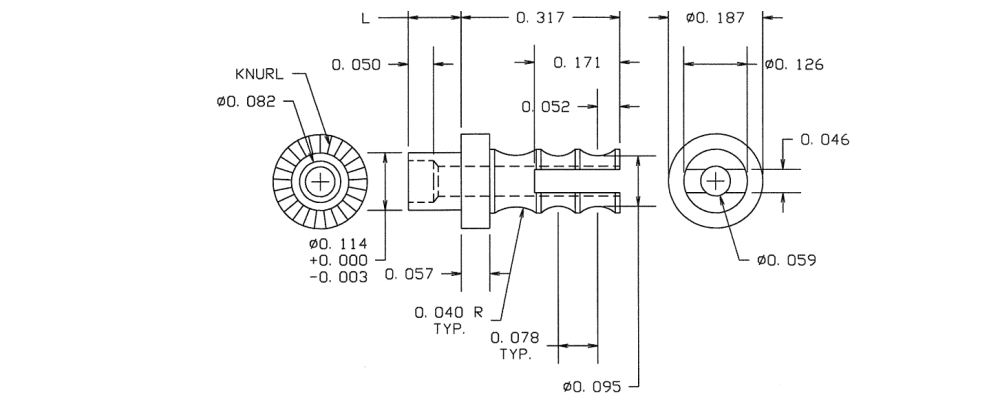

10-404-2-035
10-404-2-035
10-404-2-035
0.422" - - Swage Mount 0.105" 1/16 0.116 Brass Gold YES

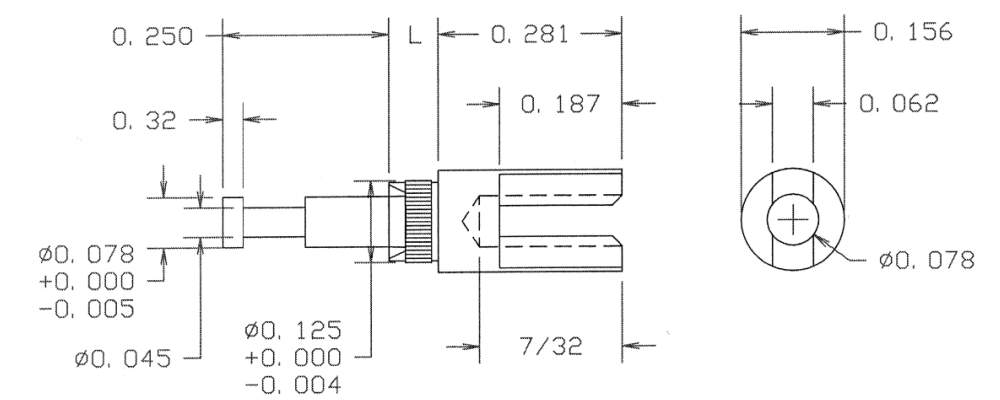

10-418-4A-01
10-418-4A-01
10-418-4A-01
0.684" - Turret/Turret Swage Mount 0.153" 1/8 0.120 Brass Silver YES

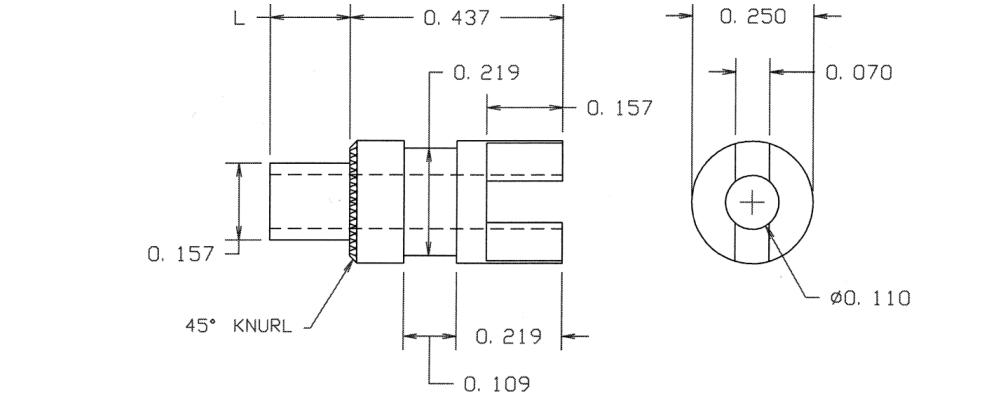

10-432-3-04
10-432-3-04
10-432-3-04
0.572" - - Swage Mount 0.135" 3/32 0.161 Brass Electro-Tin YES

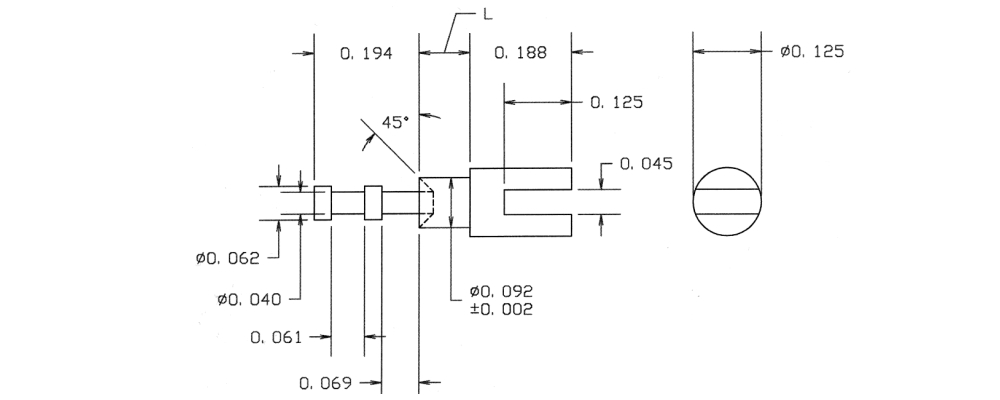

10-446-2-04
10-446-2-04
10-446-2-04
0.476" - SLOTTED/DOUBLE TURRET Swage Mount 0.094" 1/16 0.096 Brass Electro-Tin YES

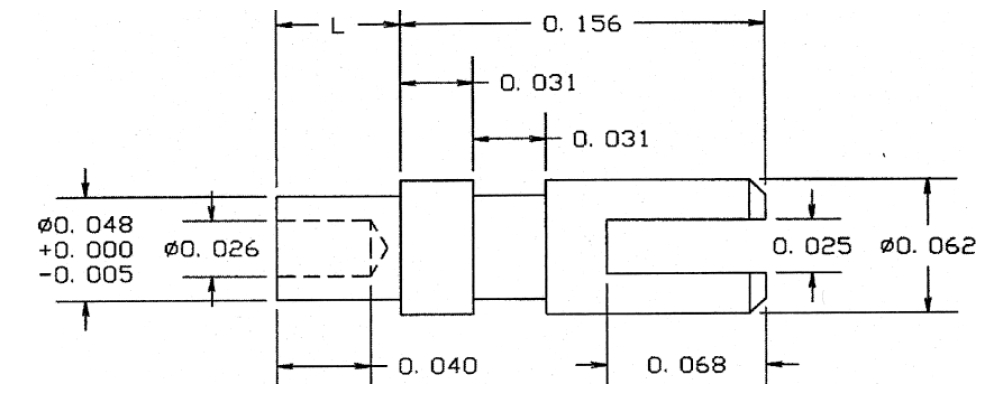

10-462-3-04
10-462-3-04
10-462-3-04
0.271" - - Swage Mount 0.115" 3/32 0.052 Brass Electro-Tin YES

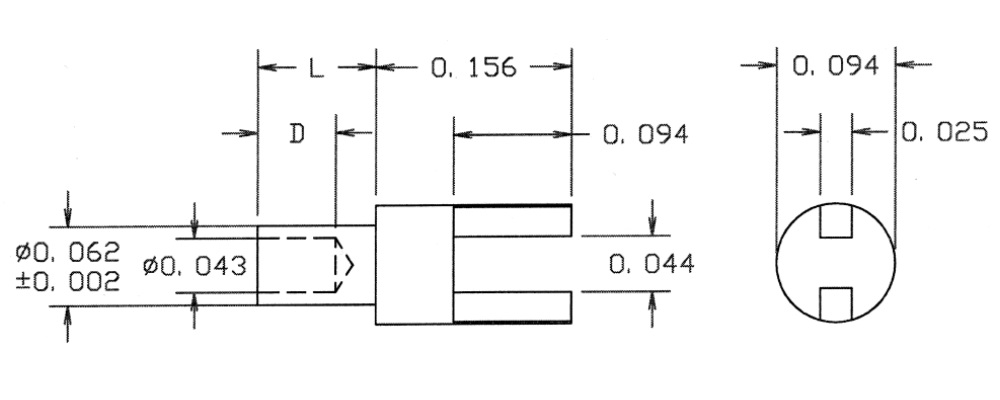

10-489-4-04
10-489-4-04
10-489-4-04
0.312" - - Swage Mount 0.156" 1/8 0.067 Brass Electro-Tin YES

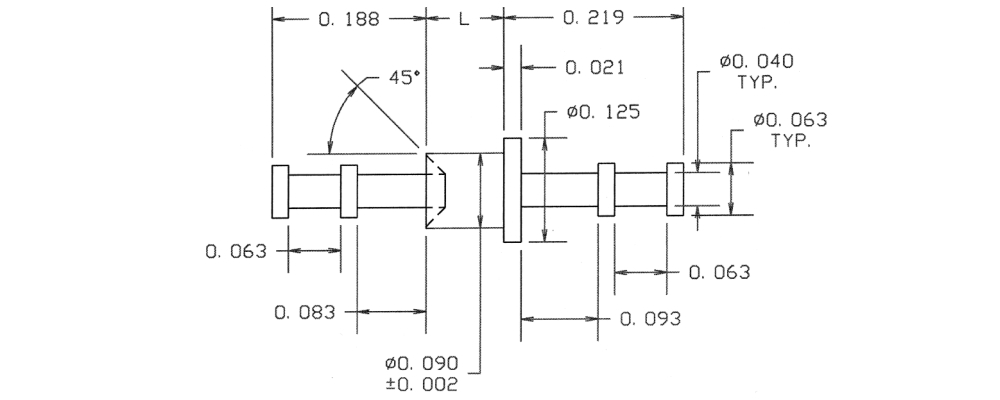

10-504-2-05
10-504-2-05
10-504-2-05
0.501" - Double Turret/Double Turret Swage Mount 0.094" 1/16 0.094 Brass Electro Solder NO

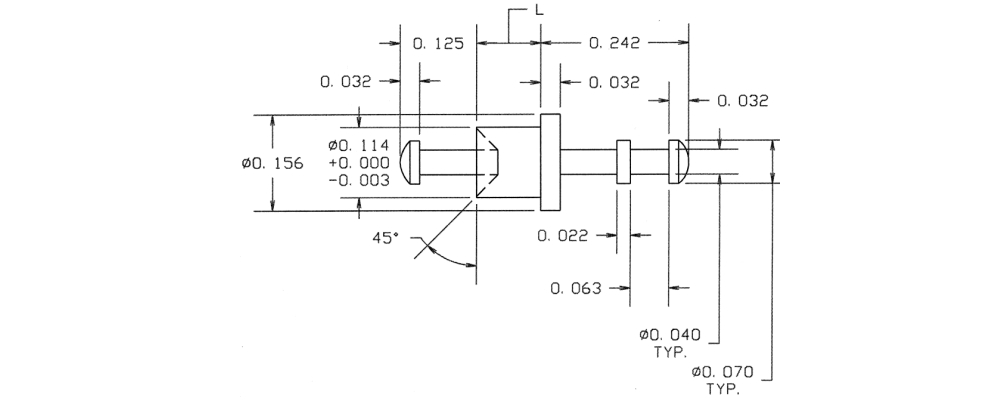

10-510-2-05
10-510-2-05
10-510-2-05
0.472" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.116 Brass Electro Solder NO

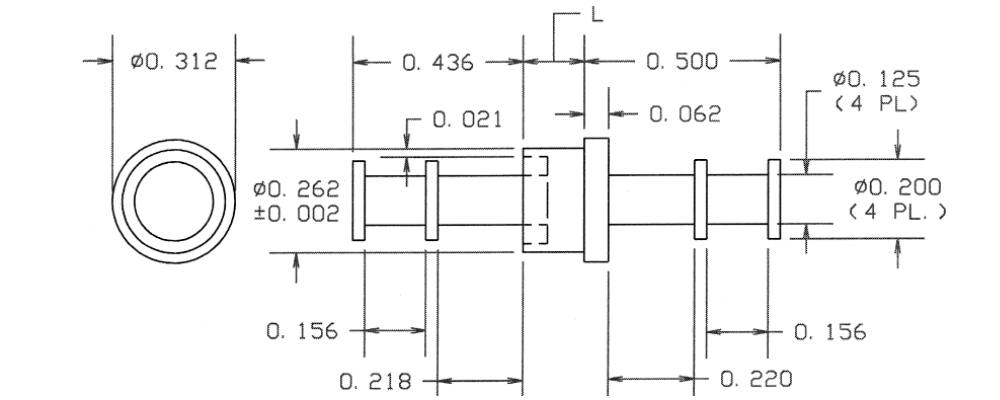

10-519-8-05
10-519-8-05
10-519-8-05
1.217" - Double Turret/Double Turret Swage Mount 0.281" 1/4 0.266 Brass Electro Solder NO

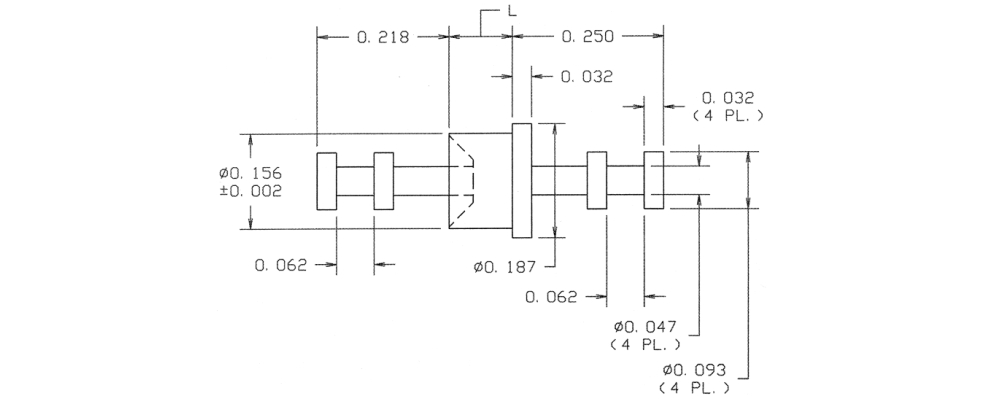

10-532-2-05
10-532-2-05
10-532-2-05
0.573" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.159 Brass Electro Solder NO

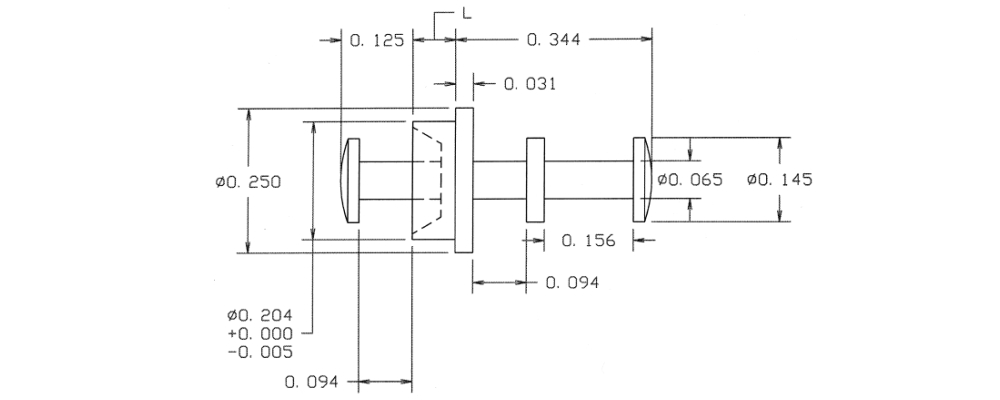

10-550-1-05
10-550-1-05
10-550-1-05
0.544" - TURRET/DOUBLE TURRET Swage Mount 0.075" 1/32 0.206 Brass Electro Solder NO

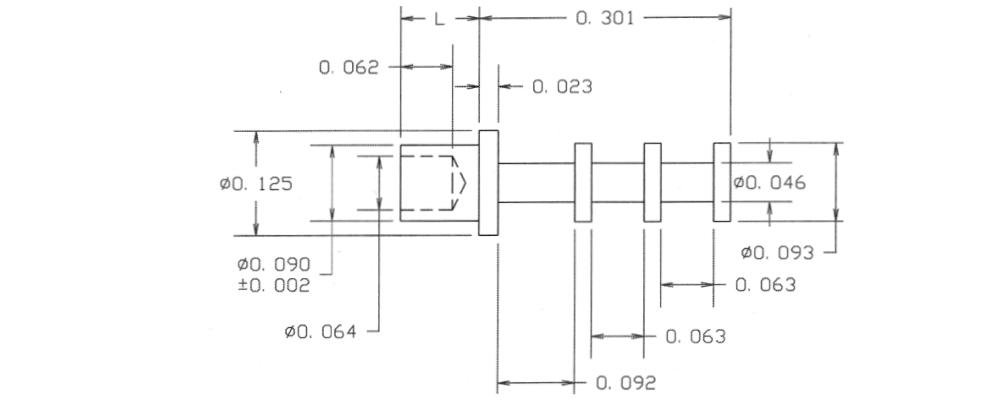

10-601-3-05
10-601-3-05
10-601-3-05
0.426" - - Swage Mount 0.125" 3/32 0.094 Brass Electro Solder NO

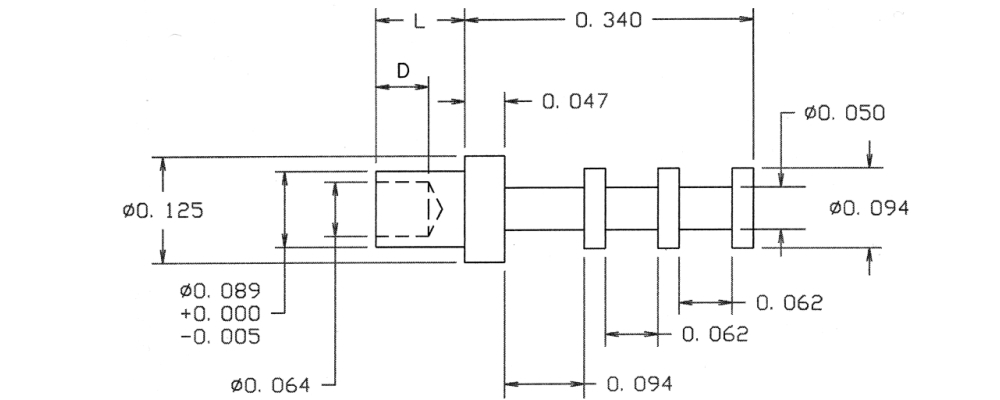

10-615-4-03
10-615-4-03
10-615-4-03
0.505" - - Swage Mount 0.165" 1/8 0.090 Brass Gold YES

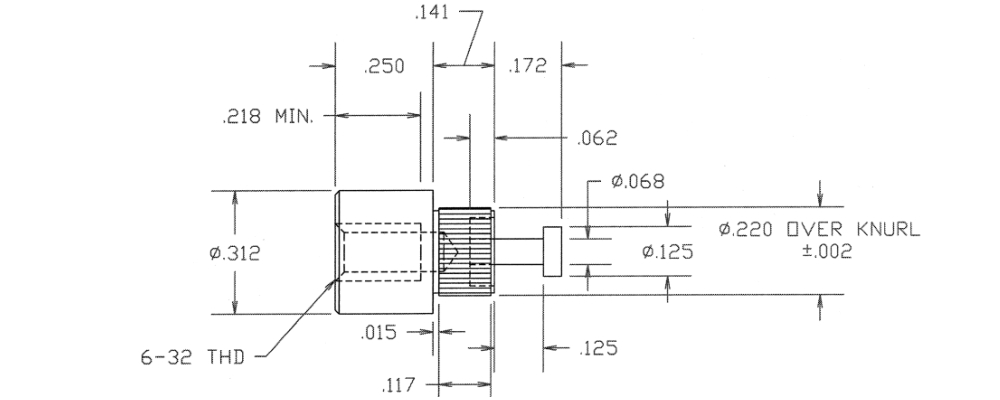

10-753-3-044
10-753-3-044
10-753-3-044
0.563" - TURRET/THREAD Swage Mount 0.141" 3/32 0.213 Brass Bright Tin YES

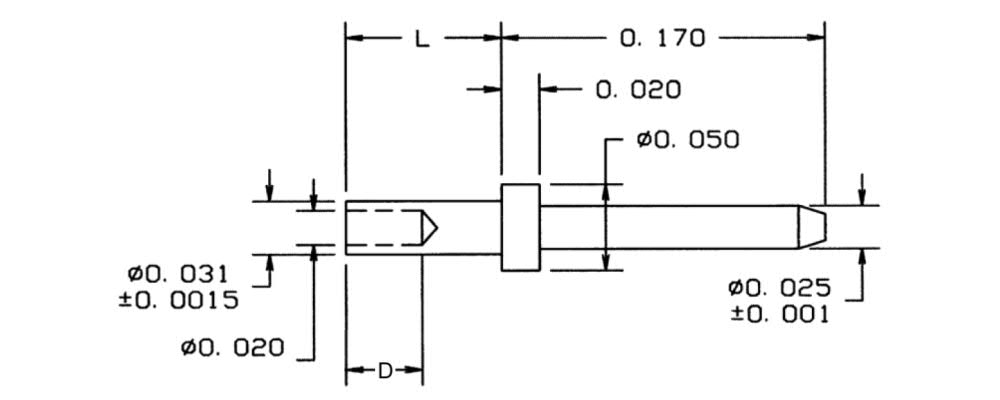

10-8017-11-04
10-8017-11-04
10-8017-11-04
0.200" 0.025 - Swage Mount 0.030" 1/64 0.035 Brass Electro-Tin YES

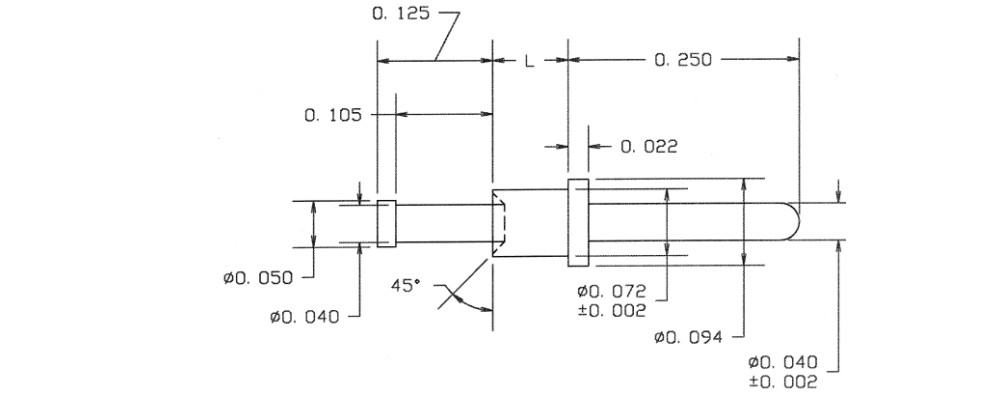

10-803-8-044
10-803-8-044
10-803-8-044
0.645" 0.040 TURRET/PIN Swage Mount 0.270" 1/4 0.076 Brass Bright Tin YES

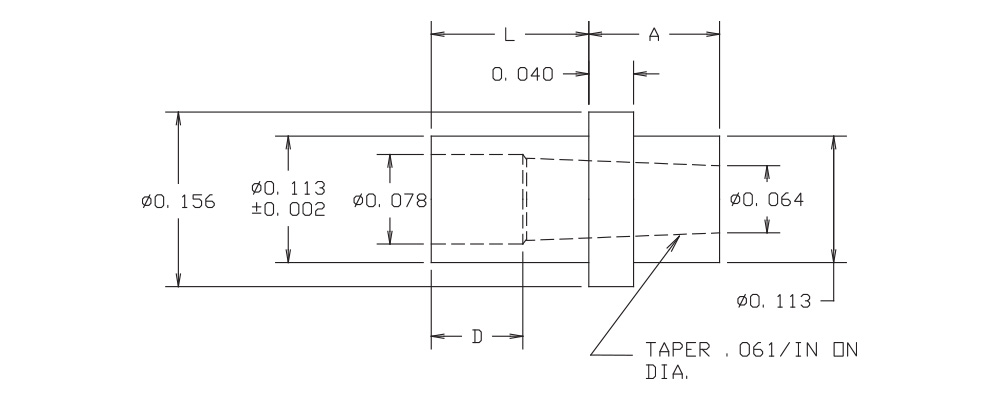

10-809-6-044
10-809-6-044
10-809-6-044
0.320" - - Swage Mount 0.234" 3/16 0.116 Brass Bright Tin YES

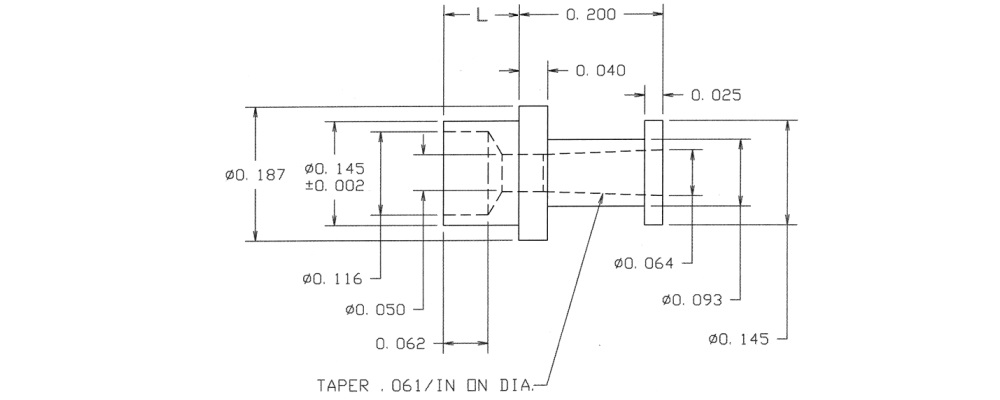

10-816-6-03
10-816-6-03
10-816-6-03
0.430" - - Swage Mount 0.230" 3/16 0.1495 Brass Gold YES

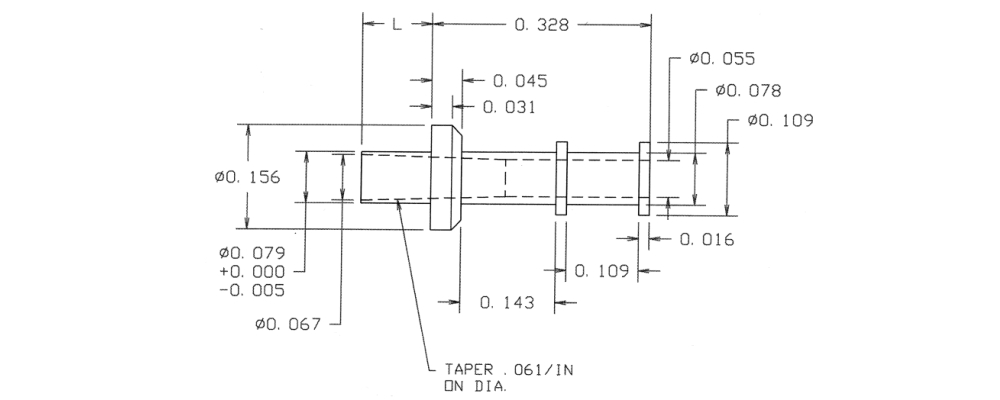

10-826-6-044
10-826-6-044
10-826-6-044
0.558" - - Swage Mount 0.230" 3/16 0.081 Brass Bright Tin YES

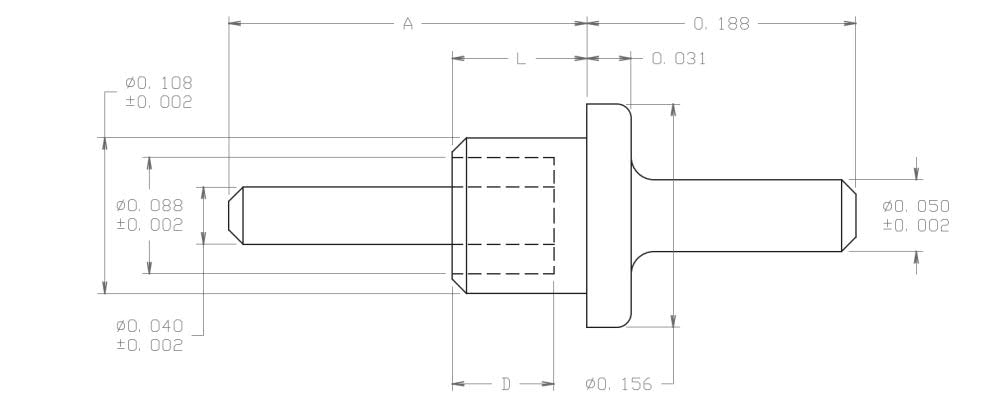

10-837-4-04
10-837-4-04
10-837-4-04
0.501" 0.050 Pin/Pin Swage Mount 0.156" 1/8 0.111 Brass Electro-Tin YES
