Commercial
Non-Insulated
Terminals

Filter

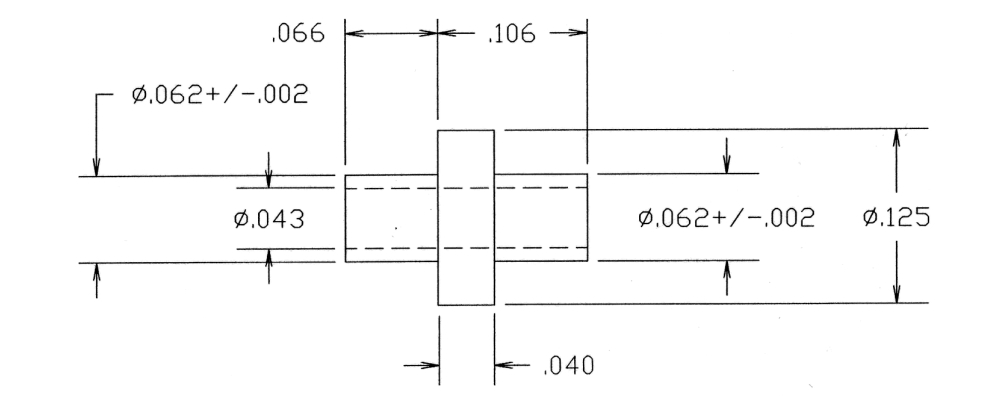

09-0034-1-01
09-0034-1-01
09-0034-1-01
0.172" - - Swage Mount 0.066" 1/32 0.067 Brass Silver YES

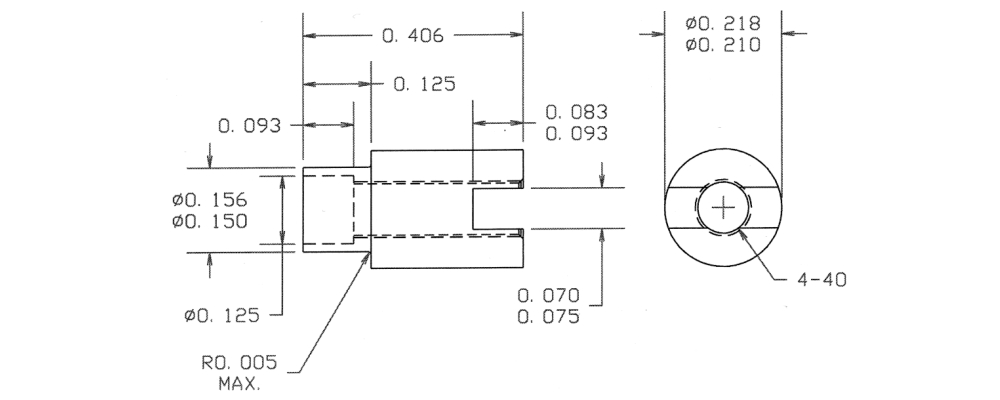

09-0088-3-03
09-0088-3-03
09-0088-3-03
0.406" - - Swage Mount 0.125" 3/32 0.159 Brass Gold YES

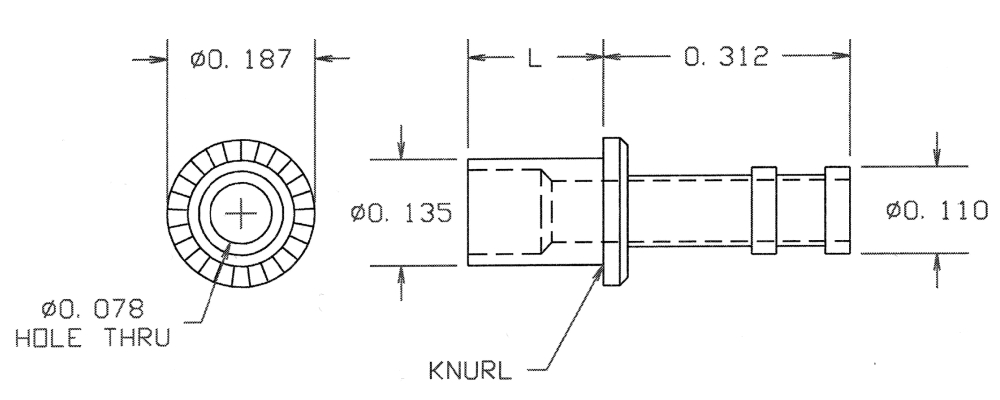

09-0168-2-035
09-0168-2-035
09-0168-2-035
0.421" - - Swage Mount 0.109" 1/16 0.141 Brass Gold YES

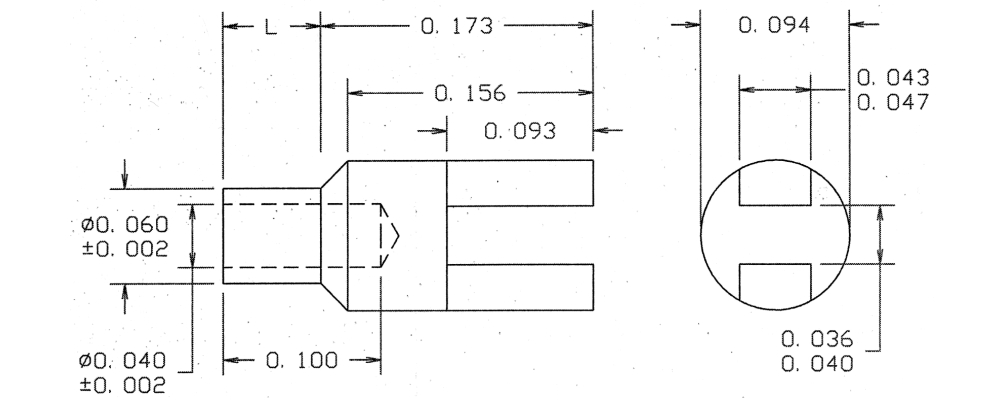

09-0208-2-05
09-0208-2-05
09-0208-2-05
0.267" - - Swage Mount 0.094" 1/16 0.067 LEADED Red Brass Electro Solder NO

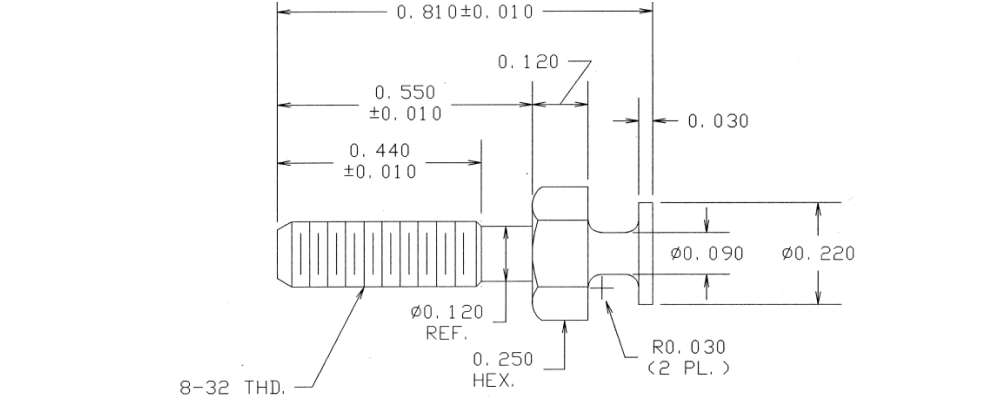

09-0244-1-044
09-0244-1-044
09-0244-1-044
0.810" - - 8-32 - - 8-32 THREAD Brass Bright Tin YES

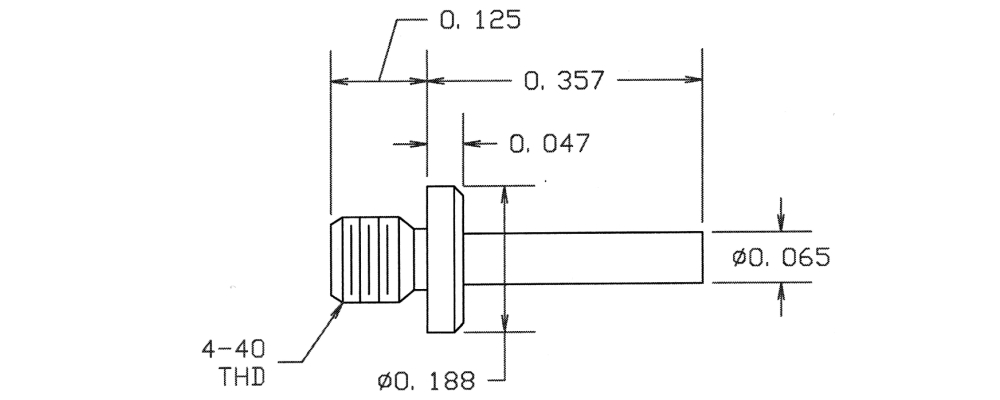

09-0292-4-04
09-0292-4-04
09-0292-4-04
0.482" 0.065 - 4-40 - - 4-40 THREAD Brass Electro-Tin YES

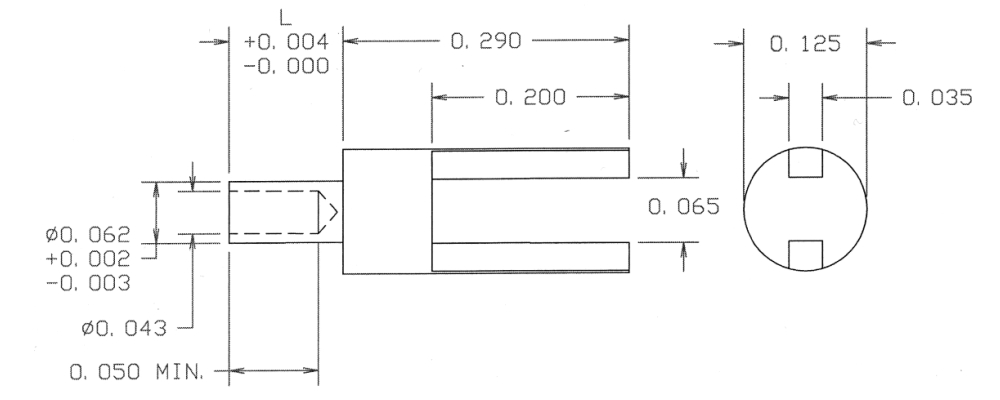

09-0353-4-044
09-0353-4-044
09-0353-4-044
0.438" - - Swage Mount 0.148" 1/8 0.067 Brass Bright Tin YES

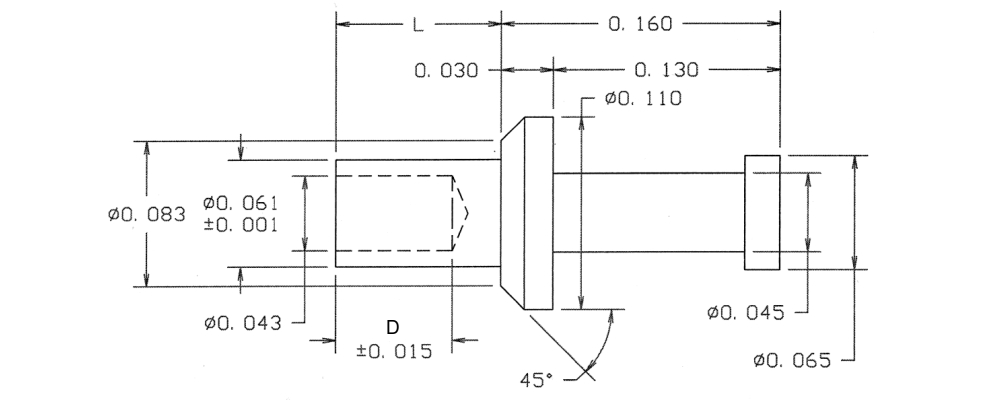

09-7013-1-01
09-7013-1-01
09-7013-1-01
0.222" - - Swage Mount 0.062" 1/32 0.067 LEADED Red Brass Silver YES

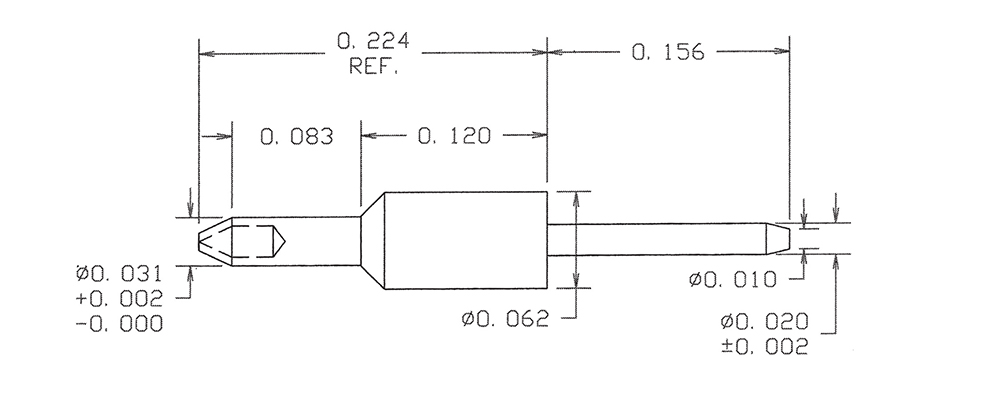

09-7119-2-088
09-7119-2-088
09-7119-2-088
0.380" 0.020 - RIVET MOUNT 0.083" 1/16 0.035 Brass Bright Tin-Lead NO

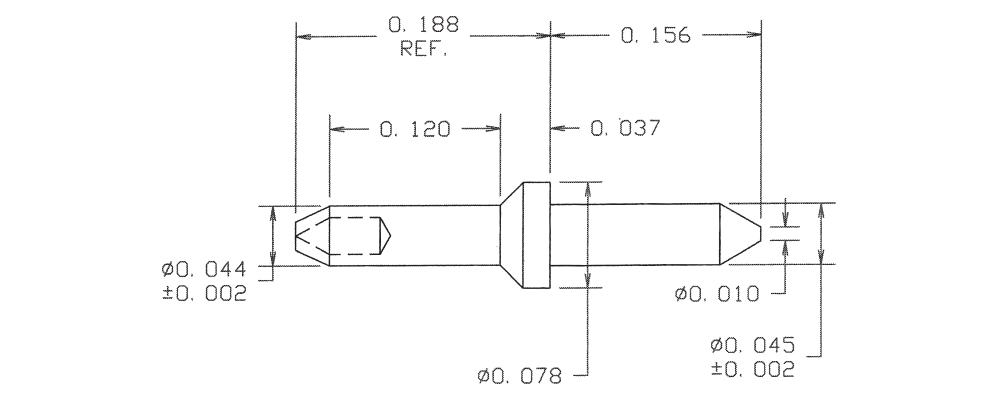

09-7149-3-04
09-7149-3-04
09-7149-3-04
0.344" 0.045 - RIVET MOUNT 0.120" 3/32 0.048 Brass Electro-Tin YES

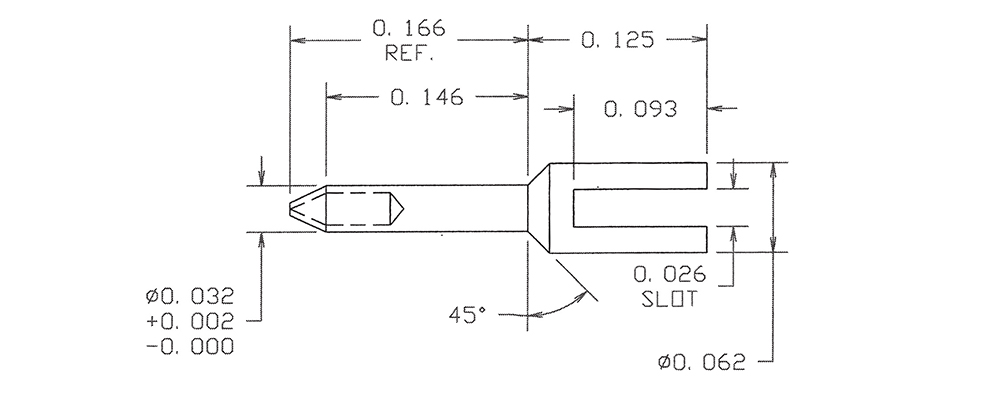

09-7181-4-01
09-7181-4-01
09-7181-4-01
0.291" - - RIVET MOUNT 0.146" 1/8 0.036 Brass Silver YES

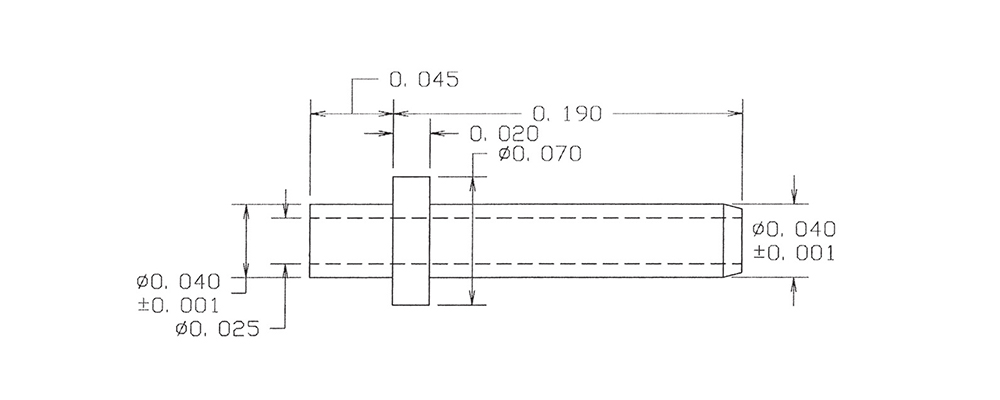

09-8025-1-044
09-8025-1-044
09-8025-1-044
0.235" 0.040 - Swage Mount 0.045" 1/64 0.043 Brass Bright Tin YES

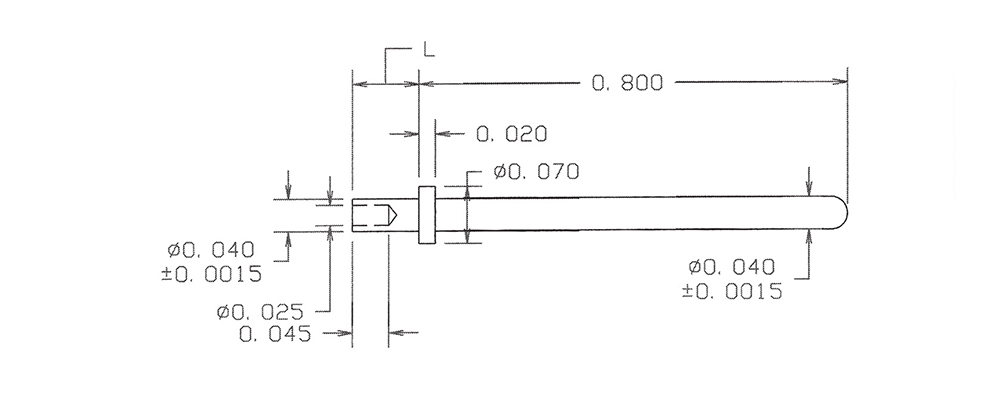

09-8060-1-01
09-8060-1-01
09-8060-1-01
0.851" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES

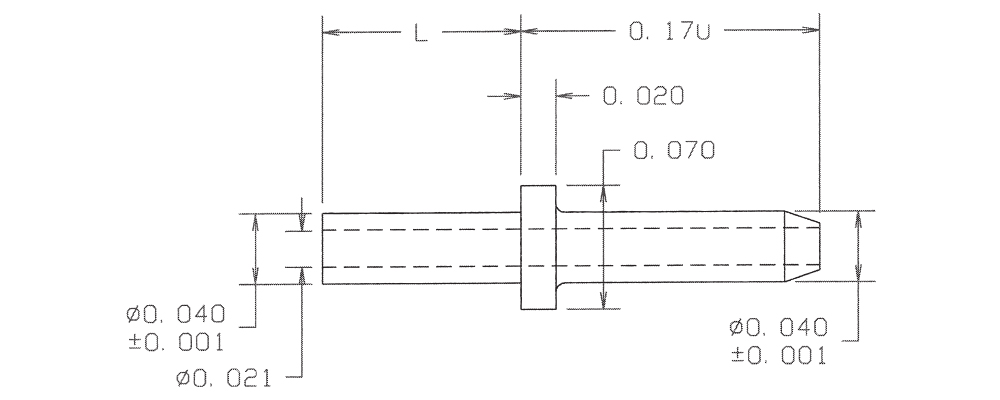

09-8112-2-044
09-8112-2-044
09-8112-2-044
0.252" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES

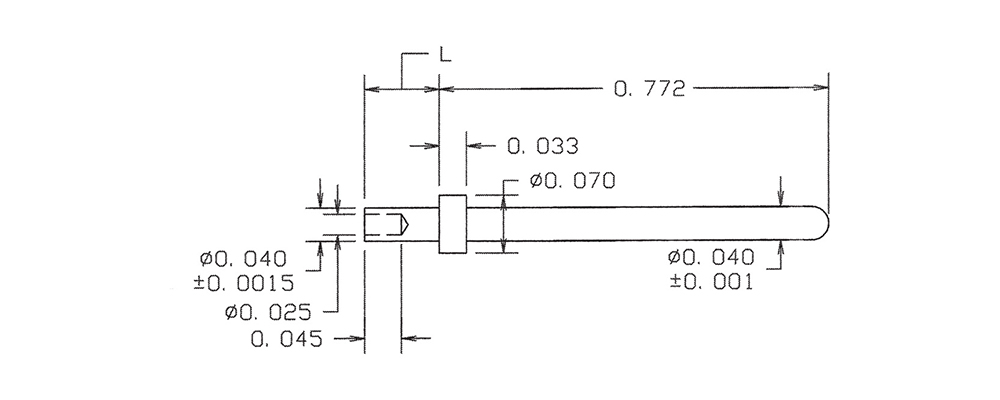

09-8155-2-03
09-8155-2-03
09-8155-2-03
0.863" 0.040 - Swage Mount 0.091" 1/16 0.043 Brass Gold YES

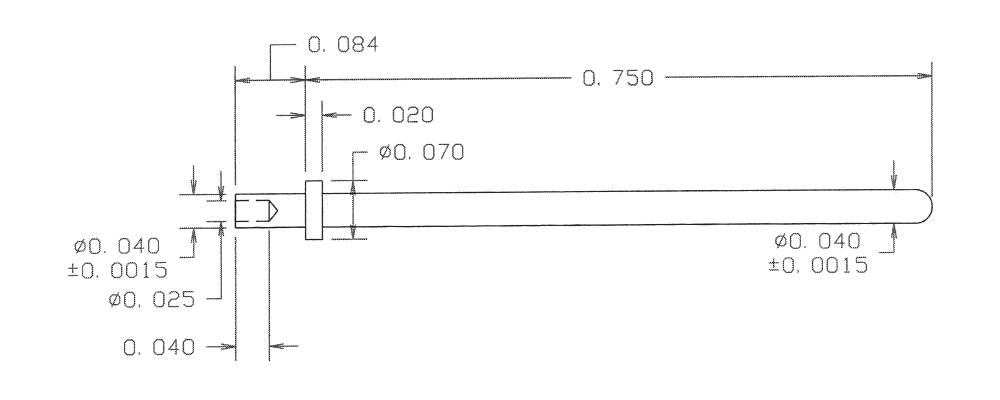

09-8184-2-05
09-8184-2-05
09-8184-2-05
0.834" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Electro Solder NO

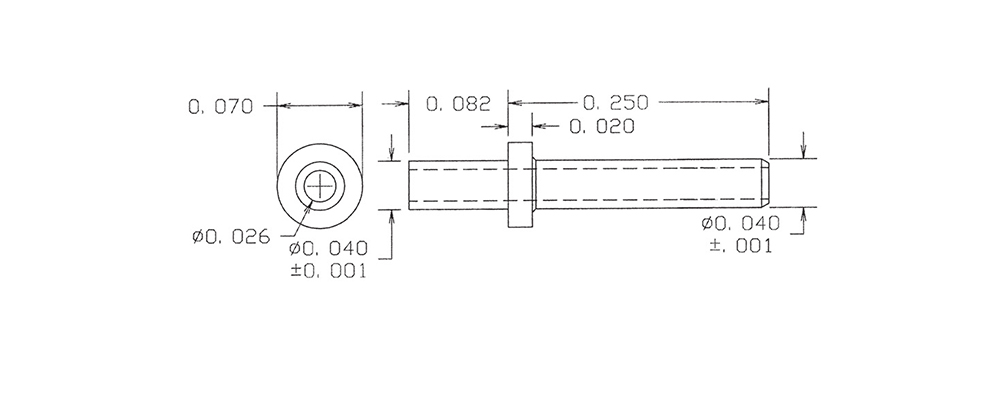

09-8356-2-044
09-8356-2-044
09-8356-2-044
0.332" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES

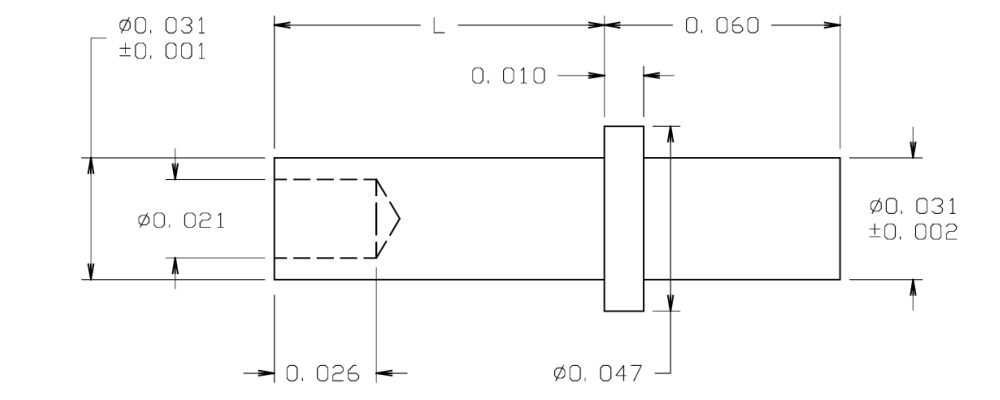

09-8598-3A-035
09-8598-3A-035
09-8598-3A-035
0.182" - - Swage Mount 0.122" 3/32 0.035 Brass Gold YES

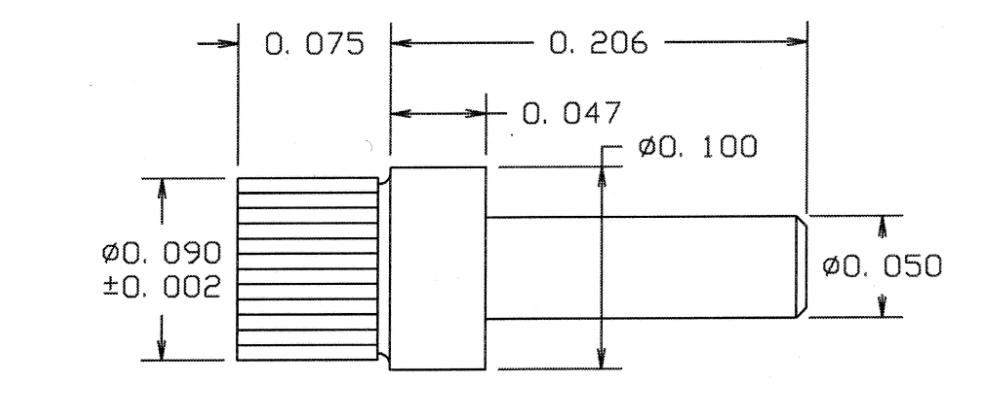

09-8706-1-088
09-8706-1-088
09-8706-1-088
0.281" 0.050 - Press Fit/Solder 0.075" 1/16 0.086 Brass Bright Tin-Lead NO
09-8825-1-04
09-8825-1-04
09-8825-1-04
0.488" 0.020 - Solder 0.113" 1/64 TO 3/32 0.035 Brass Electro-Tin YES
