Commercial
Non-Insulated
Terminals

Filter

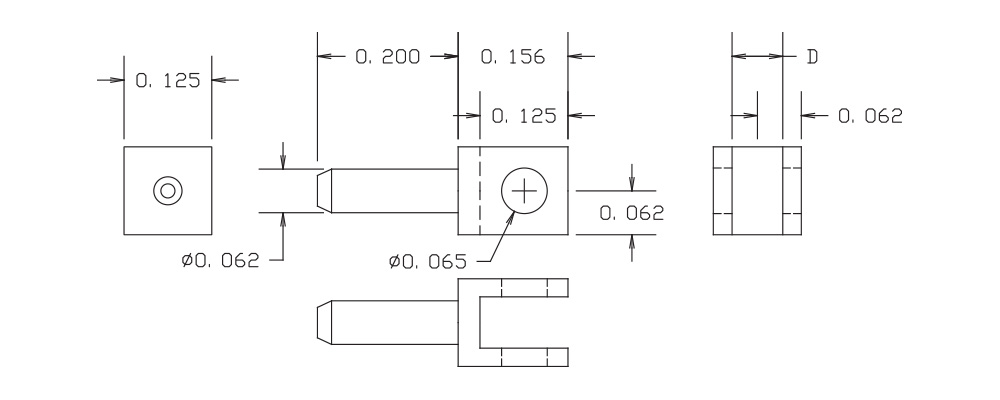

09-9503-1-044
09-9503-1-044
09-9503-1-044
0.356" 0.062 - 0-80 Screw - 1/32 CLEARANCE FOR #0 Screw Brass Bright Tin YES

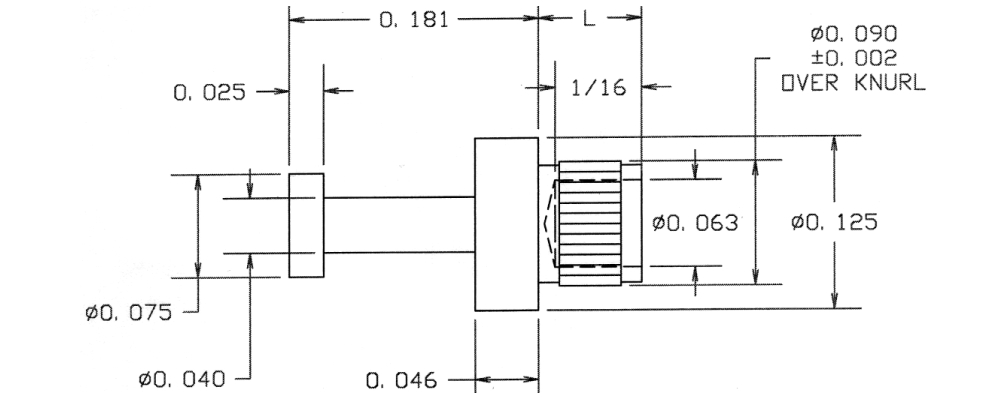

10-106-1-035
10-106-1-035
10-106-1-035
0.256" - - Swage Mount 0.075" 1/32 0.094 Brass Gold YES
10-114-11-035
10-114-11-035
10-114-11-035
0.131" - - Swage Mount 0.037" 1/64 0.043 Brass Gold YES
10-135-1-044
10-135-1-044
10-135-1-044
0.437" - - Swage Mount 0.078" 1/32 0.116 Brass Bright Tin YES
10-205-1-035
10-205-1-035
10-205-1-035
0.435" - - Swage Mount 0.075" 1/32 0.116 Brass Gold YES
10-214-11-01
10-214-11-01
10-214-11-01
0.193" - - Swage Mount 0.037" 1/64 0.067 Brass Silver YES
10-220-3-05
10-220-3-05
10-220-3-05
0.271" - - Swage Mount 0.115" 3/32 0.064 Brass Electro Solder NO

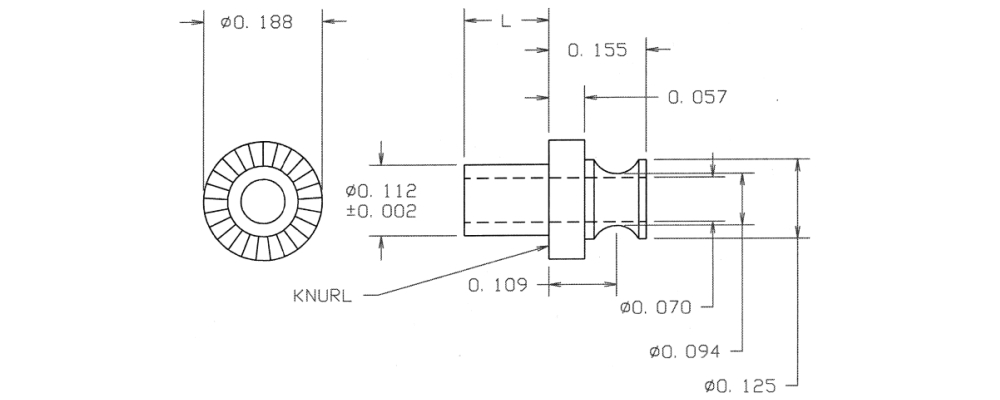

10-231-4-03
10-231-4-03
10-231-4-03
0.320" - - Swage Mount 0.165" 1/8 0.116 Brass Gold YES
10-254-3-095
10-254-3-095
10-254-3-095
0.271" - - Swage Mount 0.115" 3/32 0.063 Brass Hot Solder Dip NO
10-306-4-035
10-306-4-035
10-306-4-035
0.353" - - Swage Mount 0.165" 1/8 0.113 Brass Gold YES
10-313-4-088
10-313-4-088
10-313-4-088
0.493" - - Swage Mount 0.165" 1/8 0.081 Brass Bright Tin-Lead NO
10-329-4-04
10-329-4-04
10-329-4-04
0.500" - - Swage Mount 0.172" 1/8 0.125 Brass Electro-Tin YES
10-404-2-01
10-404-2-01
10-404-2-01
0.422" - - Swage Mount 0.105" 1/16 0.116 Brass Silver YES
10-418-4-05
10-418-4-05
10-418-4-05
0.696" - Turret/Turret Swage Mount 0.165" 1/8 0.120 Brass Electro Solder NO
10-432-3-03
10-432-3-03
10-432-3-03
0.572" - - Swage Mount 0.135" 3/32 0.161 Brass Gold YES
10-446-2-03
10-446-2-03
10-446-2-03
0.476" - SLOTTED/DOUBLE TURRET Swage Mount 0.094" 1/16 0.096 Brass Gold YES
10-462-3-03
10-462-3-03
10-462-3-03
0.271" - - Swage Mount 0.115" 3/32 0.052 Brass Gold YES
10-489-4-03
10-489-4-03
10-489-4-03
0.312" - - Swage Mount 0.156" 1/8 0.067 Brass Gold YES
10-504-2-04
10-504-2-04
10-504-2-04
0.501" - Double Turret/Double Turret Swage Mount 0.094" 1/16 0.094 Brass Electro-Tin YES
10-510-2-04
10-510-2-04
10-510-2-04
0.472" - TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.116 Brass Electro-Tin YES
