Commercial
Non-Insulated
Terminals

Filter

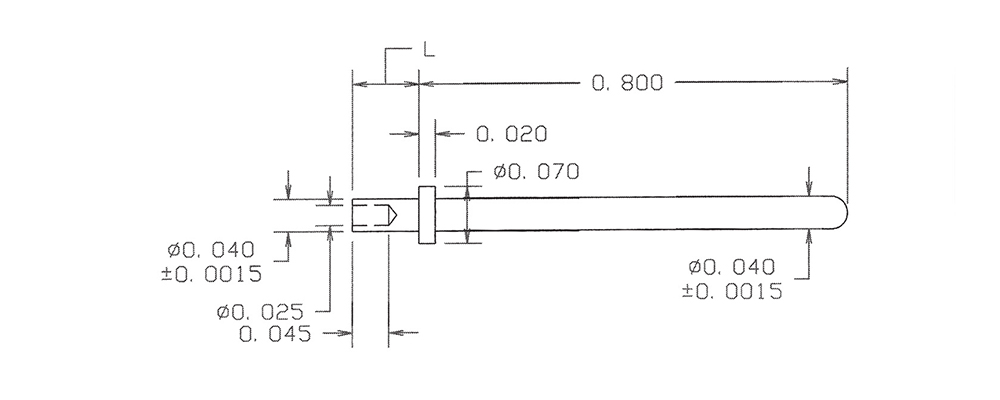

09-8060-1-035
09-8060-1-035
09-8060-1-035
0.851" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

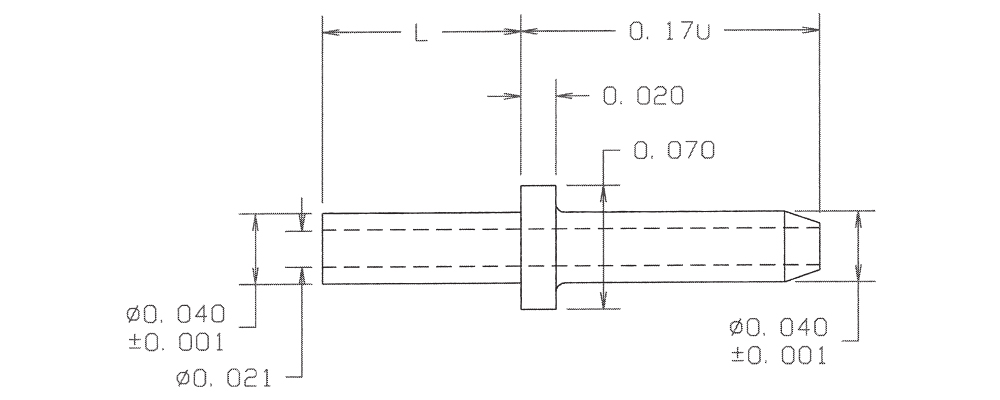

09-8112-2-088
09-8112-2-088
09-8112-2-088
0.252" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO

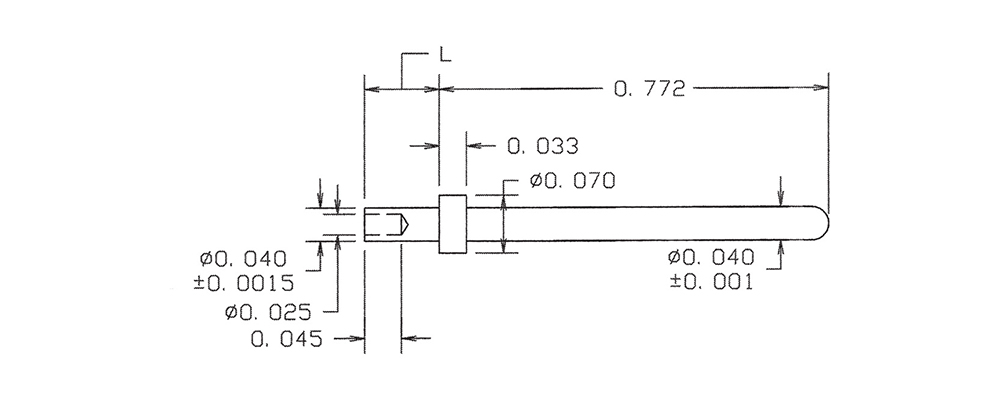

09-8155-2-04
09-8155-2-04
09-8155-2-04
0.863" 0.040 - Swage Mount 0.091" 1/16 0.043 Brass Electro-Tin YES

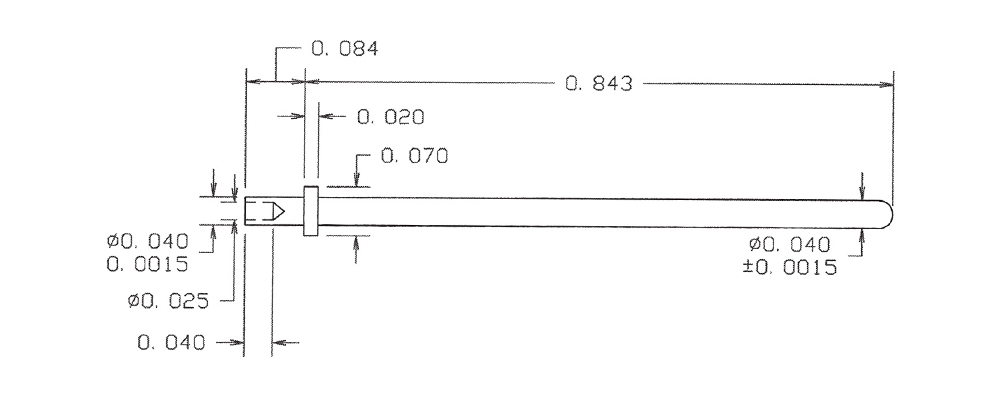

09-8185-2-01
09-8185-2-01
09-8185-2-01
0.927" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Silver YES

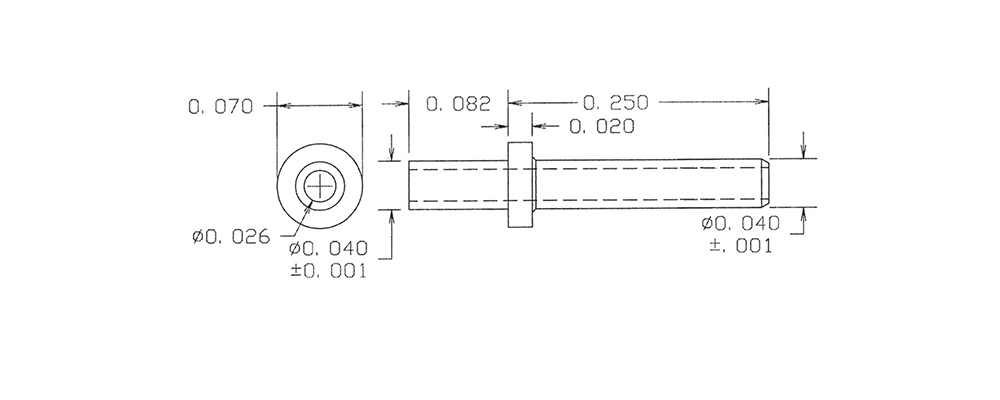

09-8356-2-088
09-8356-2-088
09-8356-2-088
0.332" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO

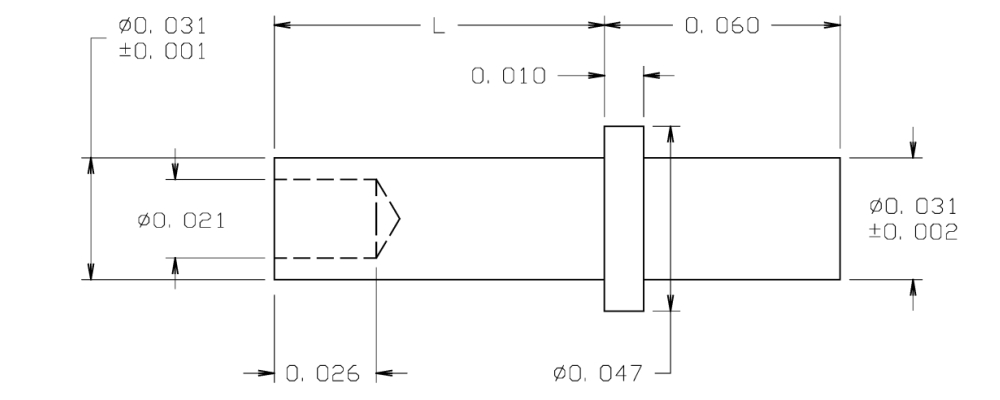

09-8598-3A-044
09-8598-3A-044
09-8598-3A-044
0.182" - - Swage Mount 0.122" 3/32 0.035 Brass Bright Tin YES

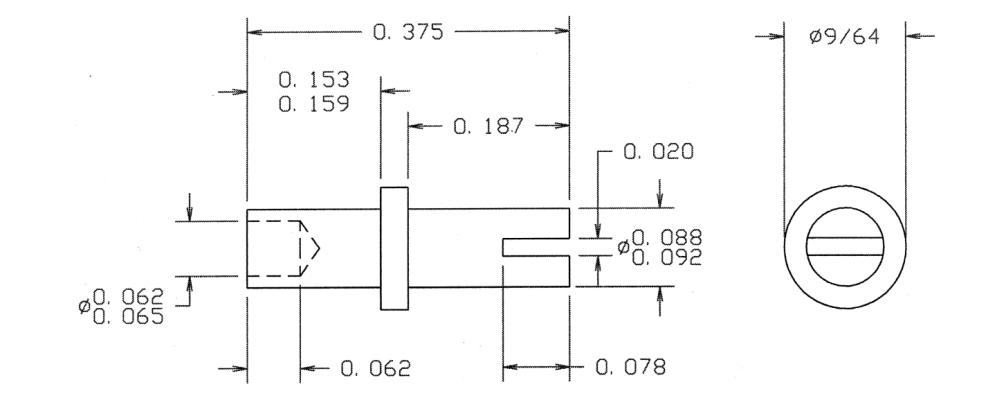

09-8722-4-01
09-8722-4-01
09-8722-4-01
0.375" - - Swage Mount 0.156" 1/8 0.094 Brass Silver YES

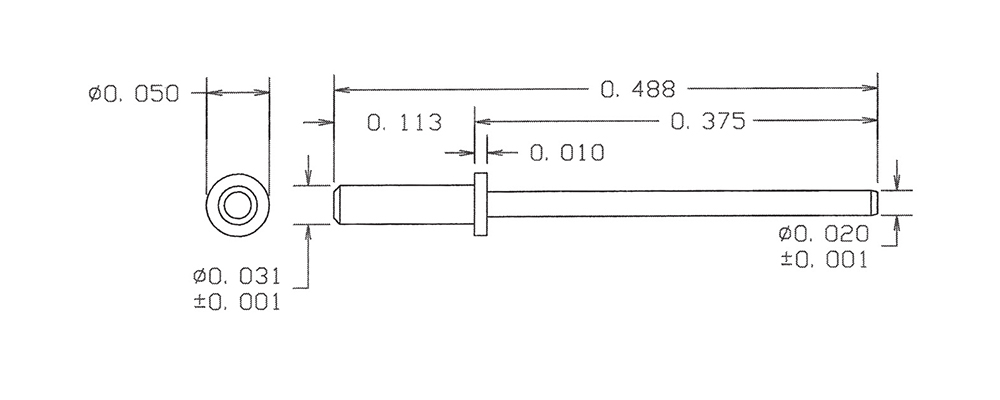

09-8825-1-05
09-8825-1-05
09-8825-1-05
0.488" 0.020 - Solder 0.113" 1/64 TO 3/32 0.035 Brass Electro Solder NO

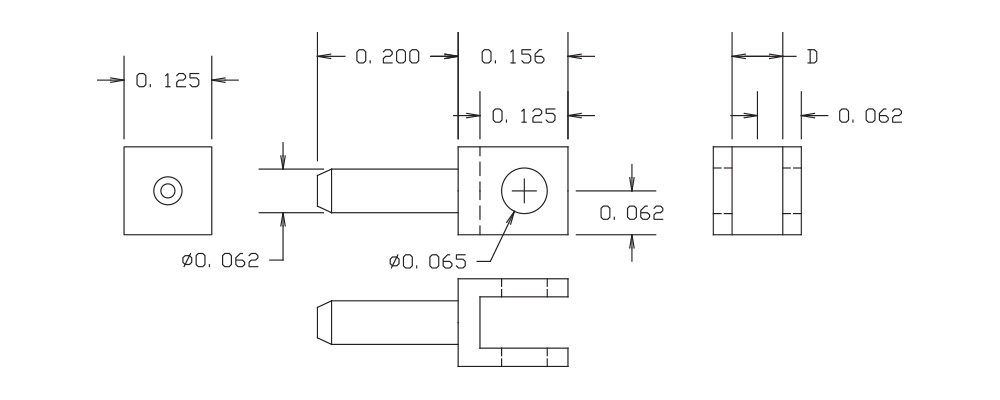

09-9503-1-088
09-9503-1-088
09-9503-1-088
0.356" 0.062 - 0-80 Screw - 1/32 CLEARANCE FOR #0 Screw Brass Bright Tin-Lead NO
10-106-1-044
10-106-1-044
10-106-1-044
0.256" - - Swage Mount 0.075" 1/32 0.094 Brass Bright Tin YES
10-114-11-044
10-114-11-044
10-114-11-044
0.131" - - Swage Mount 0.037" 1/64 0.043 Brass Bright Tin YES
10-135-1-088
10-135-1-088
10-135-1-088
0.437" - - Swage Mount 0.078" 1/32 0.116 Brass Bright Tin-Lead NO
10-205-1-044
10-205-1-044
10-205-1-044
0.435" - - Swage Mount 0.075" 1/32 0.116 Brass Bright Tin YES
10-214-11-035
10-214-11-035
10-214-11-035
0.193" - - Swage Mount 0.037" 1/64 0.067 Brass Gold YES
10-220-4-01
10-220-4-01
10-220-4-01
0.303" - - Swage Mount 0.147" 1/8 0.064 Brass Silver YES
10-231-4-04
10-231-4-04
10-231-4-04
0.320" - - Swage Mount 0.165" 1/8 0.116 Brass Electro-Tin YES
10-254-4-03
10-254-4-03
10-254-4-03
0.303" - - Swage Mount 0.147" 1/8 0.063 Brass Gold YES
10-306-4-044
10-306-4-044
10-306-4-044
0.353" - - Swage Mount 0.165" 1/8 0.113 Brass Bright Tin YES
10-315-1-03
10-315-1-03
10-315-1-03
0.403" - - Swage Mount 0.075" 1/32 0.082 Brass Gold YES
10-329-4-05
10-329-4-05
10-329-4-05
0.500" - - Swage Mount 0.172" 1/8 0.125 Brass Electro Solder NO
