Commercial
Non-Insulated
Terminals

Filter
10-714-4-05
10-714-4-05
10-714-4-05
0.727" - DOUBLE TURRET/THREAD Swage Mount 0.165" 1/8 0.204 Brass Electro Solder NO

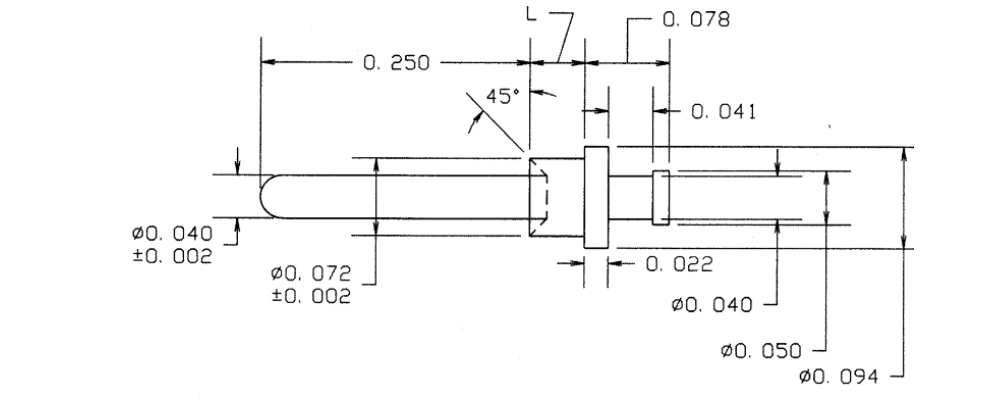

10-801-6-05
10-801-6-05
10-801-6-05
0.535" 0.040 TURRET/PIN Swage Mount 0.207" 3/16 0.076 Brass Electro Solder NO
10-803-2-035
10-803-2-035
10-803-2-035
0.457" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Gold YES
10-808-8-088
10-808-8-088
10-808-8-088
0.768" - - Swage Mount 0.297" 1/4 0.094 Brass Bright Tin-Lead NO
10-816-1-035
10-816-1-035
10-816-1-035
0.275" - - Swage Mount 0.075" 1/32 0.1495 Brass Gold YES
10-826-1-05
10-826-1-05
10-826-1-05
0.403" - - Swage Mount 0.075" 1/32 0.081 Brass Electro Solder NO
10-836-3-044
10-836-3-044
10-836-3-044
0.625" 0.050 - Swage Mount 0.125" 3/32 0.064 Brass Bright Tin YES

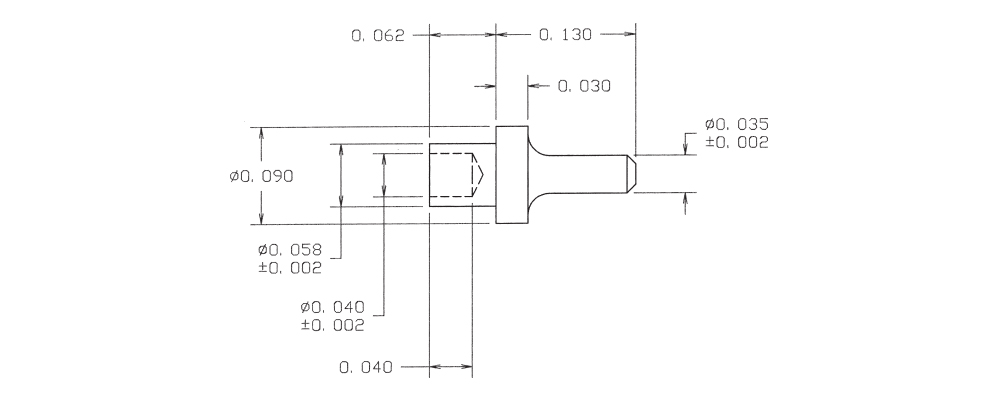

10-849-1-03
10-849-1-03
10-849-1-03
0.192" 0.035 - Swage Mount 0.062" 1/32 0.062 Brass Gold YES
10-873-1-05
10-873-1-05
10-873-1-05
0.225" 0.090 - Swage Mount 0.075" 1/32 0.094 Brass Electro Solder NO
10-894-2-04
10-894-2-04
10-894-2-04
0.347" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Electro-Tin YES

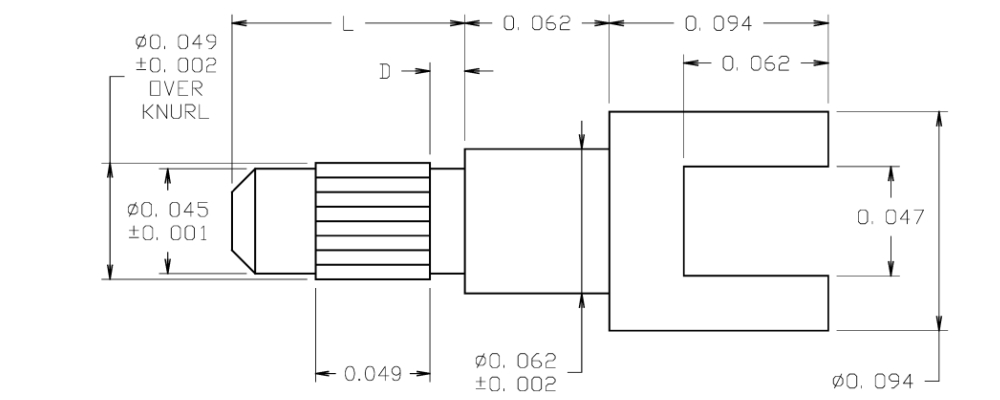

10-907-1-03
10-907-1-03
10-907-1-03
0.453" 0.045 SLOTTED/PIN Press Fit/Solder 0.297" 1/16 0.047 Brass Gold YES
10-922-2-03
10-922-2-03
10-922-2-03
0.334" 0.045 - Swage Mount 0.094" 1/16 0.064 Brass Gold YES
10-938-3-044
10-938-3-044
10-938-3-044
0.457" 0.038 - Swage Mount 0.132" 3/32 0.042 Brass Bright Tin YES
14-346-4A-05
14-346-4A-05
14-346-4A-05
0.340" - - Swage Mount 0.152" 1/8 0.082 LEADED Red Brass Electro Solder NO
19-246-6-05
19-246-6-05
19-246-6-05
0.593" - - Swage Mount 0.234" 3/16 0.116 LEADED Red Brass Electro Solder NO
10-410-2-035
10-410-2-035
10-410-2-035
0.433" - - Swage Mount 0.105" 1/16 0.116 Brass Gold YES
10-438-8-088
10-438-8-088
10-438-8-088
0.609" - - Swage Mount 0.297" 1/4 0.116 Brass Bright Tin-Lead NO
10-457-4-04
10-457-4-04
10-457-4-04
0.312" - - Swage Mount 0.156" 1/8 0.076 Brass Electro-Tin YES
10-903-1-01
10-903-1-01
10-903-1-01
0.250" - - Swage Mount 0.062" 1/32 0.063 Brass Silver YES

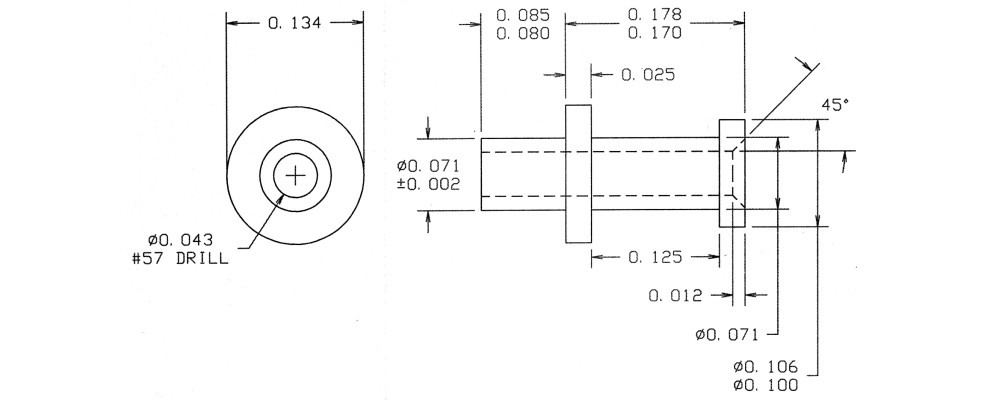

09-0030-2-01
09-0030-2-01
09-0030-2-01
0.263" - - Swage Mount 0.084" 1/16 0.076 Brass Silver YES
