Commercial
Non-Insulated
Terminals

Filter

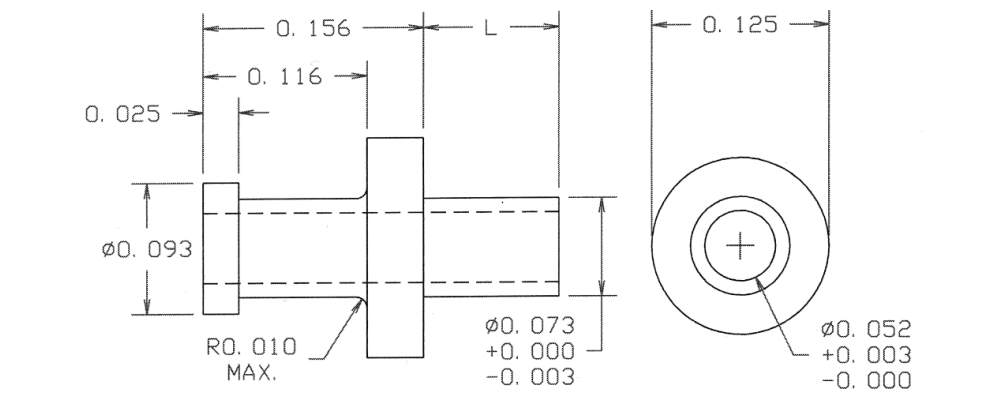

09-0078-3-01
09-0078-3-01
09-0078-3-01
0.271" - - Swage Mount 0.115" 3/32 0.076 Brass Silver YES

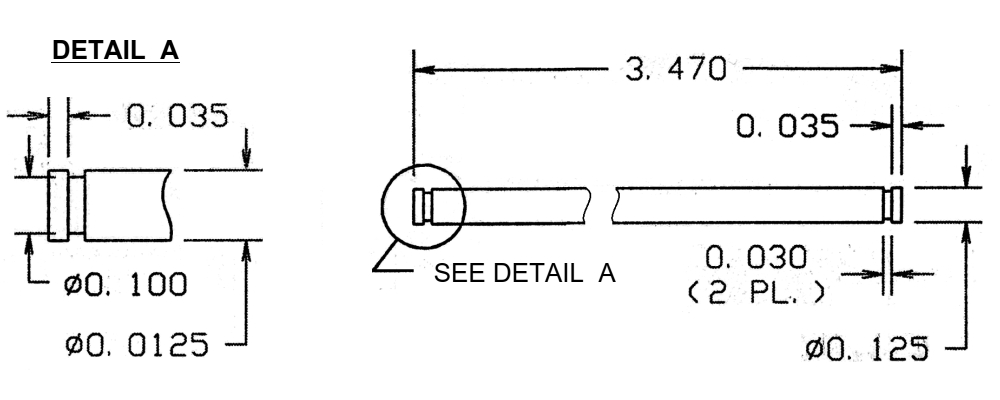

09-0165-1-03
09-0165-1-03
09-0165-1-03
3.470" 0.125 - Solder - - - Brass Gold YES

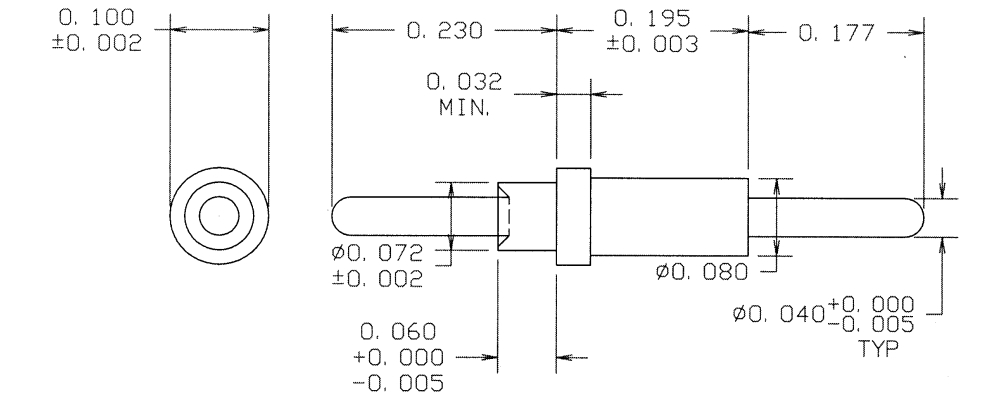

09-0194-1-044
09-0194-1-044
09-0194-1-044
0.602" 0.040 (+0.000/-0.005) Pin/Pin Swage Mount 0.060" 1/32 0.076 Brass Bright Tin YES

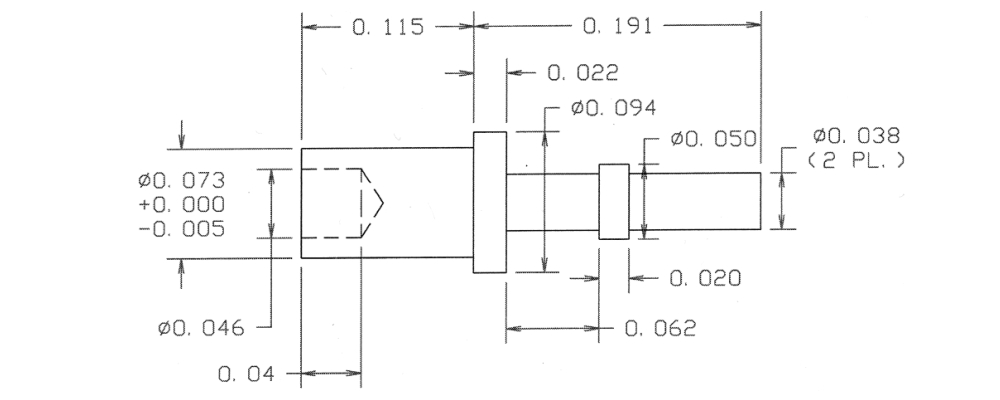

09-0239-3-035
09-0239-3-035
09-0239-3-035
0.306" - - Swage Mount 0.115" 3/32 0.076 Brass Gold YES

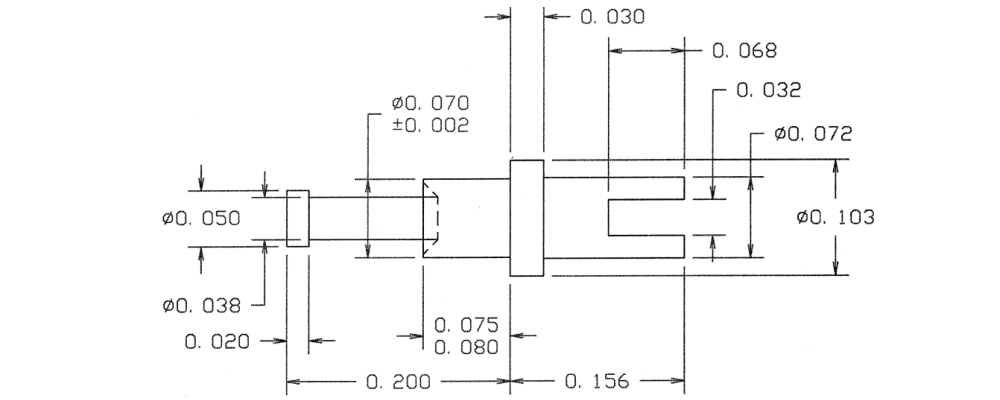

09-0285-2-04
09-0285-2-04
09-0285-2-04
0.356" - SLOTTED/TURRET Swage Mount 0.078" 1/16 0.076 Brass Electro-Tin YES

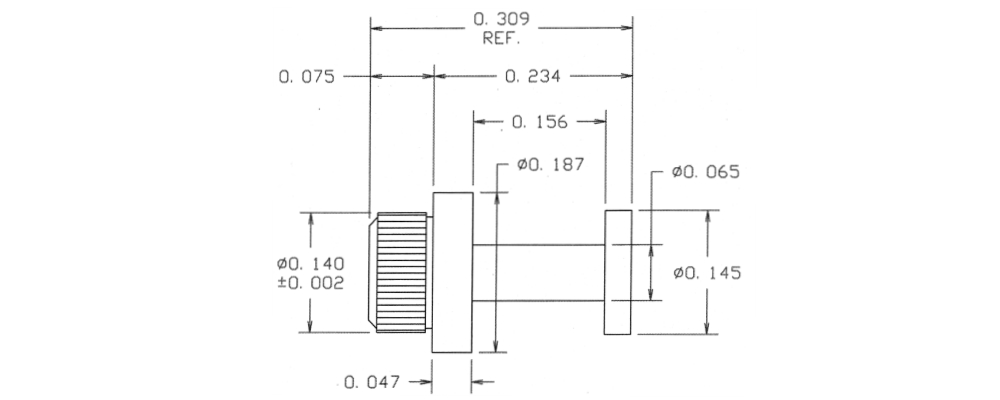

09-0350-1-04
09-0350-1-04
09-0350-1-04
0.309" - - Press Fit/Solder 0.075" 1/16 0.136 Brass Electro-Tin YES

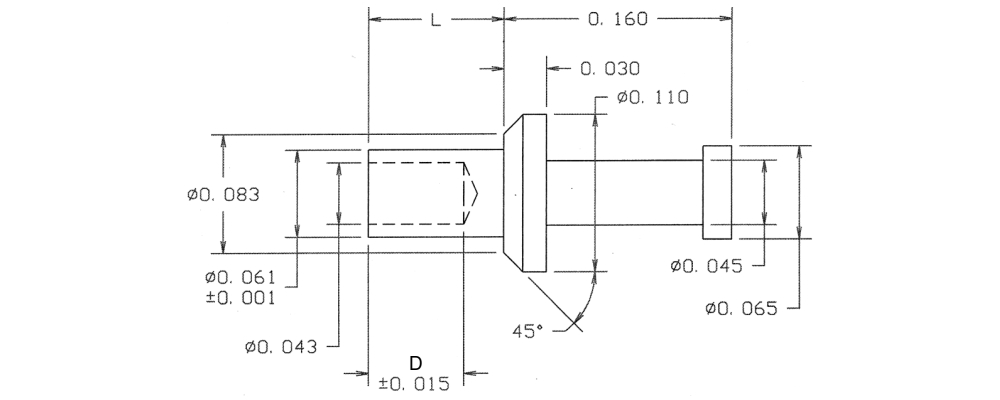

09-7012-1-03
09-7012-1-03
09-7012-1-03
0.222" - - Swage Mount 0.062" 1/32 0.067 Brass Gold YES
09-7114-2-04
09-7114-2-04
09-7114-2-04
0.266" 0.030 - RIVET MOUNT 0.083" 1/16 0.035 Brass Electro-Tin YES
09-7148-2-01
09-7148-2-01
09-7148-2-01
0.442" 0.040 - RIVET MOUNT 0.104" 1/16 0.048 Brass Silver YES

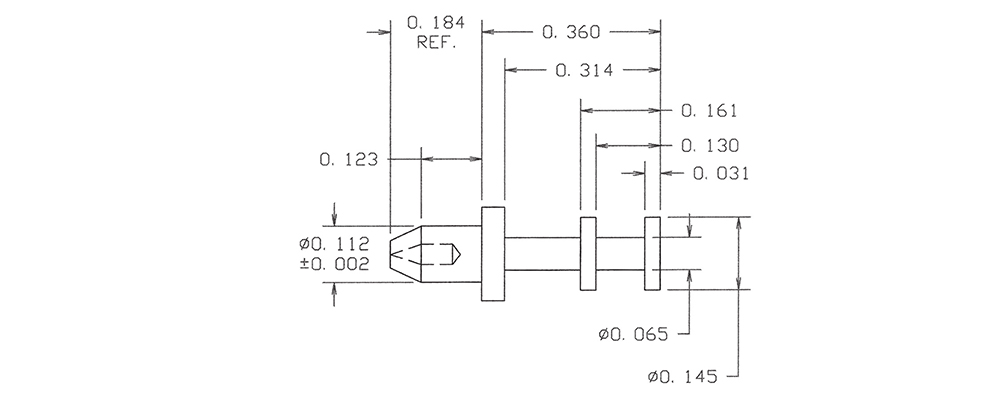

09-7178-2-044
09-7178-2-044
09-7178-2-044
0.544" - - RIVET MOUNT 0.123" 1/16 0.116 Brass Bright Tin YES

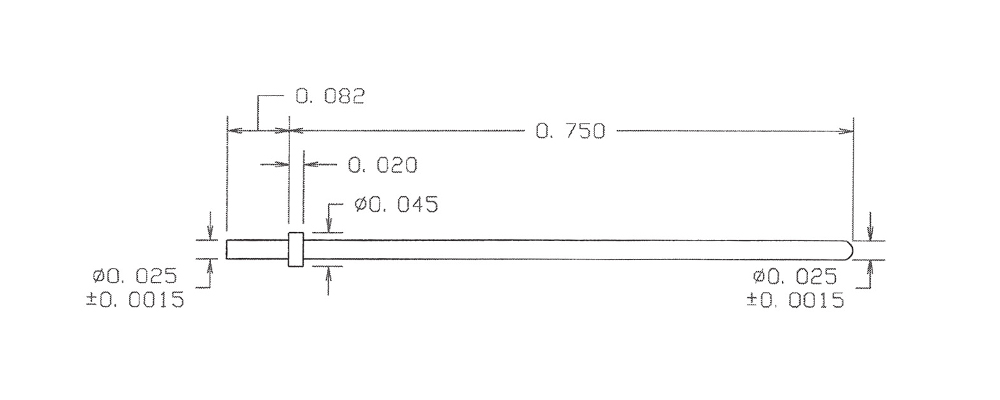

09-8020-2-03
09-8020-2-03
09-8020-2-03
0.832" 0.0255 - Solder 0.082" 1/16 0.028 Brass Gold YES

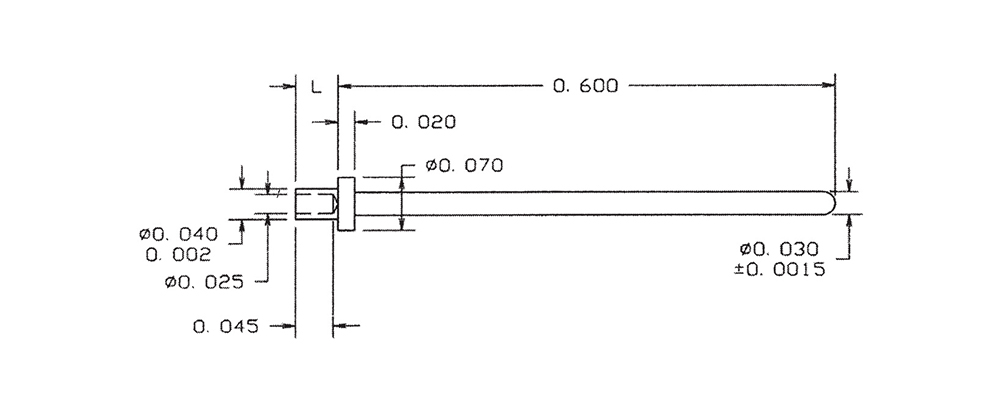

09-8055-2-044
09-8055-2-044
09-8055-2-044
0.142" 0.0305 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES

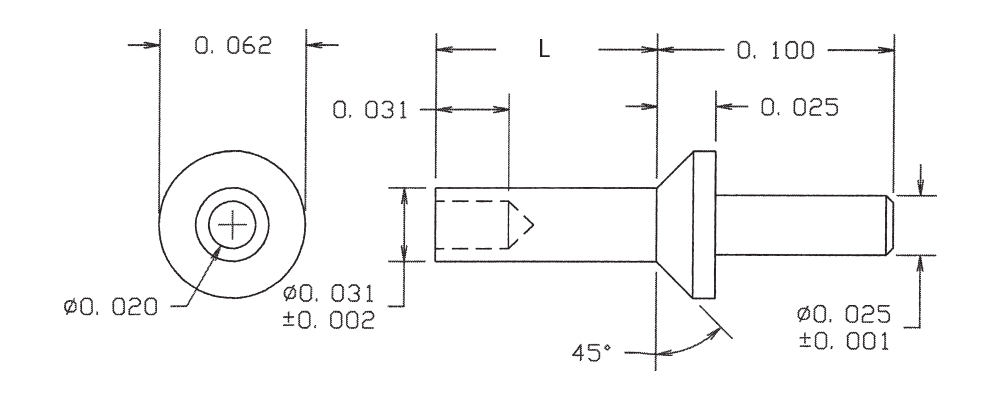

09-8094-5-03
09-8094-5-03
09-8094-5-03
0.287" 0.025 - Swage Mount 0.187" 5/32 0.035 Brass Gold YES

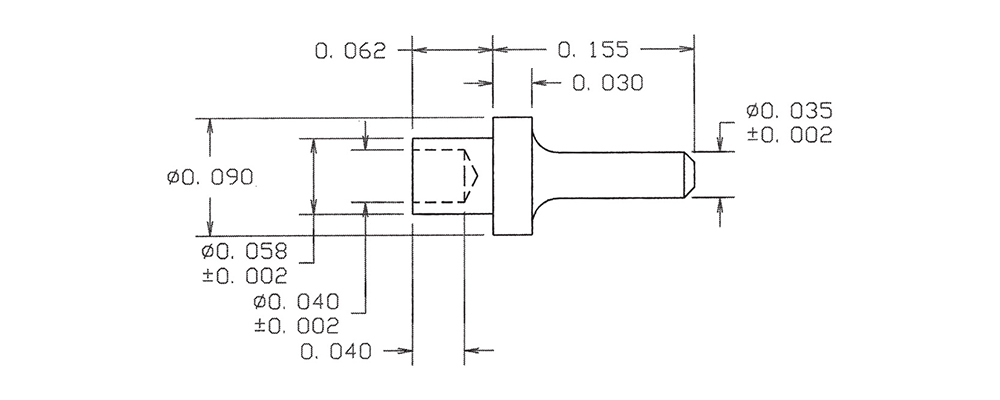

09-8152-1-05
09-8152-1-05
09-8152-1-05
0.217" 0.035 - Swage Mount 0.062" 1/32 0.0625 Brass Electro Solder NO

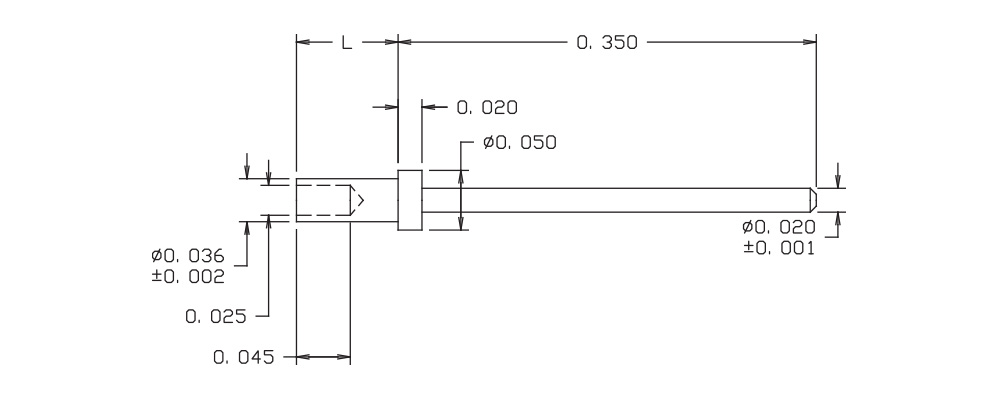

09-8180-3-035
09-8180-3-035
09-8180-3-035
0.469" 0.020 - Swage Mount 0.119" 3/32 0.039 Brass Gold YES

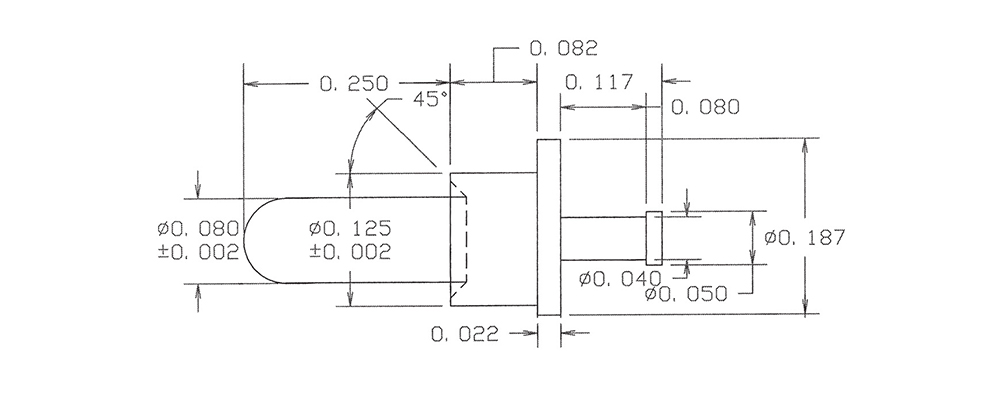

09-8344-2-035
09-8344-2-035
09-8344-2-035
0.349" 0.080 PIN/TURRET Swage Mount 0.082" 1/16 0.1285 Brass Gold YES

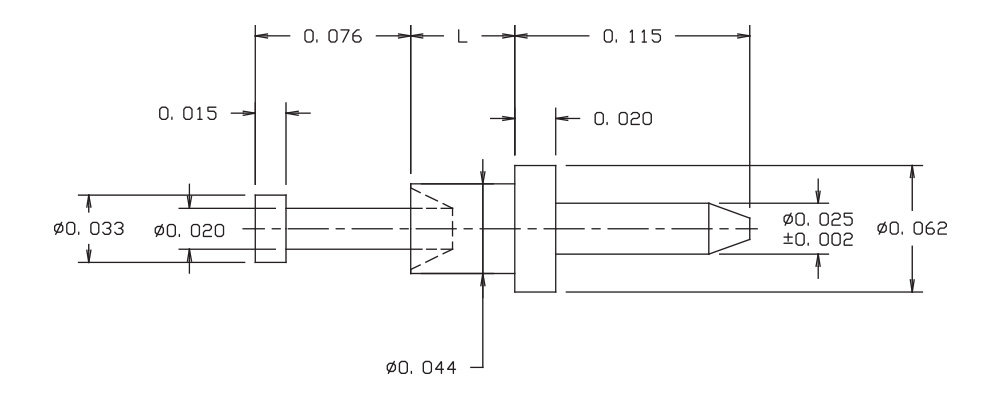

09-8584-2-01
09-8584-2-01
09-8584-2-01
0.273" 0.025 TURRET/PIN Swage Mount 0.082" 1/16 0.047 Brass Silver YES

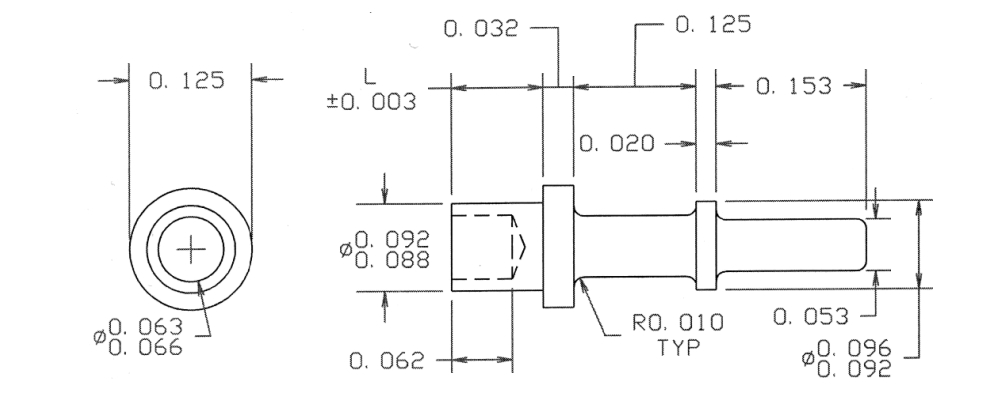

09-8705-2-095
09-8705-2-095
09-8705-2-095
0.439" - - Swage Mount 0.109" 1/16 0.094 LEADED Red Brass Hot Solder Dip NO

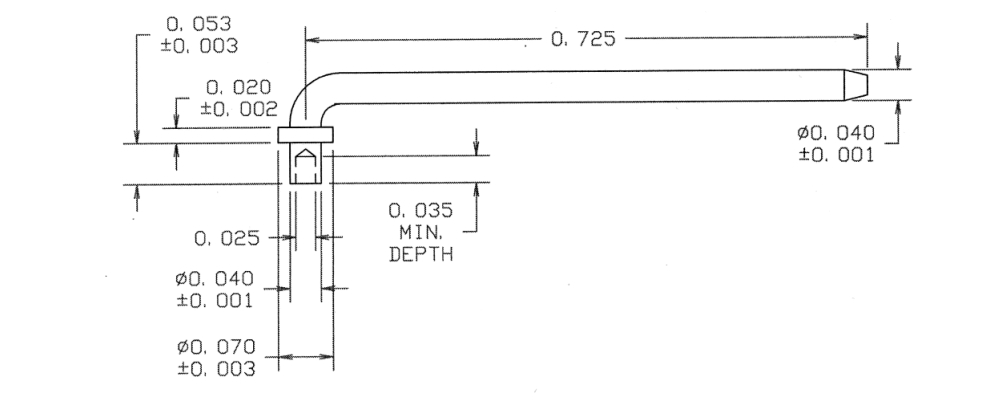

09-8811-1-044
09-8811-1-044
09-8811-1-044
0.760" 0.040 - Swage Mount 0.053" 1/32 0.043 Brass Bright Tin YES

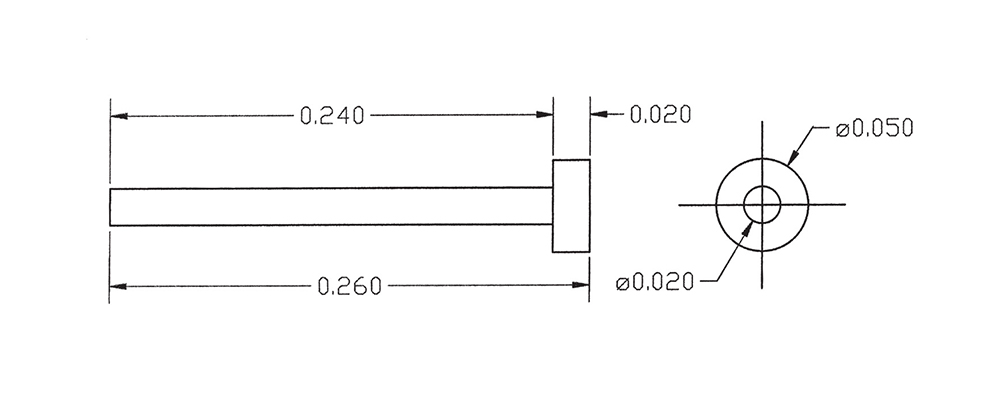

09-8886-1-03
09-8886-1-03
09-8886-1-03
0.260" 0.020 - - - - - Beryllium Copper Gold YES
