Commercial
Non-Insulated
Terminals

Filter
10-216-8-01
10-216-8-01
10-216-8-01
0.530" - - Swage Mount 0.293" 1/4 0.094 Brass Silver YES
10-910-2-088
10-910-2-088
10-910-2-088
0.180" 0.039 - Swage Mount 0.080" 1/16 0.043 Brass Bright Tin-Lead NO
10-909-1-044
10-909-1-044
10-909-1-044
0.359" - - Press Fit/Solder 0.134" 1/8 0.096 Brass Bright Tin YES
10-882-4-01
10-882-4-01
10-882-4-01
0.625" - Turret/Turret Swage Mount 0.165" 1/8 0.147 Brass Silver YES
10-807-3-03
10-807-3-03
10-807-3-03
0.484" - - Swage Mount 0.141" 3/32 0.094 Brass Gold YES

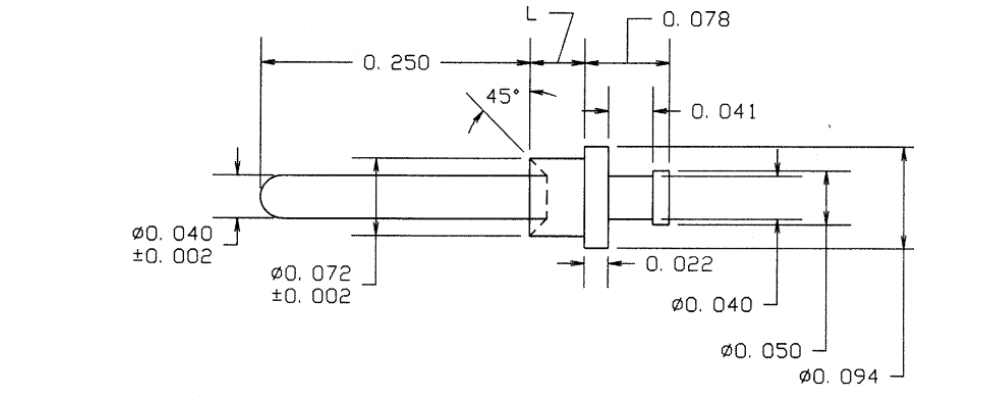

10-801-8-035
10-801-8-035
10-801-8-035
0.598" 0.040 TURRET/PIN Swage Mount 0.270" 1/4 0.076 Brass Gold YES
10-8015-6-01
10-8015-6-01
10-8015-6-01
0.582" 0.040 TURRET/PIN Swage Mount 0.207" 3/16 0.076 Brass Silver YES
10-605-2-095
10-605-2-095
10-605-2-095
0.445" - - Swage Mount 0.105" 1/16 0.090 Brass Hot Solder Dip NO
10-461-11-03
10-461-11-03
10-461-11-03
0.349" - - Swage Mount 0.037" 1/64 0.043 Brass Gold YES
10-443-3-04
10-443-3-04
10-443-3-04
0.380" - SLOTTED/TURRET Swage Mount 0.125" 3/32 0.125 Brass Electro-Tin YES
10-209-3-044
10-209-3-044
10-209-3-044
0.360" - - Swage Mount 0.141" 3/32 0.094 Brass Bright Tin YES
10-420-6-03
10-420-6-03
10-420-6-03
0.609" - - Swage Mount 0.234" 3/16 0.154 Brass Gold YES
10-8014-2-01
10-8014-2-01
10-8014-2-01
0.350" 0.019 SLOTTED/PIN Press Fit/Solder 0.068" 1/64 to 1/32 0.055 Brass Silver YES
10-215-4-04
10-215-4-04
10-215-4-04
0.301" - - Swage Mount 0.147" 1/8 0.063 Brass Electro-Tin YES
10-107-3-095
10-107-3-095
10-107-3-095
0.218" - - Swage Mount 0.125" 3/32 0.067 Brass Hot Solder Dip NO
10-107-3-05
10-107-3-05
10-107-3-05
0.218" - - Swage Mount 0.125" 3/32 0.067 Brass Electro Solder NO
10-515-6-01
10-515-6-01
10-515-6-01
0.996" 0.094 TURRET/PIN Swage Mount 0.230" 3/16 0.185 Brass Silver YES
14-351-5-04
14-351-5-04
14-351-5-04
0.520" - - Swage Mount 0.195" 5/32 0.196 LEADED Red Brass Electro-Tin YES
09-0368-4-088
09-0368-4-088
09-0368-4-088
0.422" - - Swage Mount 0.172" 1/8 0.266 Brass Bright Tin-Lead NO
10-318-4-01
10-318-4-01
10-318-4-01
0.493" - - Swage Mount 0.165" 1/8 0.116 Brass Silver YES
