Commercial
Non-Insulated
Terminals

Filter
09-0285-2-035
09-0285-2-035
09-0285-2-035
0.356" - SLOTTED/TURRET Swage Mount 0.078" 1/16 0.076 Brass Gold YES

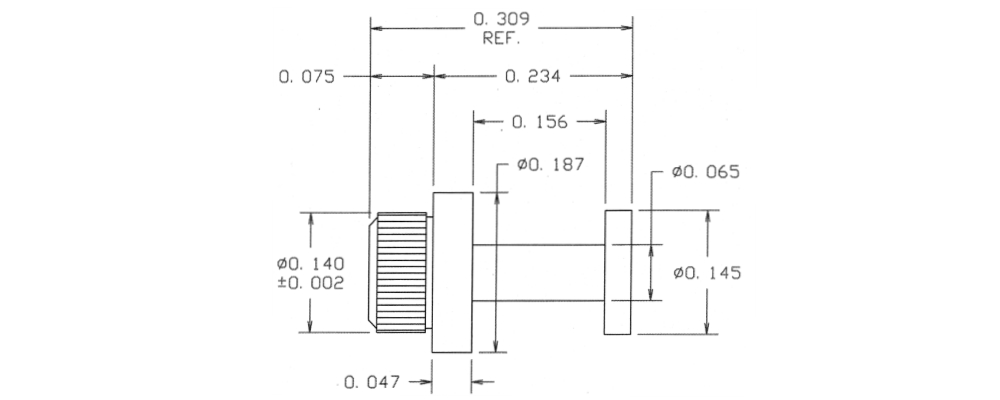

09-0350-1-035
09-0350-1-035
09-0350-1-035
0.309" - - Press Fit/Solder 0.075" 1/16 0.136 Brass Gold YES

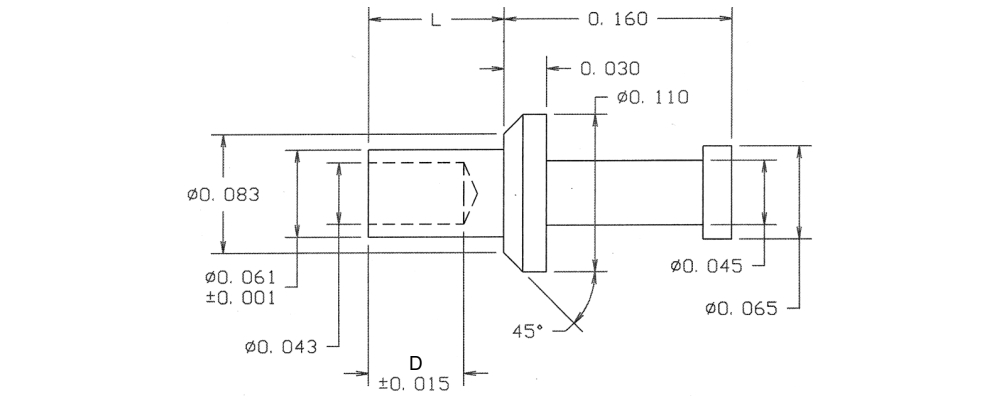

09-7012-1-01
09-7012-1-01
09-7012-1-01
0.222" - - Swage Mount 0.062" 1/32 0.067 Brass Silver YES

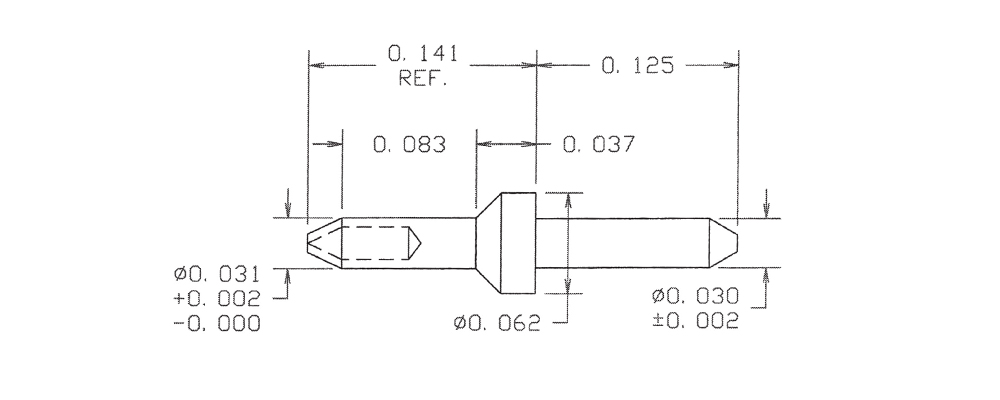

09-7114-2-035
09-7114-2-035
09-7114-2-035
0.266" 0.030 - RIVET MOUNT 0.083" 1/16 0.035 Brass Gold YES

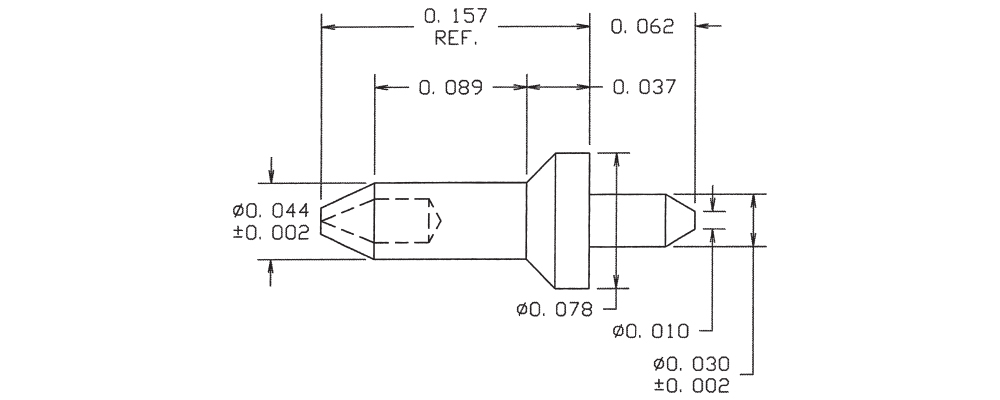

09-7147-2-088
09-7147-2-088
09-7147-2-088
0.219" 0.030 - RIVET MOUNT 0.089" 1/16 0.048 Brass Bright Tin-Lead NO

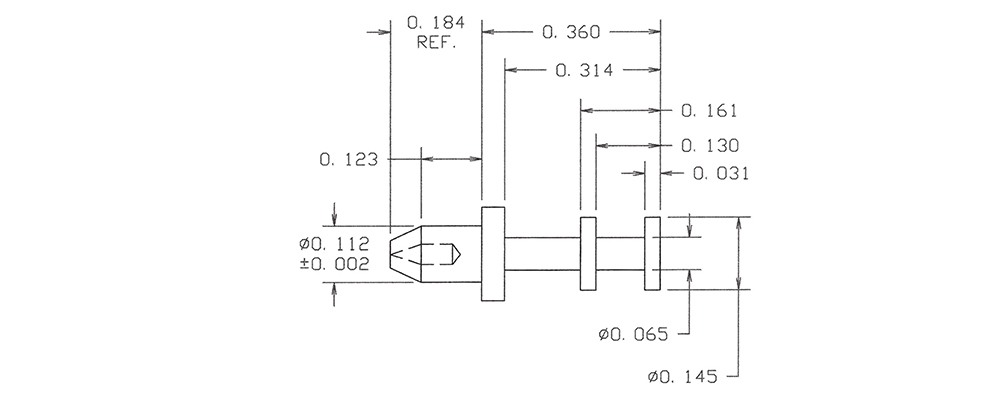

09-7178-2-04
09-7178-2-04
09-7178-2-04
0.544" - - RIVET MOUNT 0.123" 1/16 0.116 Brass Electro-Tin YES

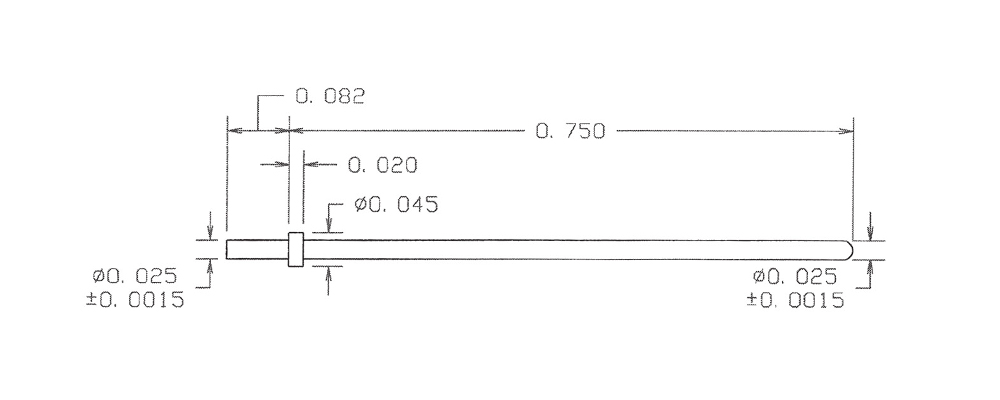

09-8020-2-01
09-8020-2-01
09-8020-2-01
0.832" 0.0255 - Solder 0.082" 1/16 0.028 Brass Silver YES

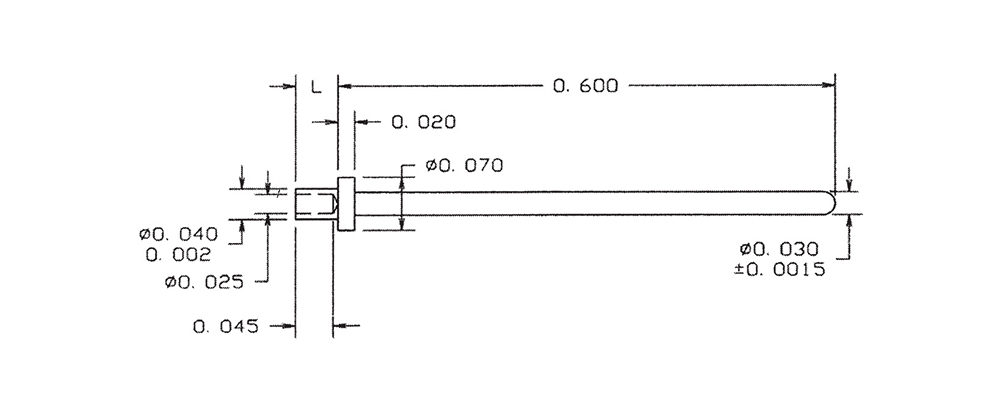

09-8055-2-04
09-8055-2-04
09-8055-2-04
0.142" 0.0305 - Swage Mount 0.082" 1/16 0.043 Brass Electro-Tin YES
09-8094-5-01
09-8094-5-01
09-8094-5-01
0.287" 0.025 - Swage Mount 0.187" 5/32 0.035 Brass Silver YES
09-8152-1-044
09-8152-1-044
09-8152-1-044
0.217" 0.035 - Swage Mount 0.062" 1/32 0.0625 Brass Bright Tin YES

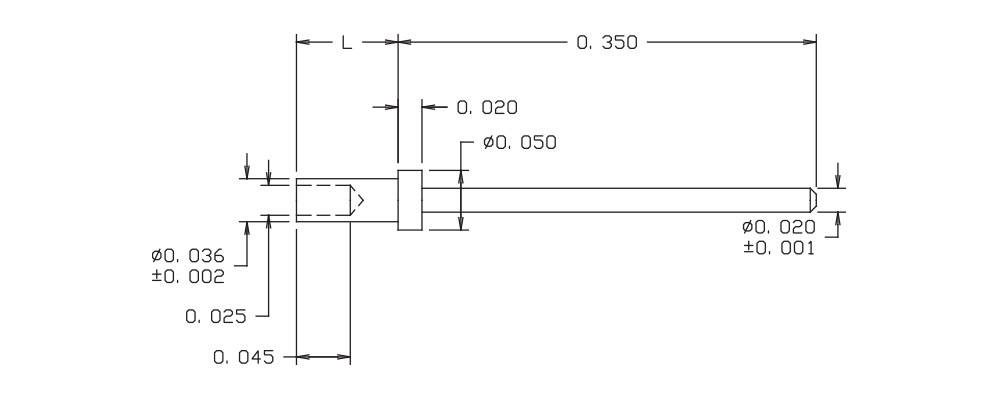

09-8180-3-03
09-8180-3-03
09-8180-3-03
0.469" 0.020 - Swage Mount 0.119" 3/32 0.039 Brass Gold YES

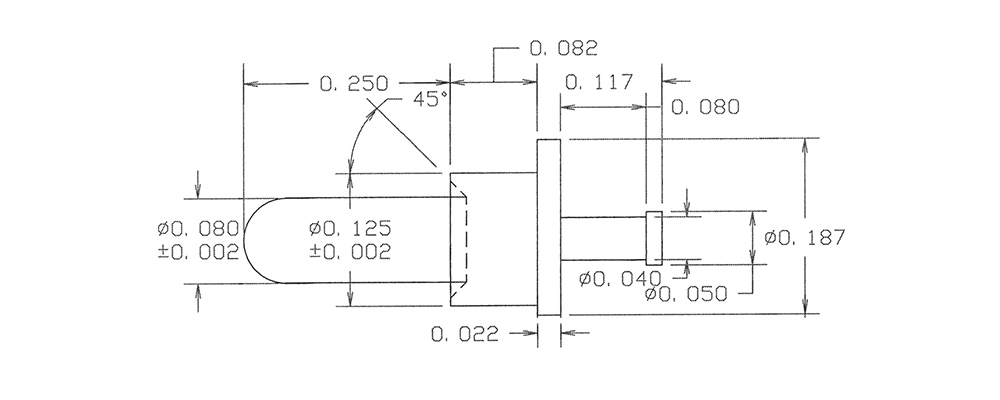

09-8344-2-03
09-8344-2-03
09-8344-2-03
0.349" 0.080 PIN/TURRET Swage Mount 0.082" 1/16 0.1285 Brass Gold YES

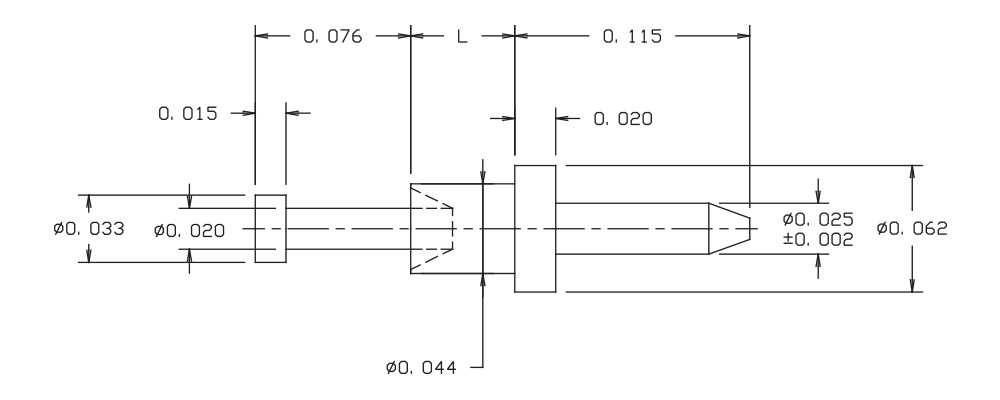

09-8584-1-088
09-8584-1-088
09-8584-1-088
0.242" 0.025 TURRET/PIN Swage Mount 0.051" 1/32 0.047 Brass Bright Tin-Lead NO
09-8705-2-088
09-8705-2-088
09-8705-2-088
0.439" - - Swage Mount 0.109" 1/16 0.094 LEADED Red Brass Bright Tin-Lead NO

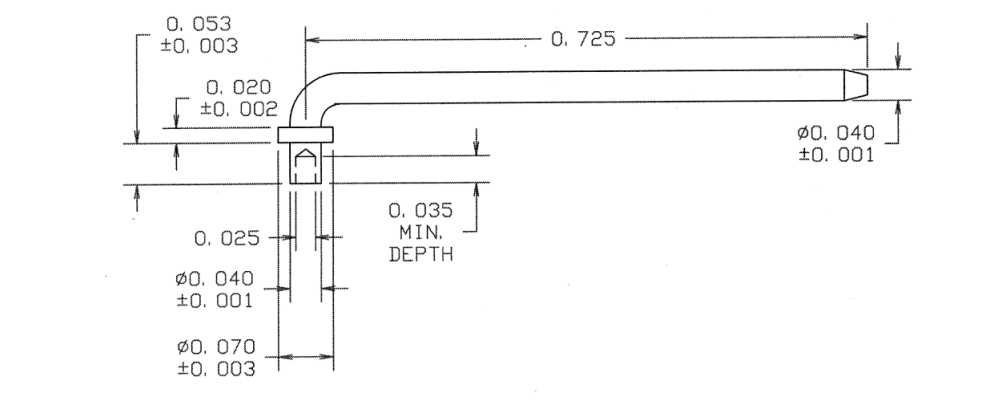

09-8811-1-04
09-8811-1-04
09-8811-1-04
0.760" 0.040 - Swage Mount 0.053" 1/32 0.043 Brass Electro-Tin YES

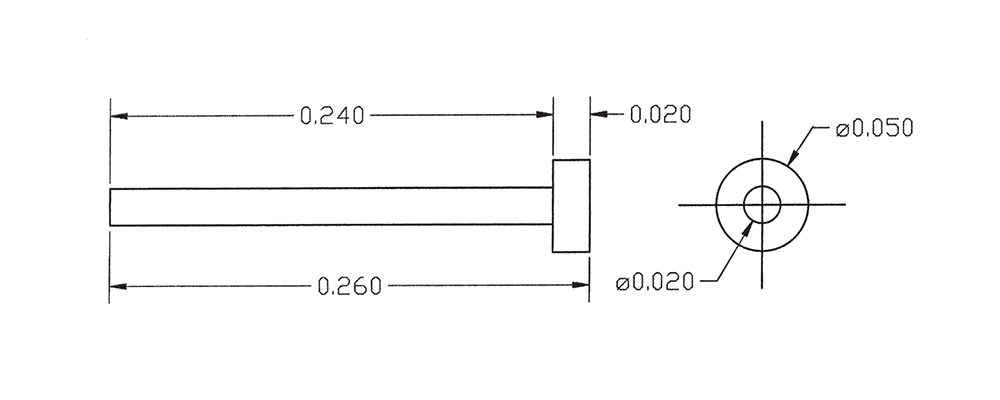

09-8886-1-01
09-8886-1-01
09-8886-1-01
0.260" 0.020 - - - - - Beryllium Copper Silver YES
10-105-11-035
10-105-11-035
10-105-11-035
0.146" - - Swage Mount 0.037" 1/64 0.076 Brass Gold YES
10-112-2-035
10-112-2-035
10-112-2-035
0.286" - - Swage Mount 0.105" 1/16 0.082 Brass Gold YES
10-134-1-044
10-134-1-044
10-134-1-044
0.219" - - Swage Mount 0.062" 1/32 0.081 Brass Bright Tin YES
10-204-3-035
10-204-3-035
10-204-3-035
0.500" - - Swage Mount 0.141" 3/32 0.116 Brass Gold YES
