Commercial
Non-Insulated
Terminals

Filter
09-8028-1-044
09-8028-1-044
09-8028-1-044
0.101" 0.020 - Swage Mount 0.051" 1/32 0.031 Brass Bright Tin YES
10-312-1-044
10-312-1-044
10-312-1-044
0.403" - - Swage Mount 0.075" 1/32 0.082 Brass Bright Tin YES
10-901-2-088
10-901-2-088
10-901-2-088
0.250" 0.060 - Swage Mount 0.094" 1/16 0.064 Brass Bright Tin-Lead NO
09-8007-2-05
09-8007-2-05
09-8007-2-05
0.732" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO
09-8841-1-088
09-8841-1-088
09-8841-1-088
0.300" 0.040 - - - - - Brass Bright Tin-Lead NO
10-936-3-088
10-936-3-088
10-936-3-088
0.208" - - Swage Mount 0.115" 3/32 0.052 Brass Bright Tin-Lead NO
10-961-4-088
10-961-4-088
10-961-4-088
0.260" - - Swage Mount 0.156" 1/8 0.0635 Brass Bright Tin-Lead NO
10-206-2-088
10-206-2-088
10-206-2-088
0.275" - - Swage Mount 0.084" 1/16 0.076 Brass Bright Tin-Lead NO
09-0363-1-088
09-0363-1-088
09-0363-1-088
0.315" 0.025 - Press Fit/Solder 0.128" 1/16 TO 3/32 0.055 Brass Bright Tin-Lead NO
09-8847-1-088
09-8847-1-088
09-8847-1-088
0.535" (0.030)/(0.040) - - - - - Brass Bright Tin-Lead NO
10-543-6-088
10-543-6-088
10-543-6-088
0.664" - Double Turret/Double Turret Swage Mount 0.219" 3/16 0.094 Brass Bright Tin-Lead NO
10-532-1-088
10-532-1-088
10-532-1-088
0.543" - Double Turret/Double Turret Swage Mount 0.075" 1/32 0.159 Brass Bright Tin-Lead NO
10-106-4-088
10-106-4-088
10-106-4-088
0.346" - - Swage Mount 0.165" 1/8 0.094 Brass Bright Tin-Lead NO
10-807-6-088
10-807-6-088
10-807-6-088
0.577" - - Swage Mount 0.234" 3/16 0.094 Brass Bright Tin-Lead NO
10-807-4-088
10-807-4-088
10-807-4-088
0.515" - - Swage Mount 0.172" 1/8 0.094 Brass Bright Tin-Lead NO

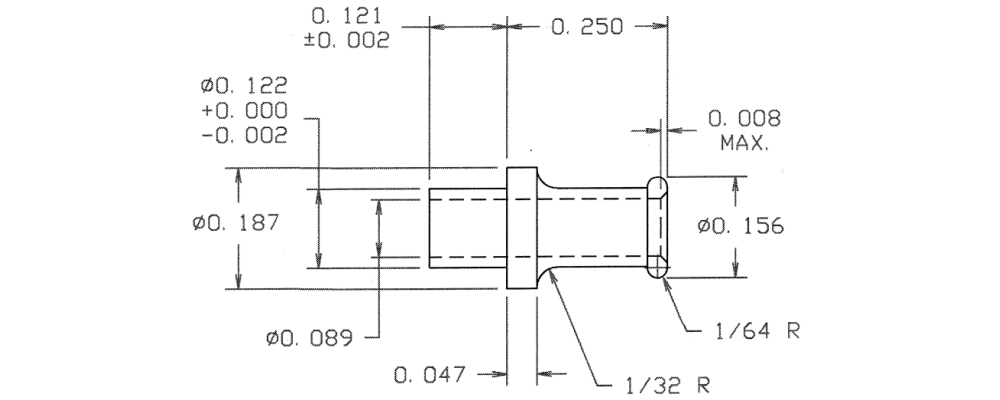

09-0164-3-088
09-0164-3-088
09-0164-3-088
0.371" - - Swage Mount 0.121" 3/32 0.125 Brass Bright Tin-Lead NO
09-8112-2-088
09-8112-2-088
09-8112-2-088
0.252" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO
10-817-1-088
10-817-1-088
10-817-1-088
0.598" - - Swage Mount 0.078" 1/32 0.1495 Brass Bright Tin-Lead NO
10-212-4-088
10-212-4-088
10-212-4-088
0.431" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin-Lead NO
10-115-2-088
10-115-2-088
10-115-2-088
0.209" - - Swage Mount 0.084" 1/16 0.037 Brass Bright Tin-Lead NO
