Commercial
Non-Insulated
Terminals

Filter
09-8094-2A-01
09-8094-2A-01
09-8094-2A-01
0.182" 0.025 - Swage Mount 0.082" 1/16 0.035 Brass Silver YES

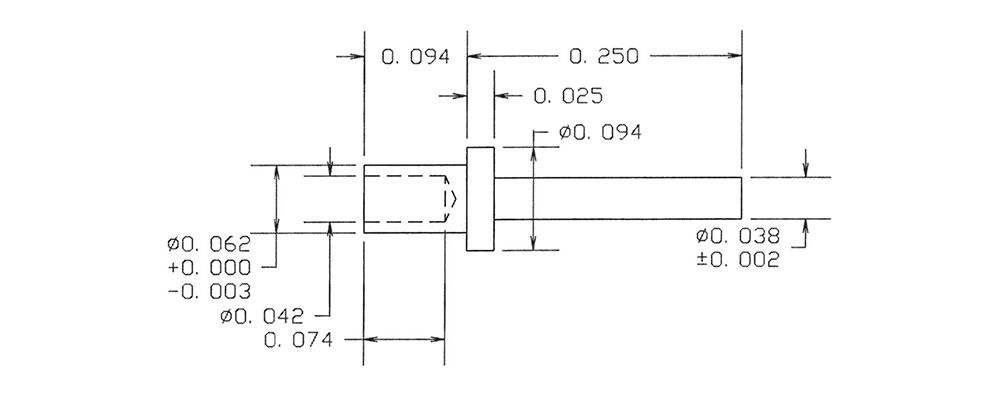

09-8151-2-044
09-8151-2-044
09-8151-2-044
0.344" 0.038 - Swage Mount 0.094" 1/16 0.0635 Brass Bright Tin YES

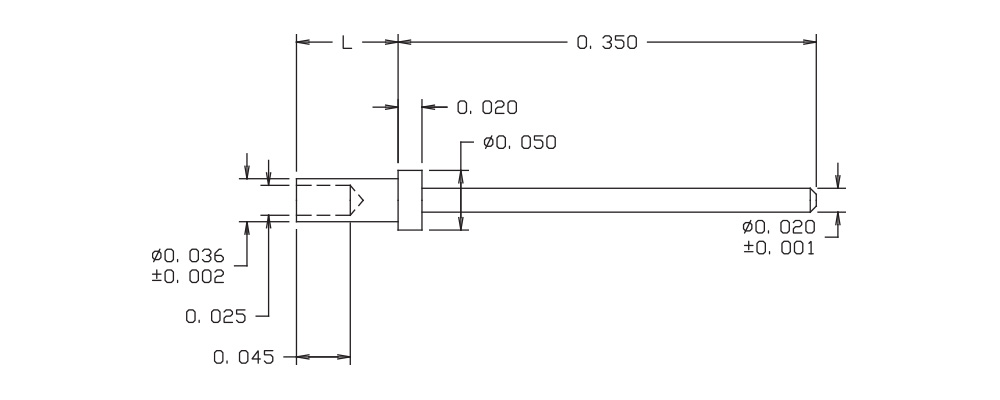

09-8180-2-03
09-8180-2-03
09-8180-2-03
0.435" 0.020 - Swage Mount 0.085" 1/16 0.039 Brass Gold YES

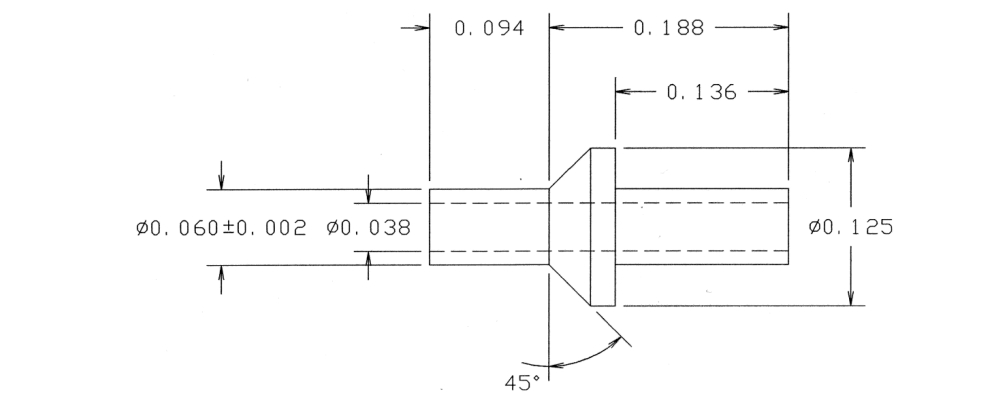

09-8343-2-03
09-8343-2-03
09-8343-2-03
0.282" - - Swage Mount 0.094" 1/16 0.067 Brass Gold YES

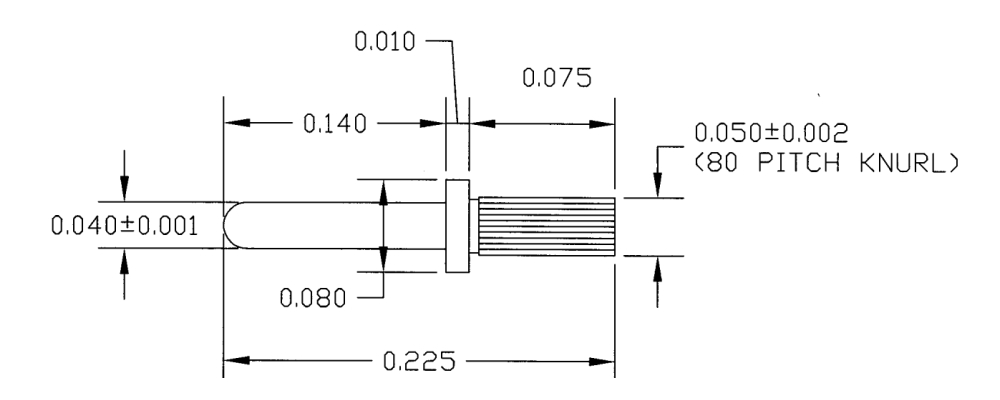

09-8574-1-088
09-8574-1-088
09-8574-1-088
0.225" 0.040 - Press Fit/Solder 0.075" 1/16 0.047 Brass Bright Tin-Lead NO
09-8705-1-095
09-8705-1-095
09-8705-1-095
0.408" - - Swage Mount 0.078" 1/32 0.094 LEADED Red Brass Hot Solder Dip NO

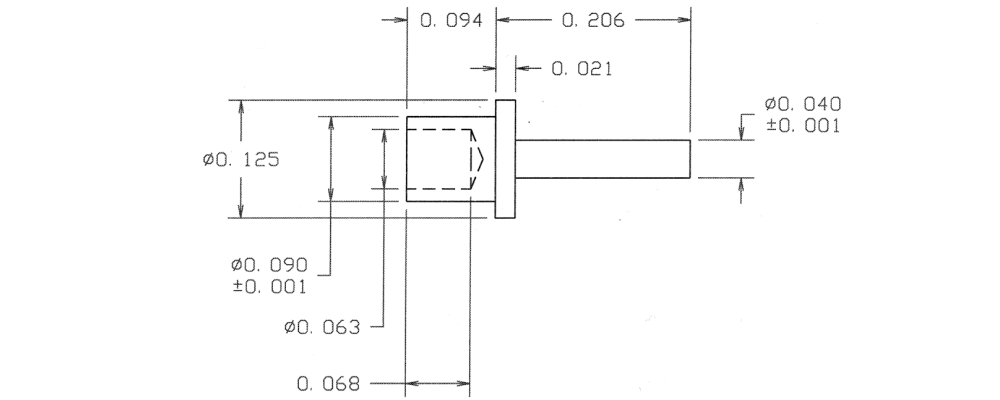

09-8810-2-044
09-8810-2-044
09-8810-2-044
0.300" 0.040 - Swage Mount 0.094" 1/16 0.067 Brass Bright Tin YES

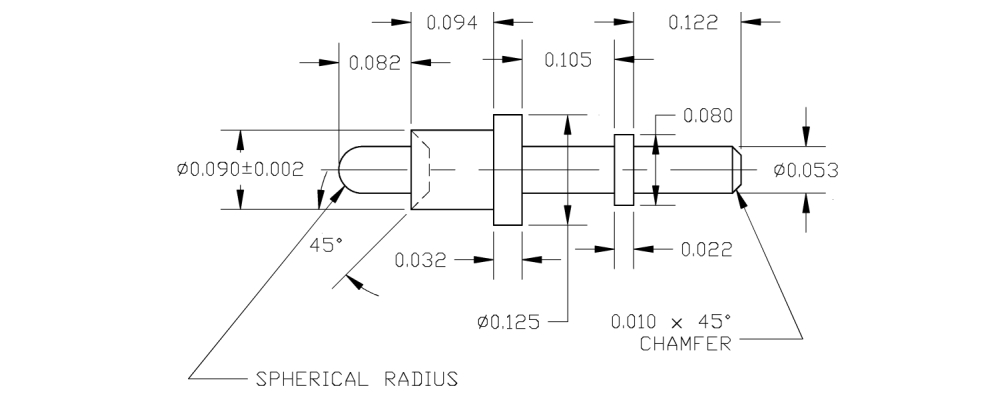

09-8885-2-03
09-8885-2-03
09-8885-2-03
0.457" 0.053 TURRET/PIN Swage Mount 0.094" 1/16 0.096 LEADED Red Brass Gold YES
10-105-1-04
10-105-1-04
10-105-1-04
0.162" - - Swage Mount 0.053" 1/32 0.076 Brass Electro-Tin YES
10-112-1-04
10-112-1-04
10-112-1-04
0.256" - - Swage Mount 0.075" 1/32 0.082 Brass Electro-Tin YES
10-133-3-05
10-133-3-05
10-133-3-05
0.155" - - Swage Mount 0.115" 3/32 0.033 Brass Electro Solder NO
10-204-2-04
10-204-2-04
10-204-2-04
0.468" - - Swage Mount 0.109" 1/16 0.116 Brass Electro-Tin YES
10-211-8-05
10-211-8-05
10-211-8-05
0.797" - - Swage Mount 0.297" 1/4 0.266 Brass Electro Solder NO
10-218-3-03
10-218-3-03
10-218-3-03
0.372" - - Swage Mount 0.135" 3/32 0.094 Brass Gold YES
10-229-3-05
10-229-3-05
10-229-3-05
0.185" - - Swage Mount 0.115" 3/32 0.035 Brass Electro Solder NO
10-254-1-01
10-254-1-01
10-254-1-01
0.210" - - Swage Mount 0.054" 1/32 0.063 Brass Silver YES
10-305-2-05
10-305-2-05
10-305-2-05
0.297" - - Swage Mount 0.109" 1/16 0.113 Brass Electro Solder NO
10-312-5-035
10-312-5-035
10-312-5-035
0.523" - - Swage Mount 0.195" 5/32 0.082 Brass Gold YES
10-323-6-088
10-323-6-088
10-323-6-088
0.365" - - Swage Mount 0.209" 3/16 0.076 Brass Bright Tin-Lead NO
10-372-3-04
10-372-3-04
10-372-3-04
0.271" - - Swage Mount 0.115" 3/32 0.064 Brass Electro-Tin YES
