Commercial
Non-Insulated
Terminals

Filter

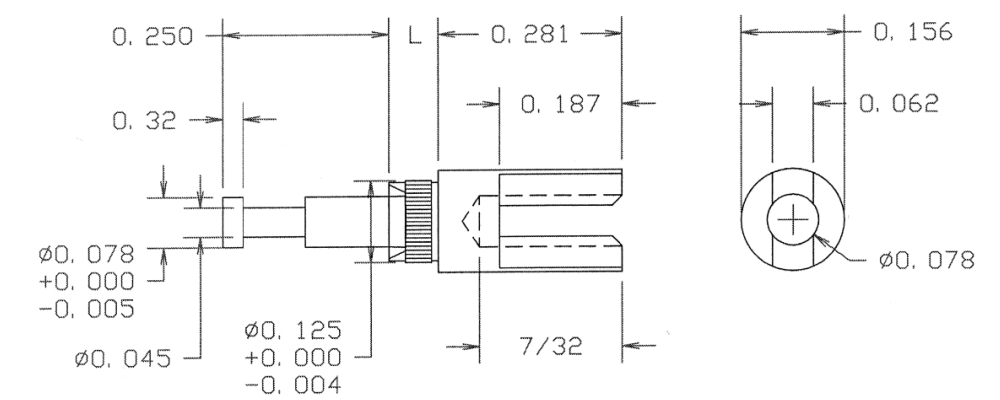

10-418-1-03
10-418-1-03
10-418-1-03
0.606" - Turret/Turret Swage Mount 0.075" 1/32 0.120 Brass Gold YES

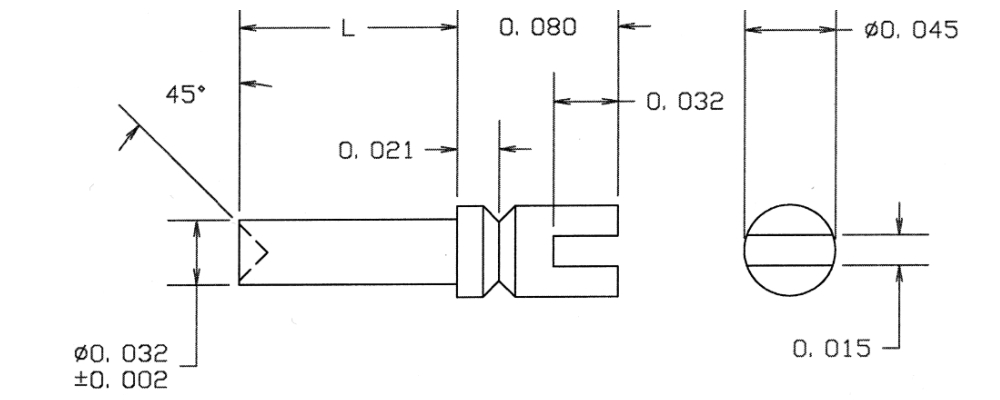

10-431-1-044
10-431-1-044
10-431-1-044
0.125" - - Swage Mount 0.045" 1/32 0.036 Brass Bright Tin YES

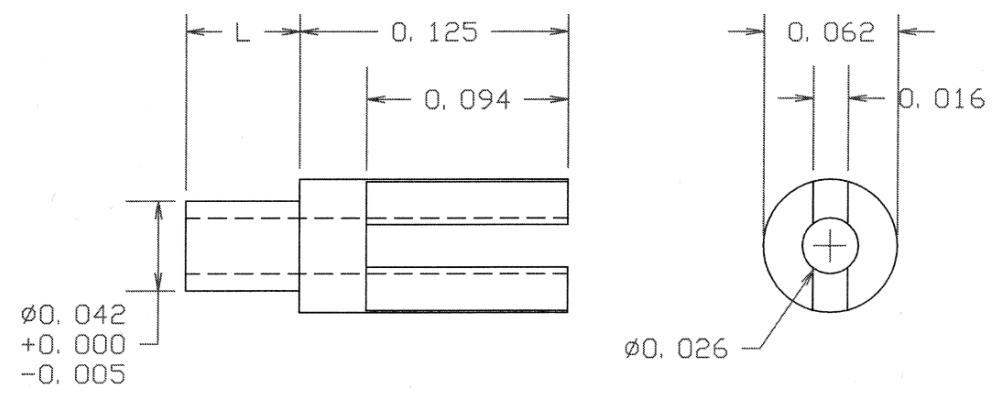

10-444-4-03
10-444-4-03
10-444-4-03
0.272" - - Swage Mount 0.147" 1/8 0.043 Brass Gold YES
10-460-3-035
10-460-3-035
10-460-3-035
0.396" - - Swage Mount 0.115" 3/32 0.063 Brass Gold YES

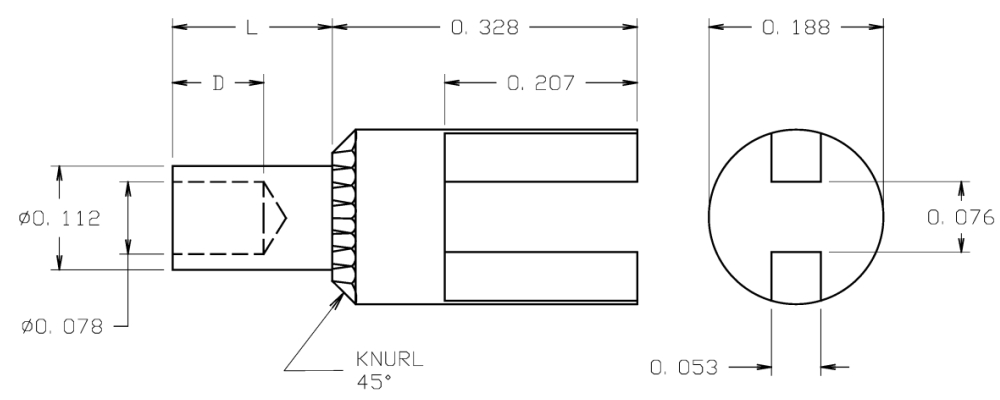

10-482-5-03
10-482-5-03
10-482-5-03
0.562" - - Swage Mount 0.234" 3/16 0.116 Brass Gold YES

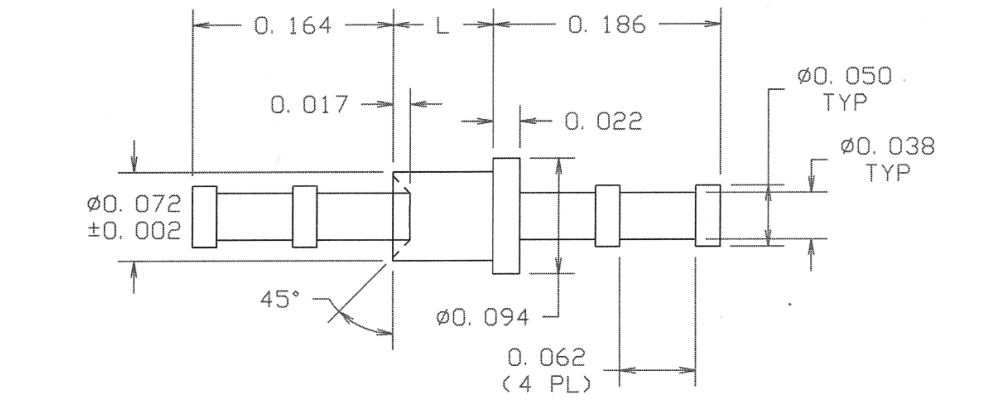

10-503-3-044
10-503-3-044
10-503-3-044
0.463" - Double Turret/Double Turret Swage Mount 0.113" 3/32 0.076 Brass Bright Tin YES

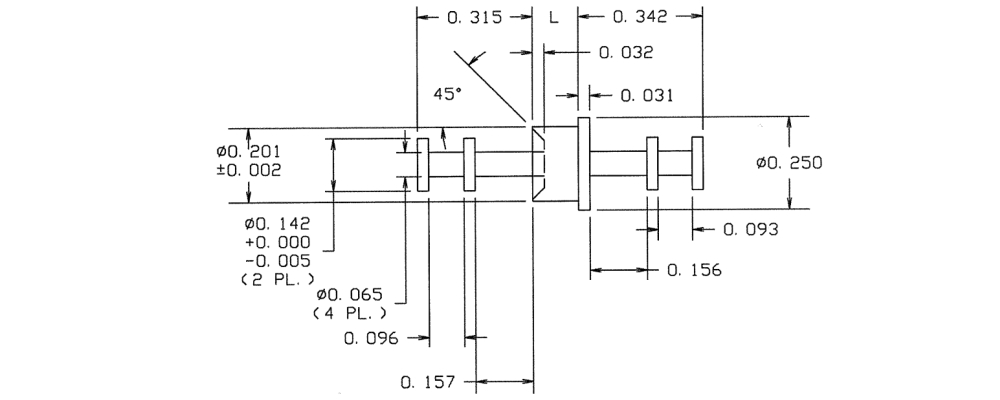

10-509-4-044
10-509-4-044
10-509-4-044
0.813" - Double Turret/Double Turret Swage Mount 0.156" 1/8 0.204 Brass Bright Tin YES

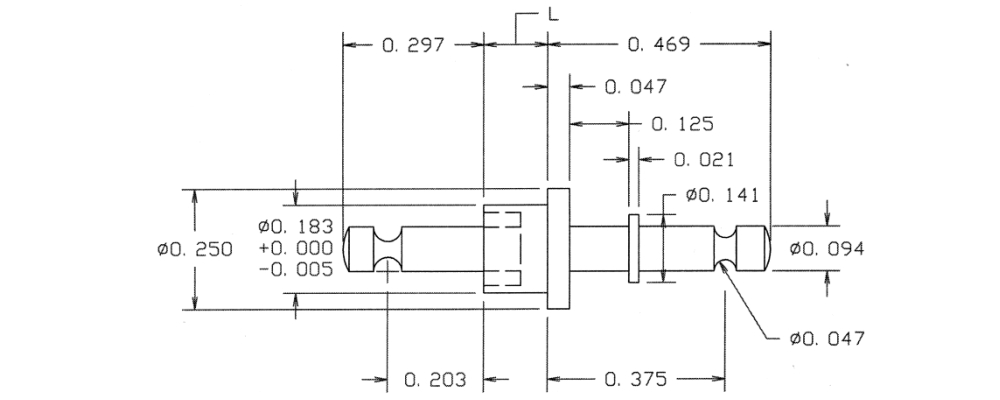

10-515-6-044
10-515-6-044
10-515-6-044
0.996" 0.094 TURRET/PIN Swage Mount 0.230" 3/16 0.185 Brass Bright Tin YES

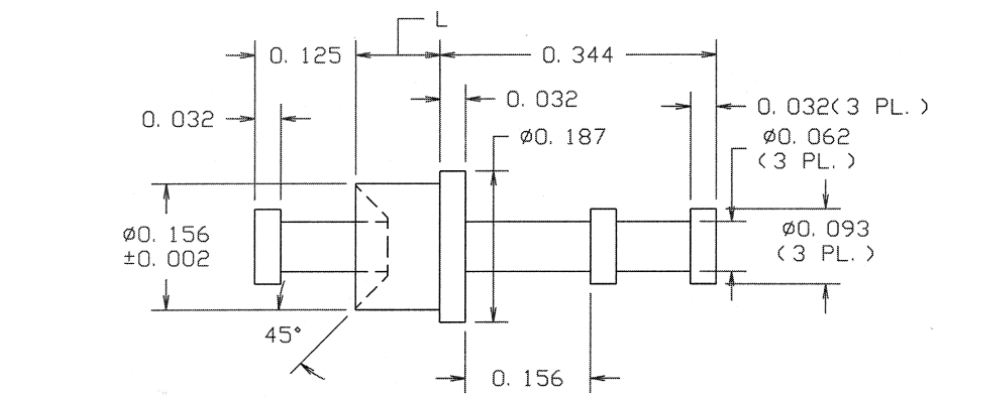

10-530-3-044
10-530-3-044
10-530-3-044
0.604" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.159 Brass Bright Tin YES

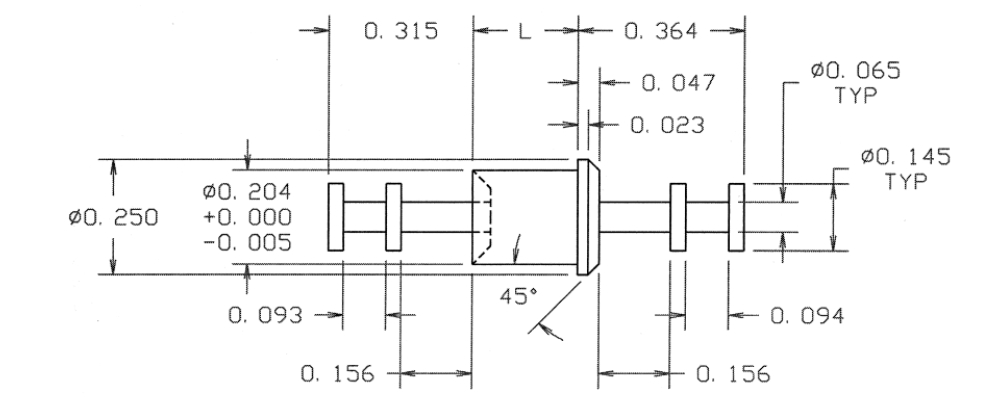

10-549-2-044
10-549-2-044
10-549-2-044
0.784" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.206 Brass Bright Tin YES

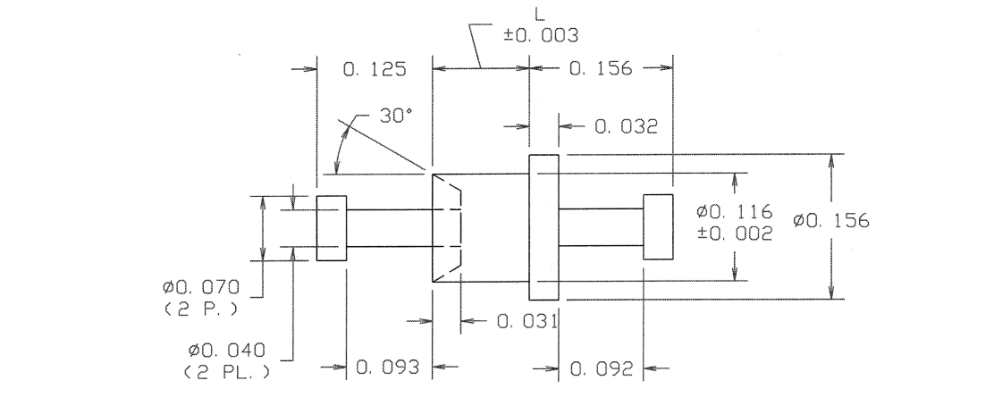

10-576-2-044
10-576-2-044
10-576-2-044
0.386" - Turret/Turret Swage Mount 0.105" 1/16 0.120 Brass Bright Tin YES

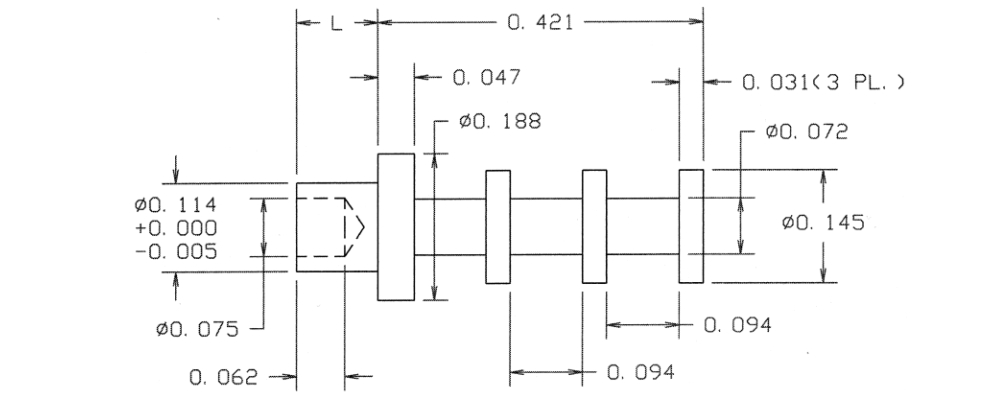

10-607-3-01
10-607-3-01
10-607-3-01
0.556" - - Swage Mount 0.135" 3/32 0.116 Brass Silver YES

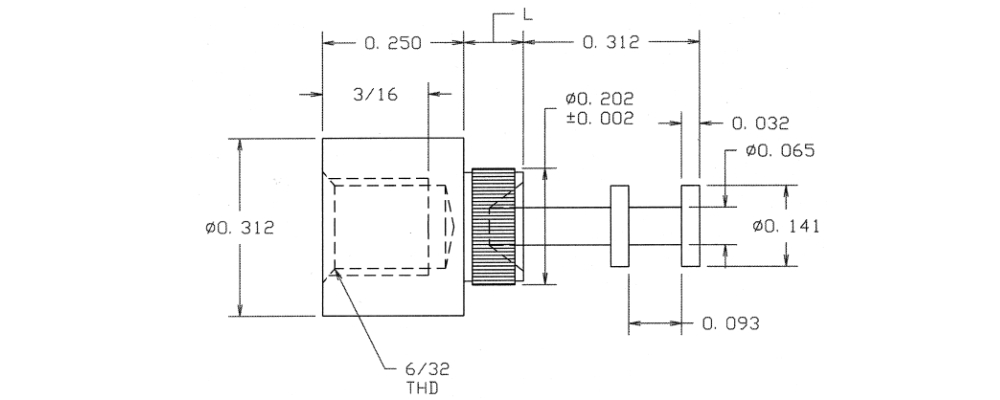

10-714-3-05
10-714-3-05
10-714-3-05
0.697" - DOUBLE TURRET/THREAD Swage Mount 0.135" 3/32 0.204 Brass Electro Solder NO

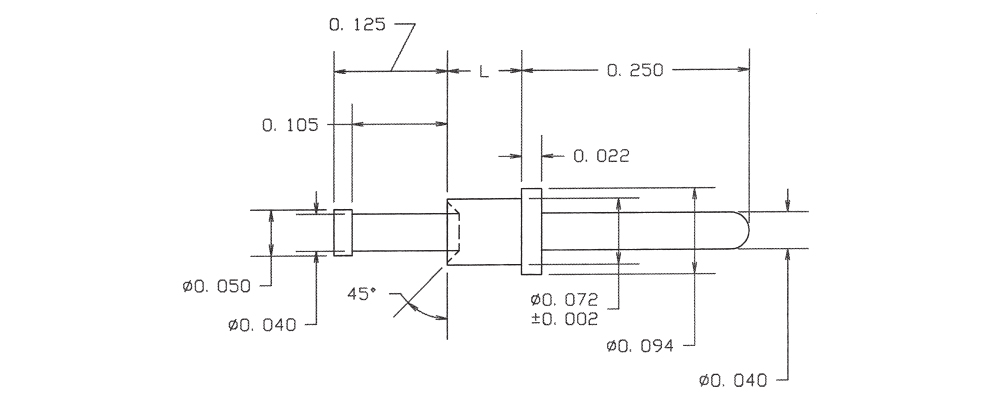

10-8015-8-05
10-8015-8-05
10-8015-8-05
0.645" 0.040 TURRET/PIN Swage Mount 0.270" 1/4 0.076 Brass Electro Solder NO

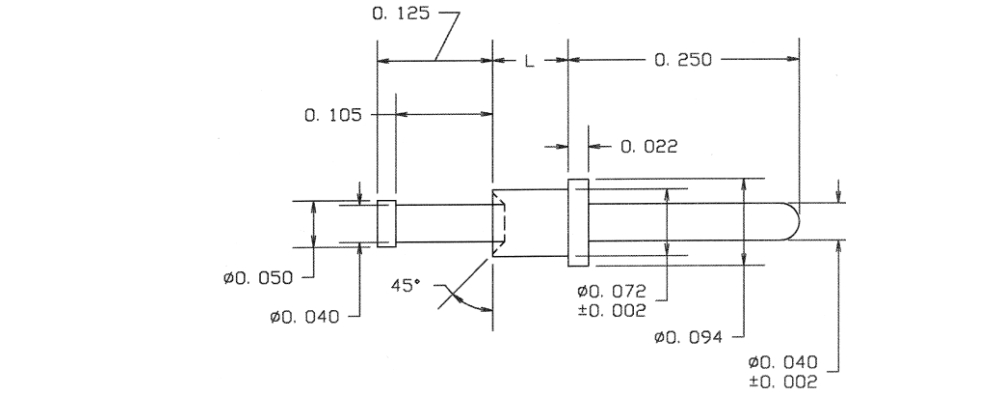

10-803-1-04
10-803-1-04
10-803-1-04
0.426" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Electro-Tin YES

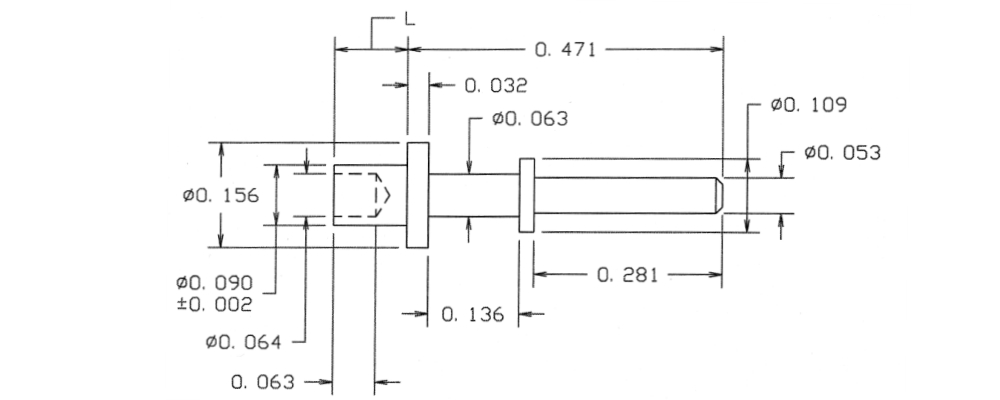

10-808-6-095
10-808-6-095
10-808-6-095
0.705" - - Swage Mount 0.234" 3/16 0.094 Brass Hot Solder Dip NO

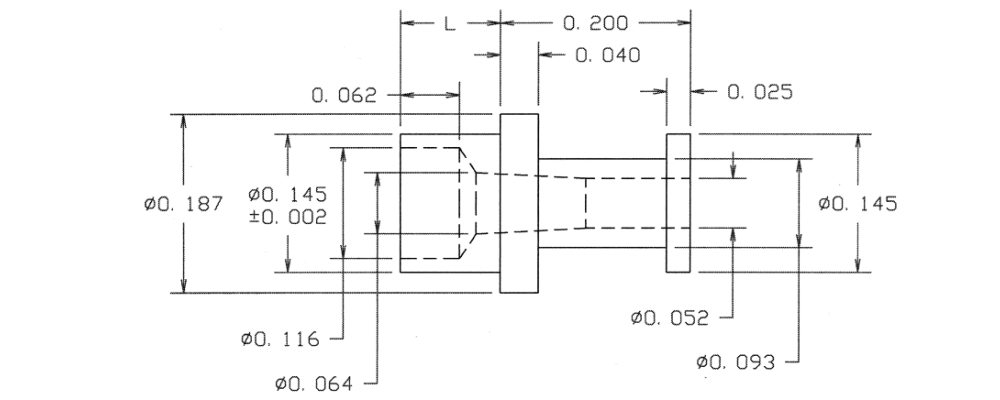

10-815-6-035
10-815-6-035
10-815-6-035
0.430" - - Swage Mount 0.230" 3/16 0.1495 Brass Gold YES

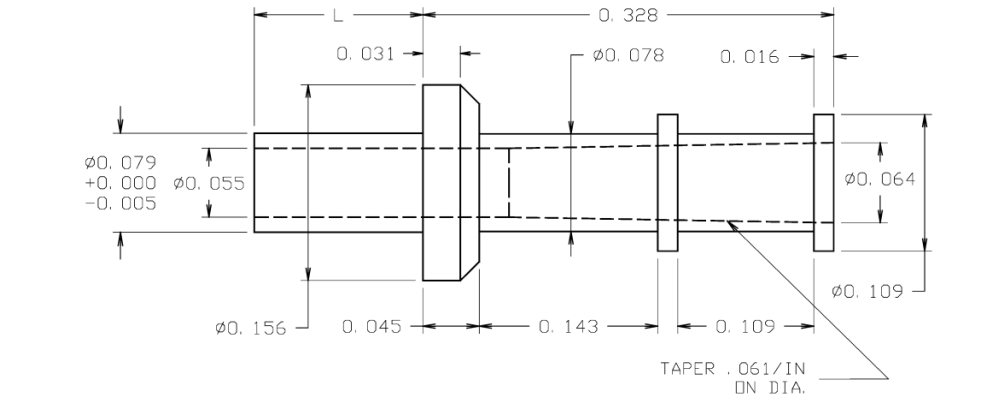

10-825-4-05
10-825-4-05
10-825-4-05
0.493" - - Swage Mount 0.165" 1/8 0.081 Brass Electro Solder NO

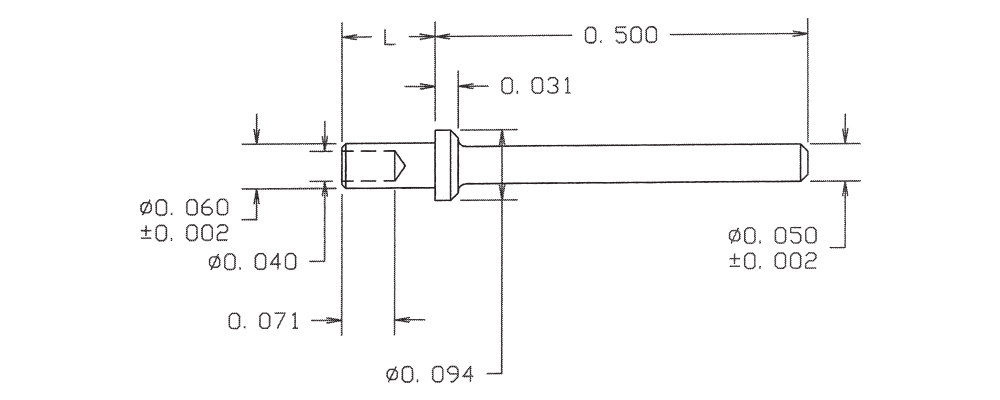

10-836-2-044
10-836-2-044
10-836-2-044
0.594" 0.050 - Swage Mount 0.094" 1/16 0.064 Brass Bright Tin YES

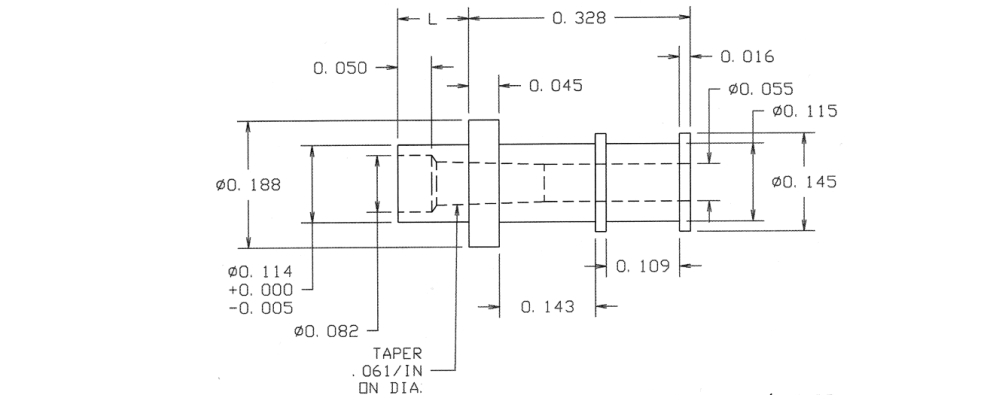

10-846-6-03
10-846-6-03
10-846-6-03
0.558" - - Swage Mount 0.230" 3/16 0.116 Brass Gold YES
