Commercial
Non-Insulated
Terminals

Filter

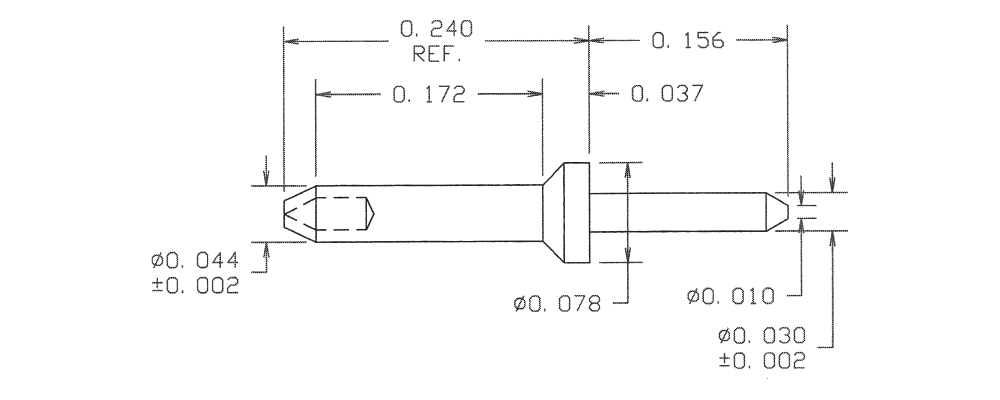

09-7146-4B-044
09-7146-4B-044
09-7146-4B-044
0.396" 0.030 - RIVET MOUNT 0.172" 19/128 0.048 Brass Bright Tin YES

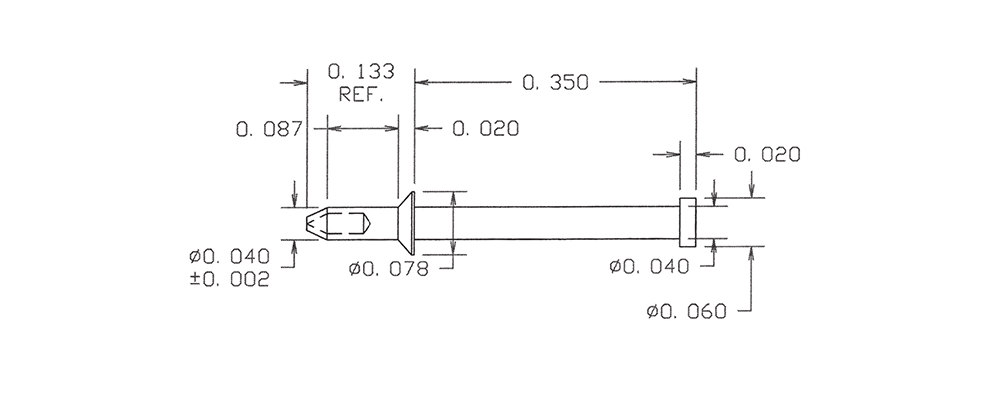

09-7175-2-03
09-7175-2-03
09-7175-2-03
0.483" - - RIVET MOUNT 0.088" 1/16 0.044 Brass Gold YES

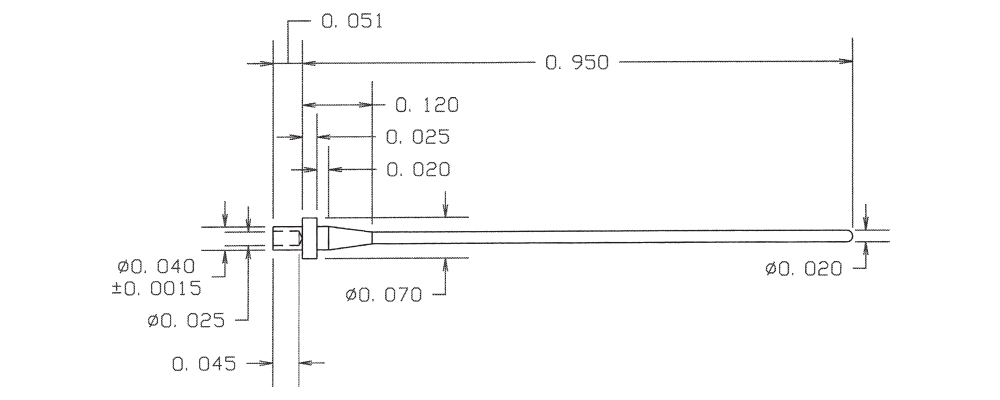

09-8015-1-05
09-8015-1-05
09-8015-1-05
1.001" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO

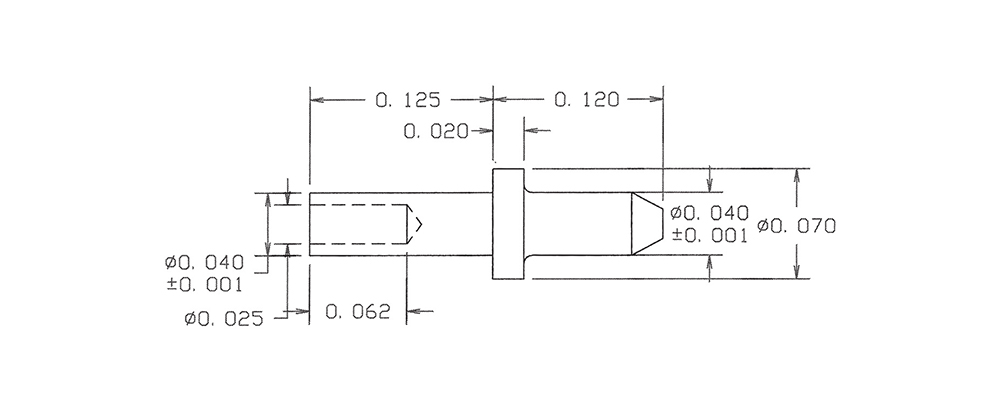

09-8053-3-03
09-8053-3-03
09-8053-3-03
0.245" 0.040 - Swage Mount 0.125" 3/32 0.043 Brass Gold YES
09-8094-1-05
09-8094-1-05
09-8094-1-05
0.162" 0.025 - Swage Mount 0.062" 1/32 0.035 Brass Electro Solder NO

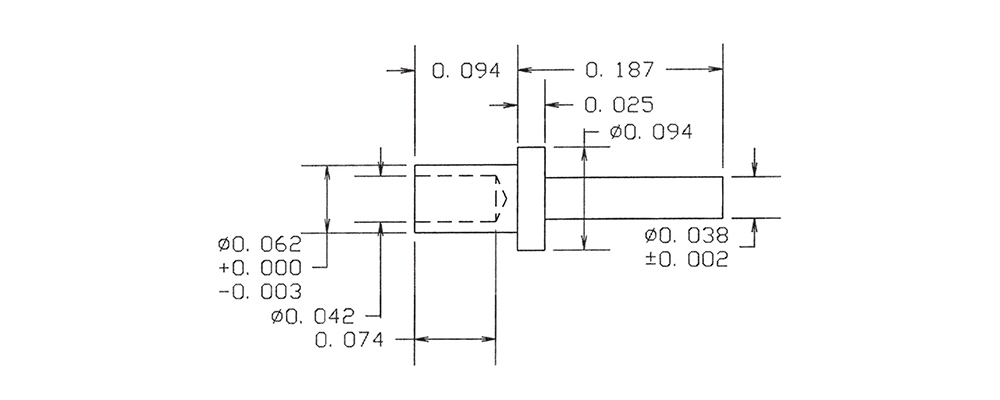

09-8150-2-035
09-8150-2-035
09-8150-2-035
0.281" 0.038 - Swage Mount 0.094" 1/16 0.0635 Brass Gold YES

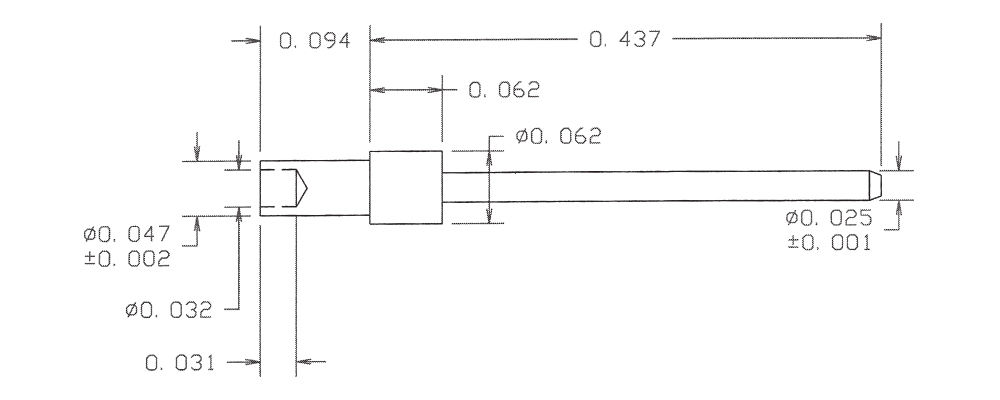

09-8178-2-088
09-8178-2-088
09-8178-2-088
0.531" 0.025 - Swage Mount 0.094" 1/16 0.052 Brass Bright Tin-Lead NO
09-8311-4-088
09-8311-4-088
09-8311-4-088
0.331" 0.040 - Swage Mount 0.145" 1/8 0.076 Brass Bright Tin-Lead NO

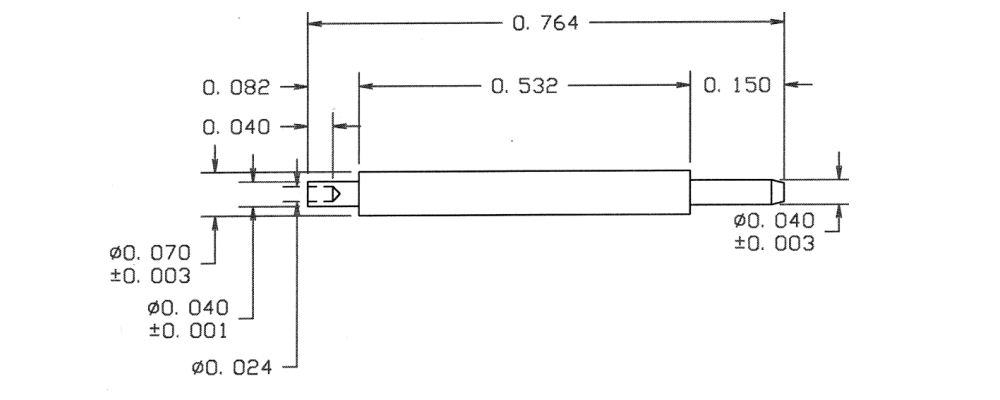

09-8572-2-05
09-8572-2-05
09-8572-2-05
0.764" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Electro Solder NO

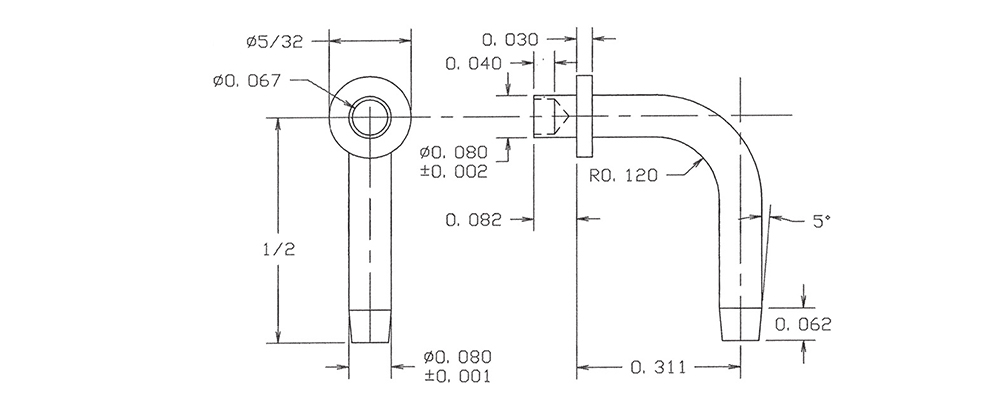

09-8699-1-05
09-8699-1-05
09-8699-1-05
0.578" 0.080 - Swage Mount 0.082" 1/16 0.086 Brass Electro Solder NO

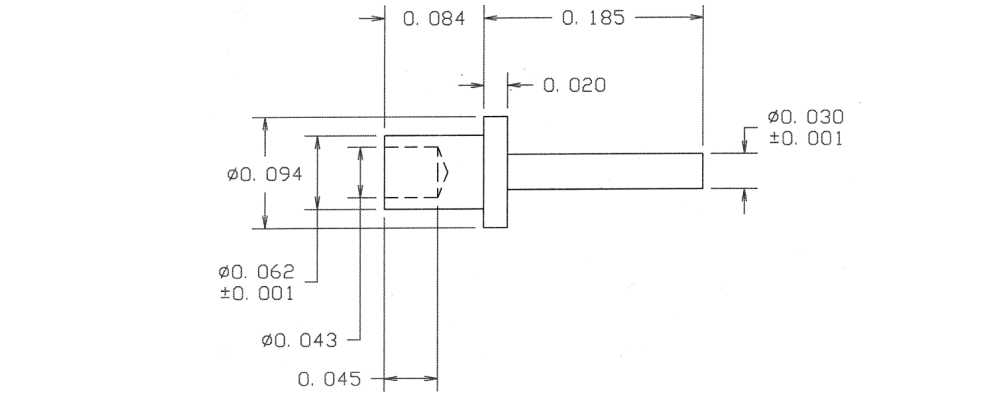

09-8809-2-04
09-8809-2-04
09-8809-2-04
0.269" 0.030 - Swage Mount 0.084" 1/16 0.096 Brass Electro-Tin YES

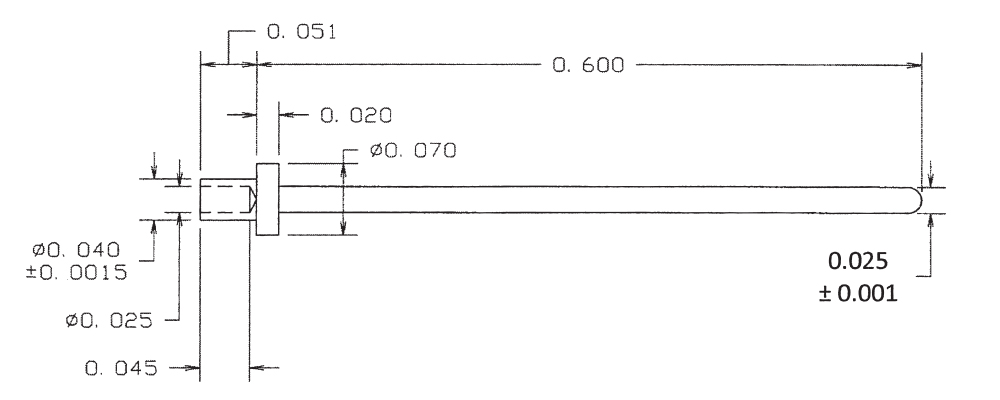

09-8871-1-088
09-8871-1-088
09-8871-1-088
0.651" 0.025 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO
10-104-4-035
10-104-4-035
10-104-4-035
0.239" - - Swage Mount 0.145" 1/8 0.052 Brass Gold YES
10-111-5-035
10-111-5-035
10-111-5-035
0.376" - - Swage Mount 0.195" 5/32 0.094 Brass Gold YES
10-133-2-044
10-133-2-044
10-133-2-044
0.124" - - Swage Mount 0.084" 1/16 0.033 Brass Bright Tin YES
10-204-1-035
10-204-1-035
10-204-1-035
0.437" - - Swage Mount 0.078" 1/32 0.116 Brass Gold YES
10-211-6-044
10-211-6-044
10-211-6-044
0.734" - - Swage Mount 0.234" 3/16 0.266 Brass Bright Tin YES
10-218-1-088
10-218-1-088
10-218-1-088
0.312" - - Swage Mount 0.075" 1/32 0.094 Brass Bright Tin-Lead NO
10-229-2-044
10-229-2-044
10-229-2-044
0.154" - - Swage Mount 0.084" 1/16 0.035 Brass Bright Tin YES
10-248-2-095
10-248-2-095
10-248-2-095
0.417" - - Swage Mount 0.105" 1/16 0.073 Brass Hot Solder Dip NO
