Commercial
Non-Insulated
Terminals

Filter

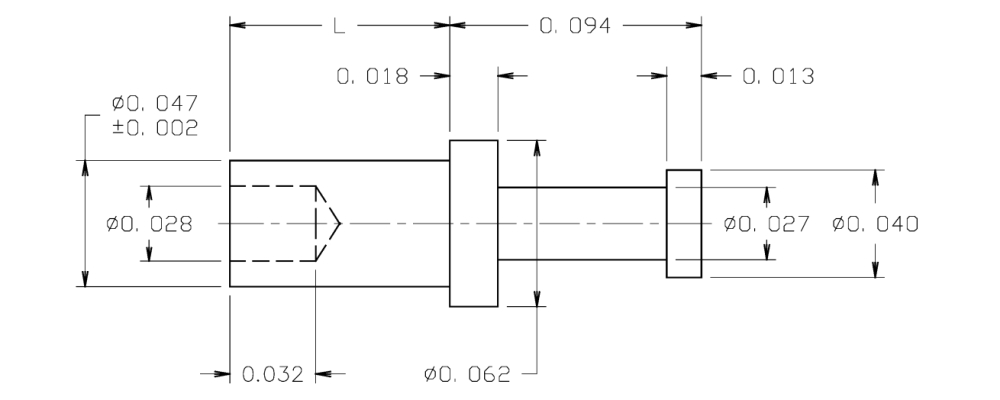

10-104-2-05
10-104-2-05
10-104-2-05
0.176" - - Swage Mount 0.082" 1/16 0.052 Brass Electro Solder NO

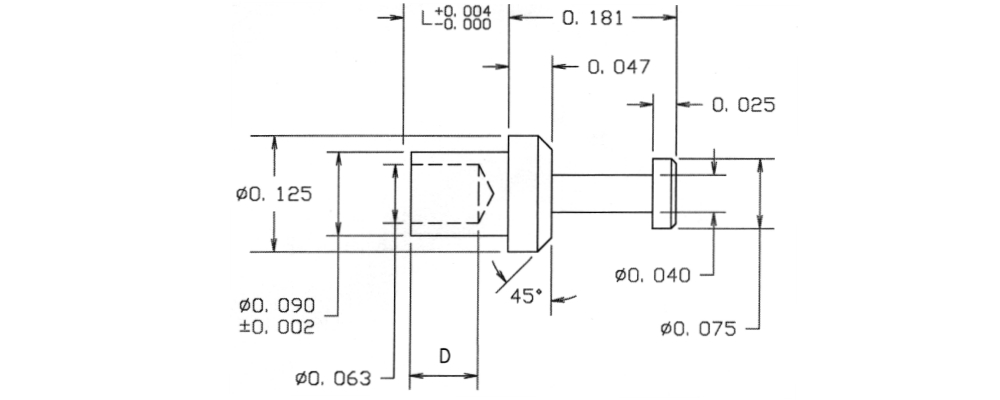

10-111-3-05
10-111-3-05
10-111-3-05
0.316" - - Swage Mount 0.135" 3/32 0.094 Brass Electro Solder NO

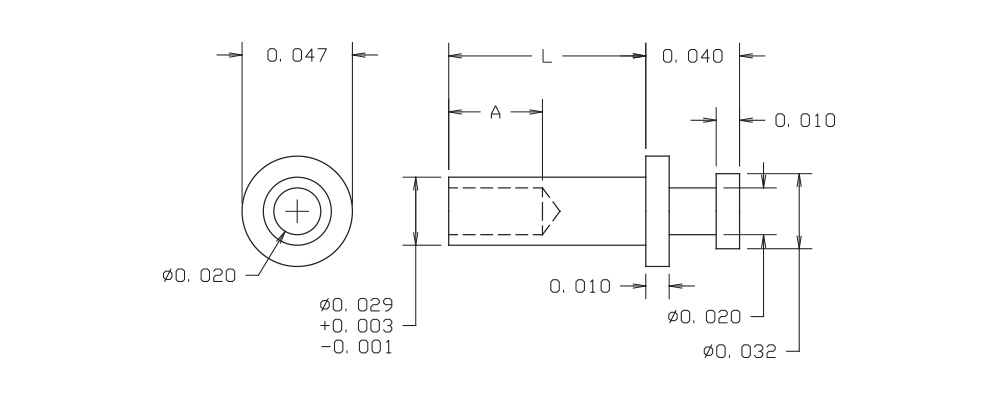

10-133-1-095
10-133-1-095
10-133-1-095
0.093" - - Swage Mount 0.053" 1/32 0.033 Brass Hot Solder Dip NO

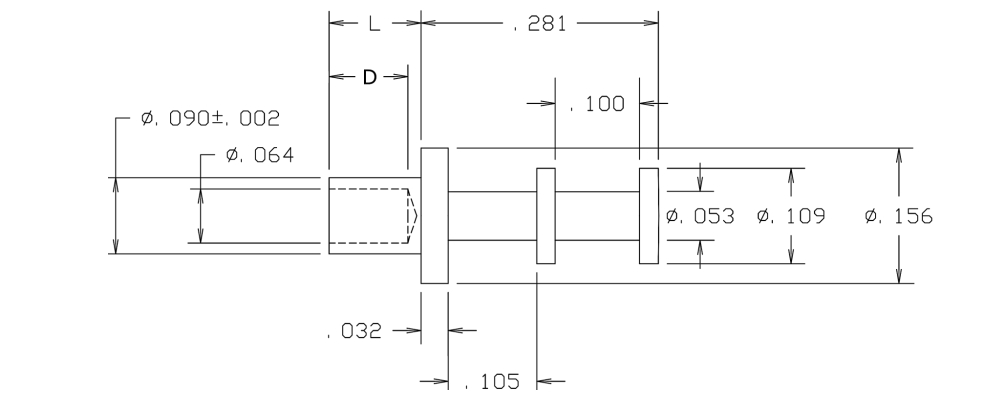

10-203-6-05
10-203-6-05
10-203-6-05
0.515" - - Swage Mount 0.234" 3/16 0.094 Brass Electro Solder NO

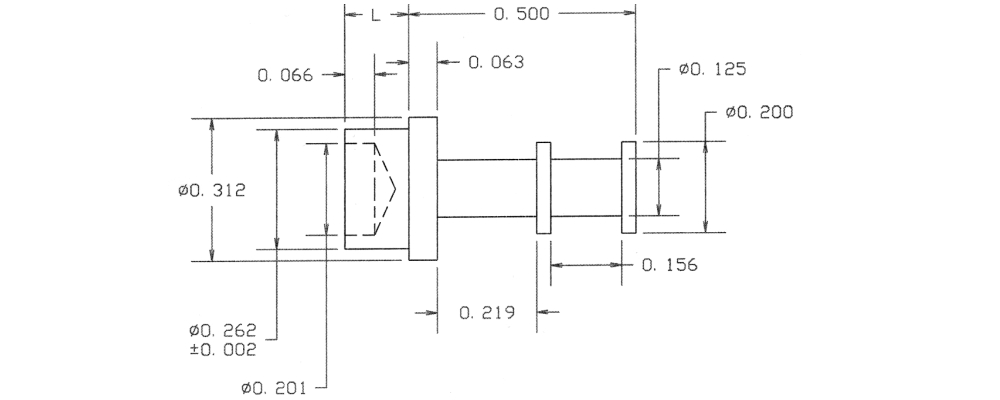

10-211-3-095
10-211-3-095
10-211-3-095
0.641" - - Swage Mount 0.141" 3/32 0.266 Brass Hot Solder Dip NO

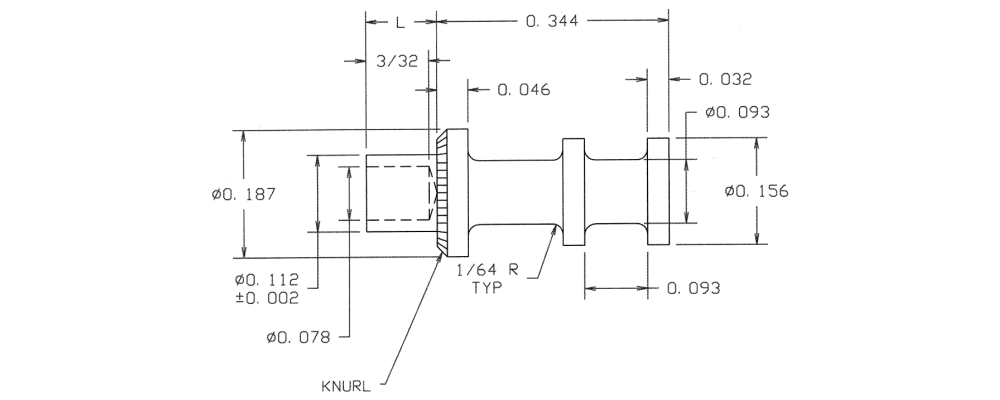

10-217-6-01
10-217-6-01
10-217-6-01
0.574" - - Swage Mount 0.230" 3/16 0.116 Brass Silver YES

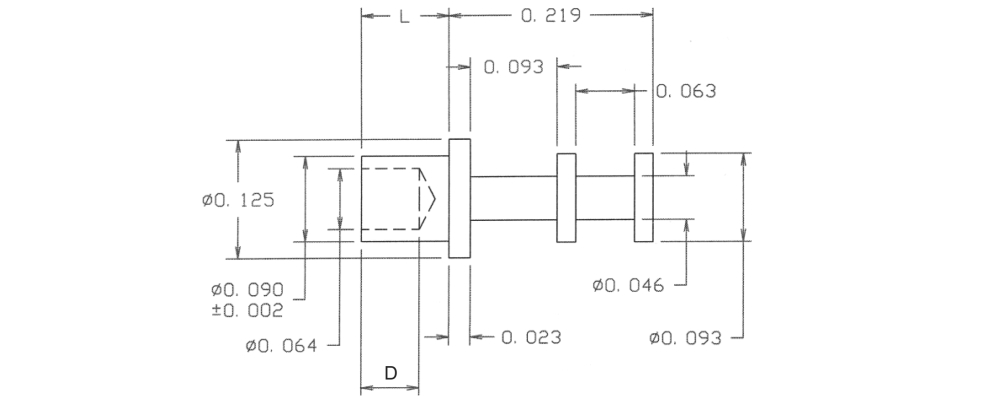

10-228-8-01
10-228-8-01
10-228-8-01
0.500" - - Swage Mount 0.281" 1/4 0.094 ALUMINUM Silver YES

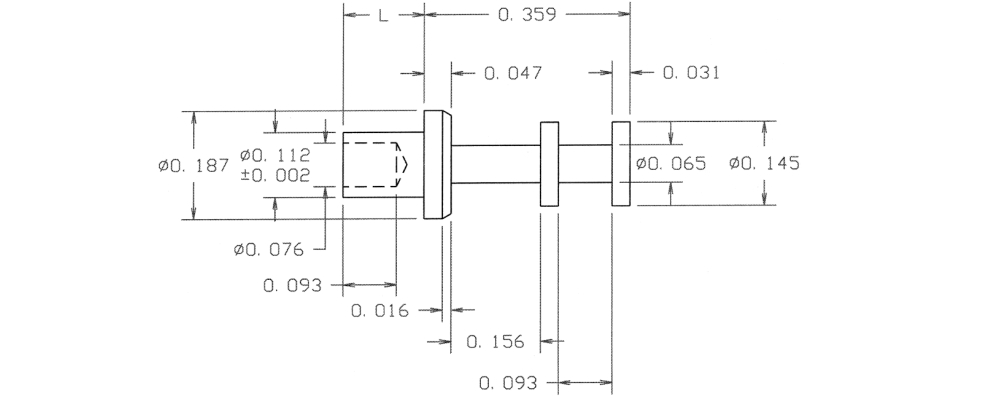

10-247-8-035
10-247-8-035
10-247-8-035
0.656" - - Swage Mount 0.297" 1/4 0.116 Brass Gold YES

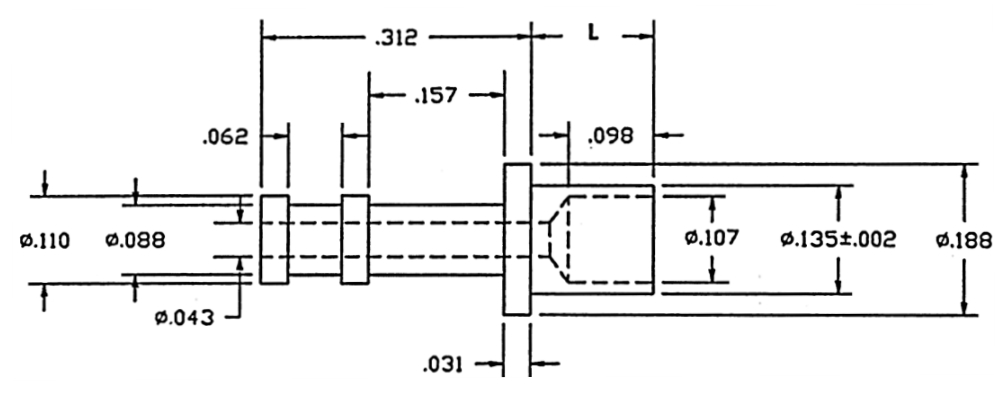

10-304-4-088
10-304-4-088
10-304-4-088
0.484" - - Swage Mount 0.172" 1/8 0.1405 Brass Bright Tin-Lead NO

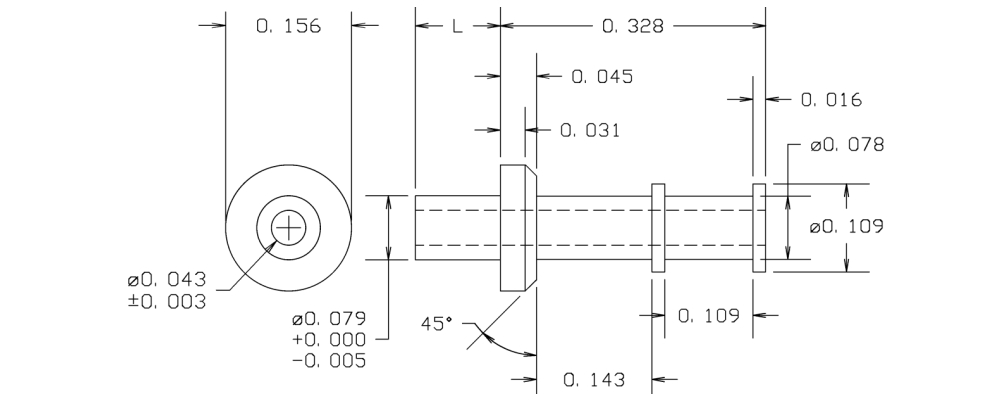

10-312-2-03
10-312-2-03
10-312-2-03
0.433" - - Swage Mount 0.105" 1/16 0.082 Brass Gold YES

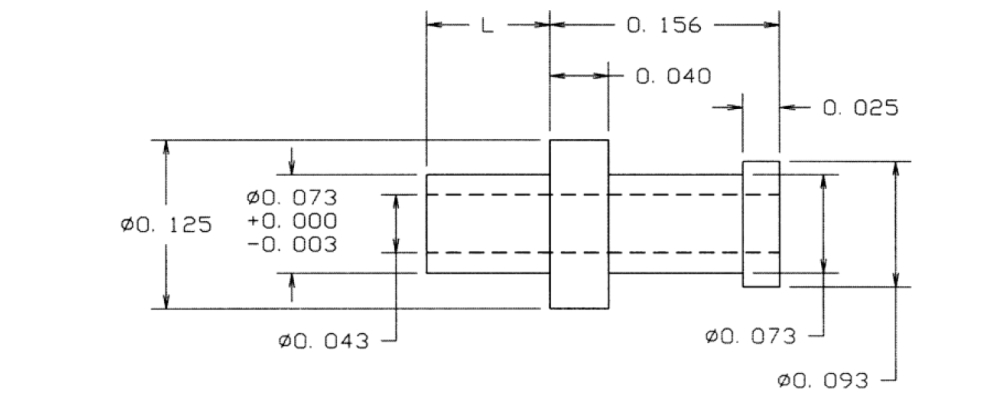

10-323-3-05
10-323-3-05
10-323-3-05
0.271" - - Swage Mount 0.115" 3/32 0.076 Brass Electro Solder NO

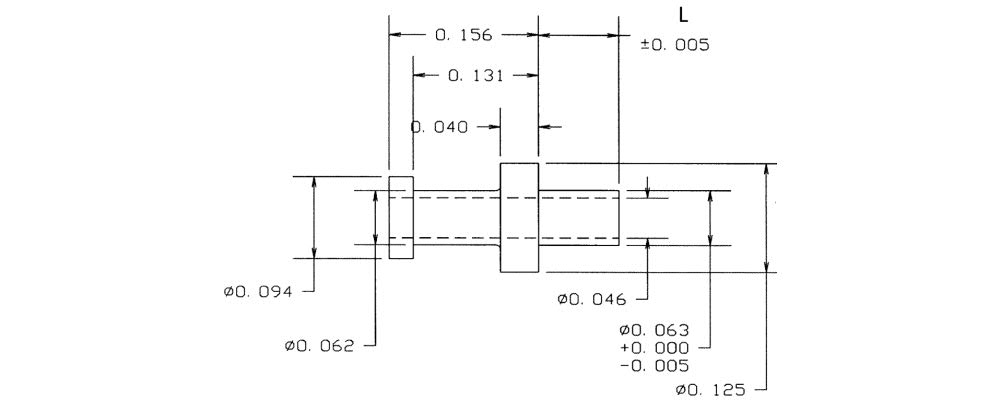

10-372-1-035
10-372-1-035
10-372-1-035
0.209" - - Swage Mount 0.053" 1/32 0.064 Brass Gold YES

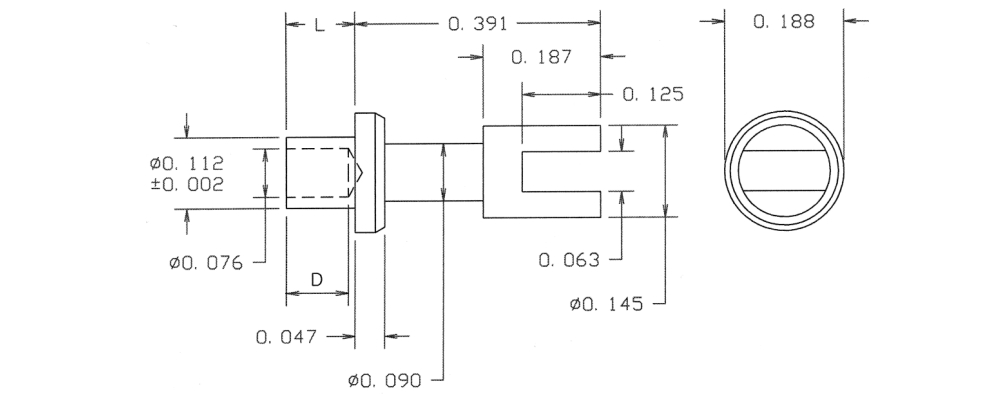

10-417-4-04
10-417-4-04
10-417-4-04
0.563" - - Swage Mount 0.172" 1/8 0.116 Brass Electro-Tin YES

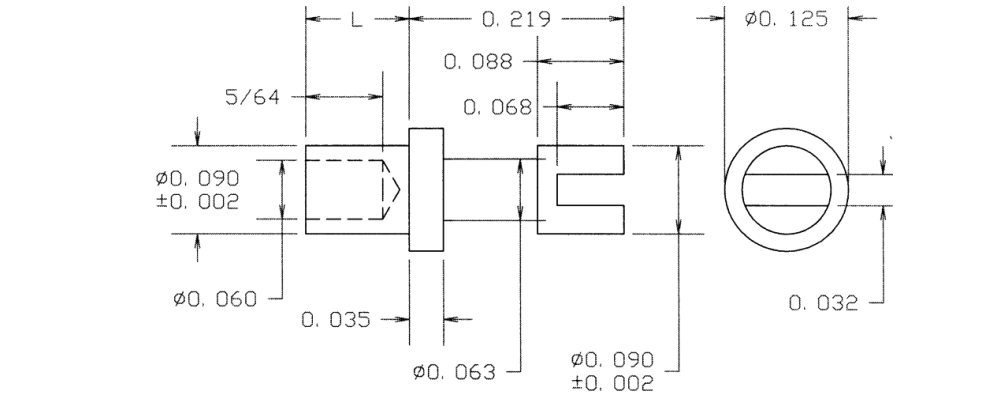

10-426-2-088
10-426-2-088
10-426-2-088
0.324" - - Swage Mount 0.105" 1/16 0.094 Brass Bright Tin-Lead NO

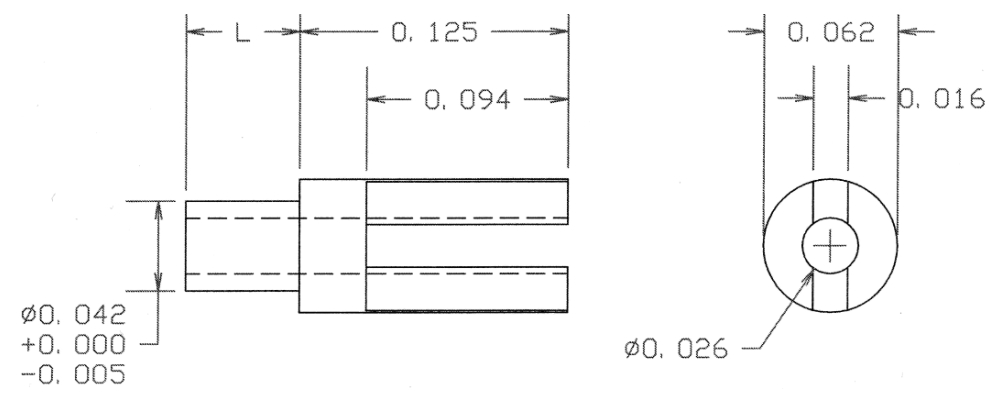

10-444-11-01
10-444-11-01
10-444-11-01
0.162" - - Swage Mount 0.037" 1/64 0.043 Brass Silver YES
10-460-1-044
10-460-1-044
10-460-1-044
0.334" - - Swage Mount 0.053" 1/32 0.063 Brass Bright Tin YES

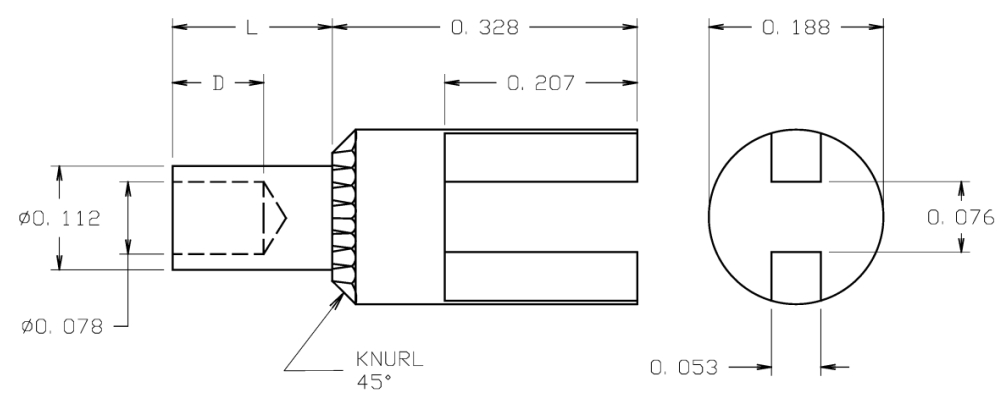

10-482-2-01
10-482-2-01
10-482-2-01
0.437" - - Swage Mount 0.109" 1/16 0.116 Brass Silver YES

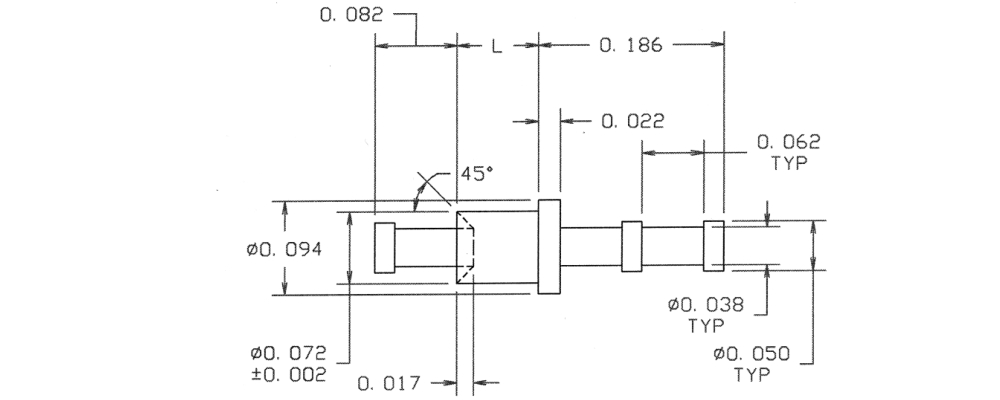

10-502-8-088
10-502-8-088
10-502-8-088
0.538" - TURRET/DOUBLE TURRET Swage Mount 0.270" 1/4 0.076 Brass Bright Tin-Lead NO

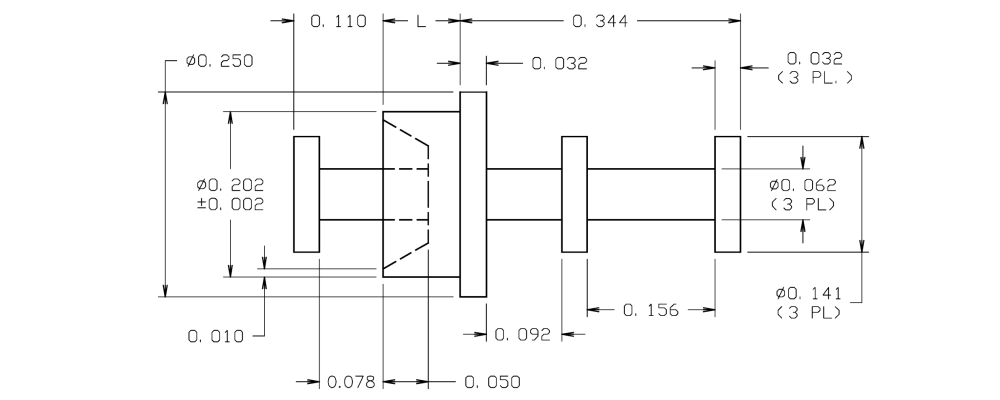

10-508-6-088
10-508-6-088
10-508-6-088
0.663" - TURRET/DOUBLE TURRET Swage Mount 0.219" 3/16 0.206 Brass Bright Tin-Lead NO

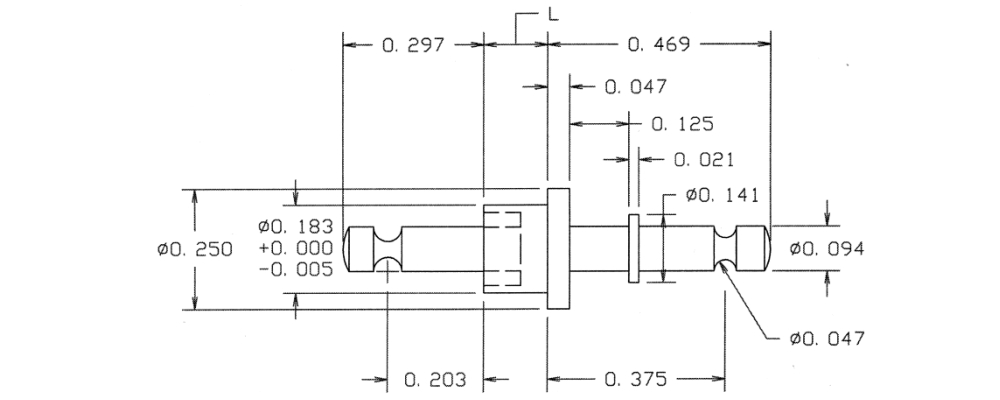

10-515-3-088
10-515-3-088
10-515-3-088
0.901" 0.094 TURRET/PIN Swage Mount 0.135" 3/32 0.185 Brass Bright Tin-Lead NO
