Commercial
Non-Insulated
Terminals

Filter
09-0276-2-03
09-0276-2-03
09-0276-2-03
0.187" - - Swage Mount 0.094" 1/16 0.067 Brass Gold YES

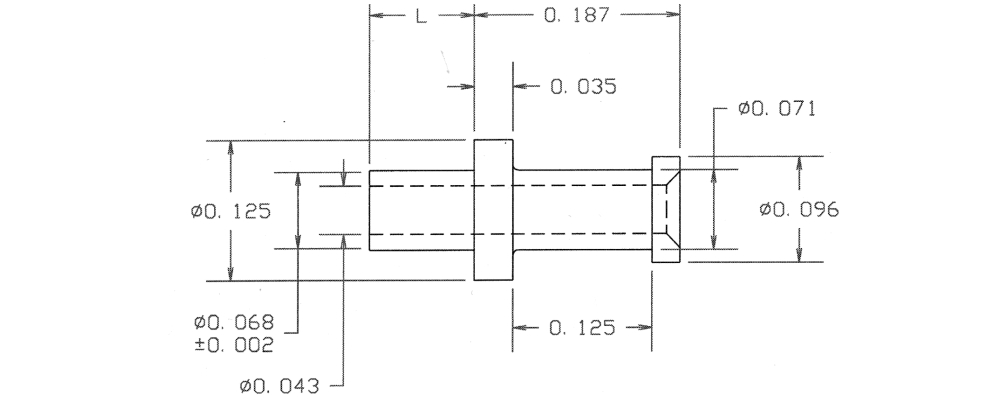

09-0342-4-03
09-0342-4-03
09-0342-4-03
0.343" - - Swage Mount 0.156" 1/8 0.073 Brass Gold YES
09-7010-2-035
09-7010-2-035
09-7010-2-035
0.235" 0.050 - Swage Mount 0.095" 1/16 0.055 Brass Gold YES

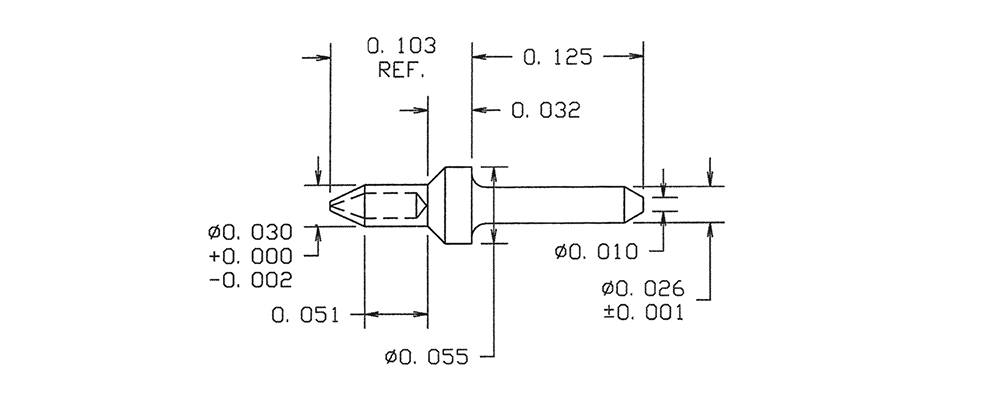

09-7109-1-01
09-7109-1-01
09-7109-1-01
0.228" 0.026 - RIVET MOUNT 0.051" 1/32 0.035 Brass Silver YES

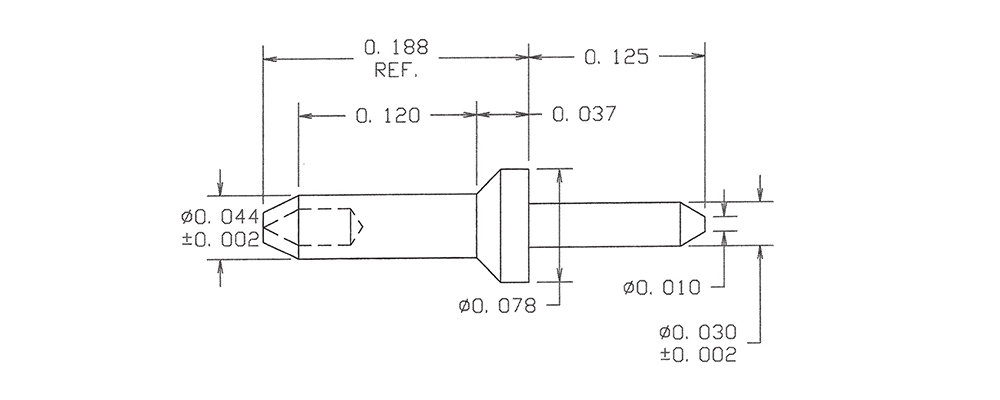

09-7145-3-044
09-7145-3-044
09-7145-3-044
0.313" 0.030 - RIVET MOUNT 0.120" 3/32 0.048 Brass Bright Tin YES

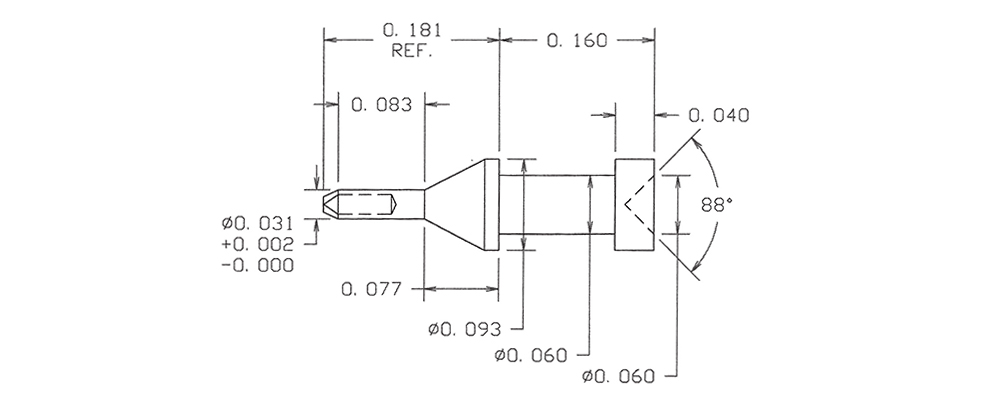

09-7172-2-03
09-7172-2-03
09-7172-2-03
0.341" - - RIVET MOUNT 0.089" 1/16 0.035 Brass Gold YES
09-8013-2-05
09-8013-2-05
09-8013-2-05
0.709" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Electro Solder NO

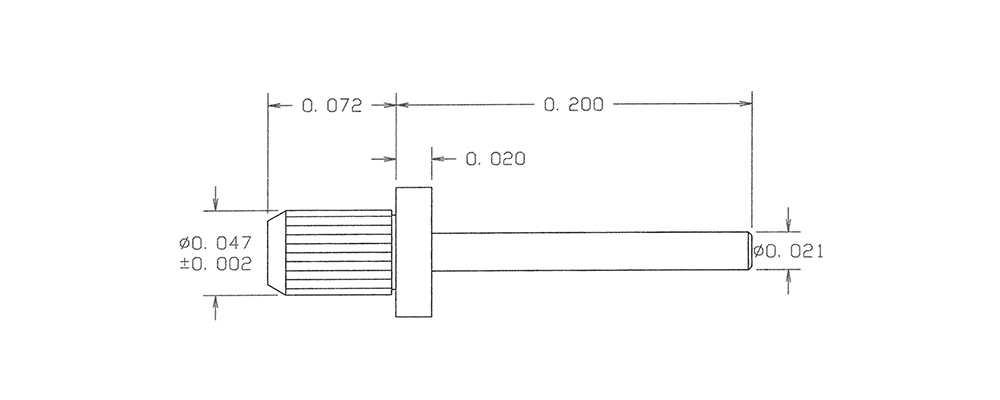

09-8049-1-035
09-8049-1-035
09-8049-1-035
0.272" 0.021 - Press Fit/Solder 0.072" 1/64 TO 1/16 0.0465 Brass Gold YES
09-8090-2-05
09-8090-2-05
09-8090-2-05
0.370" 0.020 - Solder 0.100" 1/16 0.024 Brass Electro Solder NO

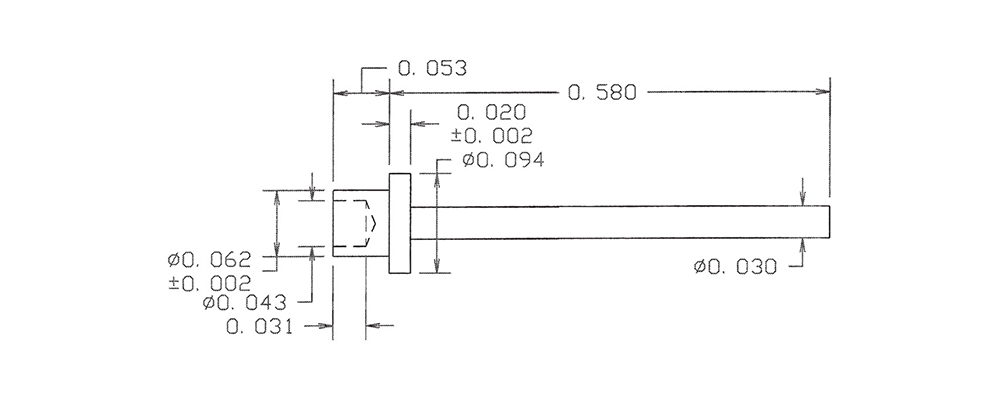

09-8148-1-035
09-8148-1-035
09-8148-1-035
0.633" 0.030 - Swage Mount 0.053" 1/32 0.067 Brass Gold YES
09-8176-1-088
09-8176-1-088
09-8176-1-088
0.491" 0.025 - Swage Mount 0.054" 1/32 0.052 Brass Bright Tin-Lead NO

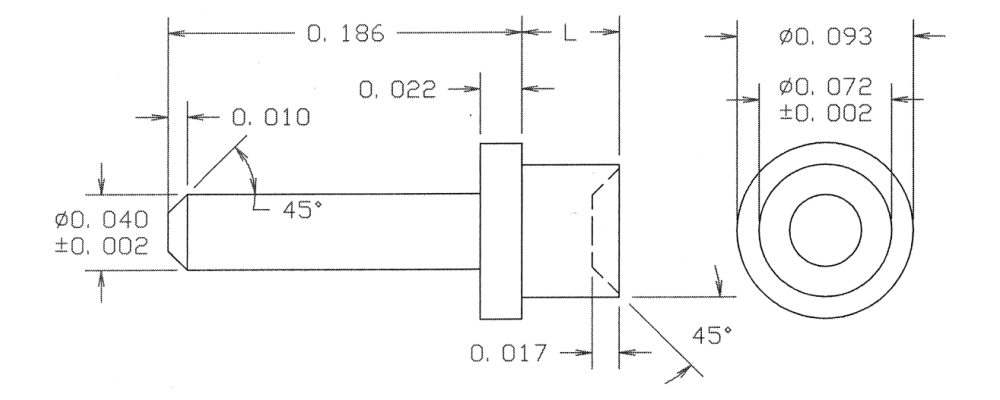

09-8311-2-088
09-8311-2-088
09-8311-2-088
0.268" 0.040 - Swage Mount 0.082" 1/16 0.076 Brass Bright Tin-Lead NO

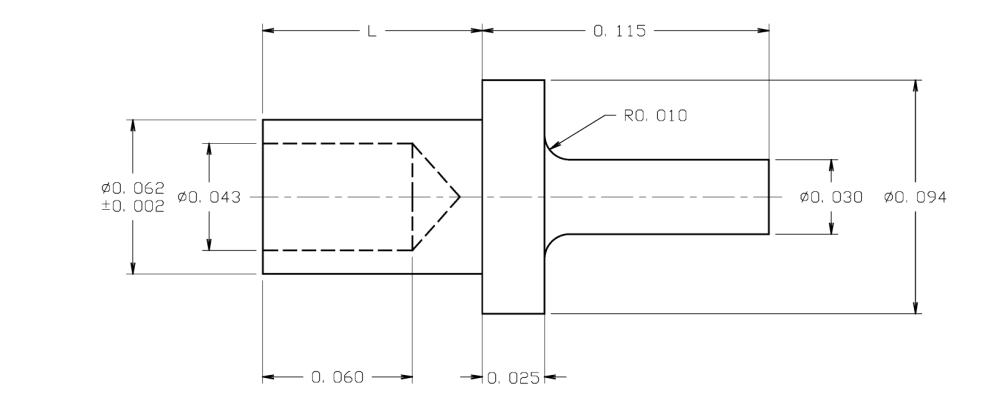

09-8564-2-095
09-8564-2-095
09-8564-2-095
0.214" 0.030 - Swage Mount 0.098" 1/16 0.067 LEADED Red Brass Hot Solder Dip NO

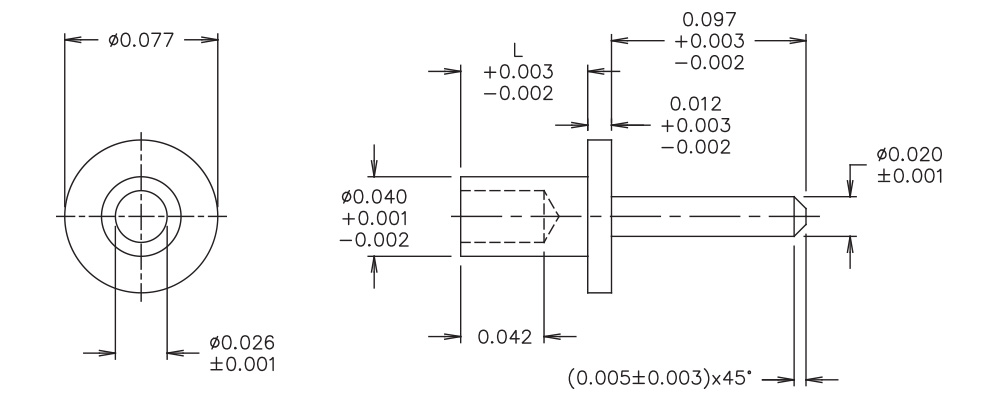

09-8689-4-05
09-8689-4-05
09-8689-4-05
0.235" 0.020 - Swage Mount 0.124" 3/32 0.043 Brass Electro Solder NO

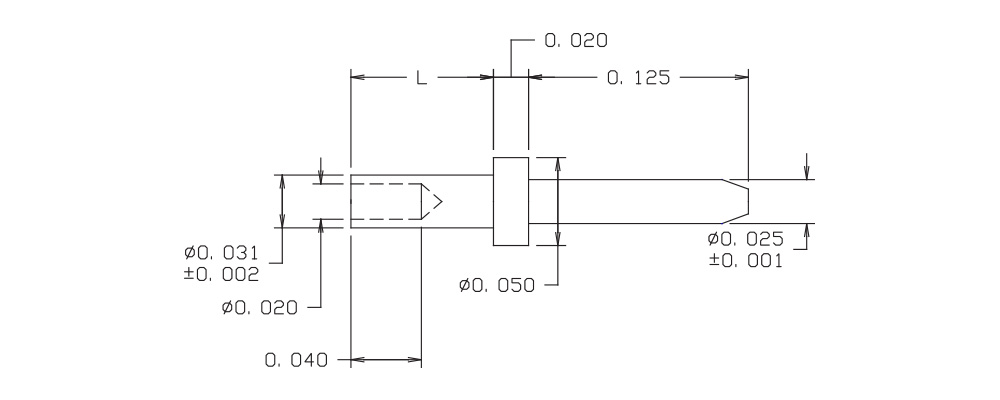

09-8807-1-04
09-8807-1-04
09-8807-1-04
0.196" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Electro-Tin YES

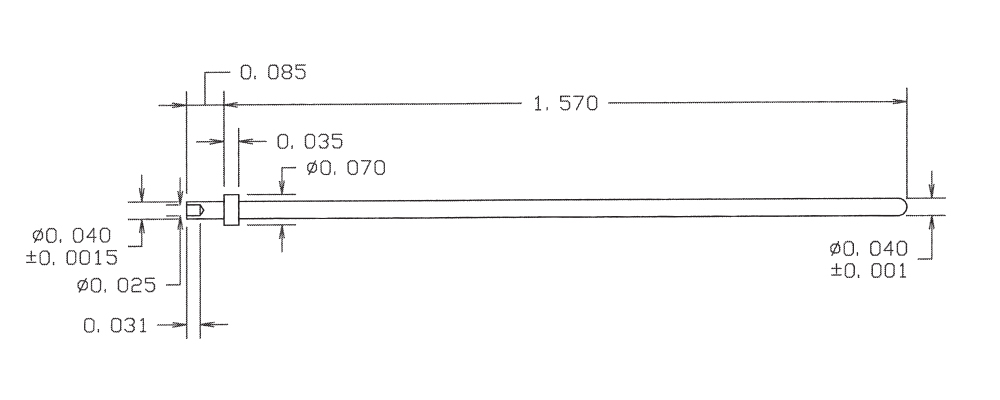

09-8864-2-088
09-8864-2-088
09-8864-2-088
1.655" 0.040 - Swage Mount 0.085" 1/16 0.043 Brass Bright Tin-Lead NO
10-104-2-044
10-104-2-044
10-104-2-044
0.176" - - Swage Mount 0.082" 1/16 0.052 Brass Bright Tin YES
10-111-3-044
10-111-3-044
10-111-3-044
0.316" - - Swage Mount 0.135" 3/32 0.094 Brass Bright Tin YES
10-133-1-088
10-133-1-088
10-133-1-088
0.093" - - Swage Mount 0.053" 1/32 0.033 Brass Bright Tin-Lead NO

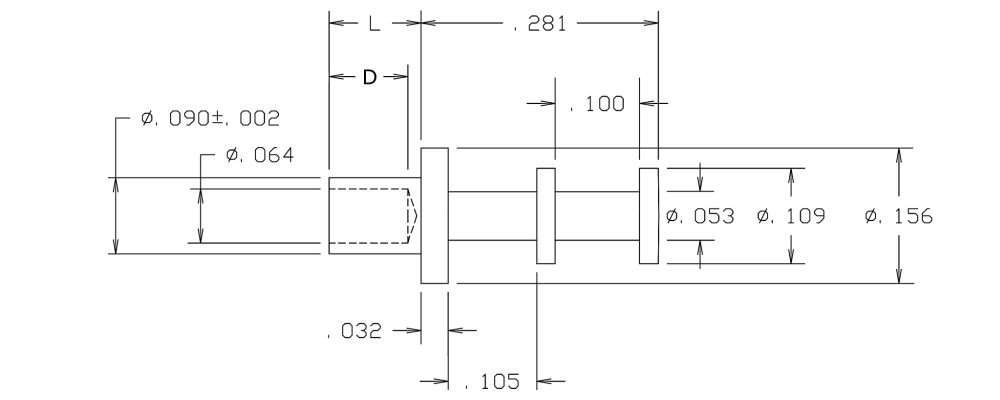

10-203-6-044
10-203-6-044
10-203-6-044
0.515" - - Swage Mount 0.234" 3/16 0.094 Brass Bright Tin YES
