Commercial
Non-Insulated
Terminals

Filter

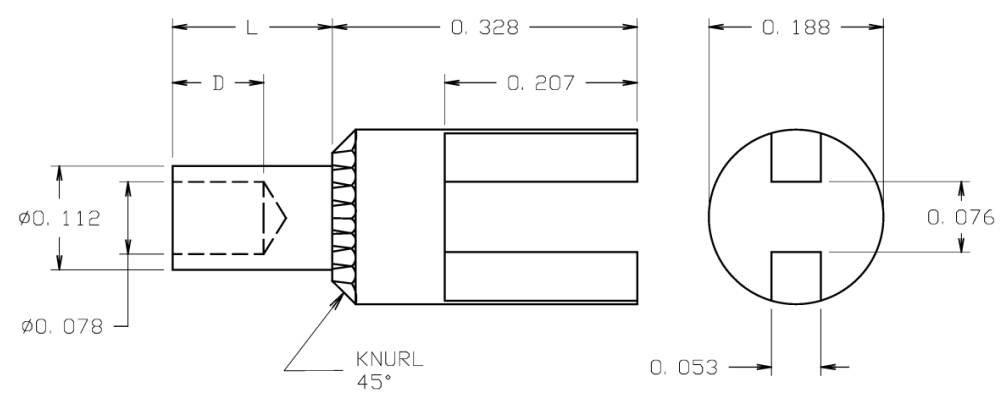

10-482-2-03
10-482-2-03
10-482-2-03
0.437" - - Swage Mount 0.109" 1/16 0.116 Brass Gold YES
10-502-8-095
10-502-8-095
10-502-8-095
0.538" - TURRET/DOUBLE TURRET Swage Mount 0.270" 1/4 0.076 Brass Hot Solder Dip NO

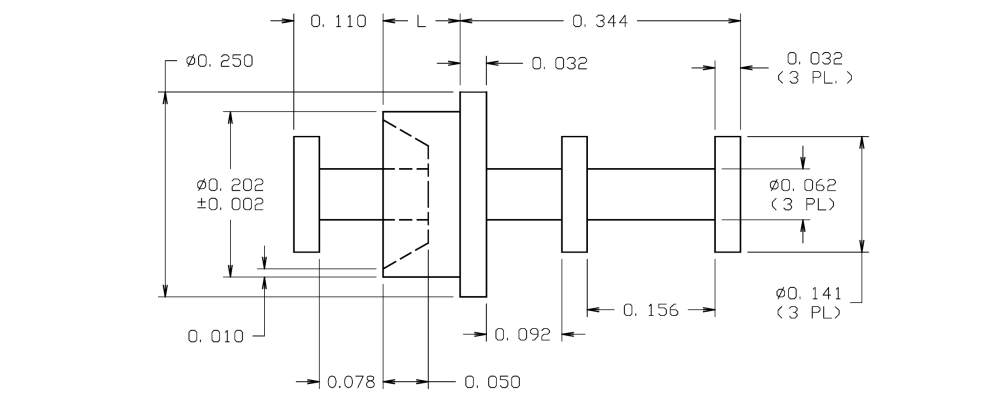

10-508-6-095
10-508-6-095
10-508-6-095
0.663" - TURRET/DOUBLE TURRET Swage Mount 0.219" 3/16 0.206 Brass Hot Solder Dip NO

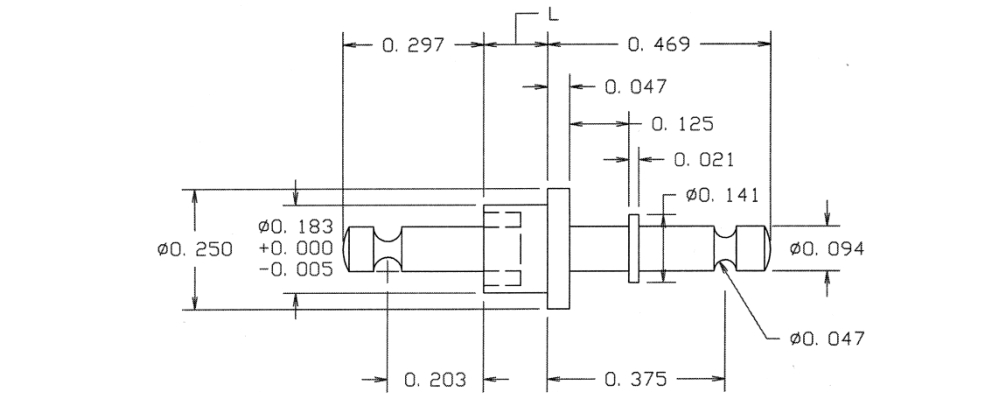

10-515-3-095
10-515-3-095
10-515-3-095
0.901" 0.094 TURRET/PIN Swage Mount 0.135" 3/32 0.185 Brass Hot Solder Dip NO

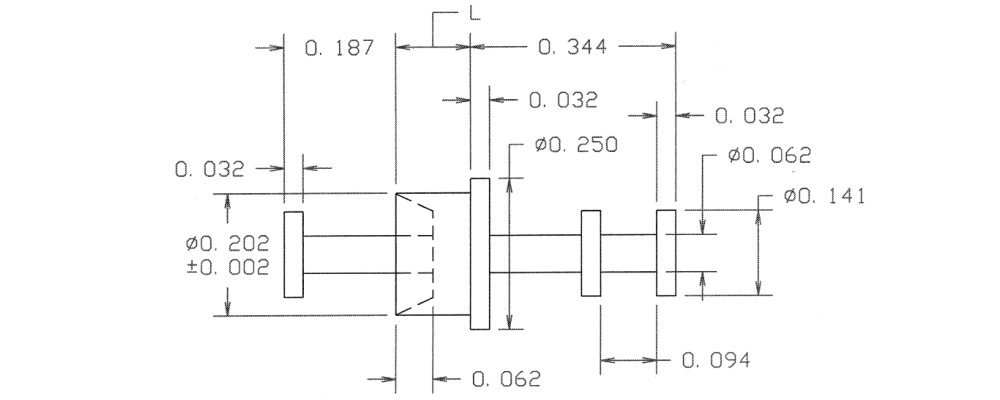

10-526-4-095
10-526-4-095
10-526-4-095
0.687" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.206 Brass Hot Solder Dip NO

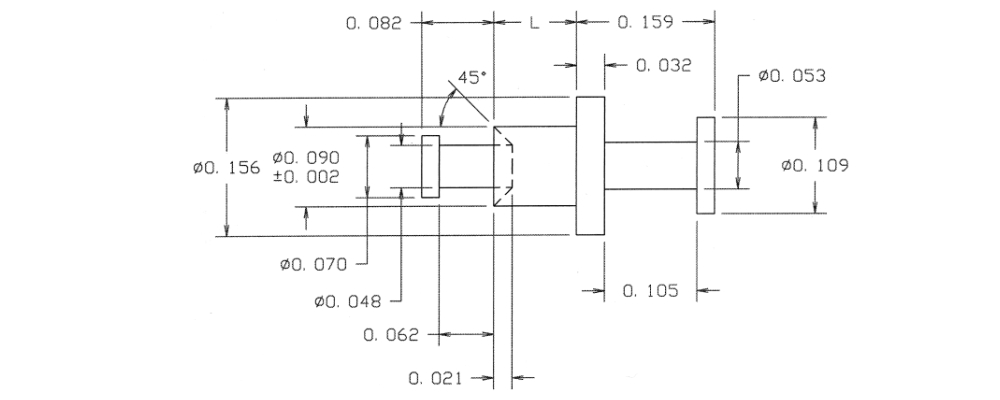

10-544-3-095
10-544-3-095
10-544-3-095
0.366" - Turret/Turret Swage Mount 0.125" 3/32 0.094 Brass Hot Solder Dip NO

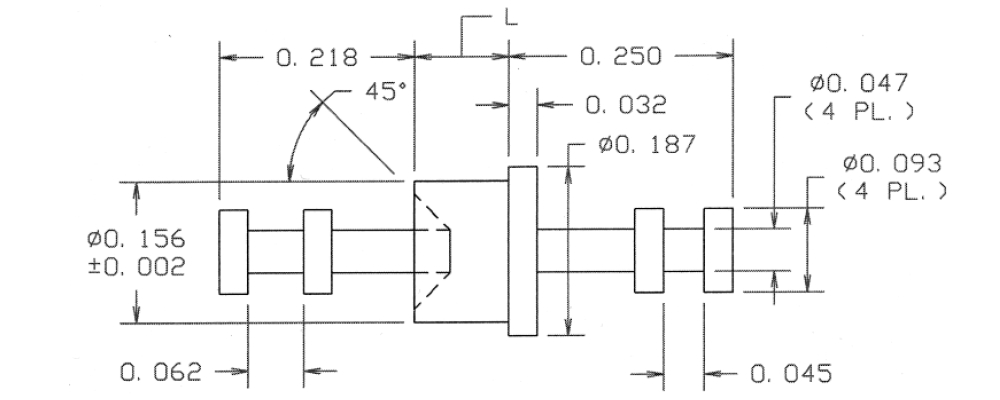

10-562-4-095
10-562-4-095
10-562-4-095
0.633" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.159 Brass Hot Solder Dip NO

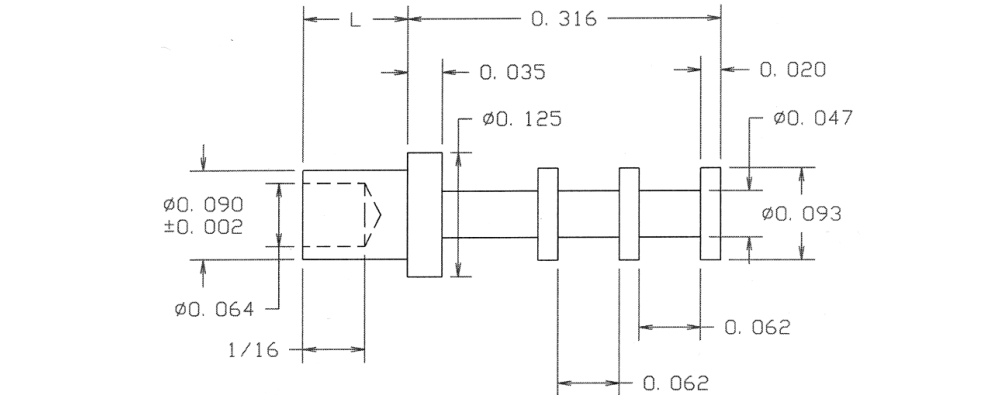

10-606-4-04
10-606-4-04
10-606-4-04
0.481" - - Swage Mount 0.165" 1/8 0.094 Brass Electro-Tin YES

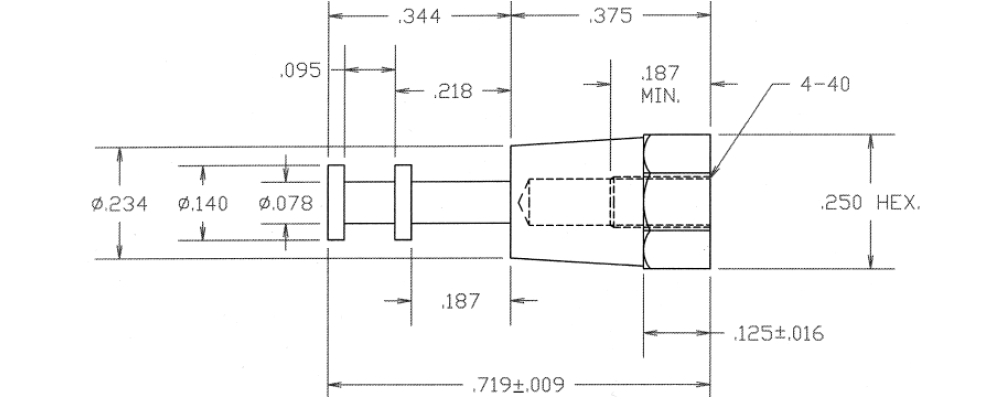

10-712-1-05
10-712-1-05
10-712-1-05
0.719" - - 4-40 Screw - - CLEARANCE FOR #4 Screw Brass Electro Solder NO

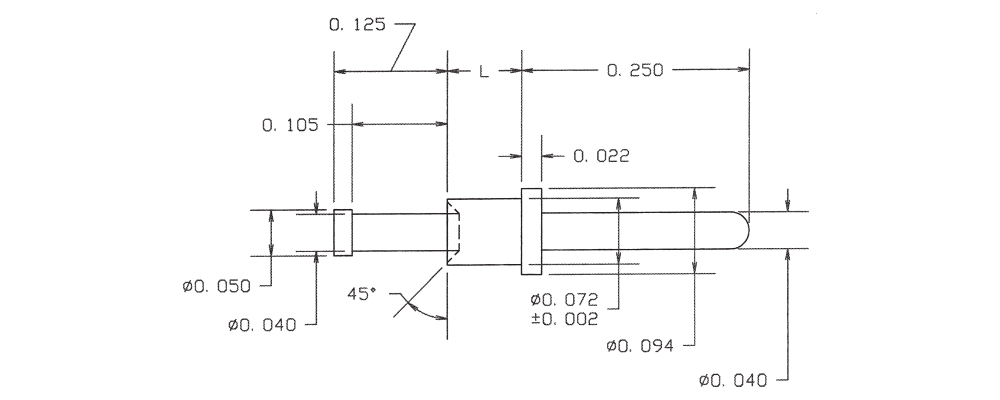

10-8015-3-05
10-8015-3-05
10-8015-3-05
0.488" 0.040 TURRET/PIN Swage Mount 0.113" 3/32 0.076 Brass Electro Solder NO

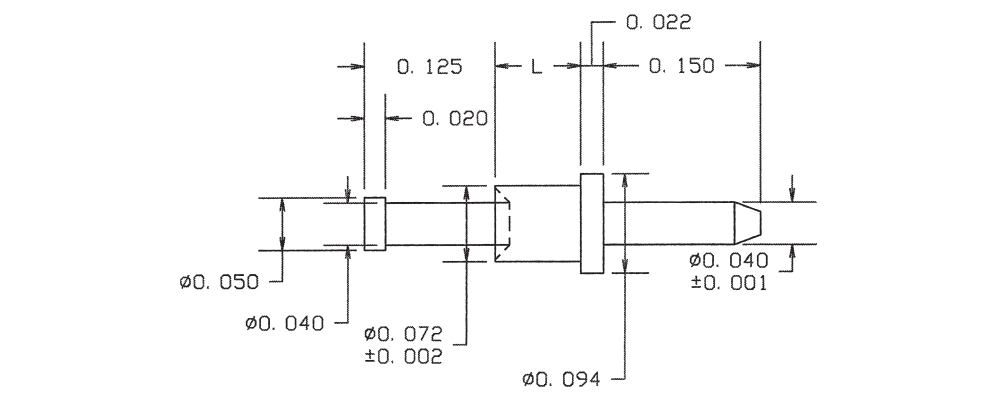

10-8025-3-04
10-8025-3-04
10-8025-3-04
0.410" 0.040 TURRET/PIN Swage Mount 0.113" 3/32 0.076 Brass Electro-Tin YES

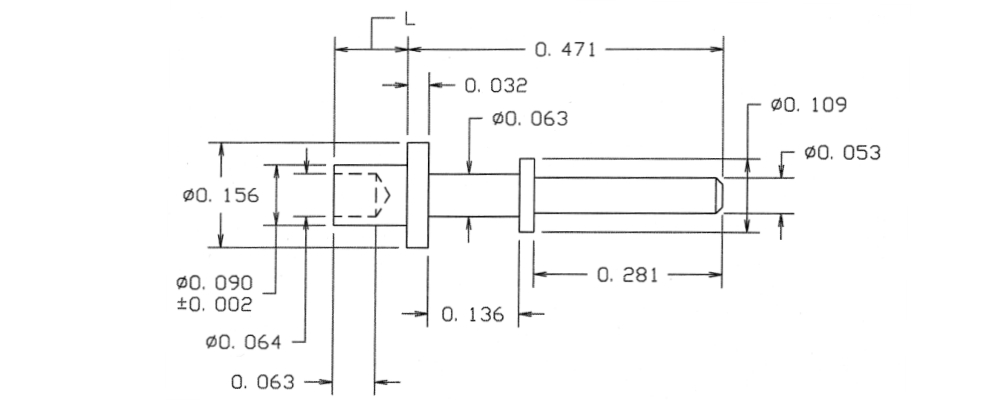

10-808-3-035
10-808-3-035
10-808-3-035
0.612" - - Swage Mount 0.141" 3/32 0.094 Brass Gold YES

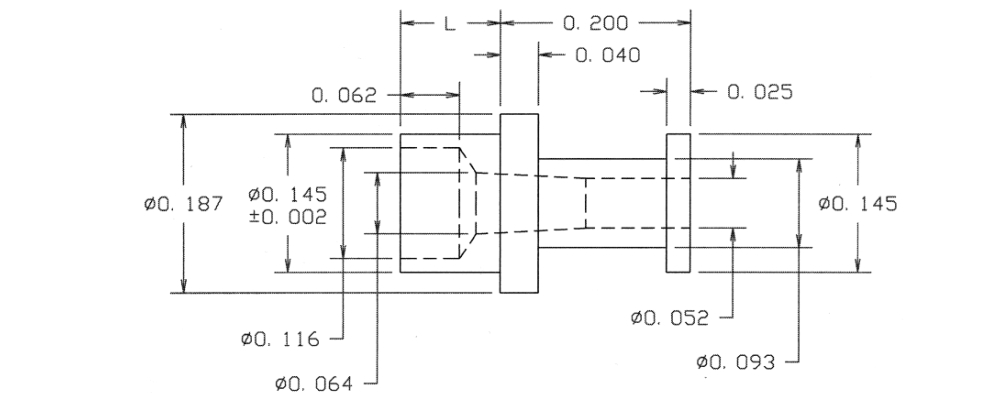

10-815-3-035
10-815-3-035
10-815-3-035
0.335" - - Swage Mount 0.135" 3/32 0.1495 Brass Gold YES

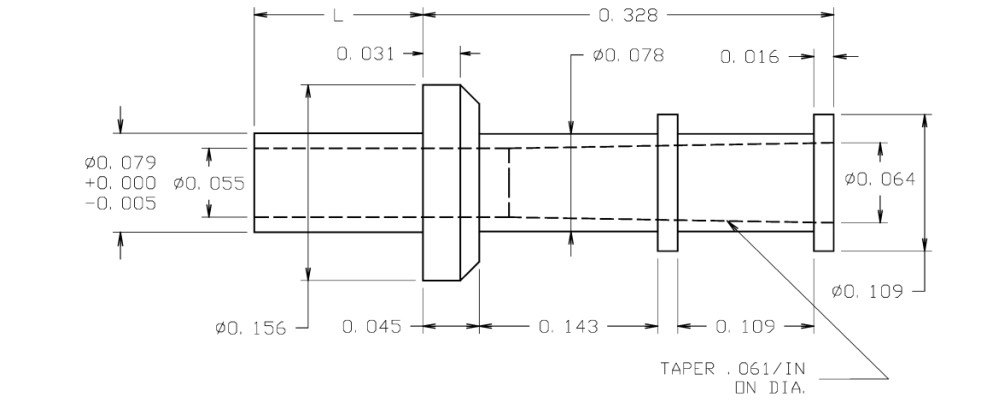

10-825-1-05
10-825-1-05
10-825-1-05
0.403" - - Swage Mount 0.075" 1/32 0.081 Brass Electro Solder NO

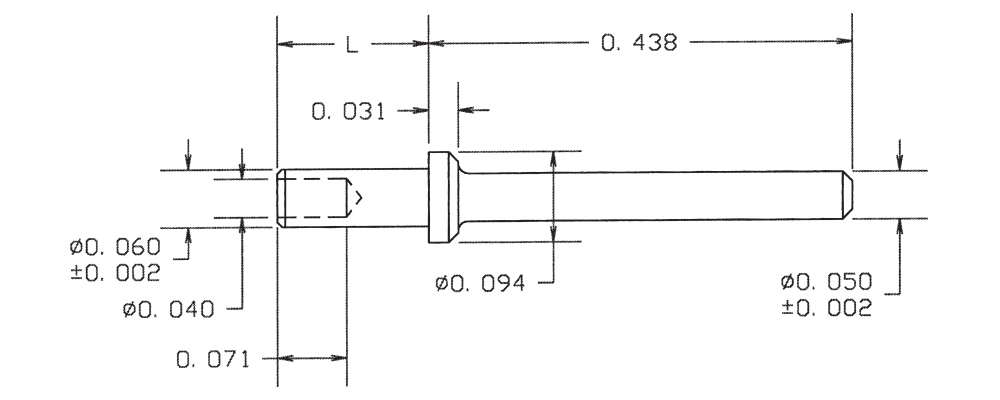

10-835-2-044
10-835-2-044
10-835-2-044
0.532" 0.050 - Swage Mount 0.094" 1/16 0.064 Brass Bright Tin YES

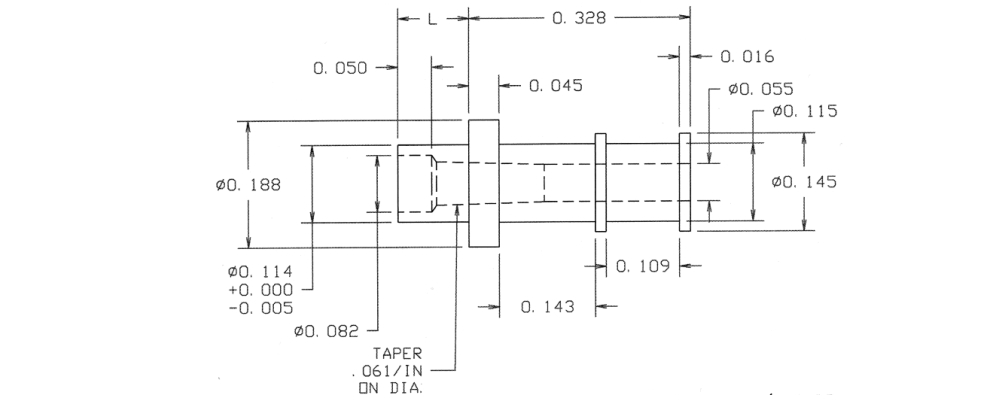

10-846-3-03
10-846-3-03
10-846-3-03
0.463" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES

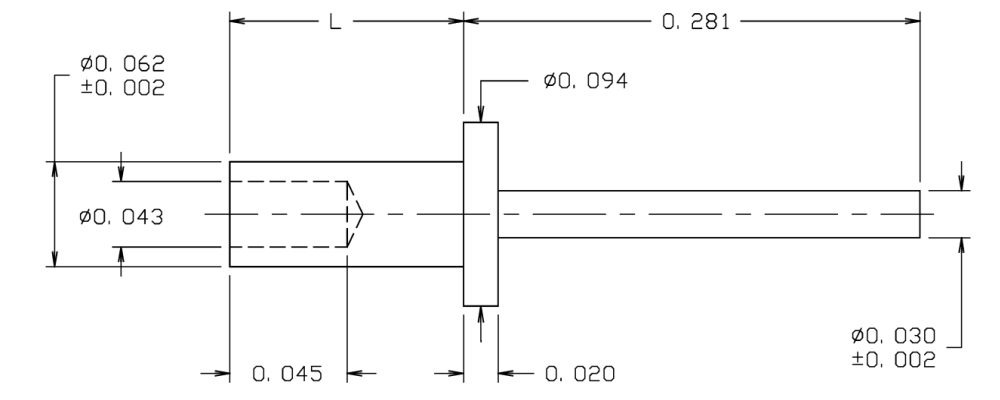

10-869-2-05
10-869-2-05
10-869-2-05
0.365" 0.030 - Swage Mount 0.084" 1/16 0.067 Brass Electro Solder NO

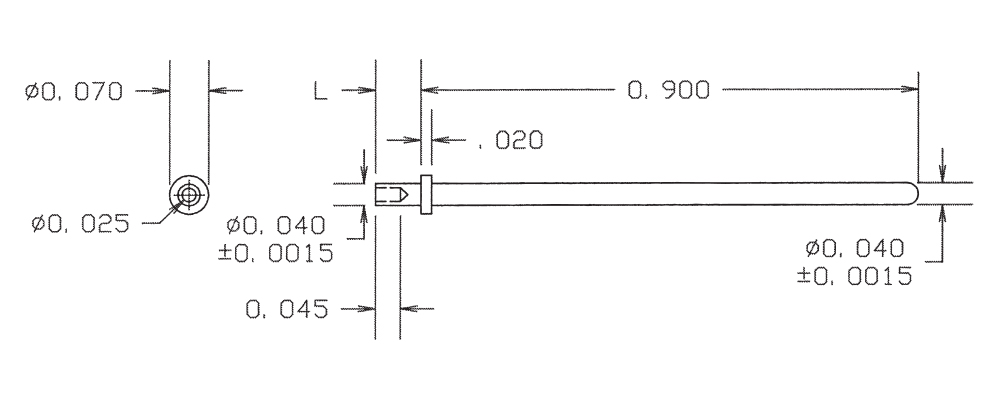

10-893-1-04
10-893-1-04
10-893-1-04
0.951" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Electro-Tin YES

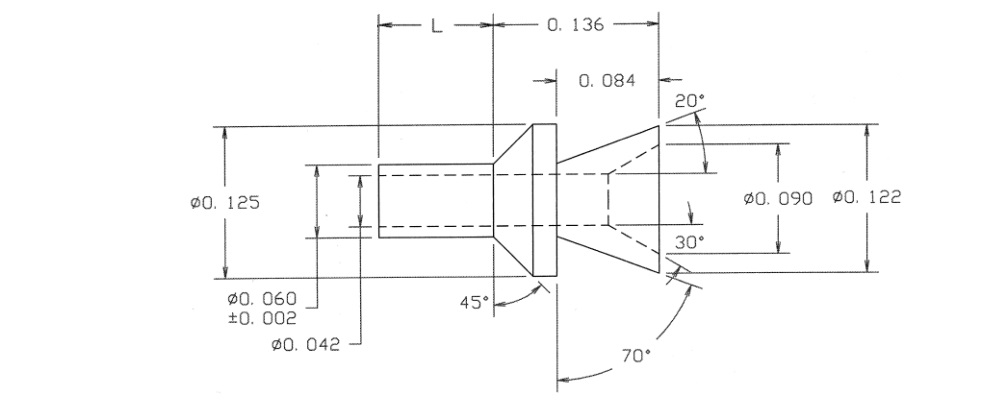

10-906-1-03
10-906-1-03
10-906-1-03
0.198" - - Swage Mount 0.062" 1/32 0.0635 Brass Gold YES

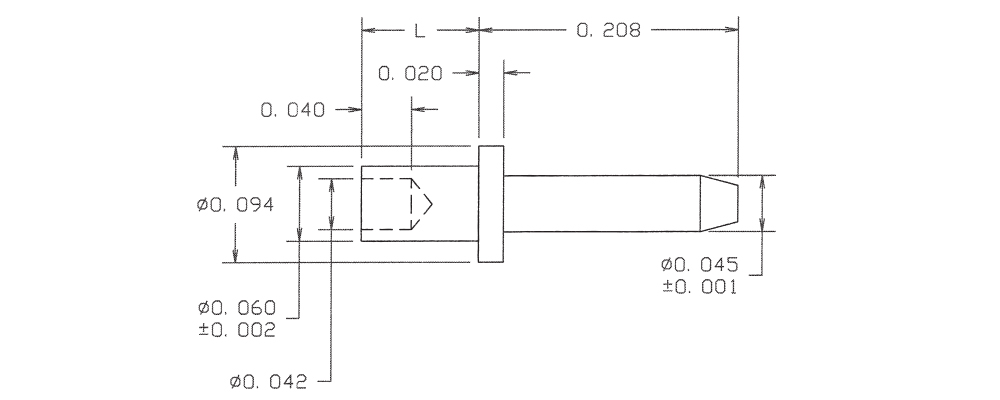

10-921-2-03
10-921-2-03
10-921-2-03
0.302" 0.045 - Swage Mount 0.094" 1/16 0.064 Brass Gold YES
