Commercial
Non-Insulated
Terminals

Filter
09-0072-1-05
09-0072-1-05
09-0072-1-05
0.249" - - Swage Mount 0.062" 1/32 0.076 Brass Electro Solder NO

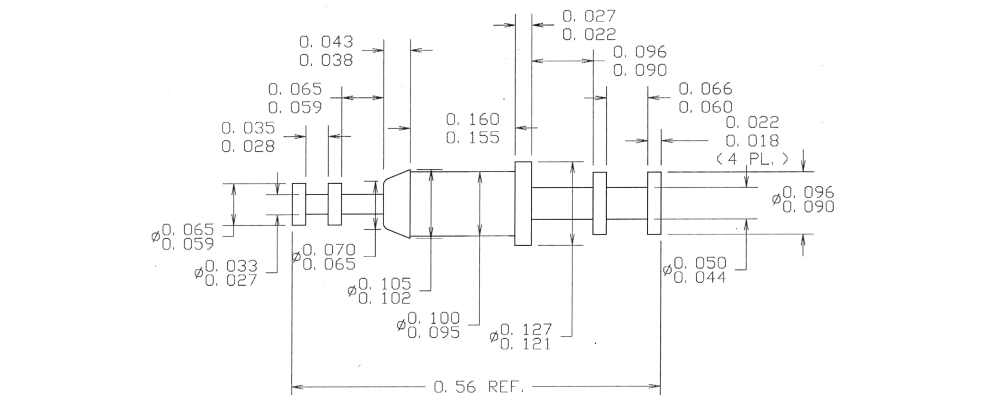

09-0159-2-095
09-0159-2-095
09-0159-2-095
0.560" - Double Turret/Double Turret Solder 0.156" 1/32 TO 5/32 0.109 Brass Hot Solder Dip NO

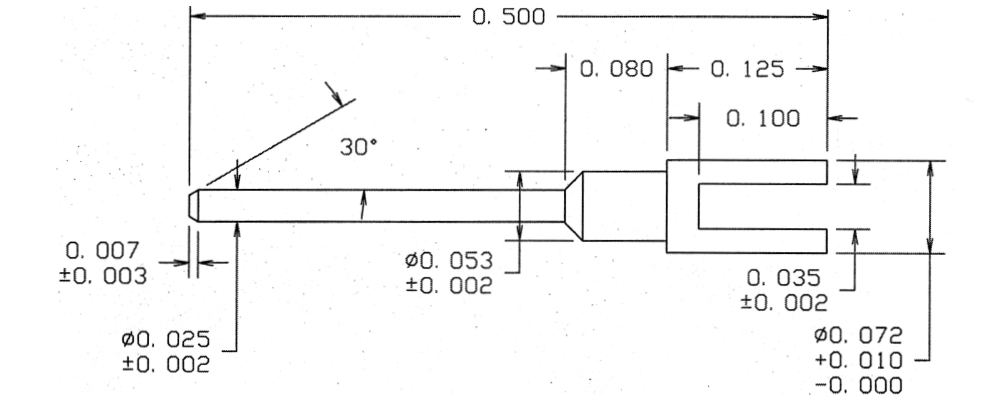

09-0187-2-05
09-0187-2-05
09-0187-2-05
0.500" 0.025 SLOTTED/PIN Solder 0.080" 1/16 0.062 Brass Electro Solder NO

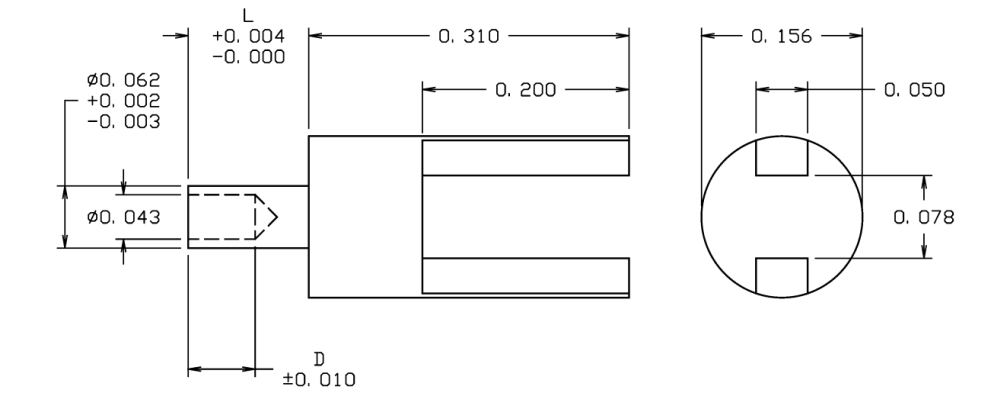

09-0234-3-04
09-0234-3-04
09-0234-3-04
0.425" - - Swage Mount 0.115" 3/32 0.067 Brass Electro-Tin YES

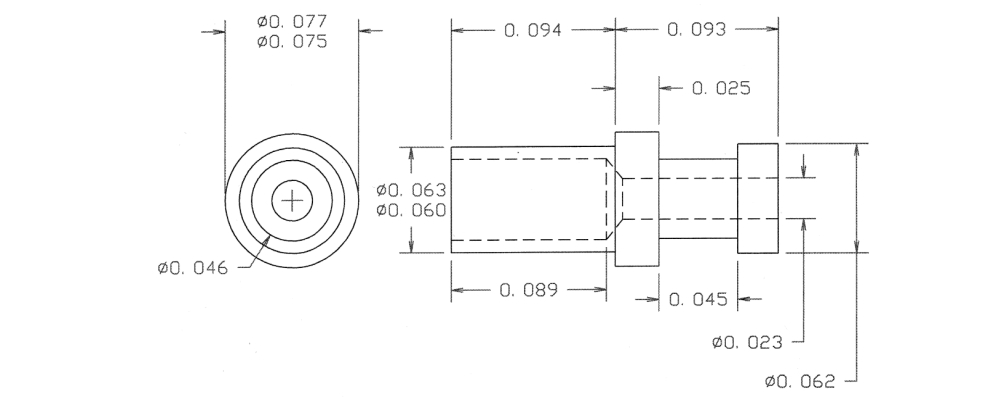

09-0276-2-035
09-0276-2-035
09-0276-2-035
0.187" - - Swage Mount 0.094" 1/16 0.067 Brass Gold YES

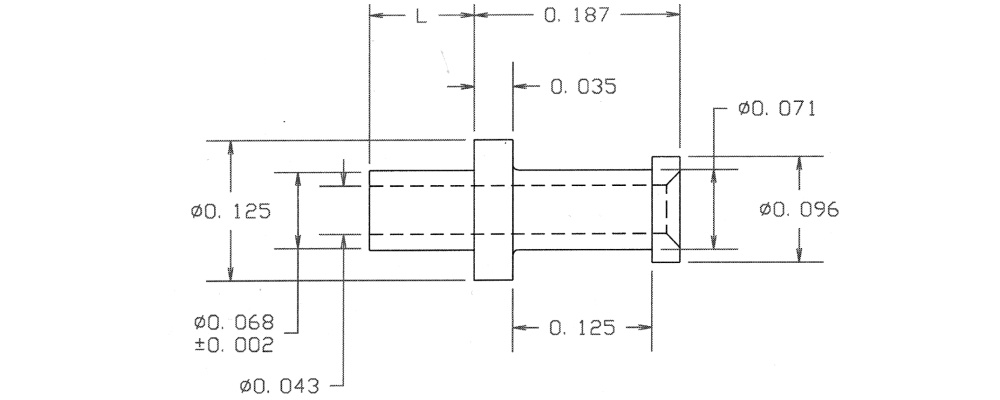

09-0342-4-035
09-0342-4-035
09-0342-4-035
0.343" - - Swage Mount 0.156" 1/8 0.073 Brass Gold YES
09-7010-2-04
09-7010-2-04
09-7010-2-04
0.235" 0.050 - Swage Mount 0.095" 1/16 0.055 Brass Electro-Tin YES
09-7109-1-03
09-7109-1-03
09-7109-1-03
0.228" 0.026 - RIVET MOUNT 0.051" 1/32 0.035 Brass Gold YES
09-7145-3-05
09-7145-3-05
09-7145-3-05
0.313" 0.030 - RIVET MOUNT 0.120" 3/32 0.048 Brass Electro Solder NO
09-7172-2-035
09-7172-2-035
09-7172-2-035
0.341" - - RIVET MOUNT 0.089" 1/16 0.035 Brass Gold YES

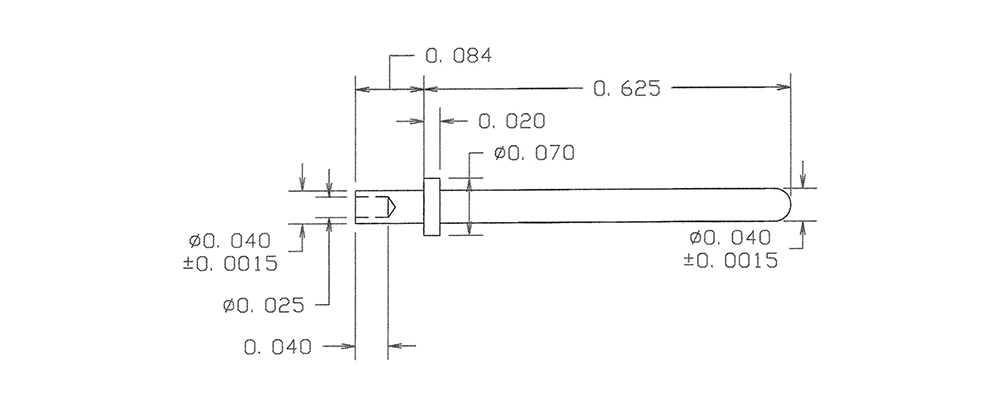

09-8013-2-088
09-8013-2-088
09-8013-2-088
0.709" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Bright Tin-Lead NO

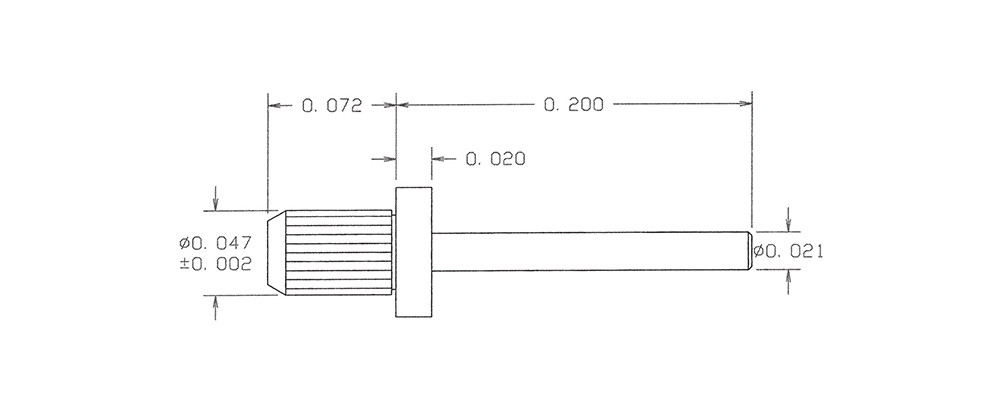

09-8049-1-04
09-8049-1-04
09-8049-1-04
0.272" 0.021 - Press Fit/Solder 0.072" 1/64 TO 1/16 0.0465 Brass Electro-Tin YES

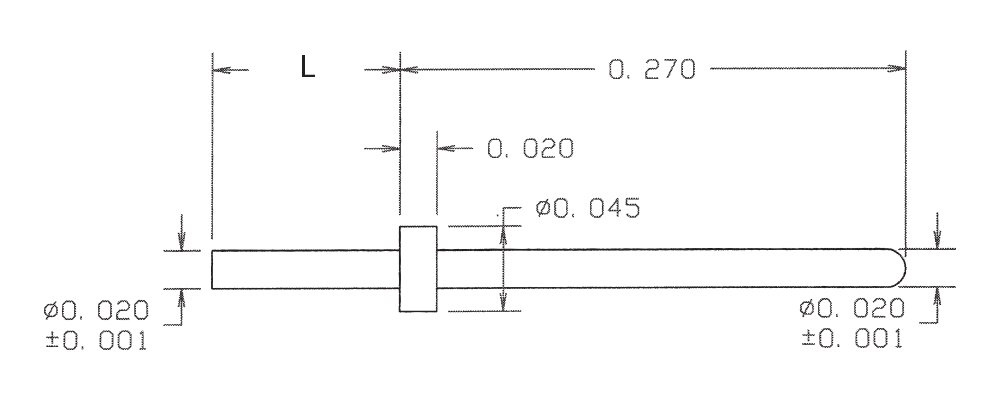

09-8090-2-088
09-8090-2-088
09-8090-2-088
0.370" 0.020 - Solder 0.100" 1/16 0.024 Brass Bright Tin-Lead NO

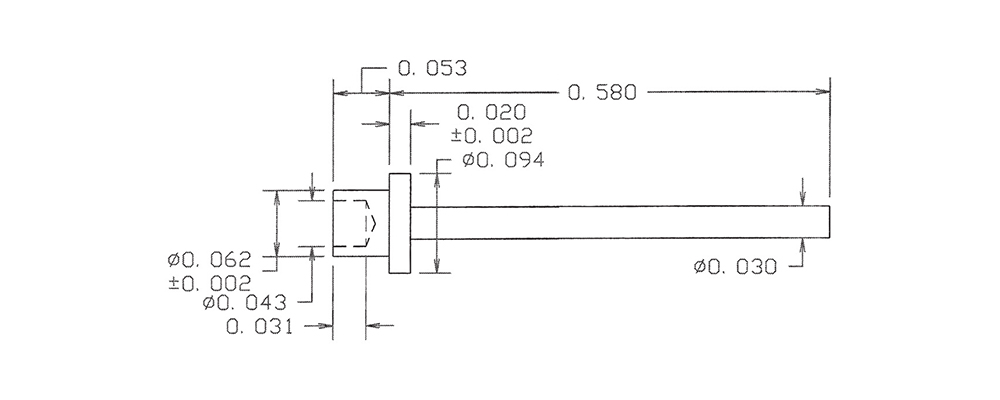

09-8148-1-04
09-8148-1-04
09-8148-1-04
0.633" 0.030 - Swage Mount 0.053" 1/32 0.067 Brass Electro-Tin YES

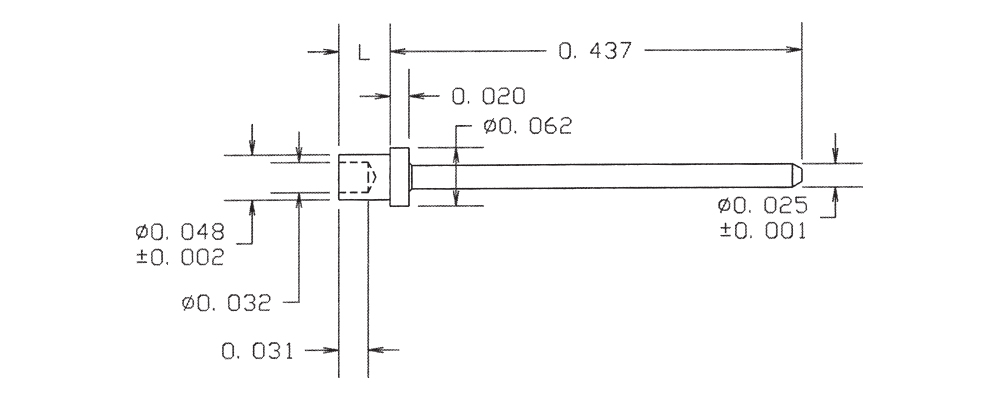

09-8176-2-01
09-8176-2-01
09-8176-2-01
0.531" 0.025 - Swage Mount 0.094" 1/16 0.052 Brass Silver YES
09-8311-3-01
09-8311-3-01
09-8311-3-01
0.299" 0.040 - Swage Mount 0.113" 3/32 0.076 Brass Silver YES

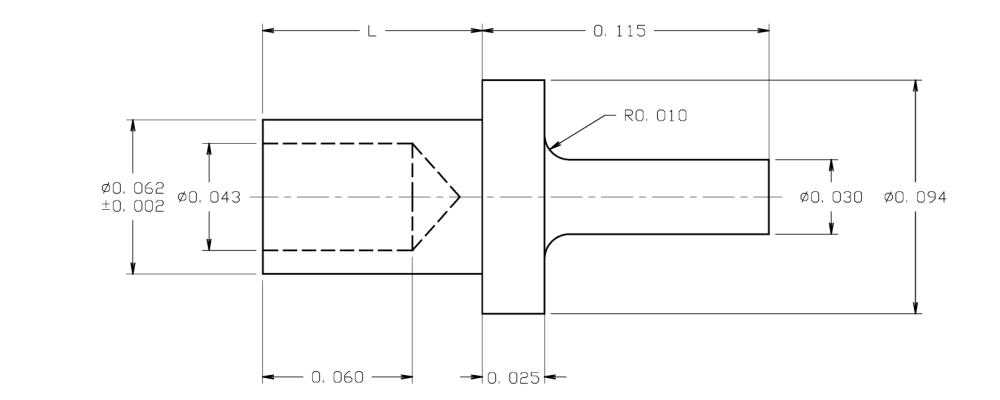

09-8564-2A-01
09-8564-2A-01
09-8564-2A-01
0.203" 0.030 - Swage Mount 0.088" 1/16 0.067 LEADED Red Brass Silver YES

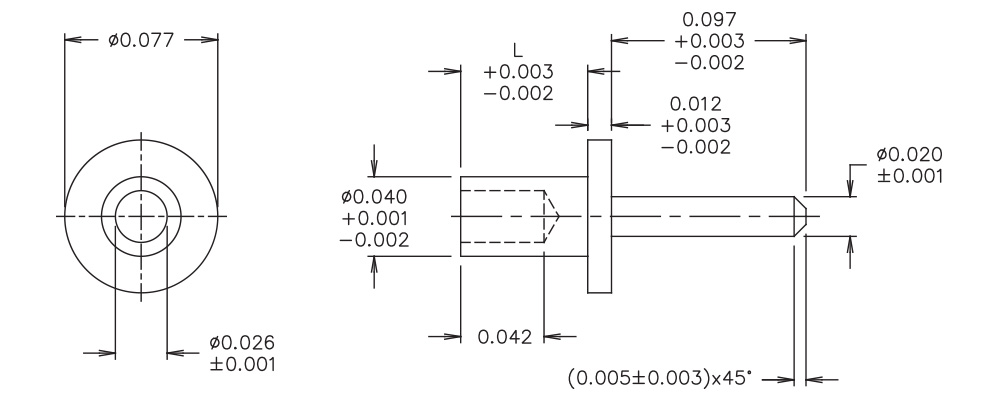

09-8689-4-088
09-8689-4-088
09-8689-4-088
0.235" 0.020 - Swage Mount 0.124" 3/32 0.043 Brass Bright Tin-Lead NO

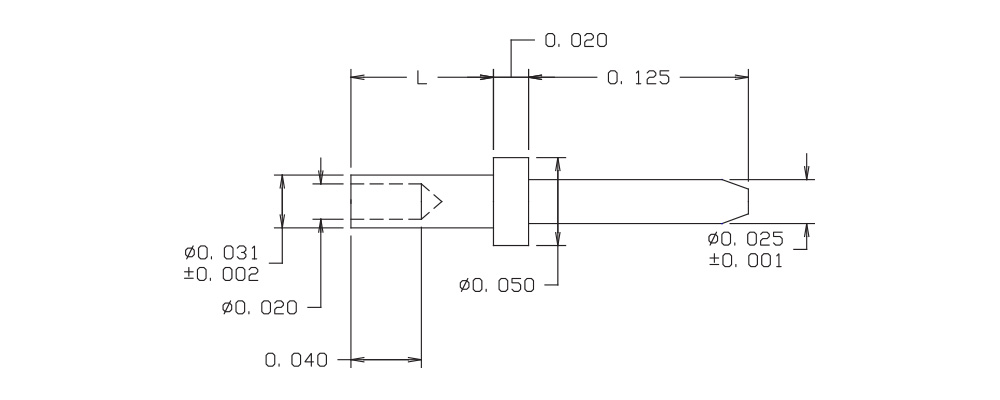

09-8807-1-044
09-8807-1-044
09-8807-1-044
0.196" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Bright Tin YES

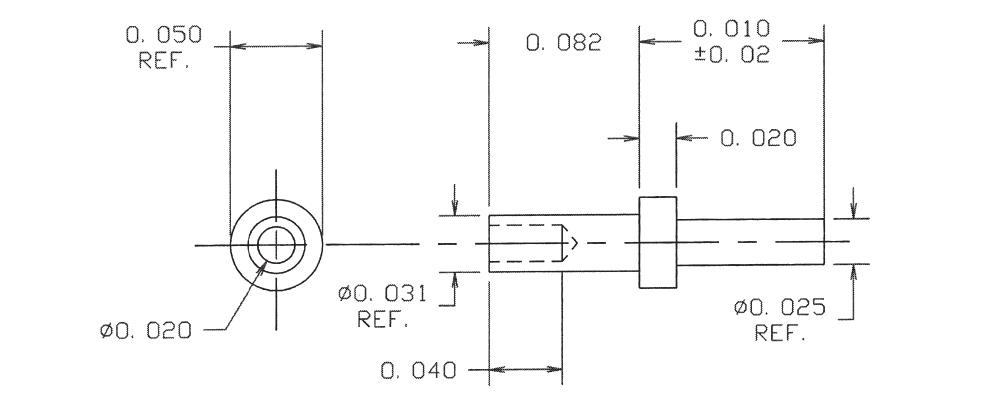

09-8865-2-01
09-8865-2-01
09-8865-2-01
0.092" 0.025 - Swage Mount 0.082" 1/16 0.035 Brass Silver YES
