Commercial
Non-Insulated
Terminals

Filter
09-8556-3-044
09-8556-3-044
09-8556-3-044
0.340" 0.024 - Solder 0.120" 1/64 TO 3/32 0.026 Brass Bright Tin YES
09-8689-1-03
09-8689-1-03
09-8689-1-03
0.174" 0.020 - Swage Mount 0.064" 1/32 0.043 Brass Gold YES
09-8795-1-01
09-8795-1-01
09-8795-1-01
0.214" 0.020 - Swage Mount 0.051" 1/32 0.031 Brass Silver YES
09-8860-2-035
09-8860-2-035
09-8860-2-035
0.302" 0.032 TURRET/PIN Swage Mount 0.084" 1/16 0.067 Beryllium Copper Gold YES
10-104-1-035
10-104-1-035
10-104-1-035
0.145" - - Swage Mount 0.051" 1/32 0.052 Brass Gold YES
10-111-1-035
10-111-1-035
10-111-1-035
0.256" - - Swage Mount 0.075" 1/32 0.094 Brass Gold YES
10-130-2-044
10-130-2-044
10-130-2-044
0.231" - - Swage Mount 0.094" 1/16 0.094 Brass Bright Tin YES

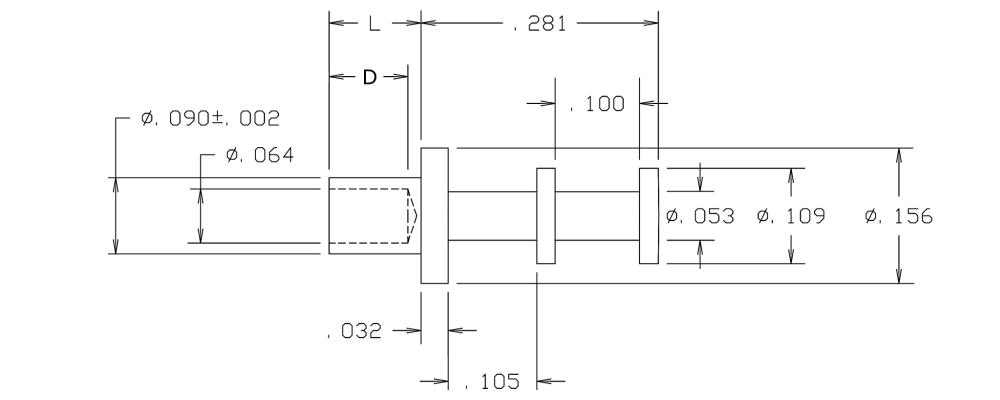

10-203-3-035
10-203-3-035
10-203-3-035
0.422" - - Swage Mount 0.141" 3/32 0.094 Brass Gold YES
10-210-4-044
10-210-4-044
10-210-4-044
0.634" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin YES
10-217-3-035
10-217-3-035
10-217-3-035
0.479" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES

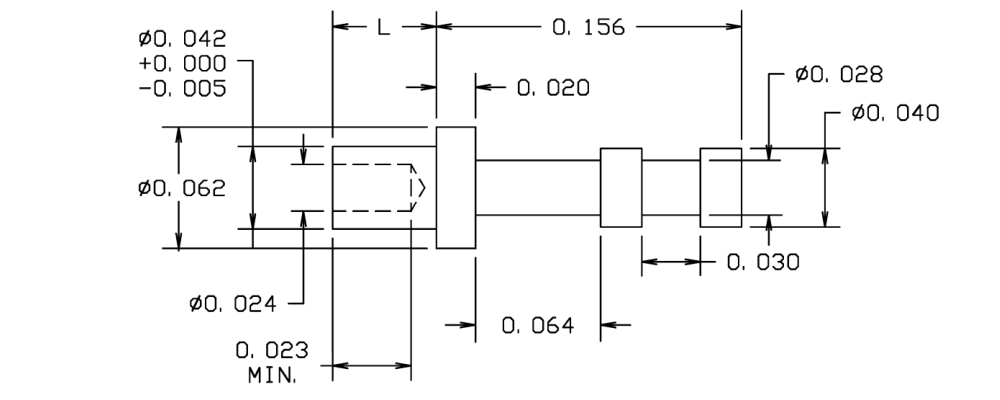

10-227-3-035
10-227-3-035
10-227-3-035
0.271" - - Swage Mount 0.115" 3/32 0.043 Brass Gold YES
10-247-3-095
10-247-3-095
10-247-3-095
0.500" - - Swage Mount 0.141" 3/32 0.116 Brass Hot Solder Dip NO
10-304-2-04
10-304-2-04
10-304-2-04
0.421" - - Swage Mount 0.109" 1/16 0.1405 Brass Electro-Tin YES
10-311-6-04
10-311-6-04
10-311-6-04
0.546" - - Swage Mount 0.234" 3/16 0.116 Brass Electro-Tin YES
10-323-11-01
10-323-11-01
10-323-11-01
0.193" - - Swage Mount 0.037" 1/64 0.076 Brass Silver YES
10-349-3-044
10-349-3-044
10-349-3-044
0.469" - - Swage Mount 0.141" 3/32 0.116 Brass Bright Tin YES
10-417-2-01
10-417-2-01
10-417-2-01
0.500" - - Swage Mount 0.109" 1/16 0.116 Brass Silver YES
10-424-4-035
10-424-4-035
10-424-4-035
0.602" - - Swage Mount 0.165" 1/8 0.141 Brass Gold YES
10-443-4-035
10-443-4-035
10-443-4-035
0.411" - SLOTTED/TURRET Swage Mount 0.156" 1/8 0.125 Brass Gold YES
10-459-5-03
10-459-5-03
10-459-5-03
0.334" - - Swage Mount 0.178" 5/32 0.064 Brass Gold YES
