Commercial
Non-Insulated
Terminals

Filter

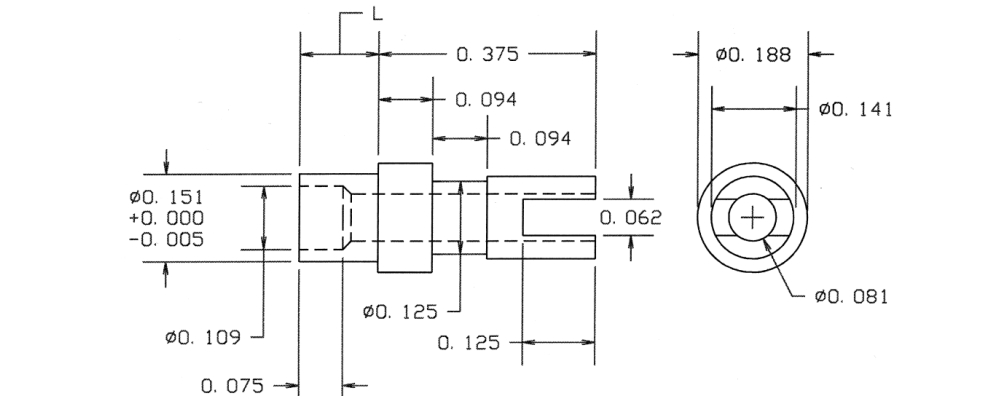

10-470-3-035
10-470-3-035
10-470-3-035
0.510" - - Swage Mount 0.135" 3/32 0.154 Brass Gold YES
10-502-4-04
10-502-4-04
10-502-4-04
0.413" - TURRET/DOUBLE TURRET Swage Mount 0.145" 1/8 0.076 Brass Electro-Tin YES

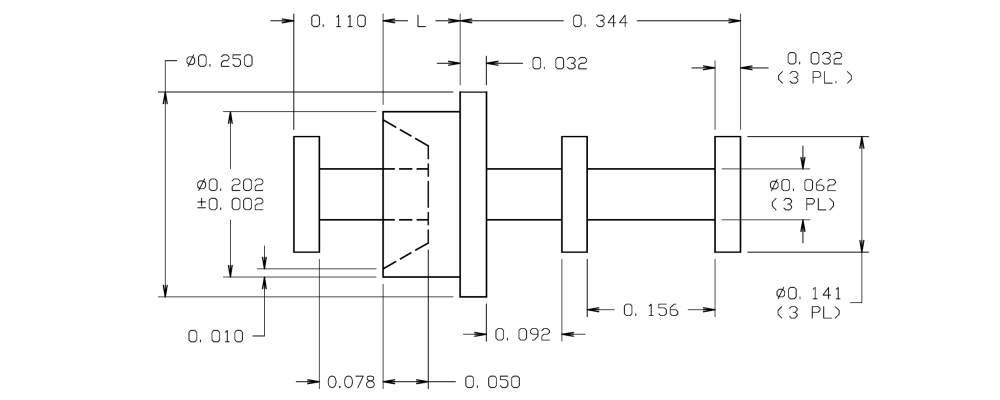

10-508-4-04
10-508-4-04
10-508-4-04
0.600" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.206 Brass Electro-Tin YES

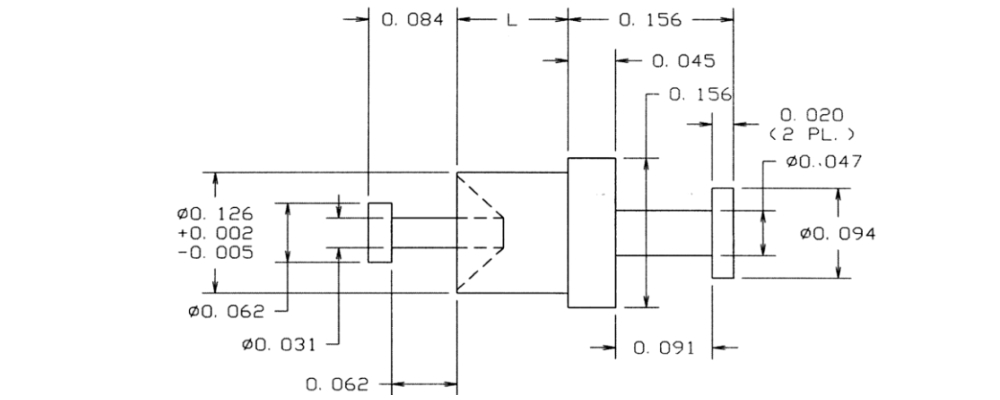

10-514-4-04
10-514-4-04
10-514-4-04
0.405" - Turret/Turret Swage Mount 0.165" 1/8 0.129 Brass Electro-Tin YES
10-526-2-04
10-526-2-04
10-526-2-04
0.625" - TURRET/DOUBLE TURRET Swage Mount 0.094" 1/16 0.206 Brass Electro-Tin YES
10-544-1-04
10-544-1-04
10-544-1-04
0.303" - Turret/Turret Swage Mount 0.062" 1/32 0.094 Brass Electro-Tin YES
10-562-2-04
10-562-2-04
10-562-2-04
0.573" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.159 Brass Electro-Tin YES
10-606-1-095
10-606-1-095
10-606-1-095
0.391" - - Swage Mount 0.075" 1/32 0.094 Brass Hot Solder Dip NO

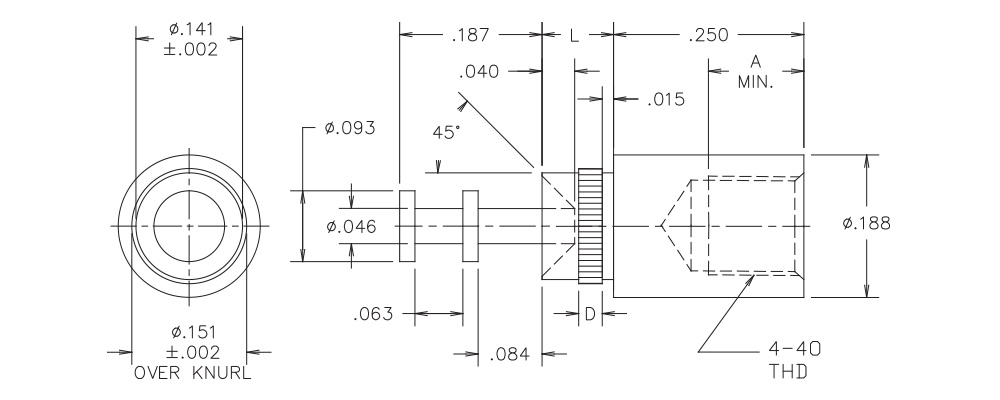

10-710-6-088
10-710-6-088
10-710-6-088
0.659" - DOUBLE TURRET/THREAD Swage Mount 0.222" 3/16 0.144 Brass Bright Tin-Lead NO

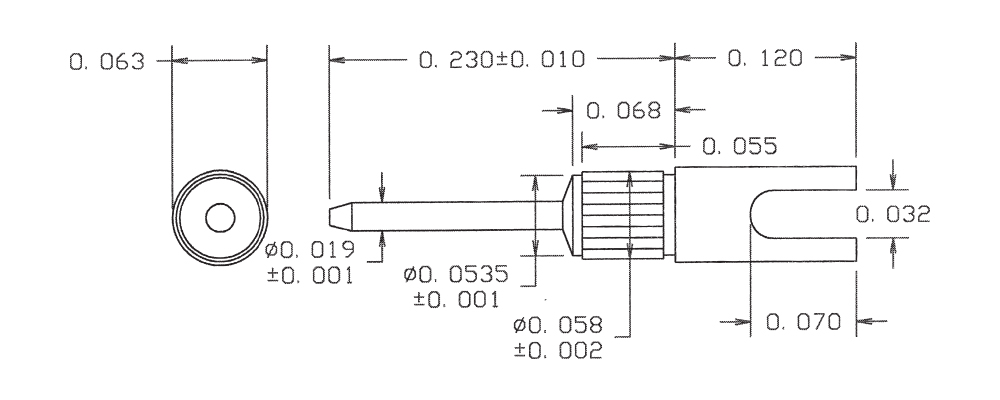

10-8014-2-088
10-8014-2-088
10-8014-2-088
0.350" 0.019 SLOTTED/PIN Press Fit/Solder 0.068" 1/64 to 1/32 0.055 Brass Bright Tin-Lead NO

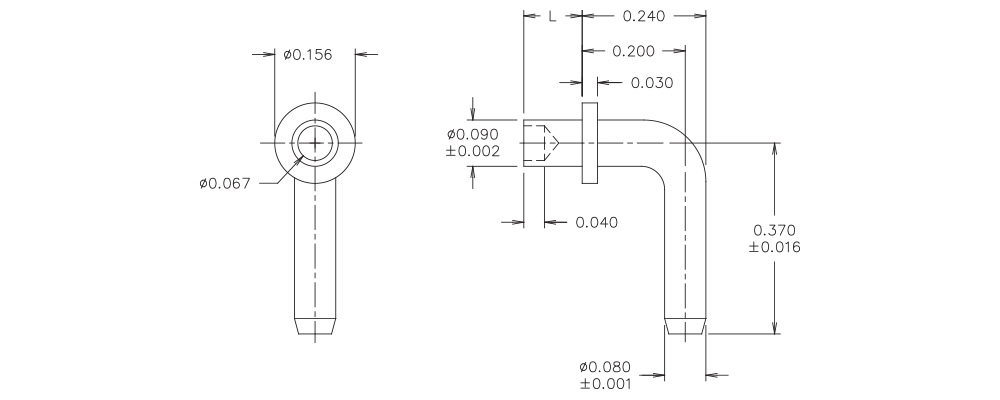

10-8024-3-044
10-8024-3-044
10-8024-3-044
0.448" 0.080 - Swage Mount 0.113" 3/32 0.094 Brass Bright Tin YES

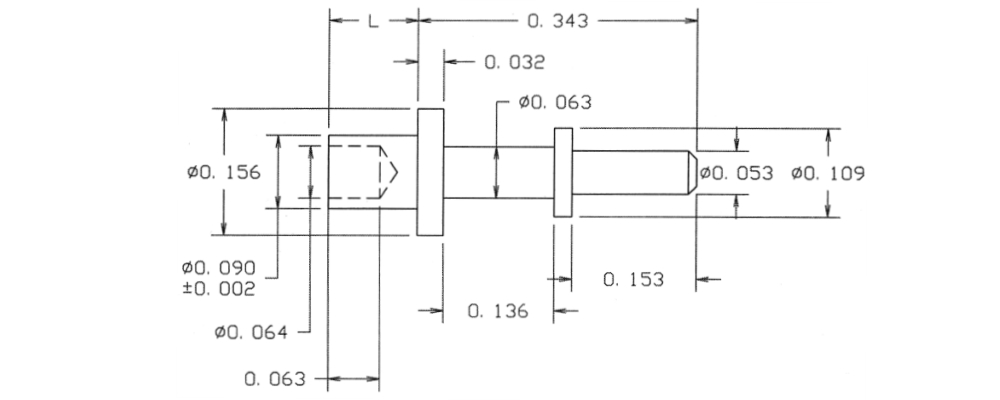

10-807-8-088
10-807-8-088
10-807-8-088
0.640" - - Swage Mount 0.297" 1/4 0.094 Brass Bright Tin-Lead NO

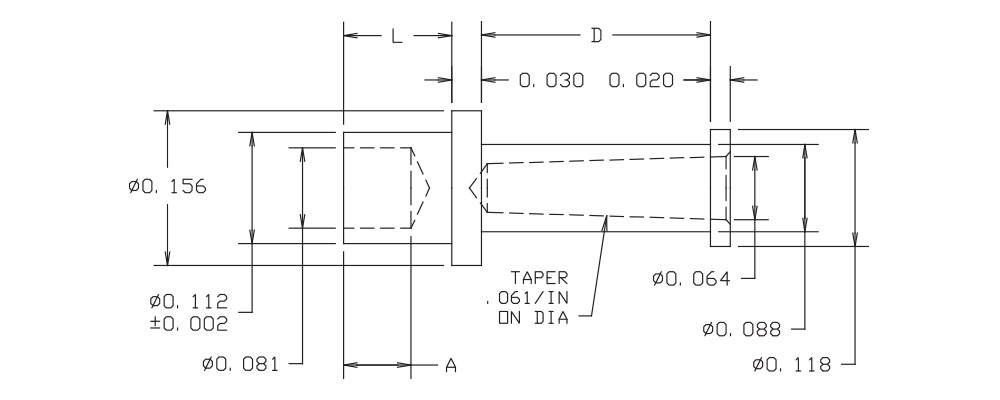

10-814-8-04
10-814-8-04
10-814-8-04
0.547" - - Swage Mount 0.297" 1/4 0.116 Brass Electro-Tin YES

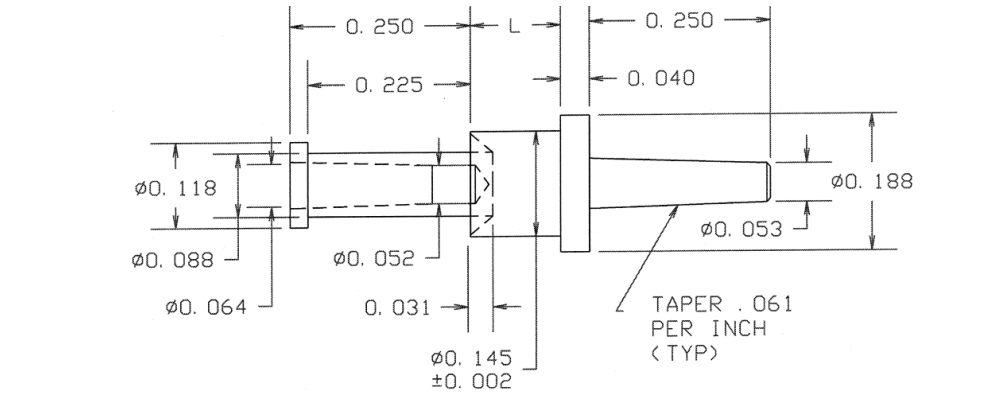

10-824-4-088
10-824-4-088
10-824-4-088
0.696" 0.053 (TAPER) TURRET/TAPER PIN Swage Mount 0.156" 1/8 0.147 Brass Bright Tin-Lead NO

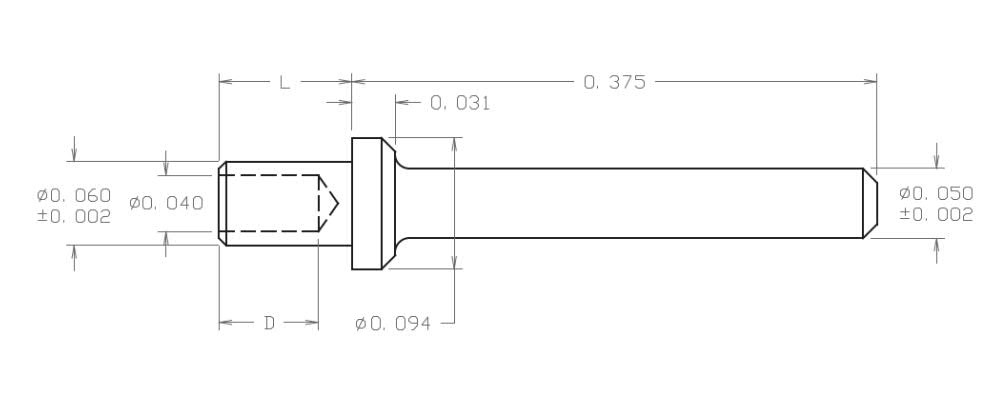

10-834-4-05
10-834-4-05
10-834-4-05
0.531" 0.050 - Swage Mount 0.156" 1/8 0.064 Brass Electro Solder NO

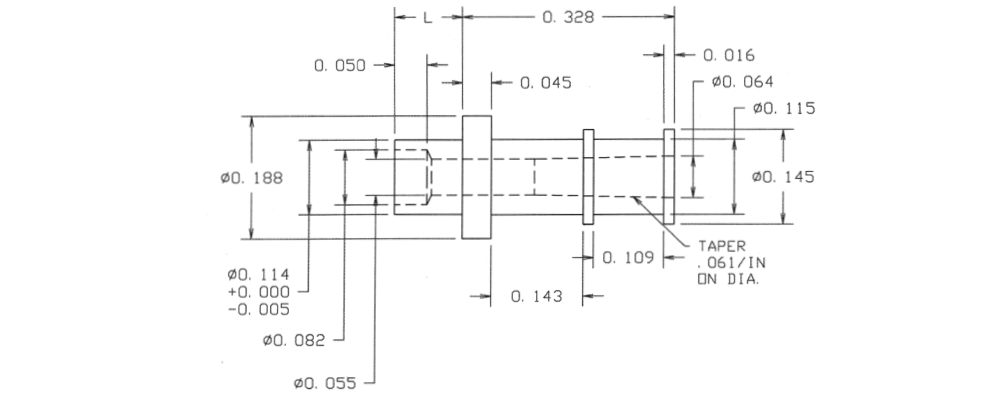

10-845-6-035
10-845-6-035
10-845-6-035
0.558" - - Swage Mount 0.230" 3/16 0.116 Brass Gold YES

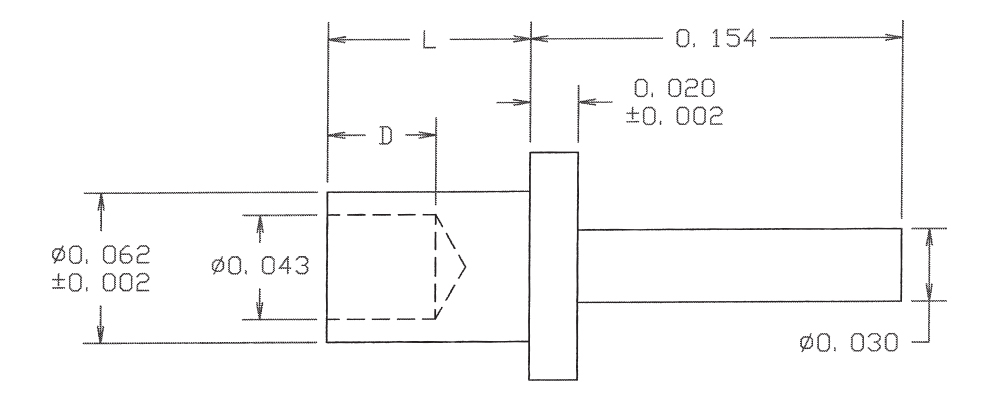

10-867-3-088
10-867-3-088
10-867-3-088
0.269" 0.030 - Swage Mount 0.115" 3/32 0.067 Brass Bright Tin-Lead NO

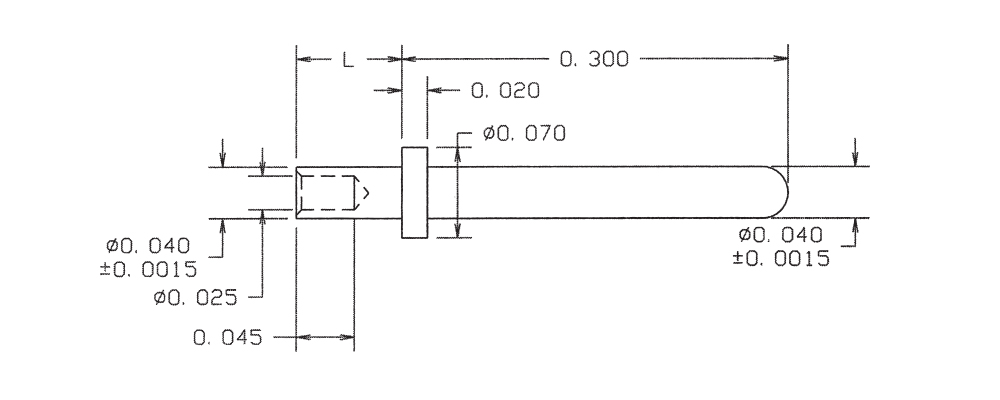

10-891-2-044
10-891-2-044
10-891-2-044
0.382" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES

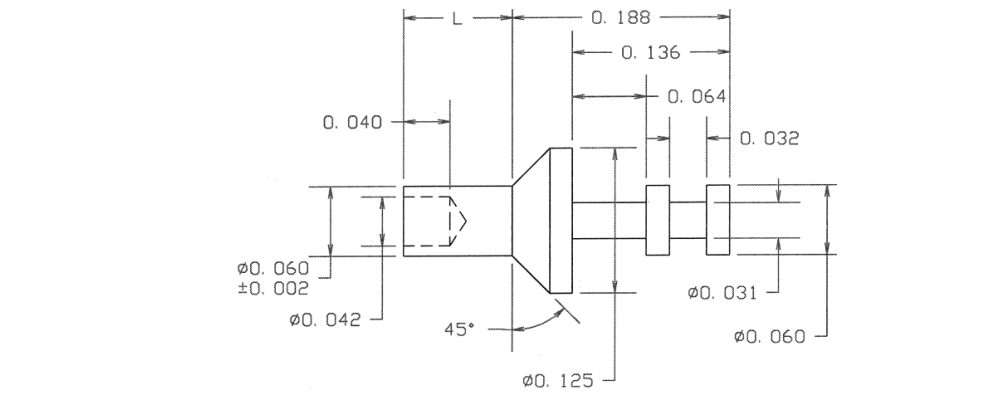

10-905-2-05
10-905-2-05
10-905-2-05
0.282" - - Swage Mount 0.094" 1/16 0.0635 Brass Electro Solder NO

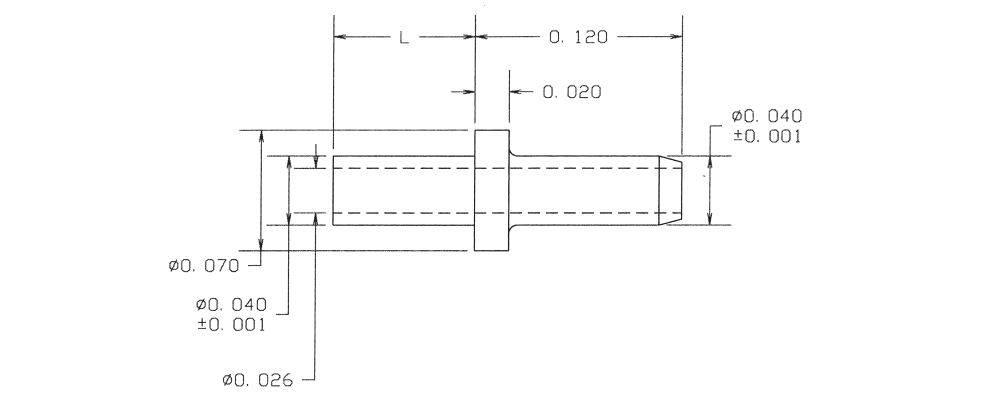

10-920-2-035
10-920-2-035
10-920-2-035
0.202" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES
