Commercial
Non-Insulated
Terminals

Filter
09-0067-4-03
09-0067-4-03
09-0067-4-03
0.331" - - Swage Mount 0.145" 1/8 0.076 Brass Gold YES
09-0152-2-035
09-0152-2-035
09-0152-2-035
0.360" - - Swage Mount 0.090" 1/16 0.055 Brass Gold YES
09-0185-1-01
09-0185-1-01
09-0185-1-01
0.438" - - 4-40 - - 4-40 THREAD Brass Silver YES
09-0230-1-095
09-0230-1-095
09-0230-1-095
0.480" - - Swage Mount 0.055" 1/32 0.094 Brass Hot Solder Dip NO
09-0272-1-05
09-0272-1-05
09-0272-1-05
0.243" - - Swage Mount 0.055" 1/32 0.067 Brass Electro Solder NO
09-0342-1-04
09-0342-1-04
09-0342-1-04
0.249" - - Swage Mount 0.062" 1/32 0.073 Brass Electro-Tin YES
09-6016-2-088
09-6016-2-088
09-6016-2-088
0.710" 0.025 SQ. - Press Fit/Solder 0.080" 1/16 0.055 Brass Bright Tin-Lead NO
09-7106-1A-035
09-7106-1A-035
09-7106-1A-035
0.230" 0.020 - RIVET MOUNT 0.035" 1/100 0.035 Brass Gold YES
09-7144-1-088
09-7144-1-088
09-7144-1-088
0.238" 0.027 (+0.000/-0.003) - RIVET MOUNT 0.114" 3/32 0.035 Brass Bright Tin-Lead NO
09-7170-2-04
09-7170-2-04
09-7170-2-04
0.181" - - RIVET MOUNT 0.082" 1/16 0.035 Brass Electro-Tin YES

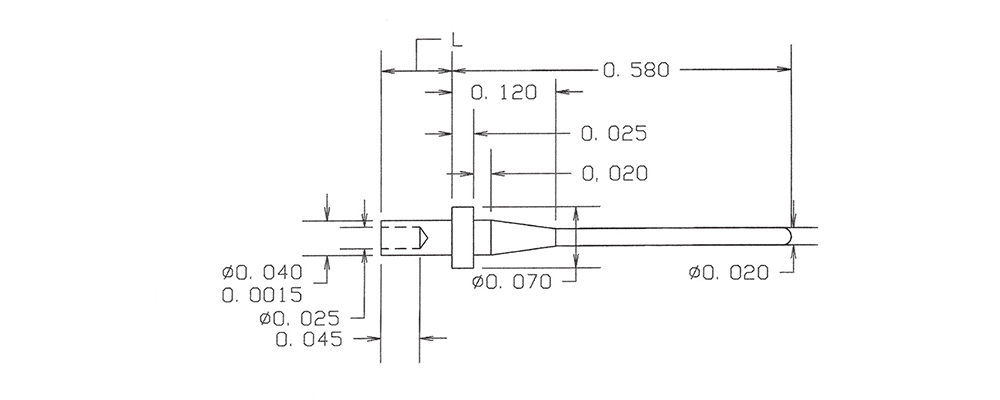

09-8012-1-01
09-8012-1-01
09-8012-1-01
0.631" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES
09-8047-2-044
09-8047-2-044
09-8047-2-044
0.655" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES
09-8084-2-01
09-8084-2-01
09-8084-2-01
0.332" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES

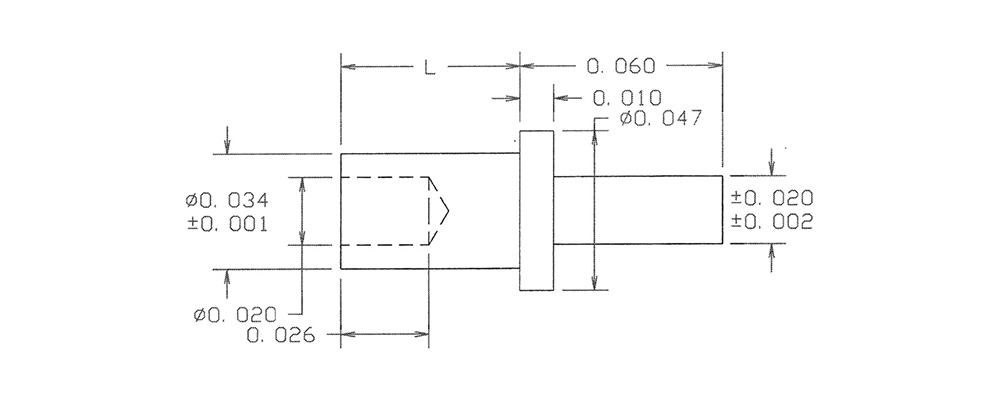

09-8139-2-044
09-8139-2-044
09-8139-2-044
0.144" 0.020 - Swage Mount 0.084" 1/16 0.037 Brass Bright Tin YES
09-8174-11-03
09-8174-11-03
09-8174-11-03
0.935" 0.025 (+0.000/-0.005) - Swage Mount 0.035" 1/64 0.043 Brass Gold YES
09-8305-2-03
09-8305-2-03
09-8305-2-03
0.531" - - Press Fit/Solder 0.109" 1/16 0.094 Brass Gold YES
09-8556-3-04
09-8556-3-04
09-8556-3-04
0.340" 0.024 - Solder 0.120" 1/64 TO 3/32 0.026 Brass Electro-Tin YES
09-8689-1-01
09-8689-1-01
09-8689-1-01
0.174" 0.020 - Swage Mount 0.064" 1/32 0.043 Brass Silver YES
09-8794-1-088
09-8794-1-088
09-8794-1-088
0.150" 0.020 - Swage Mount 0.051" 1/32 0.031 Brass Bright Tin-Lead NO
09-8860-2-03
09-8860-2-03
09-8860-2-03
0.302" 0.032 TURRET/PIN Swage Mount 0.084" 1/16 0.067 Beryllium Copper Gold YES
