Commercial
Non-Insulated
Terminals

Filter

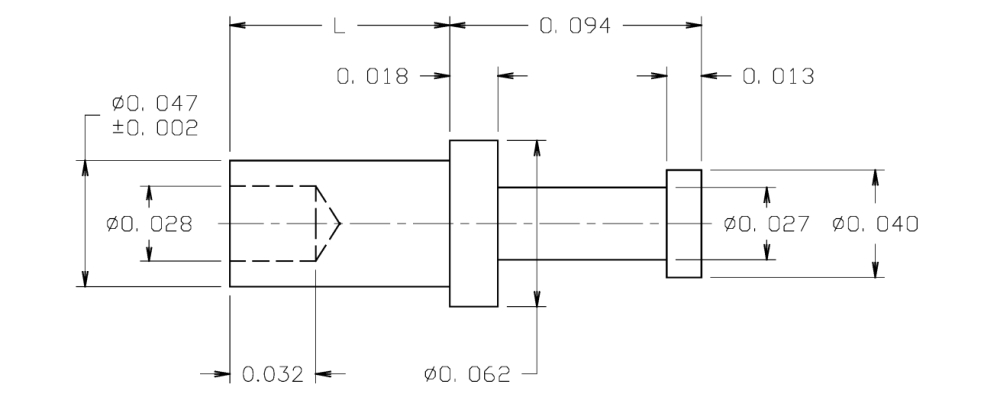

10-104-1-03
10-104-1-03
10-104-1-03
0.145" - - Swage Mount 0.051" 1/32 0.052 Brass Gold YES

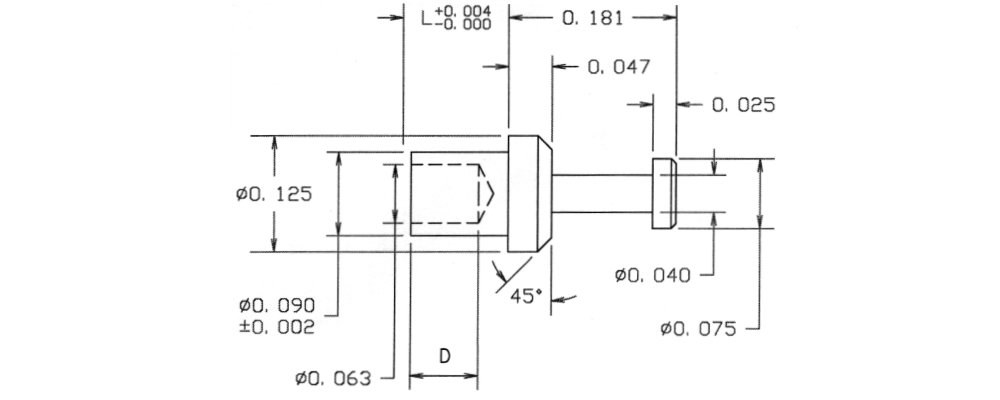

10-111-1-03
10-111-1-03
10-111-1-03
0.256" - - Swage Mount 0.075" 1/32 0.094 Brass Gold YES
10-130-2-04
10-130-2-04
10-130-2-04
0.231" - - Swage Mount 0.094" 1/16 0.094 Brass Electro-Tin YES
10-203-3-03
10-203-3-03
10-203-3-03
0.422" - - Swage Mount 0.141" 3/32 0.094 Brass Gold YES
10-210-4-04
10-210-4-04
10-210-4-04
0.634" - - Swage Mount 0.165" 1/8 0.116 Brass Electro-Tin YES
10-217-3-03
10-217-3-03
10-217-3-03
0.479" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES

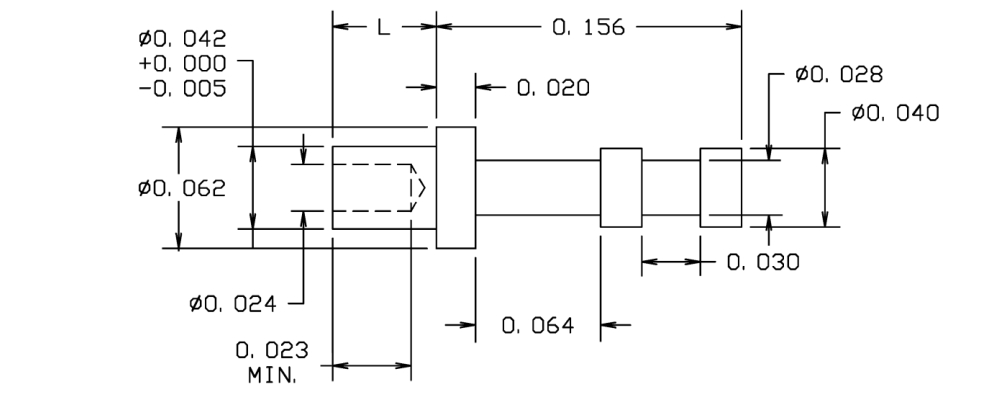

10-227-3-03
10-227-3-03
10-227-3-03
0.271" - - Swage Mount 0.115" 3/32 0.043 Brass Gold YES
10-247-3-088
10-247-3-088
10-247-3-088
0.500" - - Swage Mount 0.141" 3/32 0.116 Brass Bright Tin-Lead NO
10-304-2-035
10-304-2-035
10-304-2-035
0.421" - - Swage Mount 0.109" 1/16 0.1405 Brass Gold YES
10-311-6-035
10-311-6-035
10-311-6-035
0.546" - - Swage Mount 0.234" 3/16 0.116 Brass Gold YES
10-323-1-088
10-323-1-088
10-323-1-088
0.209" - - Swage Mount 0.053" 1/32 0.076 Brass Bright Tin-Lead NO
10-349-3-04
10-349-3-04
10-349-3-04
0.469" - - Swage Mount 0.141" 3/32 0.116 Brass Electro-Tin YES
10-417-1-095
10-417-1-095
10-417-1-095
0.469" - - Swage Mount 0.078" 1/32 0.116 Brass Hot Solder Dip NO
10-424-4-03
10-424-4-03
10-424-4-03
0.602" - - Swage Mount 0.165" 1/8 0.141 Brass Gold YES

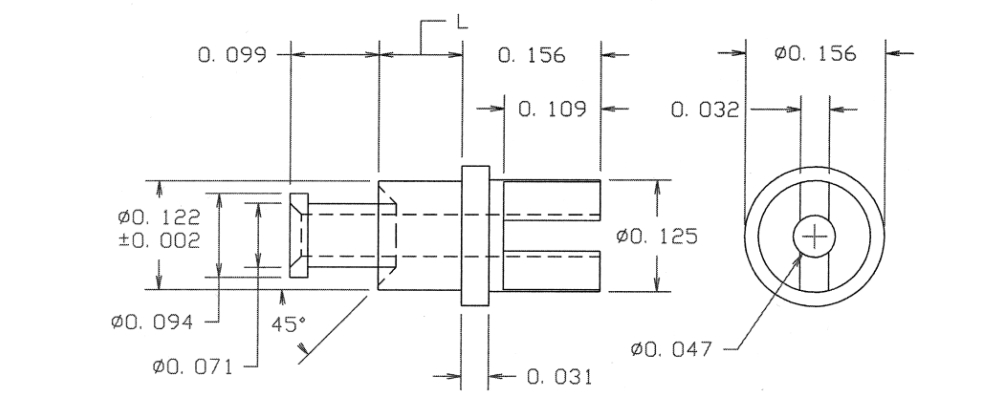

10-443-4-03
10-443-4-03
10-443-4-03
0.411" - SLOTTED/TURRET Swage Mount 0.156" 1/8 0.125 Brass Gold YES
10-459-5-01
10-459-5-01
10-459-5-01
0.334" - - Swage Mount 0.178" 5/32 0.064 Brass Silver YES
10-470-3-03
10-470-3-03
10-470-3-03
0.510" - - Swage Mount 0.135" 3/32 0.154 Brass Gold YES
10-502-4-035
10-502-4-035
10-502-4-035
0.413" - TURRET/DOUBLE TURRET Swage Mount 0.145" 1/8 0.076 Brass Gold YES

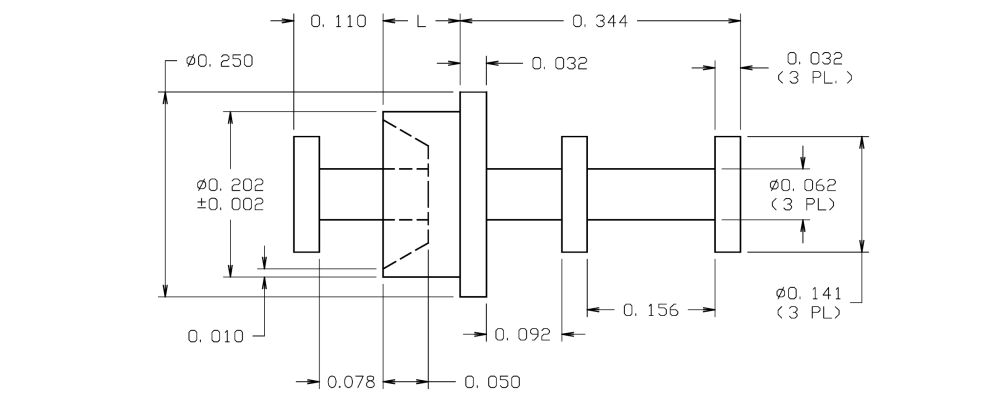

10-508-4-035
10-508-4-035
10-508-4-035
0.600" - TURRET/DOUBLE TURRET Swage Mount 0.156" 1/8 0.206 Brass Gold YES
10-514-4-035
10-514-4-035
10-514-4-035
0.405" - Turret/Turret Swage Mount 0.165" 1/8 0.129 Brass Gold YES
