Commercial
Insulated
Pin Terminals

Filter

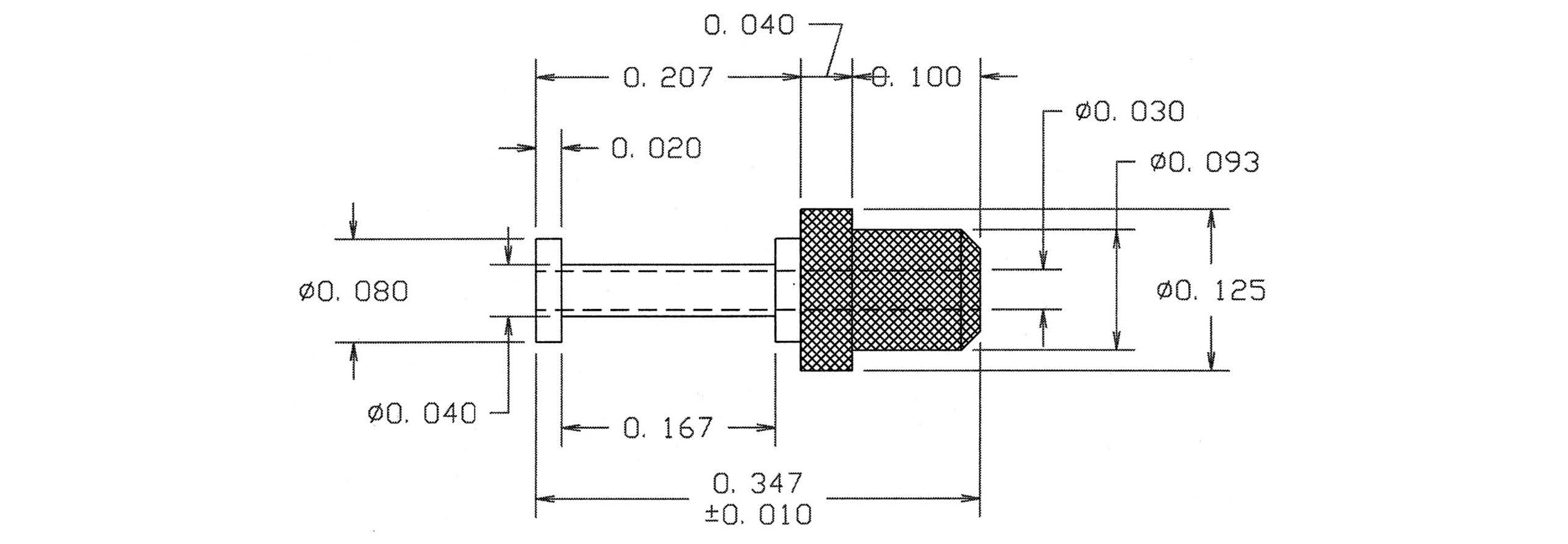

1155-07-04412
1155-07-04412
1155-07-04412
0.347" - - Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Red NO

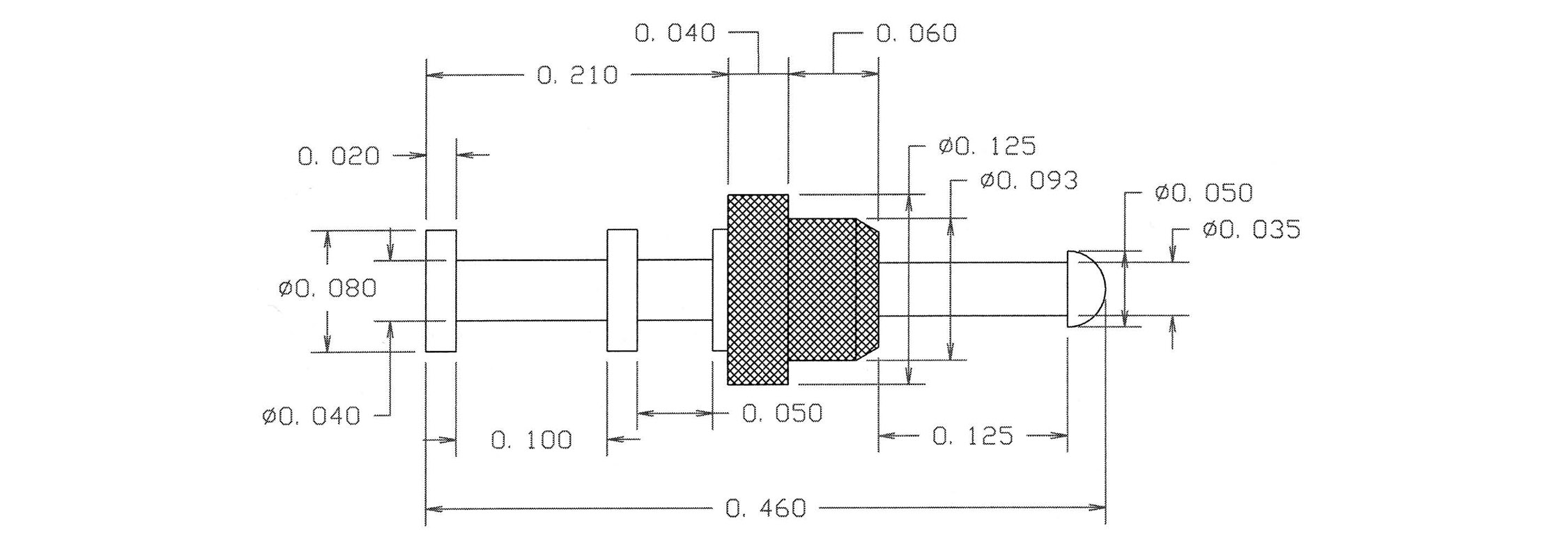

1156-01-0518
1156-01-0518
1156-01-0518
0.460" - DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Gray NO

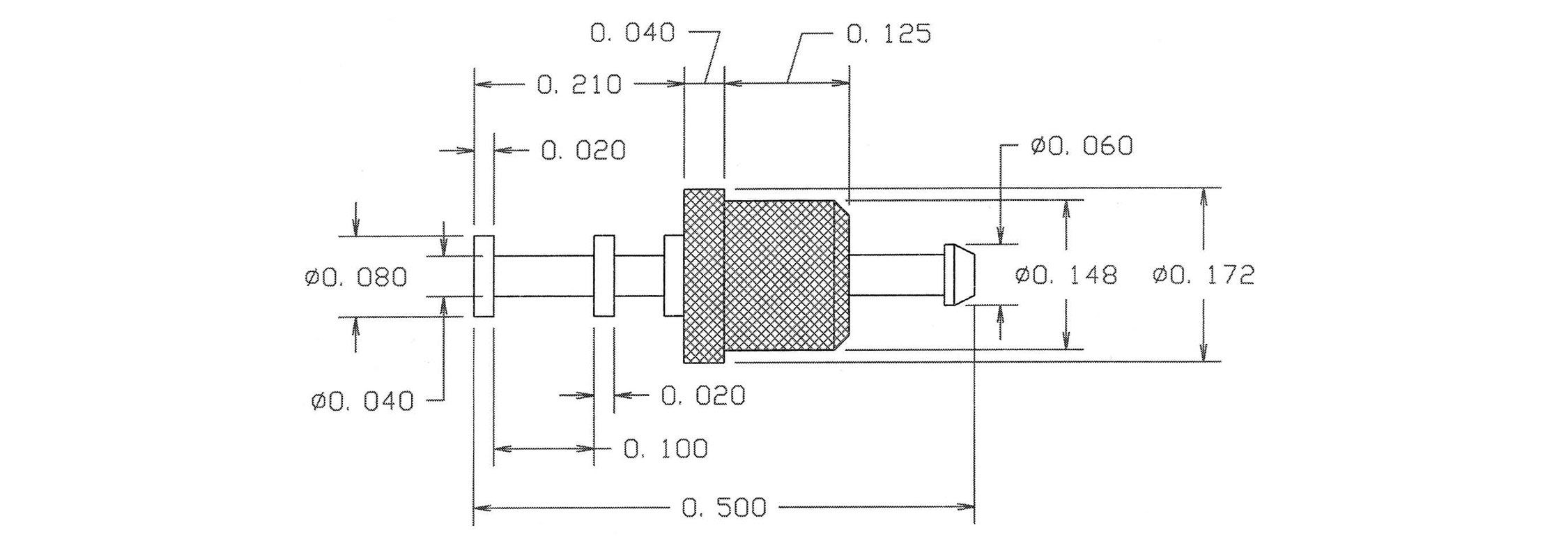

1156-07-0114
1156-07-0114
1156-07-0114
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Silver - - PTFE Yellow NO

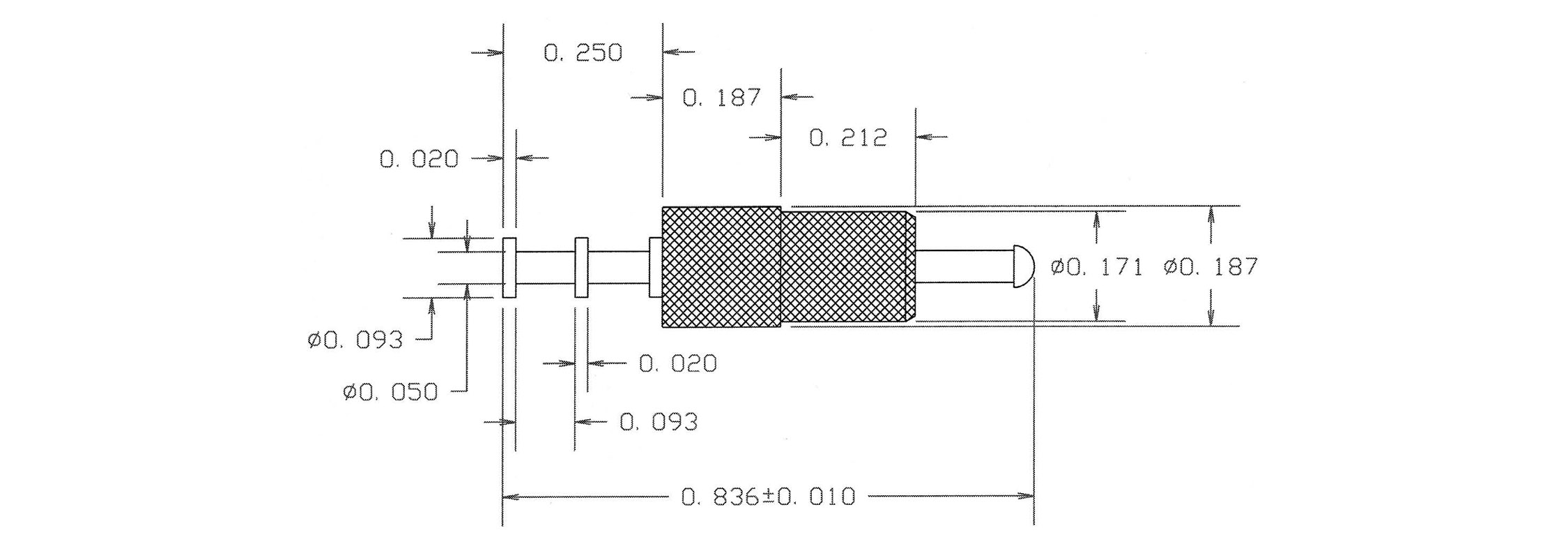

1156-14-0410
1156-14-0410
1156-14-0410
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Black YES
1156-18-04416
1156-18-04416
1156-18-04416
0.828" 0.050 DOUBLE Turret/Tip Press Fit 5/32 0.158 Brass Bright Tin - - PTFE Blue YES
1156-26-08812
1156-26-08812
1156-26-08812
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1157-01-0118
1157-01-0118
1157-01-0118
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Gray NO

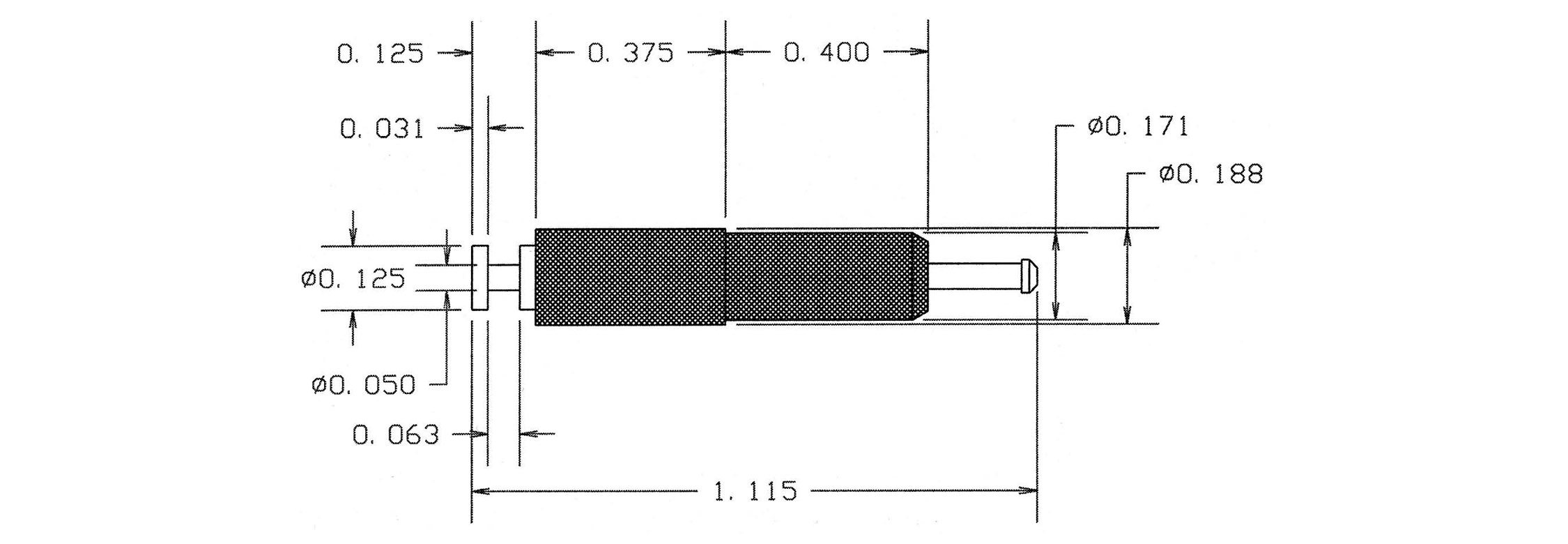

1157-06-0414
1157-06-0414
1157-06-0414
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Electro-Tin - - PTFE Yellow NO

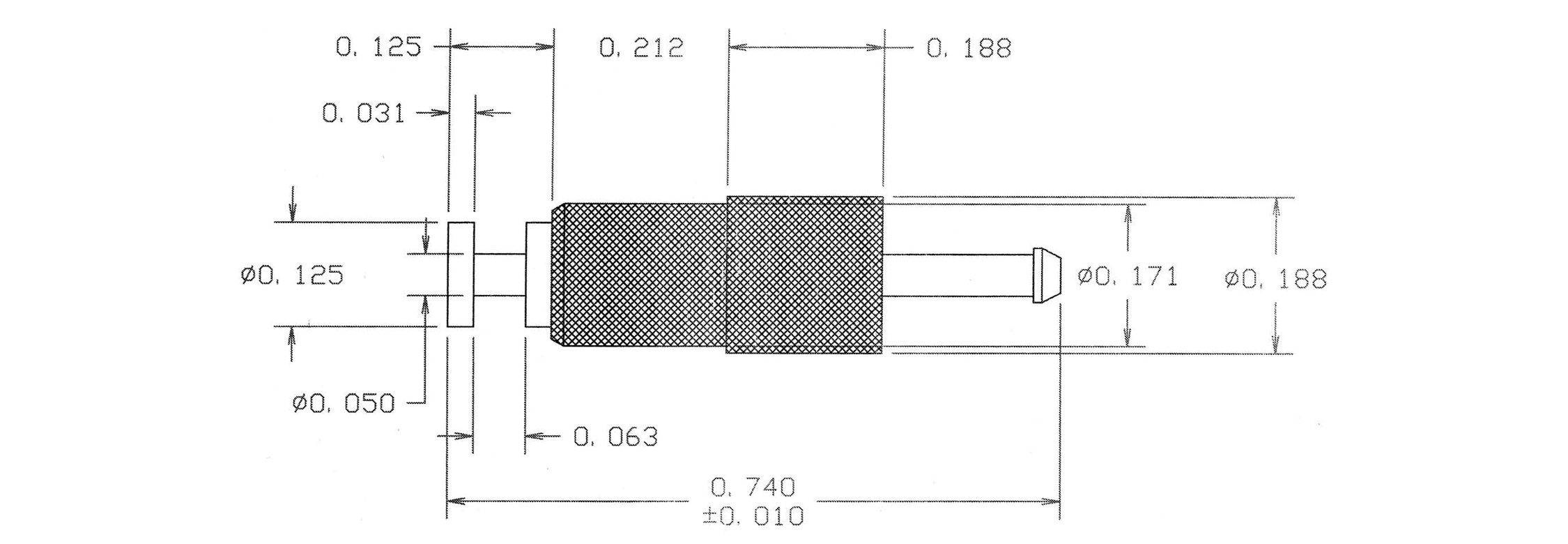

1157R-04-0510
1157R-04-0510
1157R-04-0510
0.740" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Black NO
1160-05-08816
1160-05-08816
1160-05-08816
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Blue NO

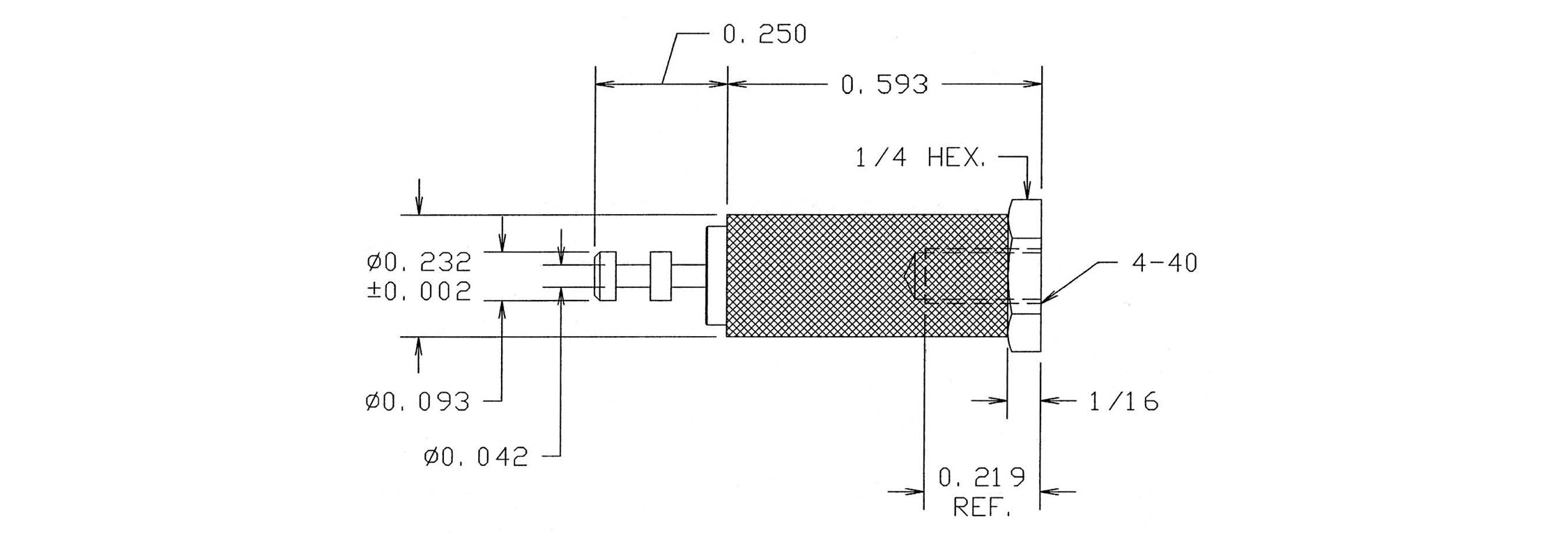

1167-20-0312
1167-20-0312
1167-20-0312
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Gold ZINC Brass DIALLYL PHTHALATE Red YES
1167-67-0418
1167-67-0418
1167-67-0418
0.875" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Gray YES

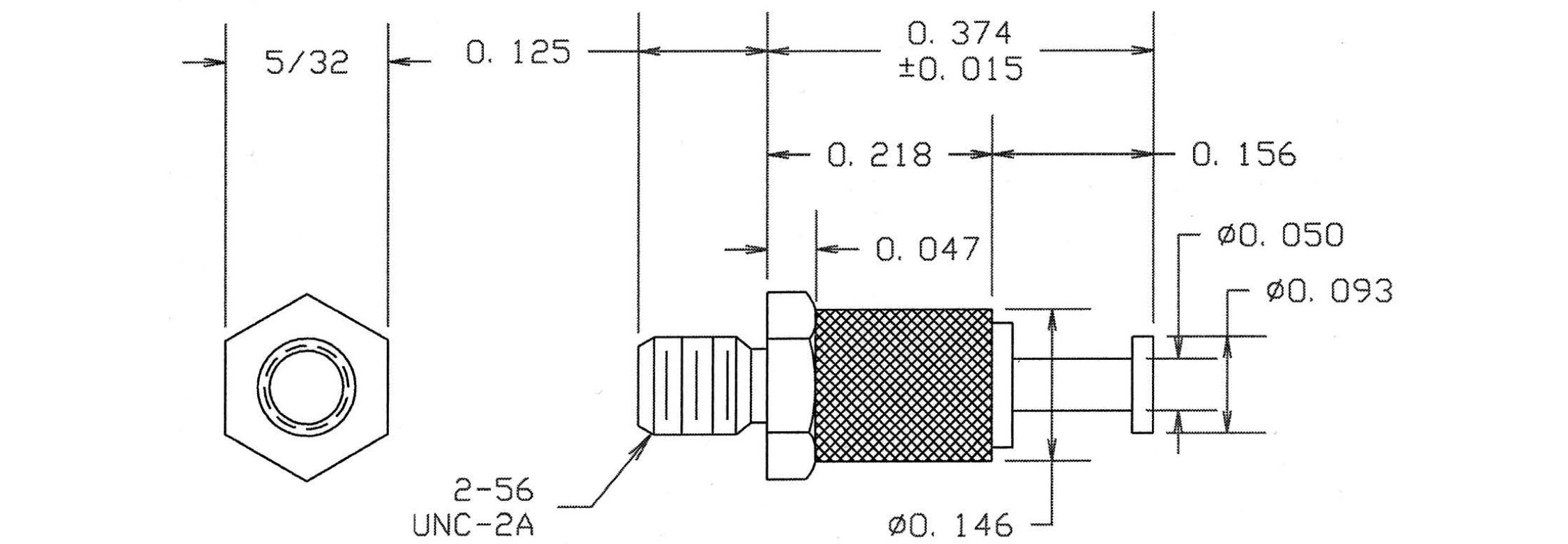

1169-08-0514
1169-08-0514
1169-08-0514
0.499" - - 2-56 Nut 1/32 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Yellow NO

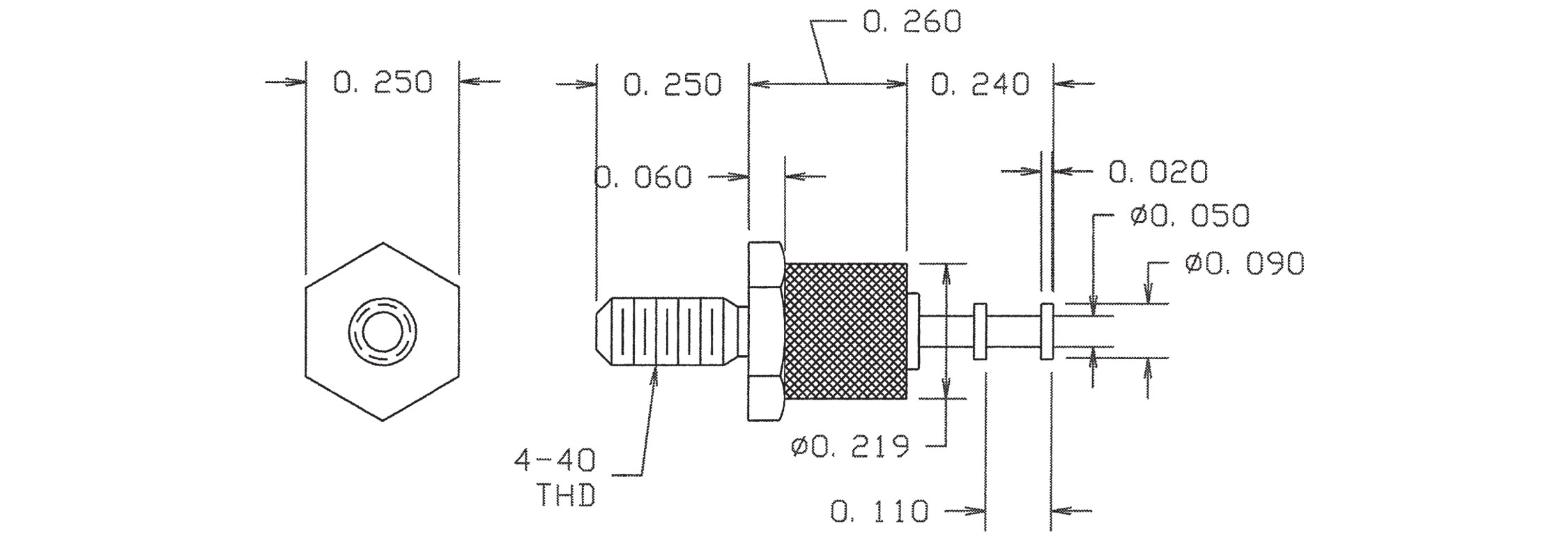

1169-37-0110
1169-37-0110
1169-37-0110
0.750" - - 4-40 Nut 1/8 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Black YES

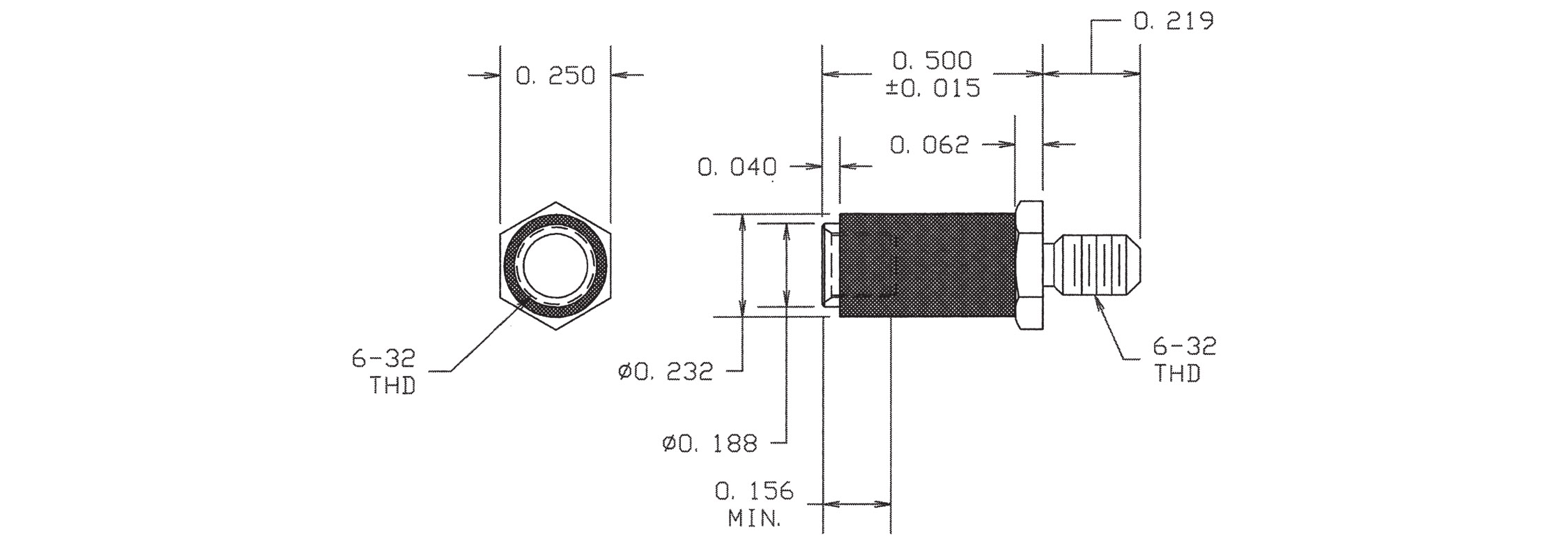

1170-02-07516
1170-02-07516
1170-02-07516
0.719" - - 6-32 Nut 3/32 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Blue YES

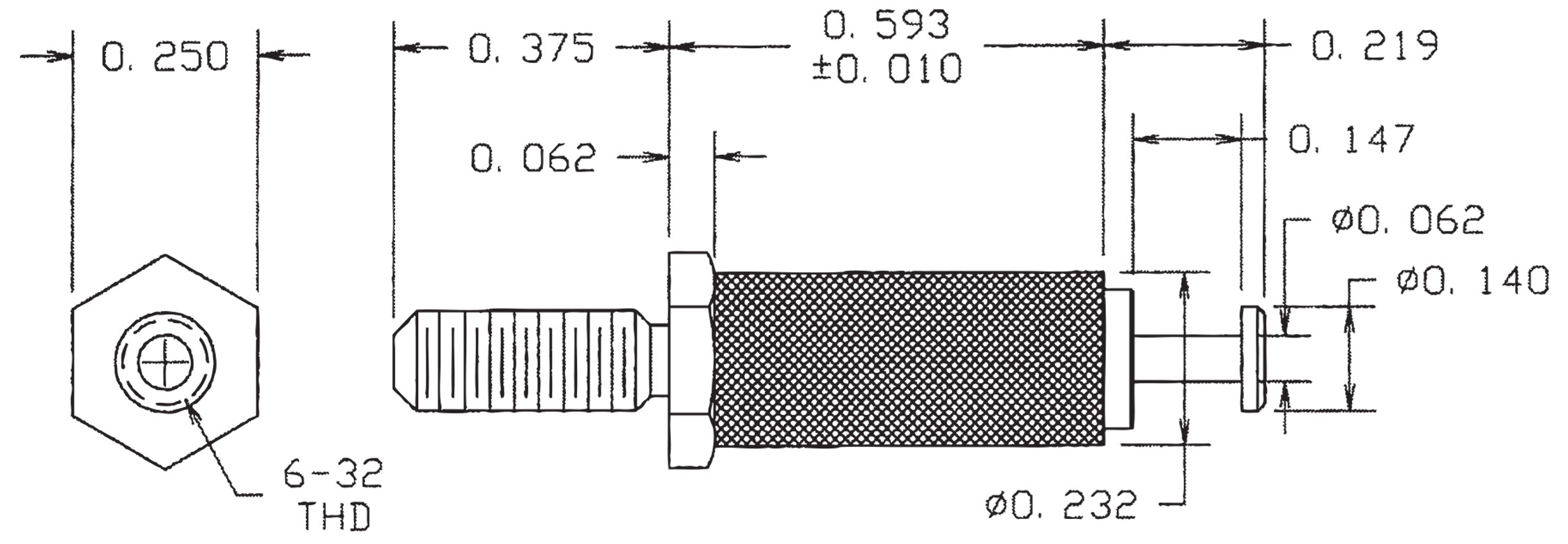

1170-22-0312
1170-22-0312
1170-22-0312
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Gold ZINC Brass DIALLYL PHTHALATE Red YES

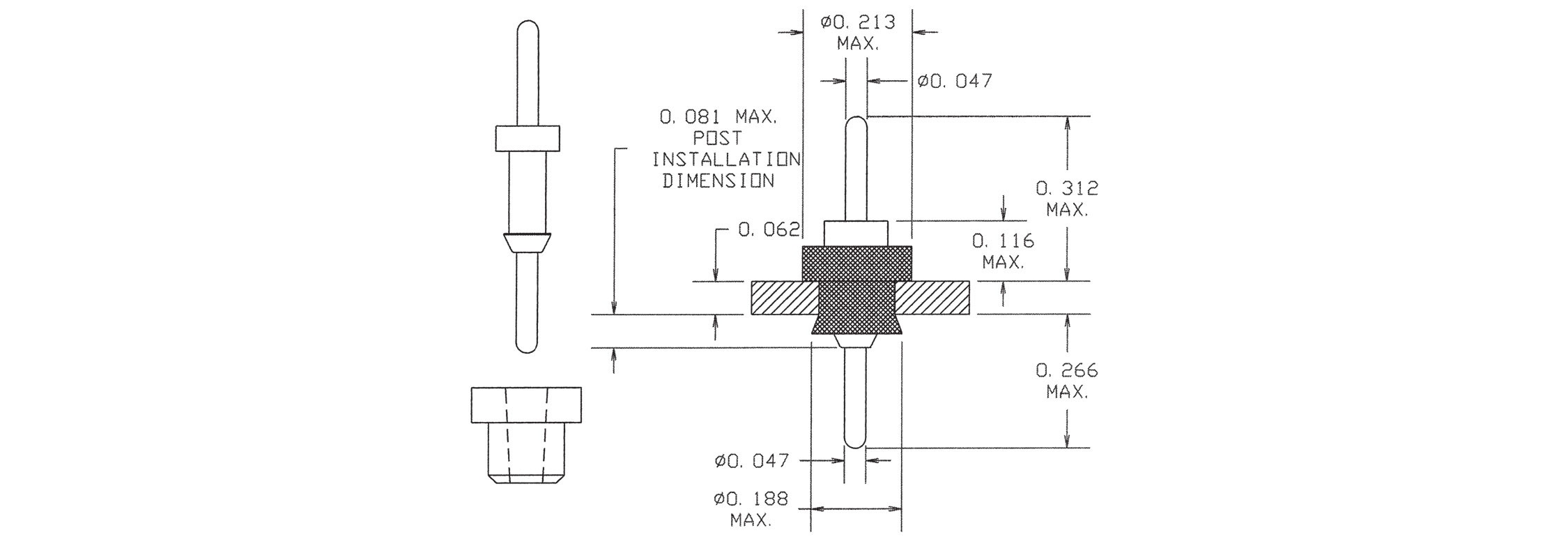

1175-012-0418
1175-012-0418
1175-012-0418
0.640" 0.047 Pin/Pin PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Gray NO
1175-023-0514
1175-023-0514
1175-023-0514
0.487" 0.047 - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Yellow NO

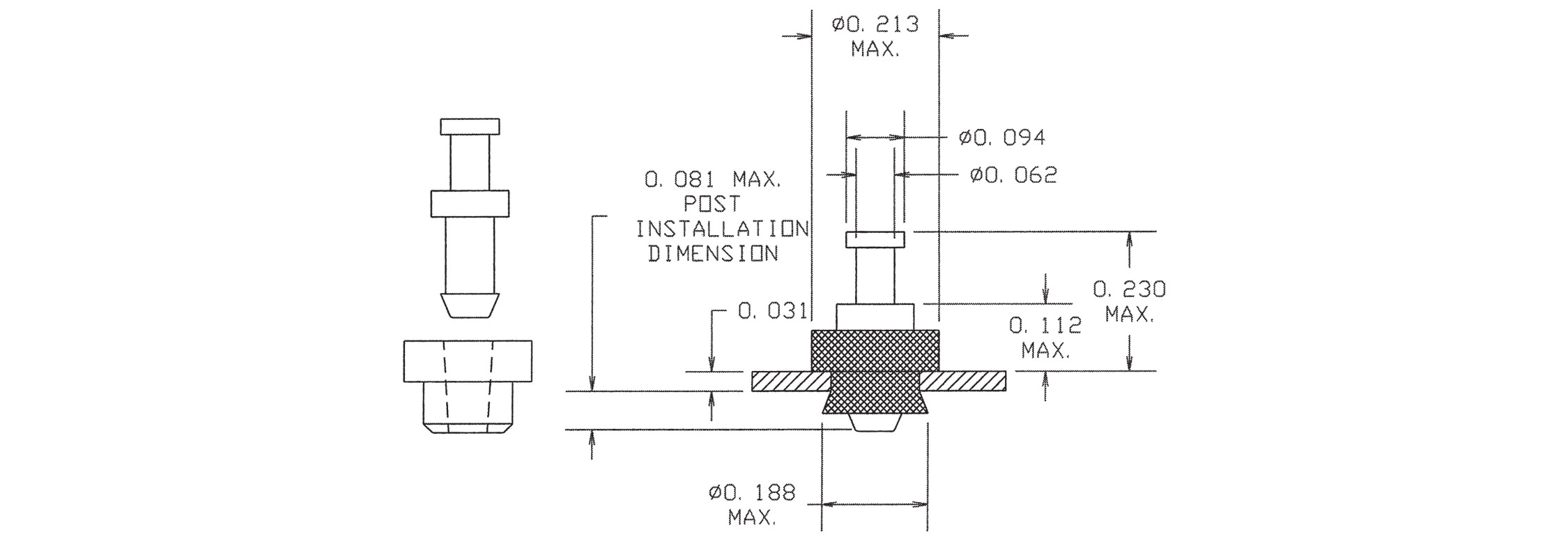

1175-351-0110
1175-351-0110
1175-351-0110
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Black YES
1175-372-0316
1175-372-0316
1175-372-0316
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Gold - - PTFE Blue YES
