Commercial
Insulated
Pin Terminals

Filter

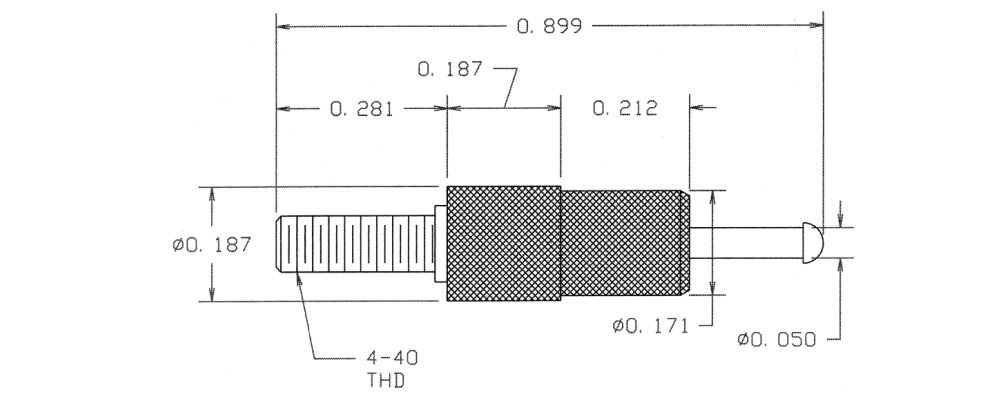

1124-10-0119
1124-10-0119
1124-10-0119
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Silver - - PTFE White YES

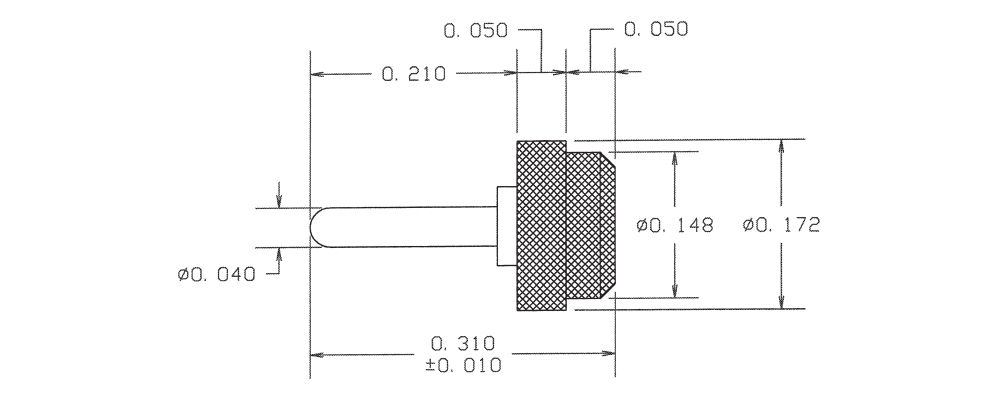

1100-22-0419
1100-22-0419
1100-22-0419
0.310" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE White YES
1125-80-0415
1125-80-0415
1125-80-0415
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro-Tin ZINC Brass PTFE Green YES

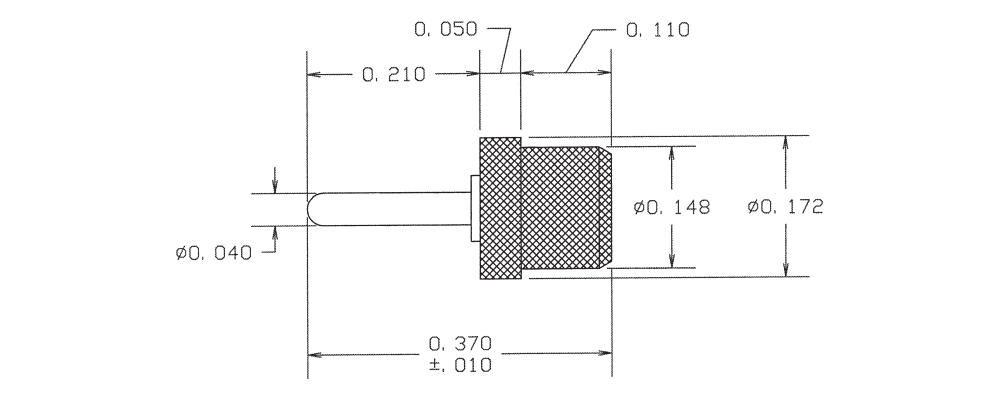

1100-32-0515
1100-32-0515
1100-32-0515
0.370" 0.040 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Green NO
1110-54-0511
1110-54-0511
1110-54-0511
0.350" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Brown NO

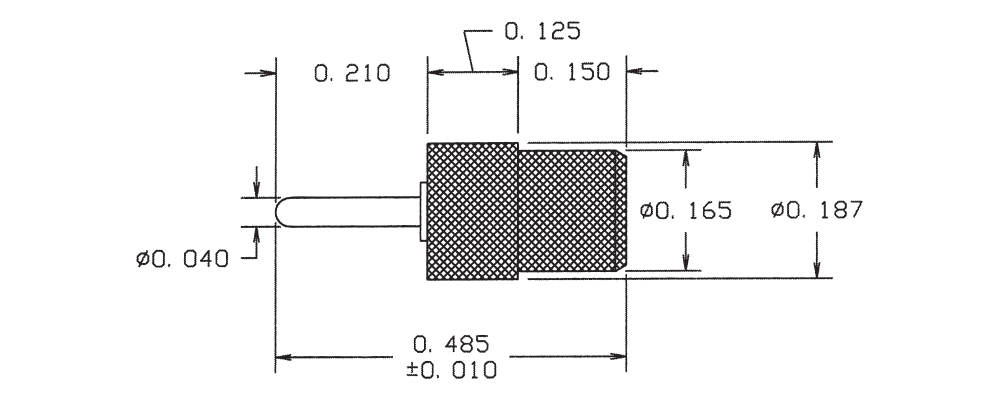

1100-43-0111
1100-43-0111
1100-43-0111
0.485" 0.040 - Press Fit 1/8 0.152 Brass Silver - - PTFE Brown NO

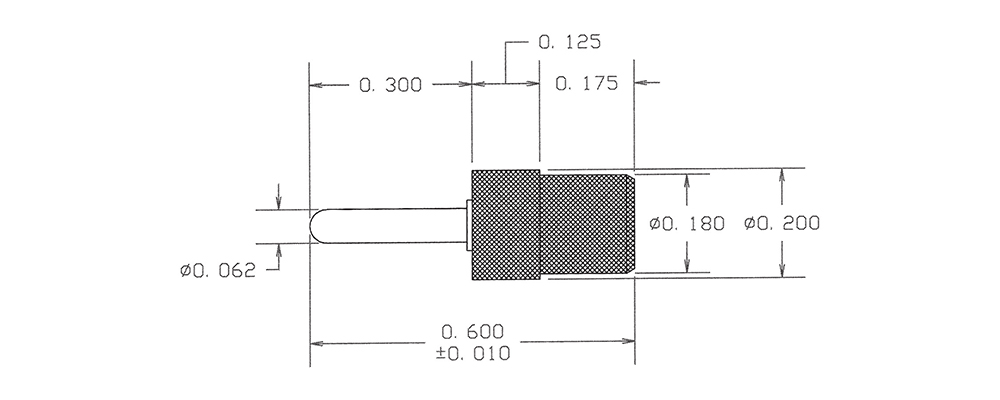

1100-48-0317
1100-48-0317
1100-48-0317
0.600" 0.062 - Press Fit 1/8 0.167 Brass Gold - - PTFE Violet YES
1100-73-04413
1100-73-04413
1100-73-04413
0.580" 0.063 - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Orange NO
1100R-08-0519
1100R-08-0519
1100R-08-0519
0.250" 0.040 - Press Fit 1/16 0.091 Brass Electro Solder - - PTFE White NO
1100R-17-0115
1100R-17-0115
1100R-17-0115
0.305" 0.040 - Press Fit 1/16 0.136 Brass Silver - - PTFE Green YES

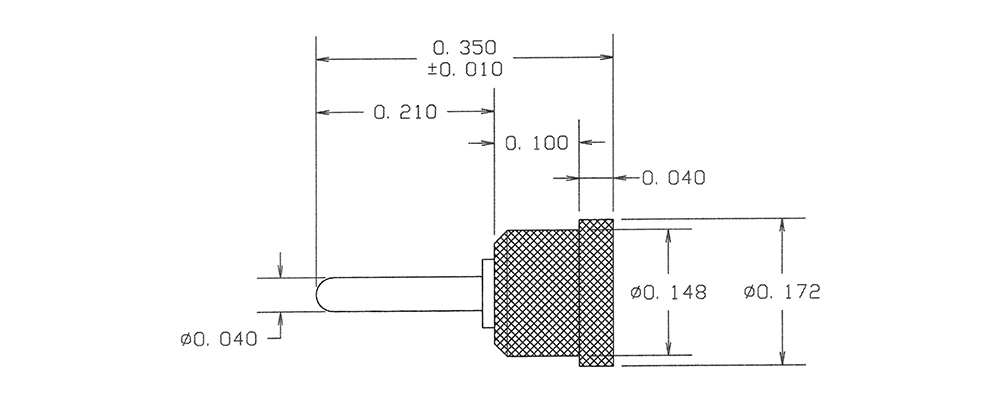

1100R-28-0411
1100R-28-0411
1100R-28-0411
0.350" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Brown NO
1100R-63-04417
1100R-63-04417
1100R-63-04417
0.672" 0.040 (+0.002/-0.001) - Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Violet YES

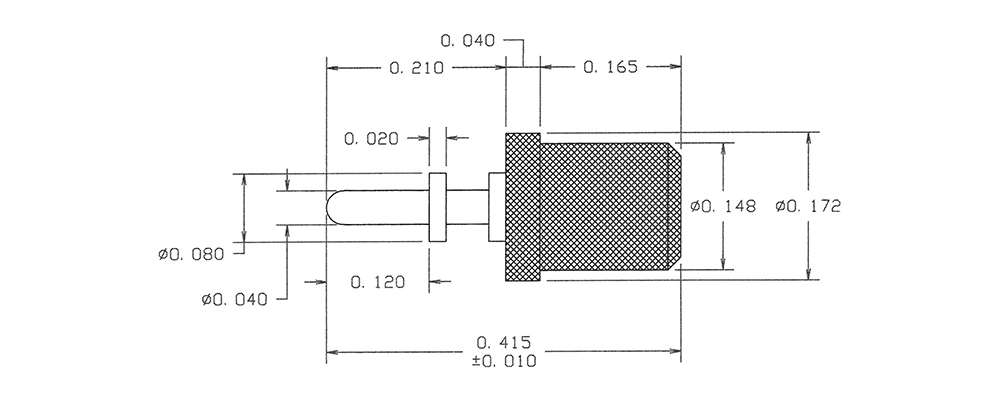

1101-04-08813
1101-04-08813
1101-04-08813
0.415" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Orange NO
1102-02-0119
1102-02-0119
1102-02-0119
0.330" - - Press Fit 1/32 0.086 Brass Silver - - PTFE White YES

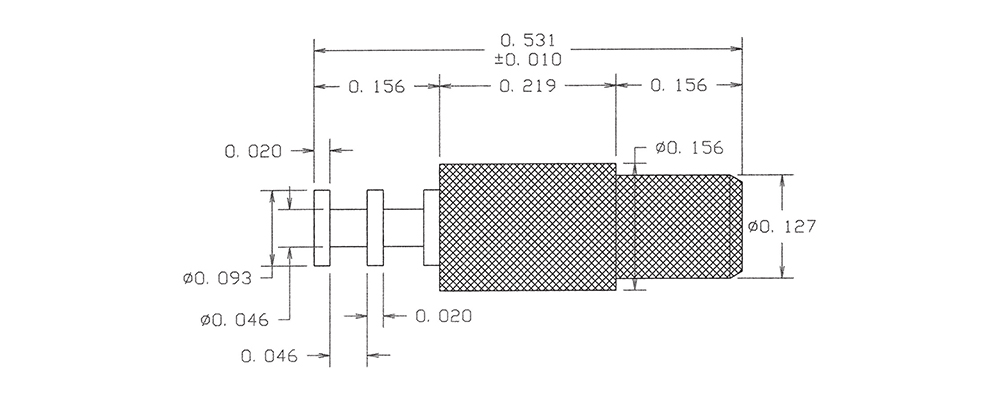

1102-06-0415
1102-06-0415
1102-06-0415
0.531" - - Press Fit 1/16 0.114 Brass Electro-Tin - - PTFE Green YES
1102-11-0511
1102-11-0511
1102-11-0511
0.296" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Brown NO
1102-15-08817
1102-15-08817
1102-15-08817
0.375" - - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Violet NO

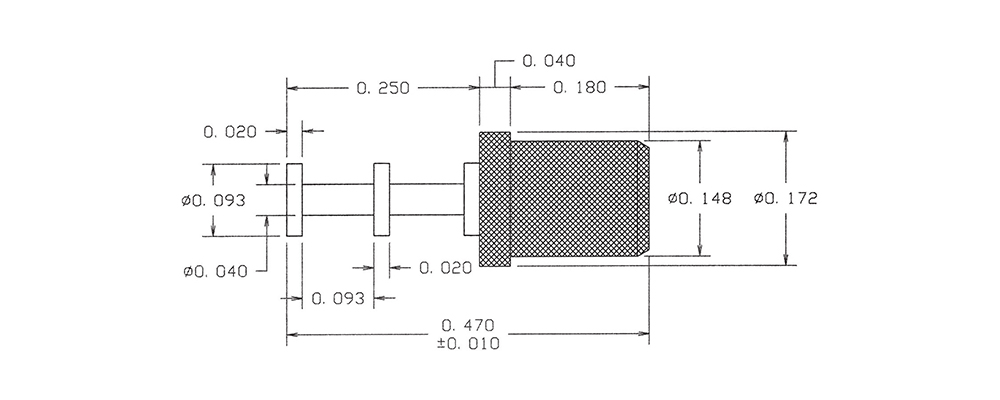

1102-22-0313
1102-22-0313
1102-22-0313
0.470" - - Press Fit 5/32 0.136 Brass Gold - - PTFE Orange NO
1102-26-0419
1102-26-0419
1102-26-0419
0.296" - - Press Fit 1/16 0.140 Brass Electro-Tin - - PTFE White YES
1102-30-0515
1102-30-0515
1102-30-0515
0.347" - - Press Fit 1/16 0.140 Brass Electro Solder - - PTFE Green NO
