Commercial
Insulated
Pin Terminals

Filter
1110-06-0113
1110-06-0113
1110-06-0113
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Orange NO
1110-10-0319
1110-10-0319
1110-10-0319
0.453" 0.030 Pin/Pin Press Fit 1/16 0.086 Brass Gold - - PTFE White YES
1110-15-04415
1110-15-04415
1110-15-04415
0.431" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Green YES
1110-19-08811
1110-19-08811
1110-19-08811
0.619" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1110-24-0117
1110-24-0117
1110-24-0117
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Violet YES
1110-28-0413
1110-28-0413
1110-28-0413
0.562" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO
1110-32-04419
1110-32-04419
1110-32-04419
0.710" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE White YES
1110-37-08815
1110-37-08815
1110-37-08815
0.890" 0.045 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1110-44-0311
1110-44-0311
1110-44-0311
2.500" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Gold - - PTFE Brown NO
1110-48-0417
1110-48-0417
1110-48-0417
0.540" 0.046 Pin/Pin Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Violet YES
1110-53-0513
1110-53-0513
1110-53-0513
0.437" 0.050 TURRET/PIN Press Fit 3/32 0.172 Brass Electro Solder - - PTFE Orange NO
1110-60-08819
1110-60-08819
1110-60-08819
0.443" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE White NO
1110-66-0315
1110-66-0315
1110-66-0315
0.890" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES
1110-70-04411
1110-70-04411
1110-70-04411
1.950" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Bright Tin - - PTFE Brown NO
1110-75-0517
1110-75-0517
1110-75-0517
0.343" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Violet NO
1110-93-0113
1110-93-0113
1110-93-0113
0.390" 0.035 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Orange NO
1111-02-0319
1111-02-0319
1111-02-0319
0.535" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.101 Brass Gold - - PTFE White YES
1111-10-04415
1111-10-04415
1111-10-04415
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Green YES

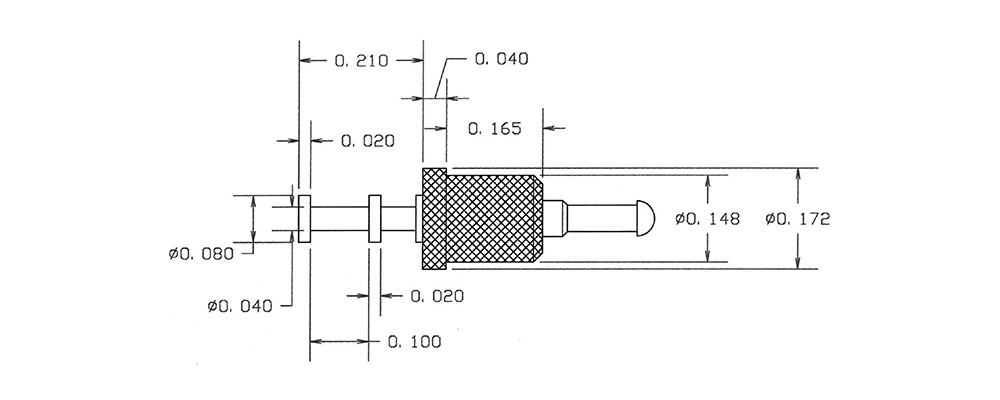

1111-14S-08811
1111-14S-08811
1111-14S-08811
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1111-20-0117
1111-20-0117
1111-20-0117
0.836" 0.050 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Silver - - PTFE Violet YES
