Commercial
Insulated
Pin Terminals

Filter
1110-37-08814
1110-37-08814
1110-37-08814
0.890" 0.045 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1110-44-0310
1110-44-0310
1110-44-0310
2.500" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Gold - - PTFE Black YES
1110-48-0416
1110-48-0416
1110-48-0416
0.540" 0.046 Pin/Pin Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Blue YES
1110-53-0512
1110-53-0512
1110-53-0512
0.437" 0.050 TURRET/PIN Press Fit 3/32 0.172 Brass Electro Solder - - PTFE Red NO

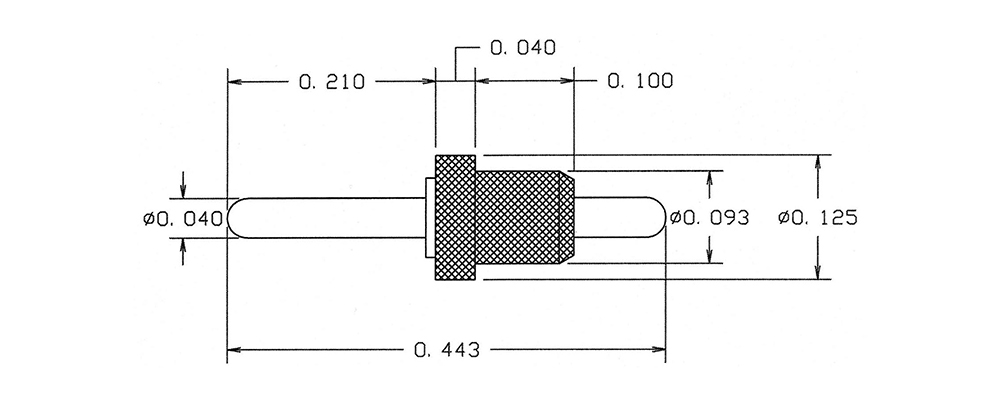

1110-60-08818
1110-60-08818
1110-60-08818
0.443" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Gray NO
1110-66-0314
1110-66-0314
1110-66-0314
0.890" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Yellow NO
1110-70-04410
1110-70-04410
1110-70-04410
1.950" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Bright Tin - - PTFE Black YES
1110-75-0516
1110-75-0516
1110-75-0516
0.343" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Blue NO
1110-93-0112
1110-93-0112
1110-93-0112
0.390" 0.035 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Red NO
1111-02-0318
1111-02-0318
1111-02-0318
0.535" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.101 Brass Gold - - PTFE Gray NO
1111-10-04414
1111-10-04414
1111-10-04414
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Yellow NO
1111-14S-08810
1111-14S-08810
1111-14S-08810
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1111-20-0116
1111-20-0116
1111-20-0116
0.836" 0.050 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Silver - - PTFE Blue YES
1111-24-0412
1111-24-0412
1111-24-0412
0.500" 0.047 DOUBLE Turret/Tip Press Fit 1/8 0.140 Brass Electro-Tin - - PTFE Red NO
1111-33-04418
1111-33-04418
1111-33-04418
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.166 Brass Bright Tin - - PTFE Gray NO

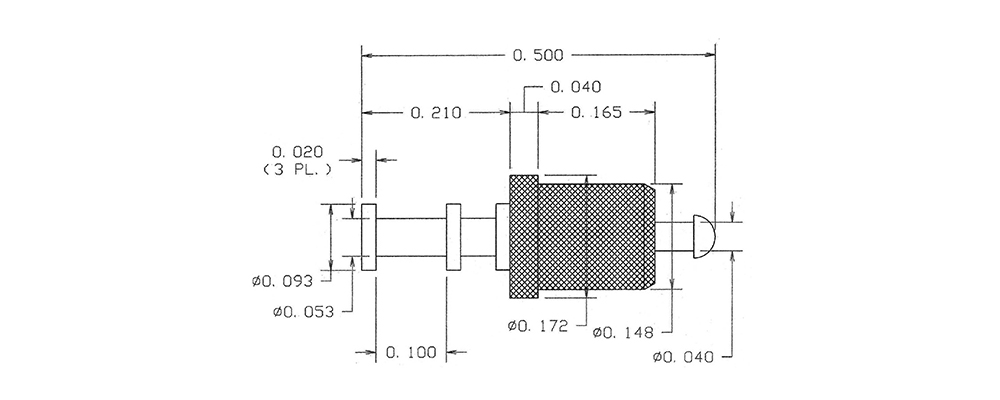

1111-37-08814
1111-37-08814
1111-37-08814
0.500" 0.053 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1111-44-0310
1111-44-0310
1111-44-0310
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.191 Brass Gold - - PTFE Black YES
1111-50-0416
1111-50-0416
1111-50-0416
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Blue YES

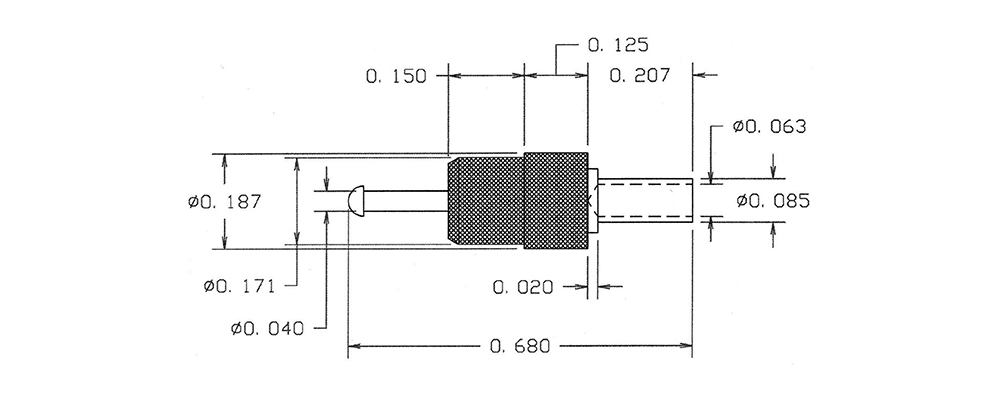

1111-57-0512
1111-57-0512
1111-57-0512
0.680" 0.040 - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Red NO
1111R-04-08818
1111R-04-08818
1111R-04-08818
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.113 Brass Bright Tin-Lead - - PTFE Gray NO
