Commercial
Insulated
Pin Terminals

Filter
1125-58-0315
1125-58-0315
1125-58-0315
1.172" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Gold ZINC Brass PTFE Green YES
1125-63-04411
1125-63-04411
1125-63-04411
0.453" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin ZINC Brass PTFE Brown NO
1125-74-0517
1125-74-0517
1125-74-0517
0.947" - - 6-32 Nut Up to 1/4 0.144 Brass Electro Solder ZINC Brass PTFE Violet NO
1125-79-0113
1125-79-0113
1125-79-0113
0.728" - - Swage Mount 1/8 0.194 Brass Silver ZINC Brass PTFE Orange NO
1125-84-0319
1125-84-0319
1125-84-0319
0.756" - - Swage Mount 1/8 0.191 Brass Gold Electro-Tin Brass PTFE White YES
1125-89-04415
1125-89-04415
1125-89-04415
0.698" - - 4-40 Nut 1/16 0.120 Brass Bright Tin Electro-Tin Brass PTFE Green YES
1125-93-08811
1125-93-08811
1125-93-08811
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead ZINC Brass PTFE Brown NO
1125-98-0117
1125-98-0117
1125-98-0117
0.467" 0.040 - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass PTFE Violet YES
1126-30-0413
1126-30-0413
1126-30-0413
1.172" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro-Tin ZINC Brass PTFE Orange NO
1126-34-04419
1126-34-04419
1126-34-04419
0.766" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin ZINC Brass PTFE White YES
1126-38-08815
1126-38-08815
1126-38-08815
1.469" - - 4-40 Nut 1/8 0.120 Brass Bright Tin-Lead ZINC Brass PTFE Green NO

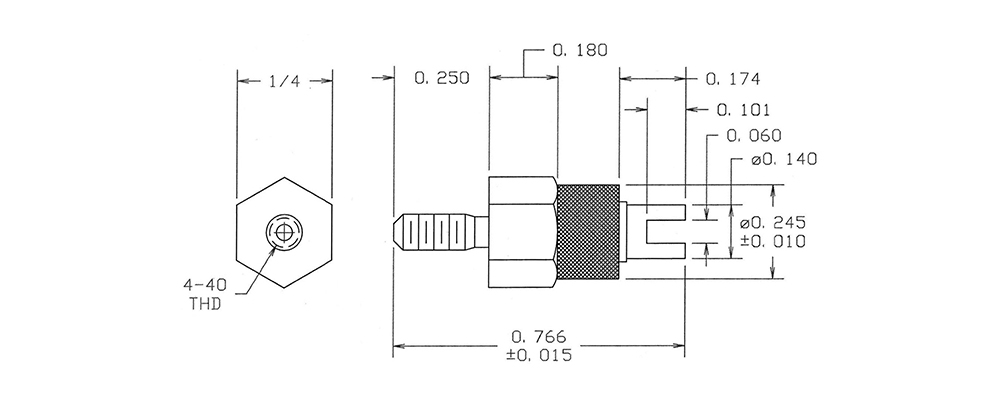

1126-43-0311
1126-43-0311
1126-43-0311
0.766" - - 4-40 Nut 1/8 0.120 Brass Gold ZINC Brass PTFE Brown NO

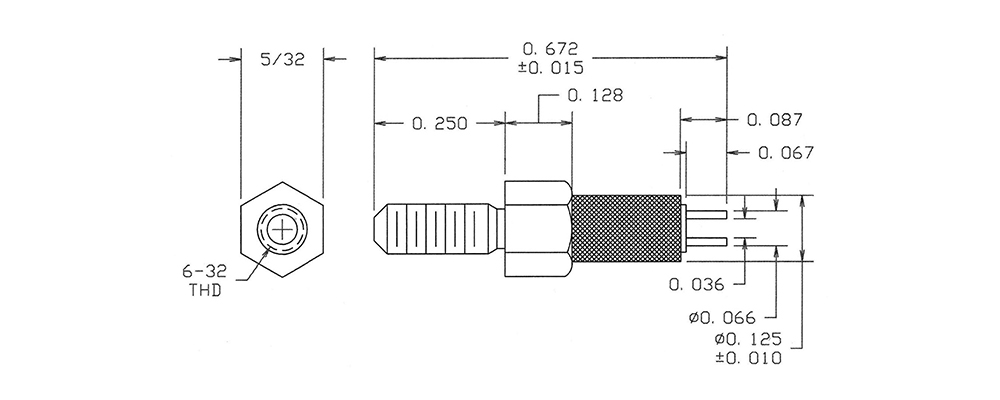

1126-47-0417
1126-47-0417
1126-47-0417
0.672" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass PTFE Violet YES
1127-04-0513
1127-04-0513
1127-04-0513
0.719" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro Solder Electro Solder Brass DIALLYL PHTHALATE Orange NO
1127-08-08819
1127-08-08819
1127-08-08819
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE White NO
1127-13-0315
1127-13-0315
1127-13-0315
0.899" 0.070 - Swage Mount 3/16 0.104 Brass Gold ZINC Brass DIALLYL PHTHALATE Green YES

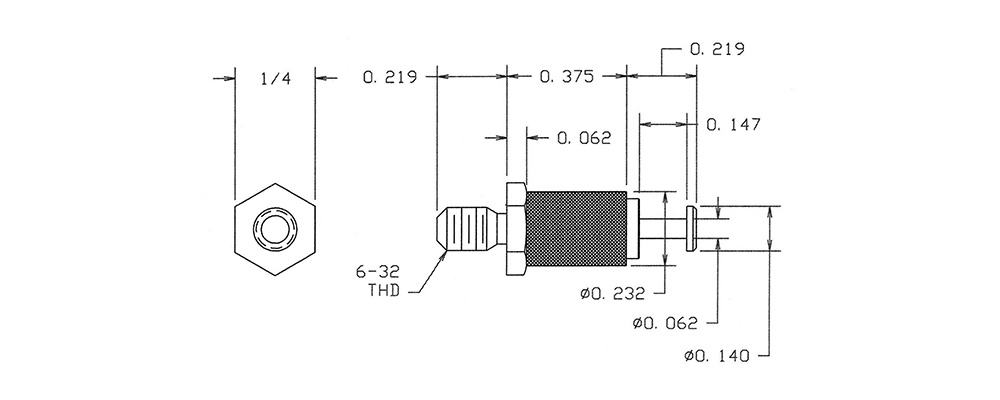

1127-17-04411
1127-17-04411
1127-17-04411
0.813" - - 6-32 Nut 3/32 0.144 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Brown YES
1127-21-0517
1127-21-0517
1127-21-0517
0.938" - - Swage Mount 3/32 0.104 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Violet NO
1127-26-0113
1127-26-0113
1127-26-0113
0.969" - - Swage Mount 1/8 0.147 Brass Silver ZINC Brass DIALLYL PHTHALATE Orange YES

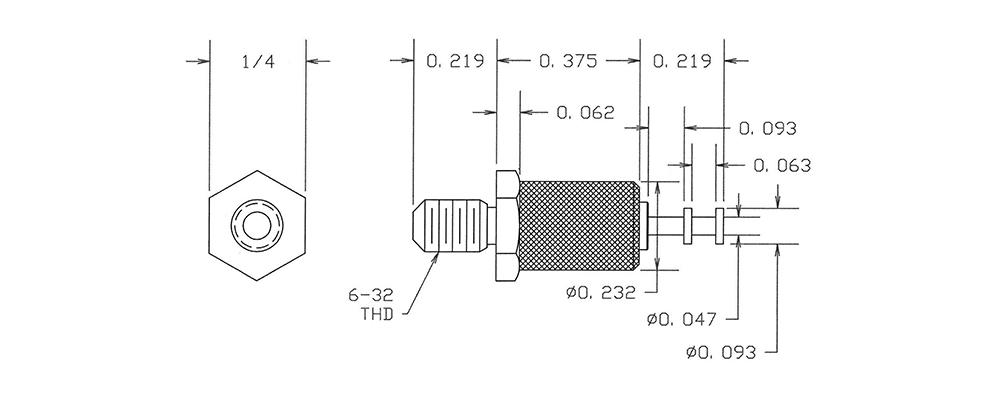

1127-31-0319
1127-31-0319
1127-31-0319
0.813" - - 6-32 Nut Up to 1/4 0.144 Brass Gold ZINC Brass DIALLYL PHTHALATE White YES
