Commercial
Insulated
Pin Terminals

Filter

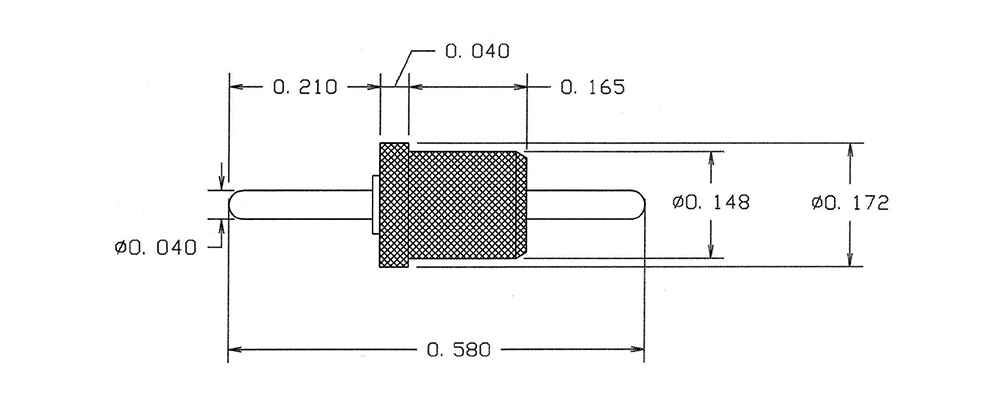

1110-67-0315
1110-67-0315
1110-67-0315
0.580" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Gold - - PTFE Green YES

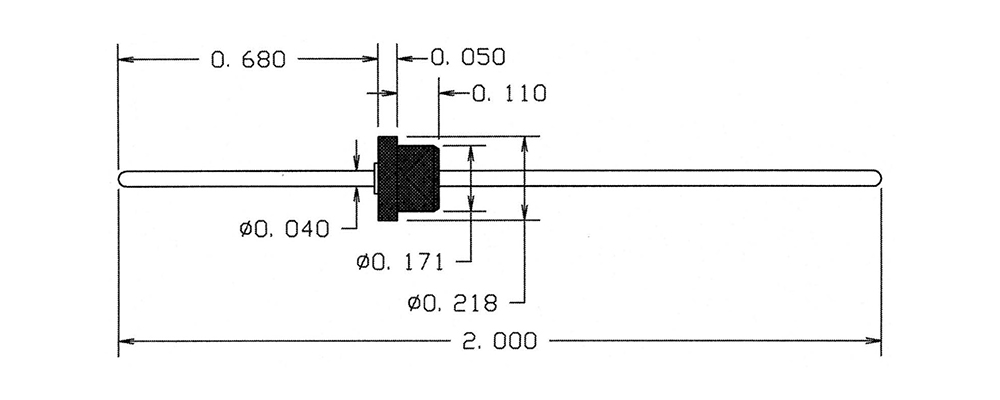

1110-71-04411
1110-71-04411
1110-71-04411
2.000" 0.040 Pin/Pin Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Brown NO
1110-76-0517
1110-76-0517
1110-76-0517
0.450" 0.018 Pin/Pin Press Fit 1/32 0.054 Brass Electro Solder - - PTFE Violet NO

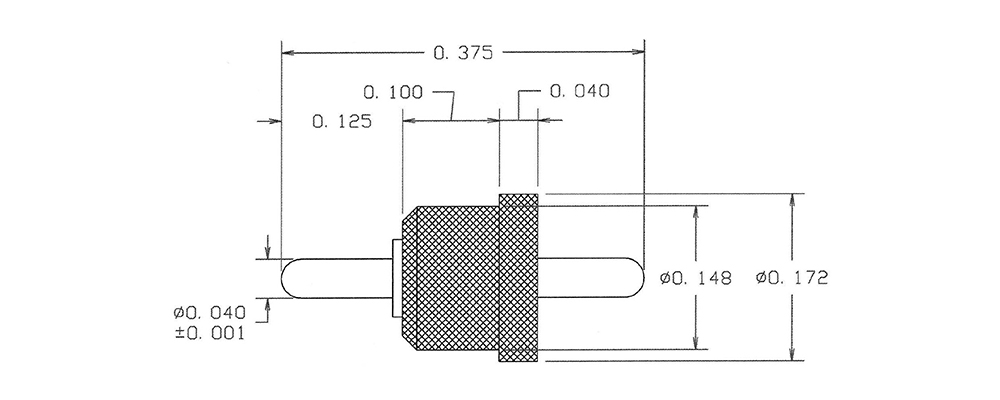

1110R-16-0113
1110R-16-0113
1110R-16-0113
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Orange NO
1111-07-0319
1111-07-0319
1111-07-0319
0.438" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE White YES

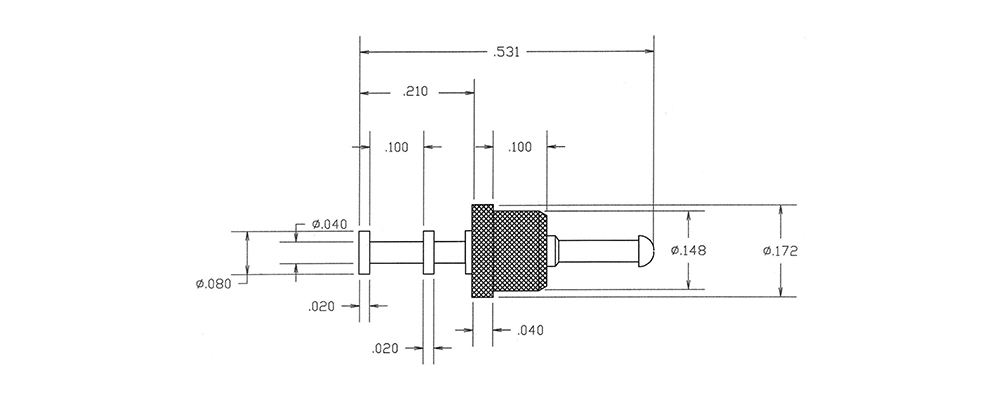

1111-11-04415
1111-11-04415
1111-11-04415
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Green YES
1111-15-08811
1111-15-08811
1111-15-08811
0.609" 0.040 DOUBLE Turret/Tip Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Brown NO

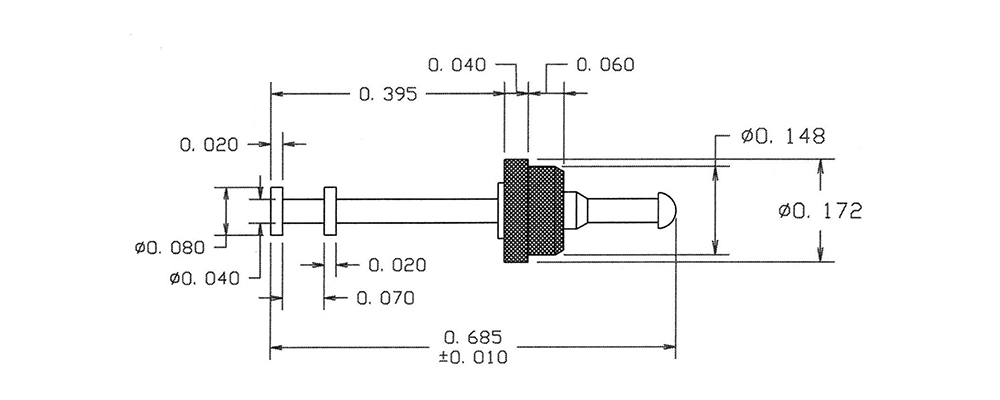

1111-21-0117
1111-21-0117
1111-21-0117
0.685" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.136 Brass Silver - - PTFE Violet YES

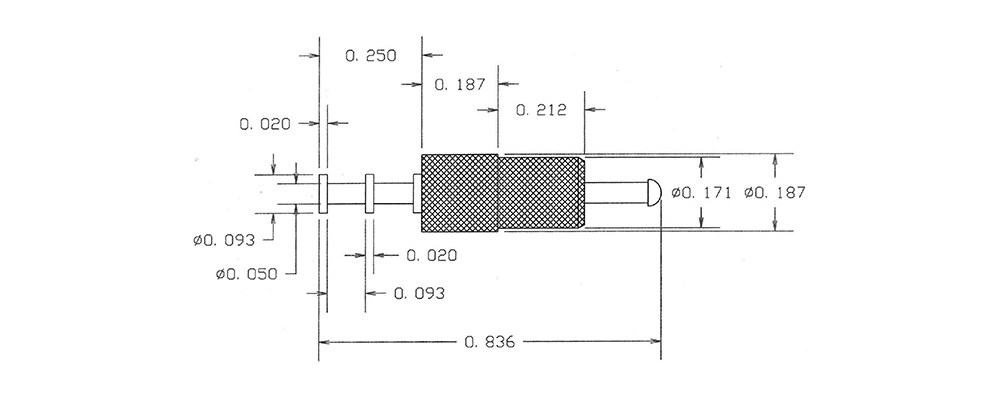

1111-26-0413
1111-26-0413
1111-26-0413
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Orange NO
1111-34-04419
1111-34-04419
1111-34-04419
0.438" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.172 Brass Bright Tin - - PTFE White YES
1111-38-08815
1111-38-08815
1111-38-08815
0.500" - DOUBLE Turret/Turret Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Green NO

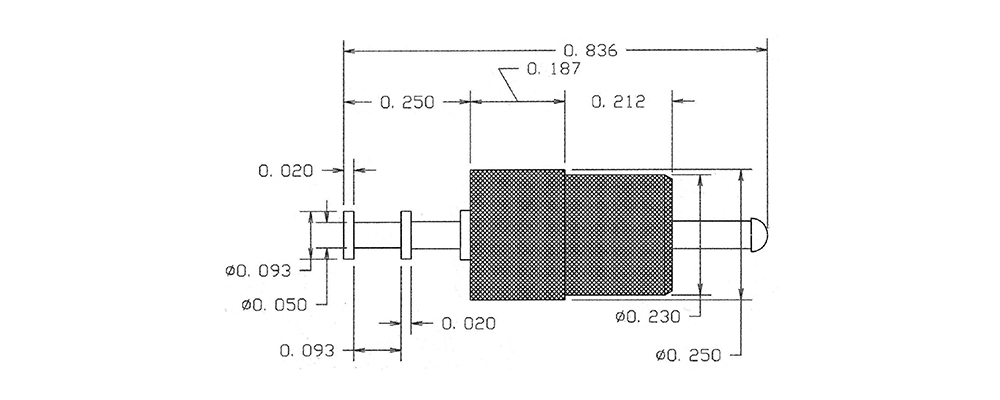

1111-46-0311
1111-46-0311
1111-46-0311
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.217 Brass Gold - - PTFE Brown NO
1111-51-0417
1111-51-0417
1111-51-0417
0.828" 0.062 DOUBLE Turret/Tip Press Fit Up to 1/4 0.205 Brass Electro-Tin - - PTFE Violet YES
1111-59-0513
1111-59-0513
1111-59-0513
0.750" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.086 Brass Electro Solder - - PTFE Orange NO
1111R-09-08819
1111R-09-08819
1111R-09-08819
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE White NO

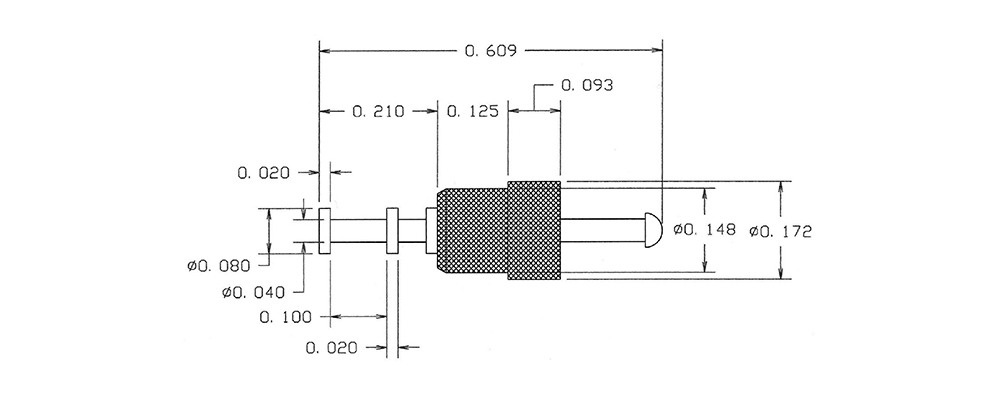

1111R-15-0315
1111R-15-0315
1111R-15-0315
0.609" 0.040 DOUBLE Turret/Tip Press Fit 3/32 0.136 Brass Gold - - PTFE Green YES

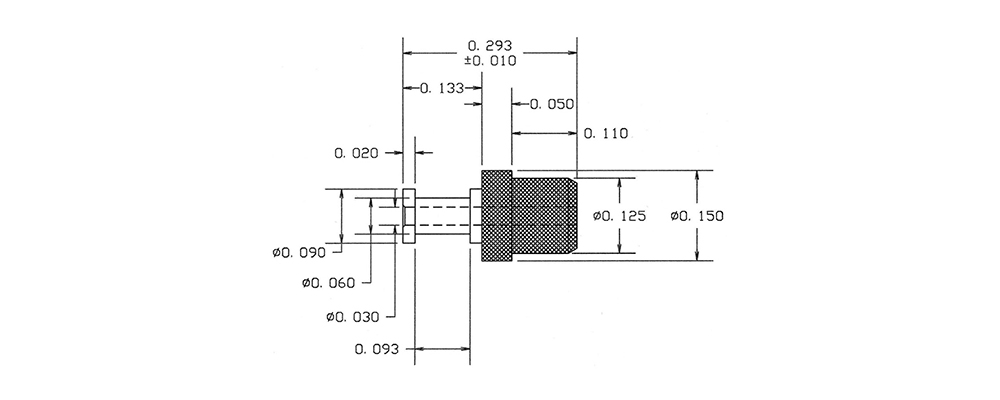

1112-09-04411
1112-09-04411
1112-09-04411
0.293" - - Press Fit 1/64 0.113 Brass Bright Tin - - PTFE Brown NO
1112-14-0517
1112-14-0517
1112-14-0517
0.293" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Violet NO
1112-70-0113
1112-70-0113
1112-70-0113
0.313" - - Press Fit 3/32 0.158 Brass Silver - - PTFE Orange NO

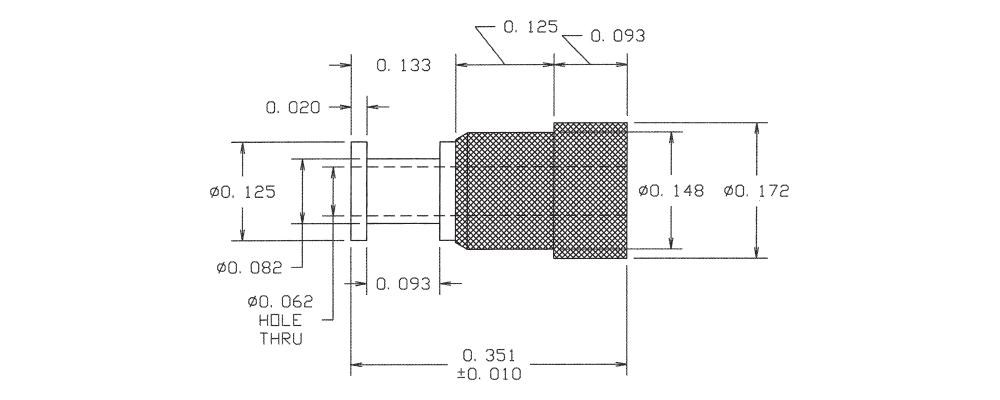

1112R-15-0319
1112R-15-0319
1112R-15-0319
0.351" - - Press Fit 3/32 0.136 Brass Gold - - PTFE White YES
