Commercial
Insulated
Pin Terminals

Filter

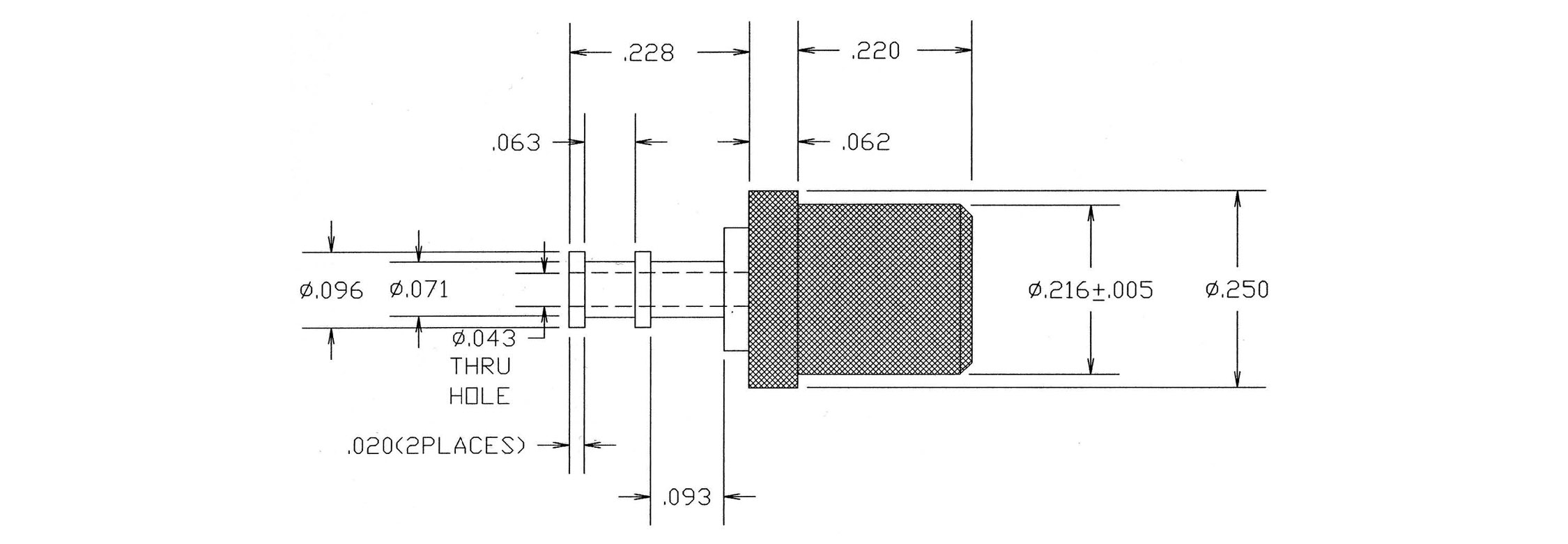

1155-02-0315
1155-02-0315
1155-02-0315
0.510" - - Press Fit Up to 3/16 0.204 Brass Gold - - PTFE Green YES

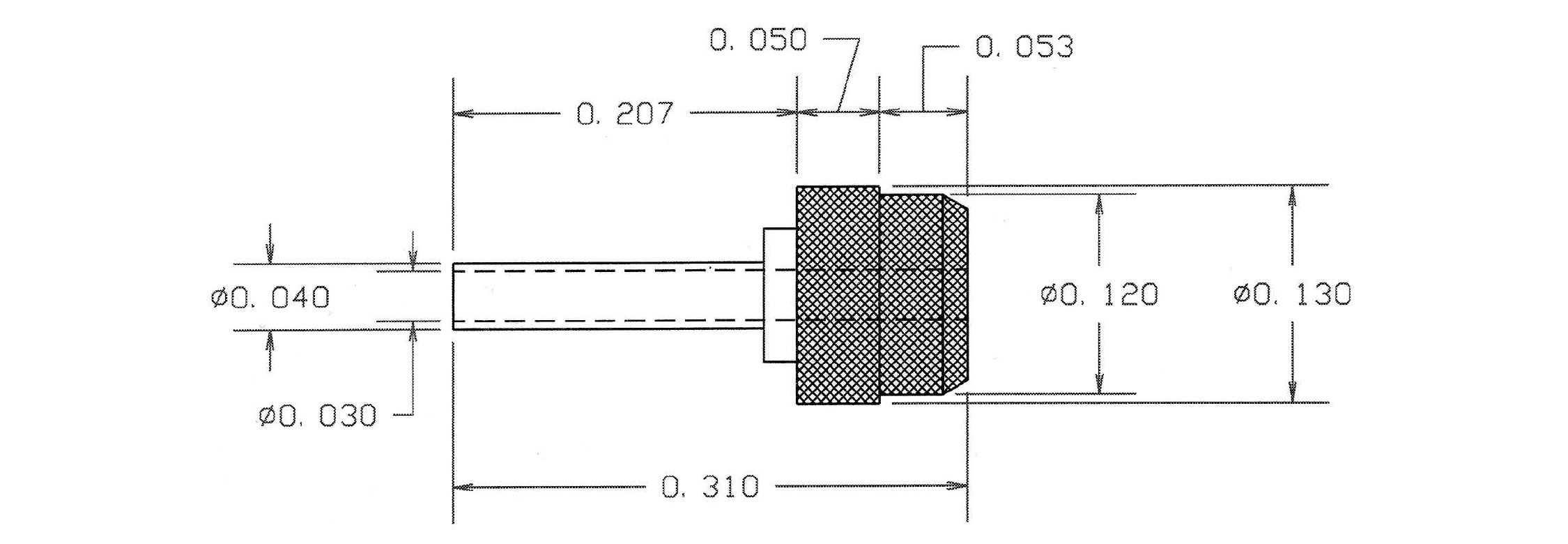

1155-13-04411
1155-13-04411
1155-13-04411
0.310" 0.040 - Press Fit 1/64 0.108 Brass Bright Tin - - PTFE Brown NO
1156-02-0517
1156-02-0517
1156-02-0517
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Violet NO

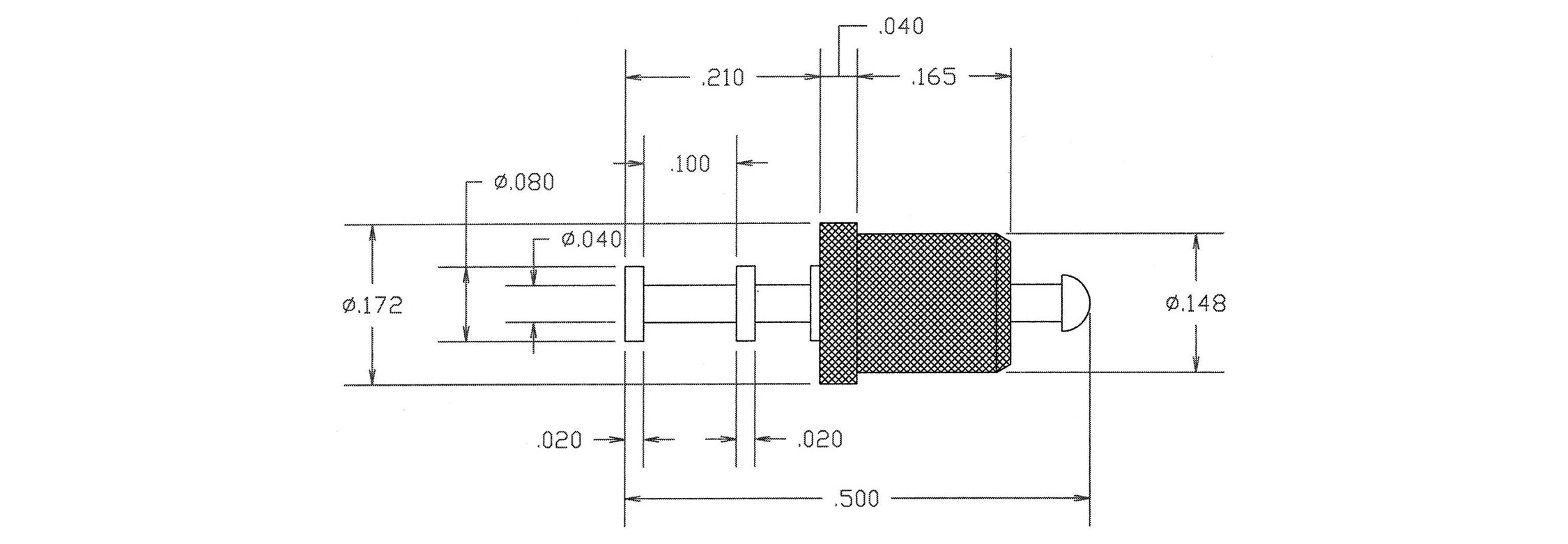

1156-08-0113
1156-08-0113
1156-08-0113
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Silver - - PTFE Orange NO
1156-15-0319
1156-15-0319
1156-15-0319
1.061" 0.050 DOUBLE TURRET/PIN Press Fit 7/32 0.158 Brass Gold - - PTFE White YES
1156-19-04415
1156-19-04415
1156-19-04415
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.203 Brass Bright Tin - - PTFE Green YES
1156R-01-08811
1156R-01-08811
1156R-01-08811
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE Brown NO

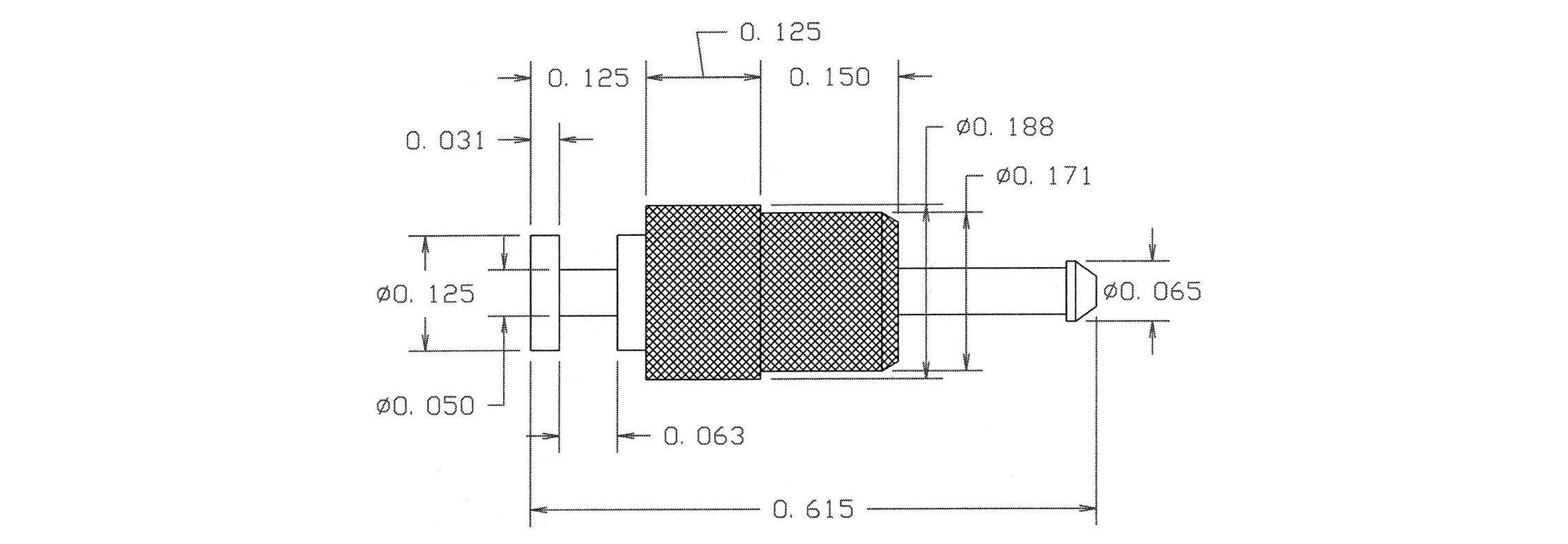

1157-03-0117
1157-03-0117
1157-03-0117
0.615" 0.050 TURRET/PIN Press Fit 1/8 0.158 Brass Silver - - PTFE Violet YES
1157-07-0413
1157-07-0413
1157-07-0413
0.350" 0.040 Turret/Tip Press Fit 1/16 0.158 Brass Electro-Tin - - PTFE Orange NO
1157R-05-04419
1157R-05-04419
1157R-05-04419
0.865" 0.050 TURRET/PIN Press Fit 7/32 0.158 Brass Bright Tin - - PTFE White YES

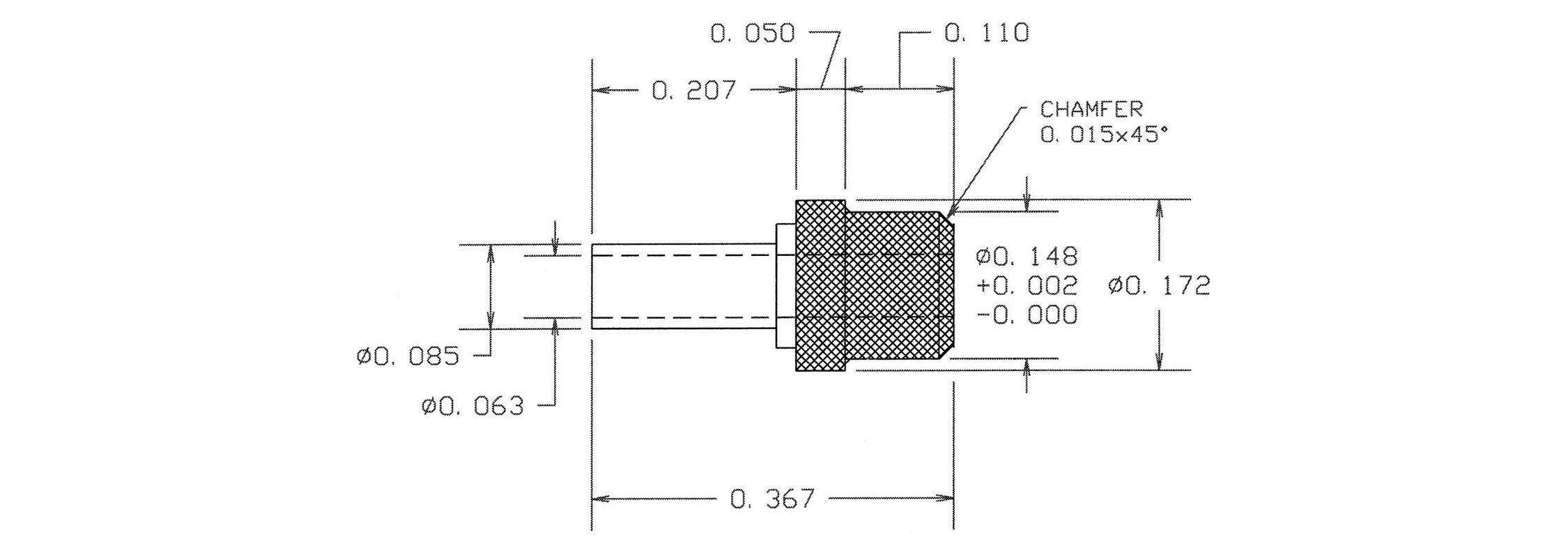

1160-13-08815
1160-13-08815
1160-13-08815
0.367" 0.085 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Green NO

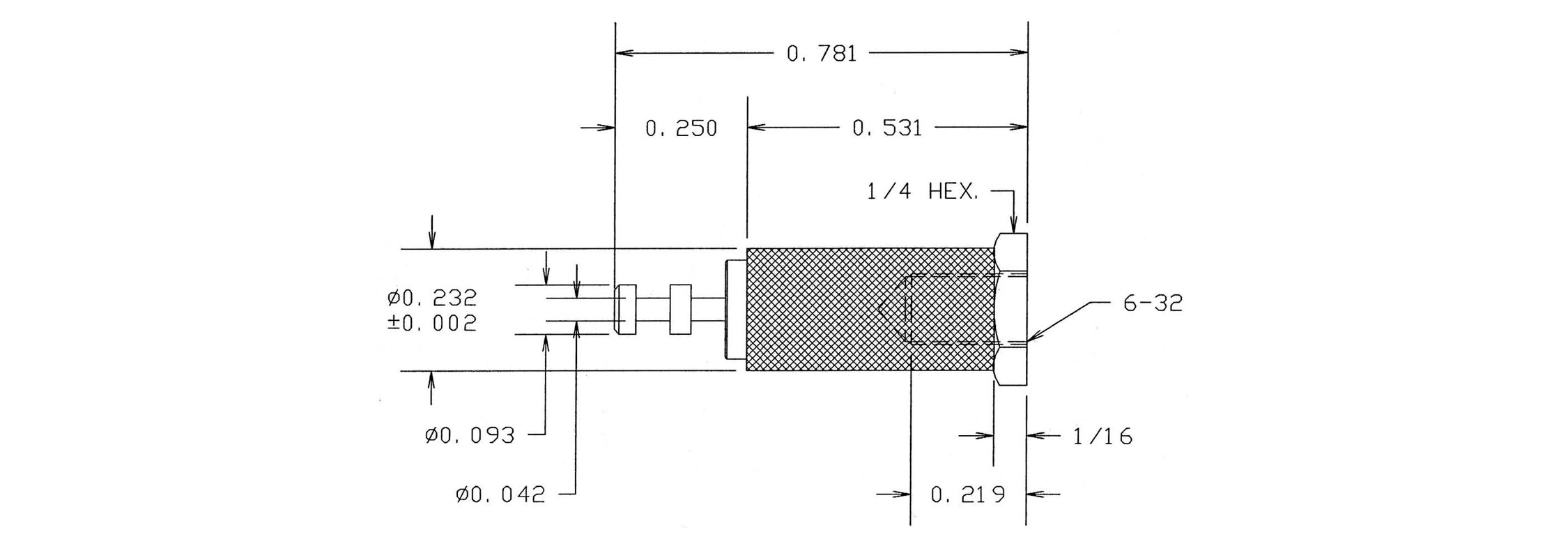

1167-24-0311
1167-24-0311
1167-24-0311
0.781" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Gold ZINC Brass DIALLYL PHTHALATE Brown YES
1167-75-0417
1167-75-0417
1167-75-0417
0.905" - - 6-32 Nut Up to 3/16 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Violet YES

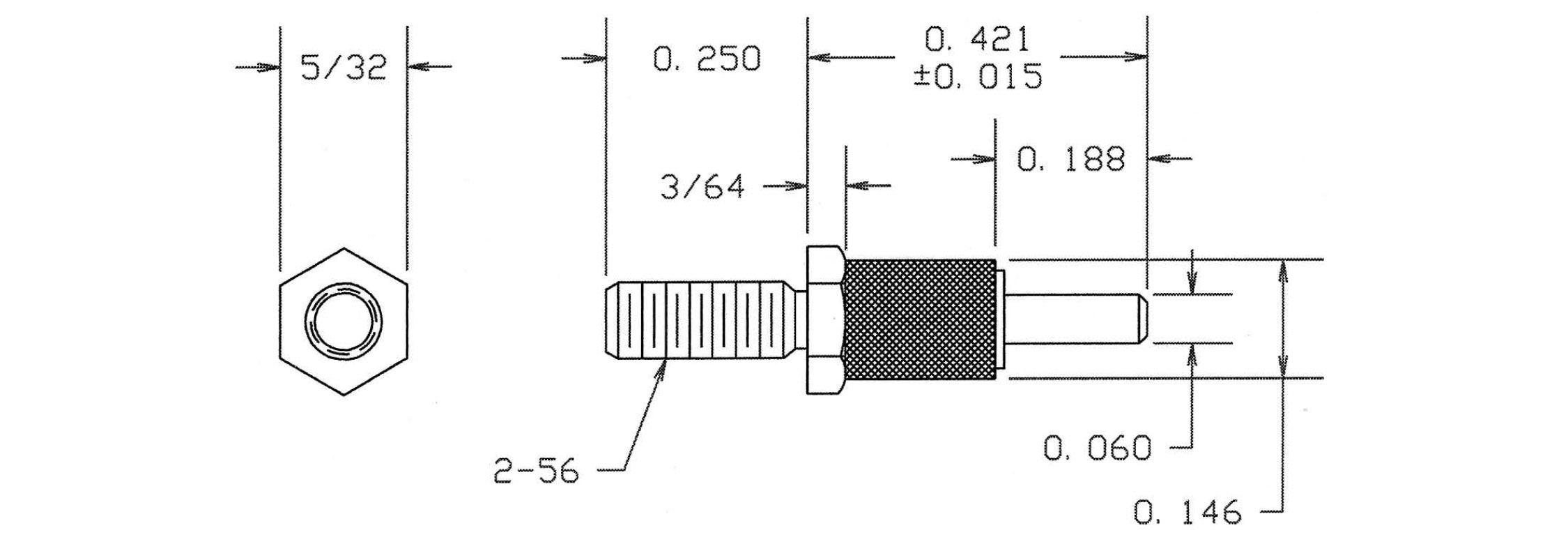

1169-30-0513
1169-30-0513
1169-30-0513
0.671" 0.060 - 2-56 Nut 1/8 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Orange NO

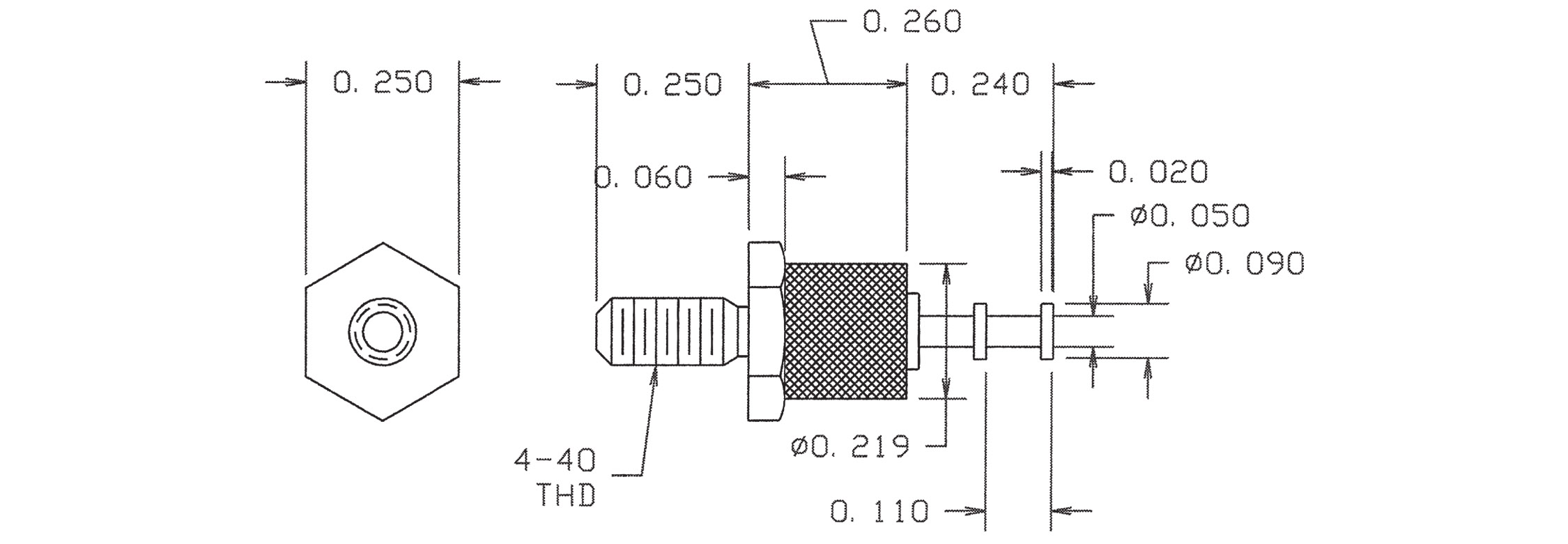

1169-37-08819
1169-37-08819
1169-37-08819
0.750" - - 4-40 Nut 1/8 0.120 Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE White NO

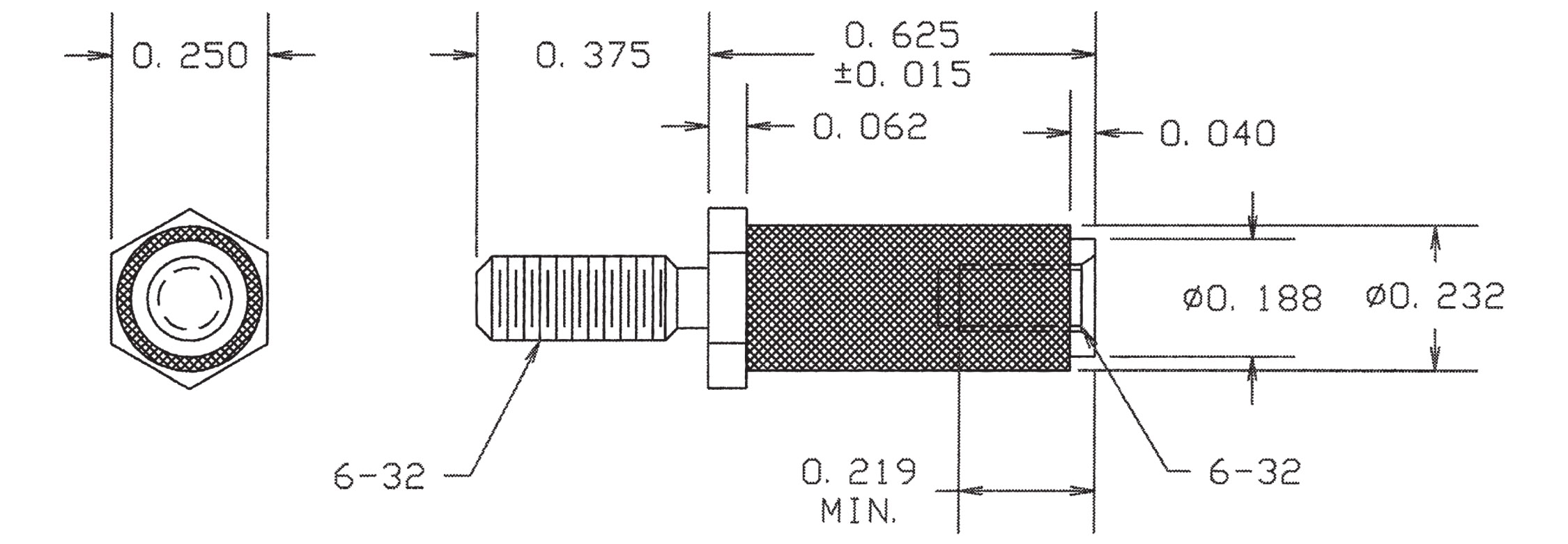

1170-08-07515
1170-08-07515
1170-08-07515
1.000" - - 6-32 Nut Up to 1/4 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Green YES

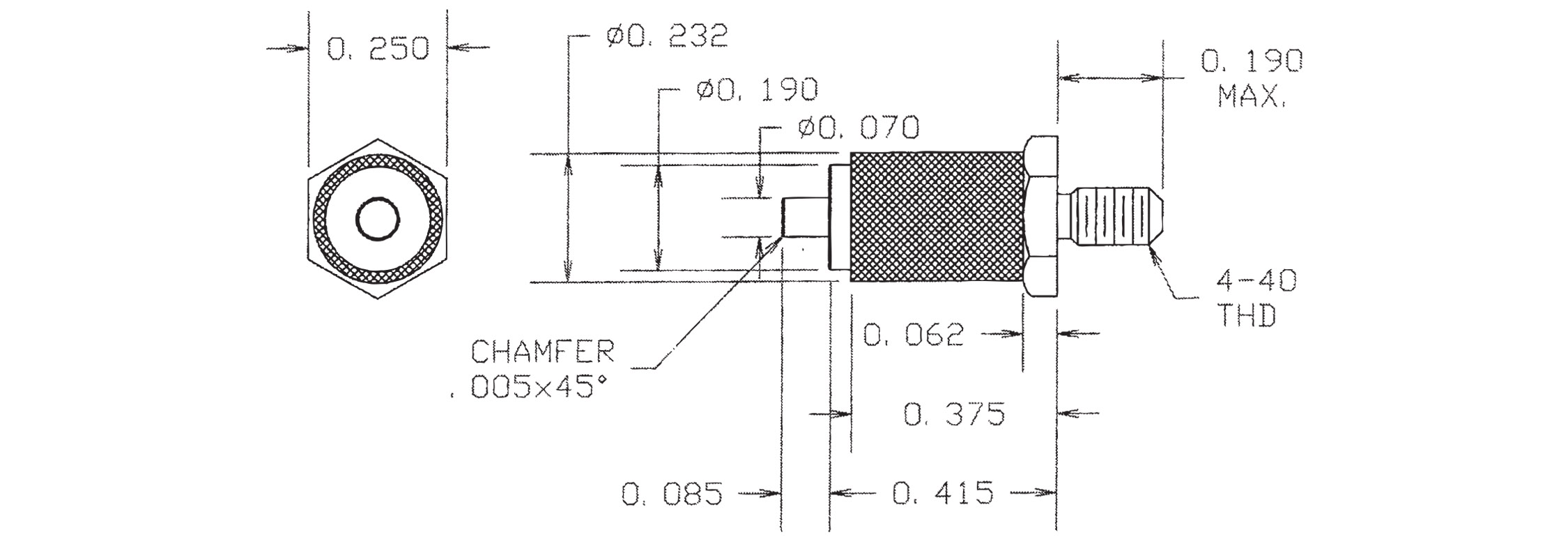

1170-23-0311
1170-23-0311
1170-23-0311
0.500" 0.070 - 4-40 Nut 1/16 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE Brown YES
1175-013-0417
1175-013-0417
1175-013-0417
0.672" 0.047 Pin/Pin PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Violet YES

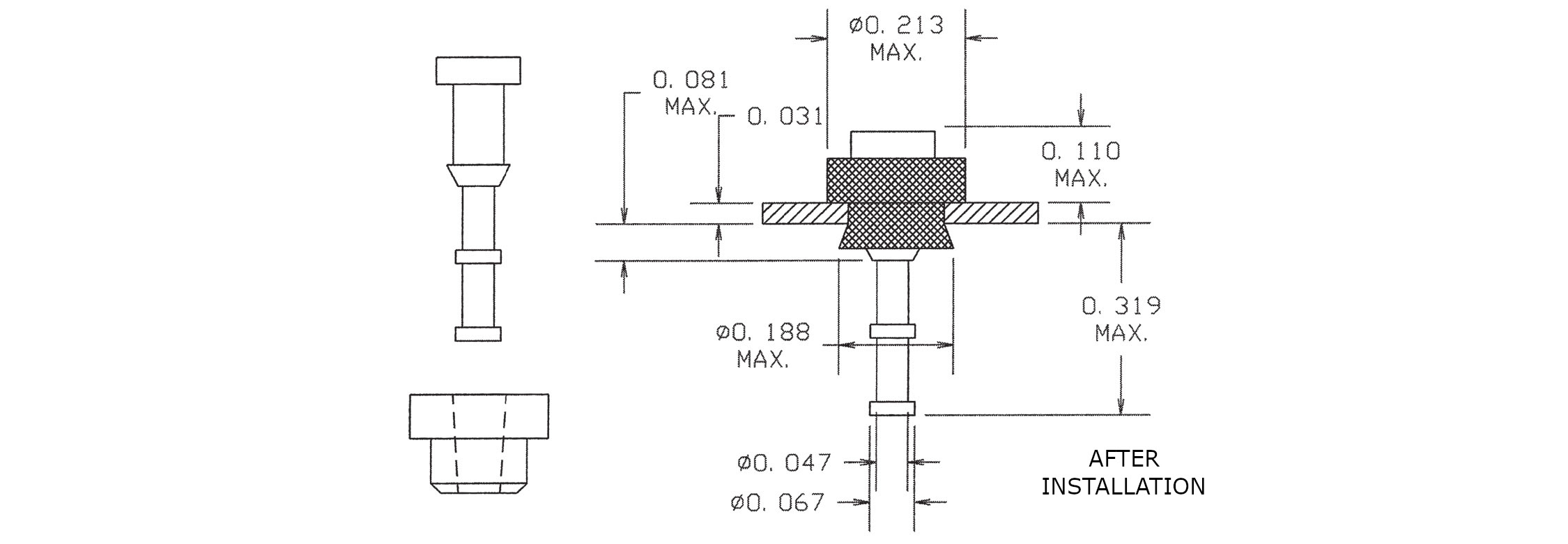

1175-301-0513
1175-301-0513
1175-301-0513
0.460" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Orange NO

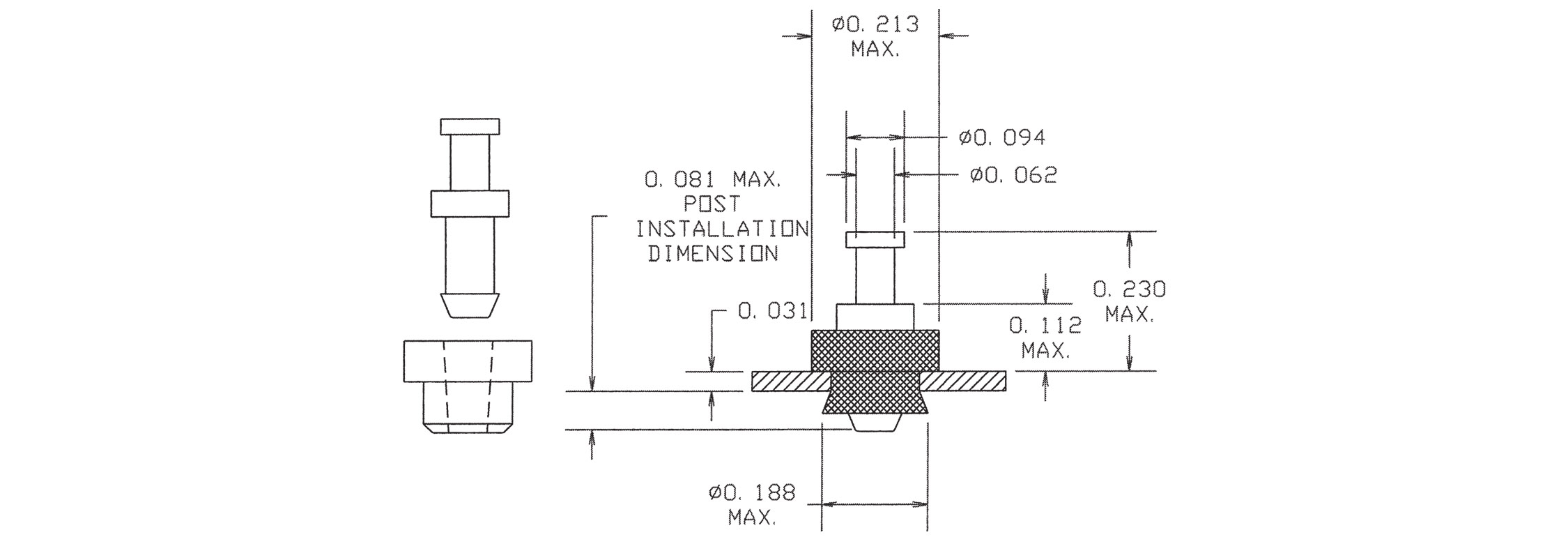

1175-351-08819
1175-351-08819
1175-351-08819
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE White NO
