Commercial
Insulated
Pin Terminals

Filter

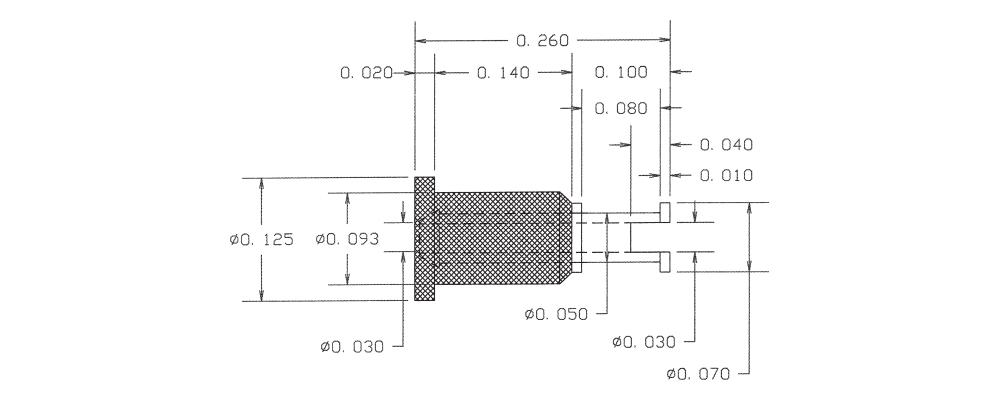

1112R-62-04415
1112R-62-04415
1112R-62-04415
0.260" - - Press Fit 3/32 0.086 Brass Bright Tin - - PTFE Green YES
1113-03-08811
1113-03-08811
1113-03-08811
0.333" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1113-58-0117
1113-58-0117
1113-58-0117
0.559" 0.080 PIN/Solder CUP Press Fit 1/8 0.172 Brass Silver - - PTFE Violet YES

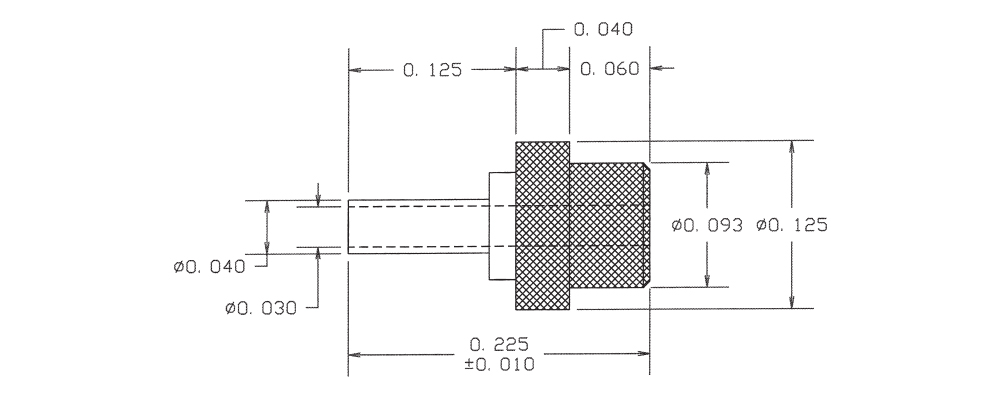

1114-04-0413
1114-04-0413
1114-04-0413
0.225" 0.040 - Press Fit 1/32 0.086 Brass Electro-Tin - - PTFE Orange NO

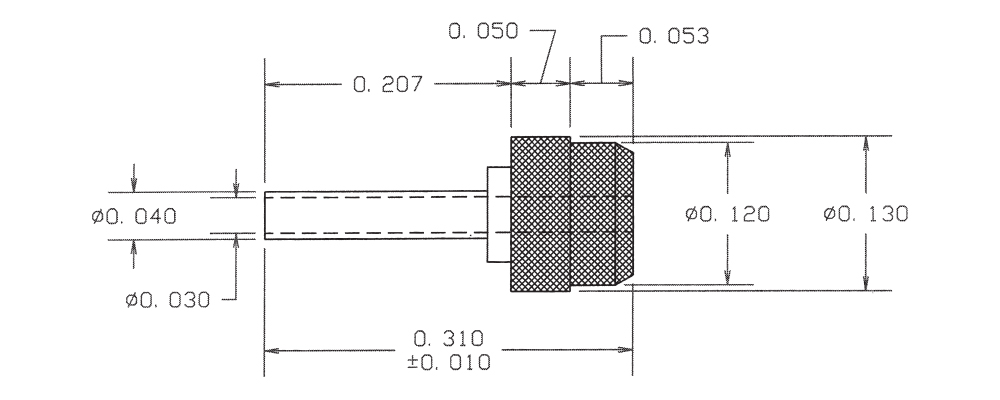

1114-08-04419
1114-08-04419
1114-08-04419
0.310" 0.040 - Press Fit 3/32 0.108 Brass Bright Tin - - PTFE White YES

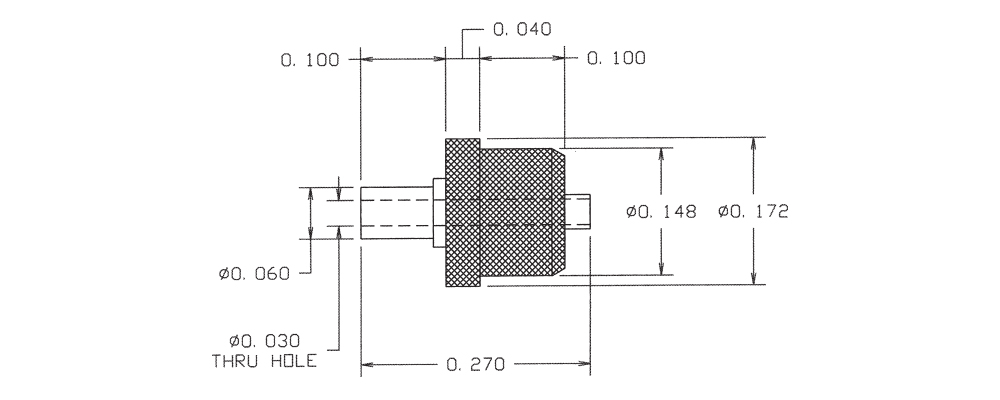

1114-50-08815
1114-50-08815
1114-50-08815
0.270" 0.060 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Green NO

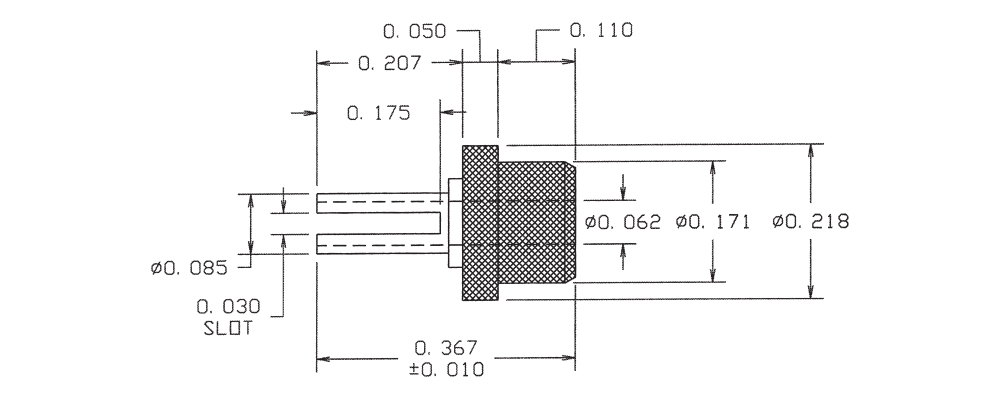

1114-75-0311
1114-75-0311
1114-75-0311
0.367" - - Press Fit 1/16 0.158 Brass Gold - - PTFE Brown NO
1114R-14-0417
1114R-14-0417
1114R-14-0417
0.193" 0.080 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Violet YES
1114R-20-0513
1114R-20-0513
1114R-20-0513
0.310" 0.040 - Press Fit 1/64 0.136 Brass Electro Solder - - PTFE Orange NO
1114R-80-08819
1114R-80-08819
1114R-80-08819
0.380" 0.055 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE White NO

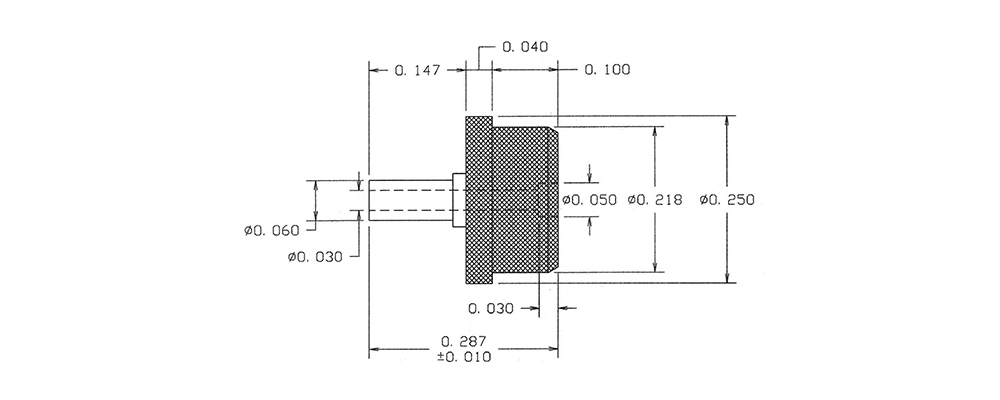

1115-07-0315
1115-07-0315
1115-07-0315
0.287" 0.060 - Press Fit 1/16 0.205 Brass Gold - - PTFE Green YES

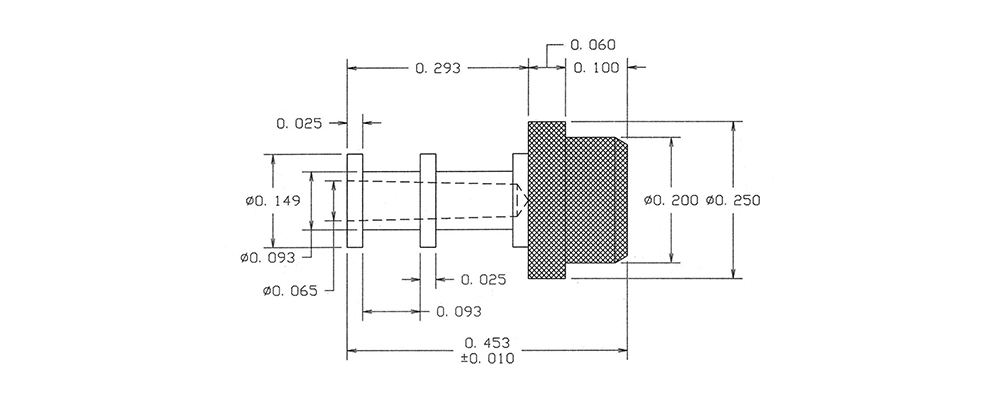

1115-51-04411
1115-51-04411
1115-51-04411
0.453" - - Press Fit 1/16 0.187 Brass Bright Tin - - PTFE Brown NO

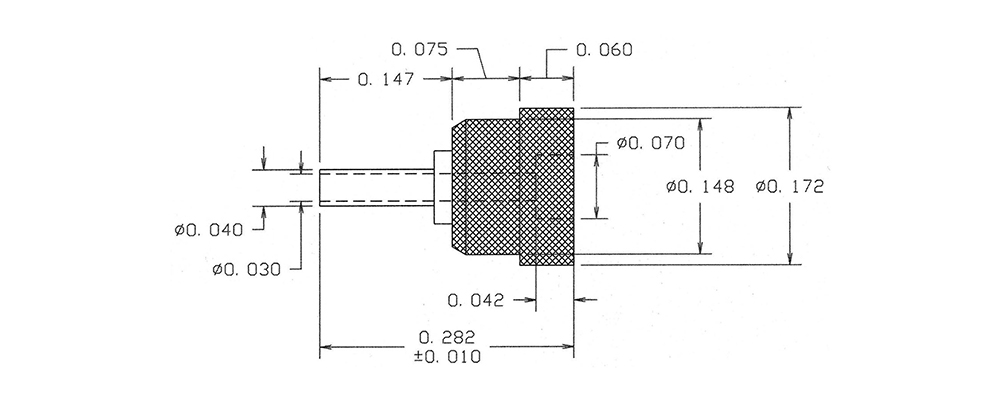

1115R-02-0517
1115R-02-0517
1115R-02-0517
0.282" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Violet NO

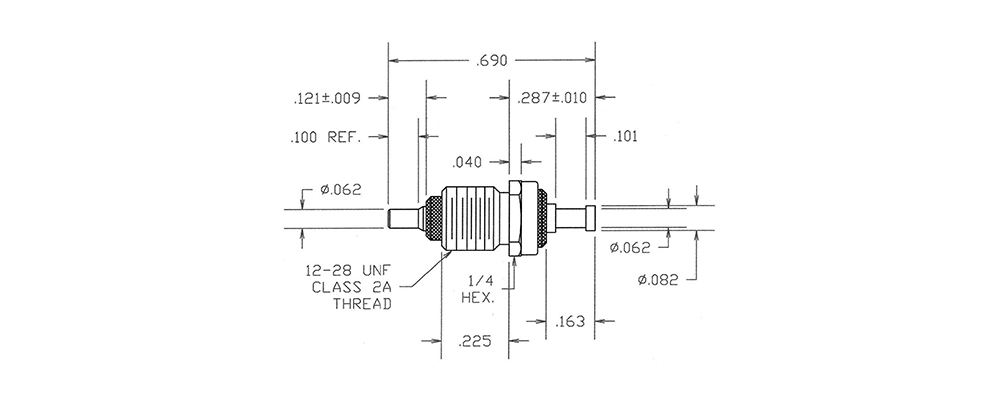

1117-01-0113
1117-01-0113
1117-01-0113
0.690" 0.062 ± 0.010 TURRET/PIN 12-28 Nut 3/32 0.221 Brass Silver Nickel Brass PTFE Orange NO

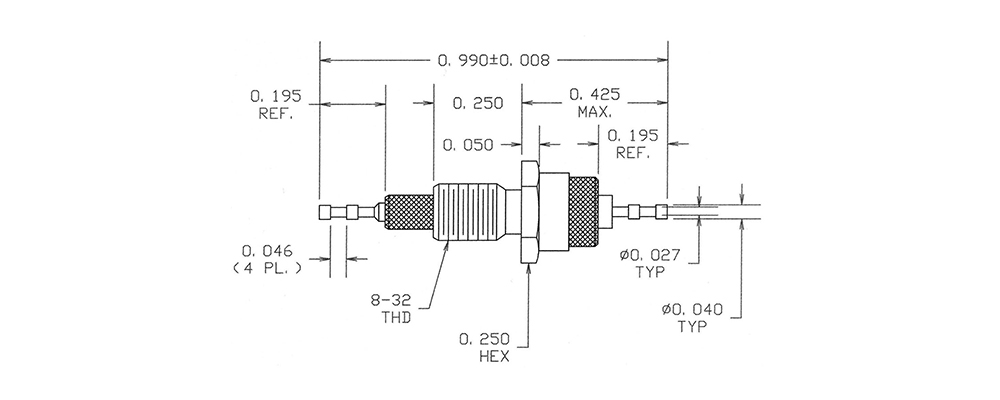

1117-16-0319
1117-16-0319
1117-16-0319
0.990" - Double Turret/Double Turret 8-32 Nut 1/8 0.169 Brass Gold Nickel Brass PTFE White YES

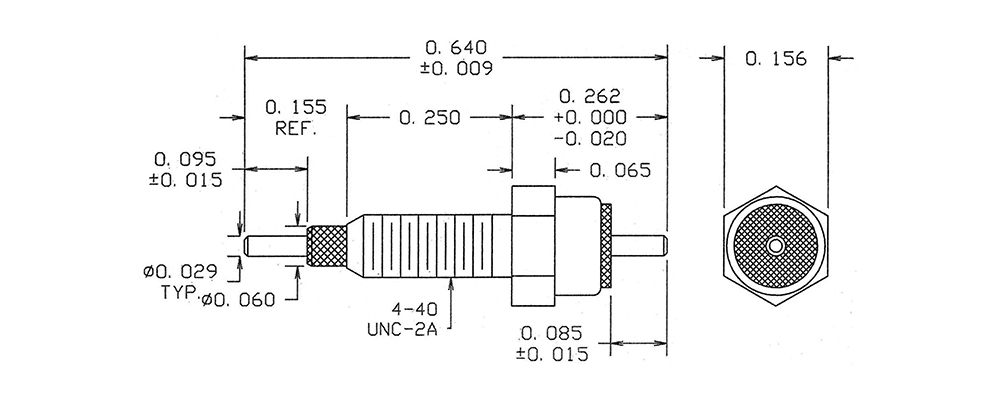

1117-50-04415
1117-50-04415
1117-50-04415
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Bright Tin Nickel Brass PTFE Green YES

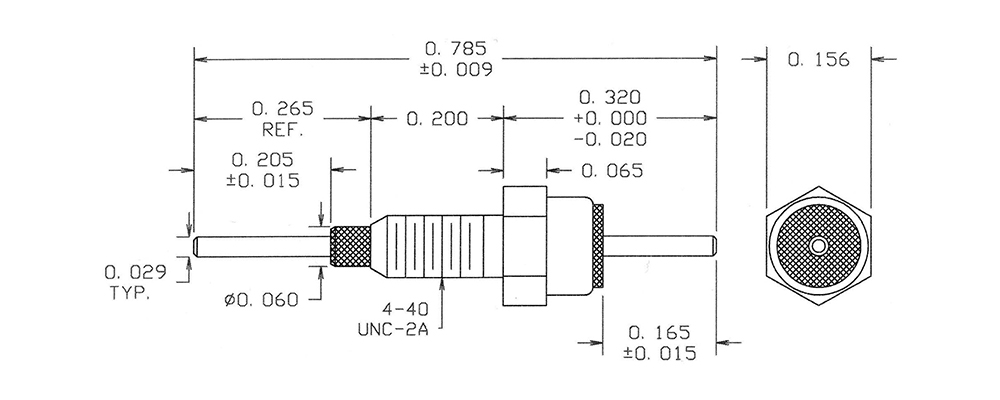

1117-54-08811
1117-54-08811
1117-54-08811
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Bright Tin-Lead Nickel Brass PTFE Brown NO

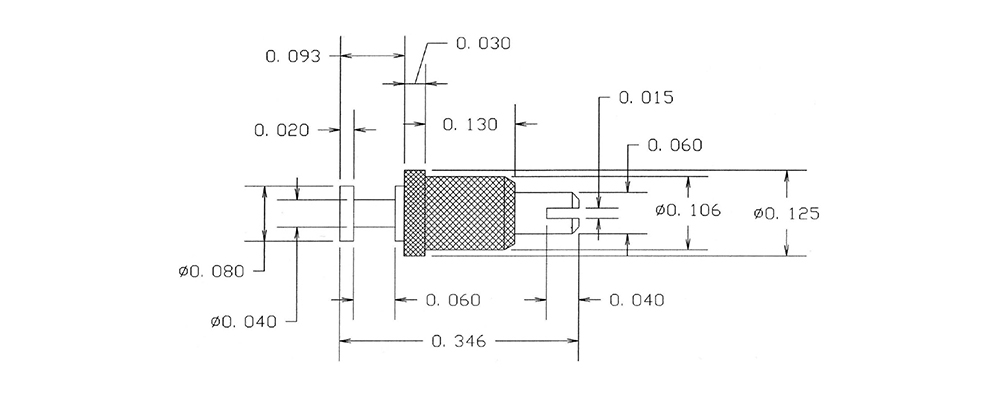

1118-40-0117
1118-40-0117
1118-40-0117
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Silver - - PTFE Violet YES

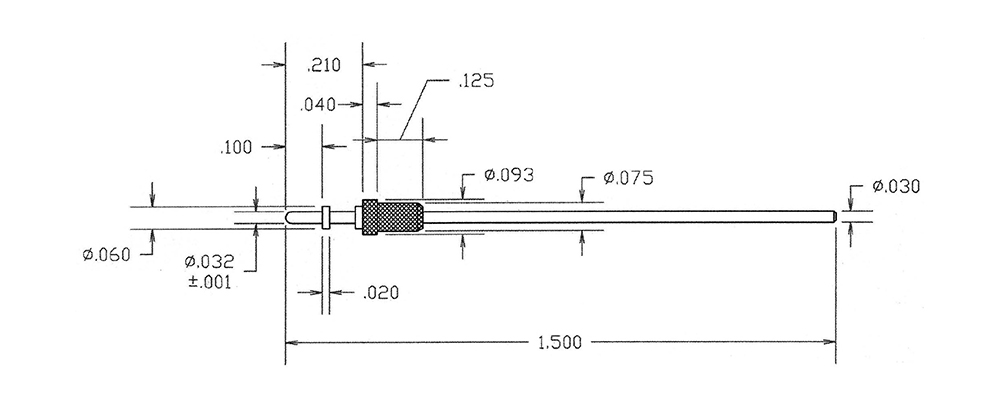

1119-25-0413
1119-25-0413
1119-25-0413
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Electro-Tin - - PTFE Orange NO
1119R-20-04419
1119R-20-04419
1119R-20-04419
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin - - PTFE White YES
