Commercial
Insulated
Pin Terminals

Filter

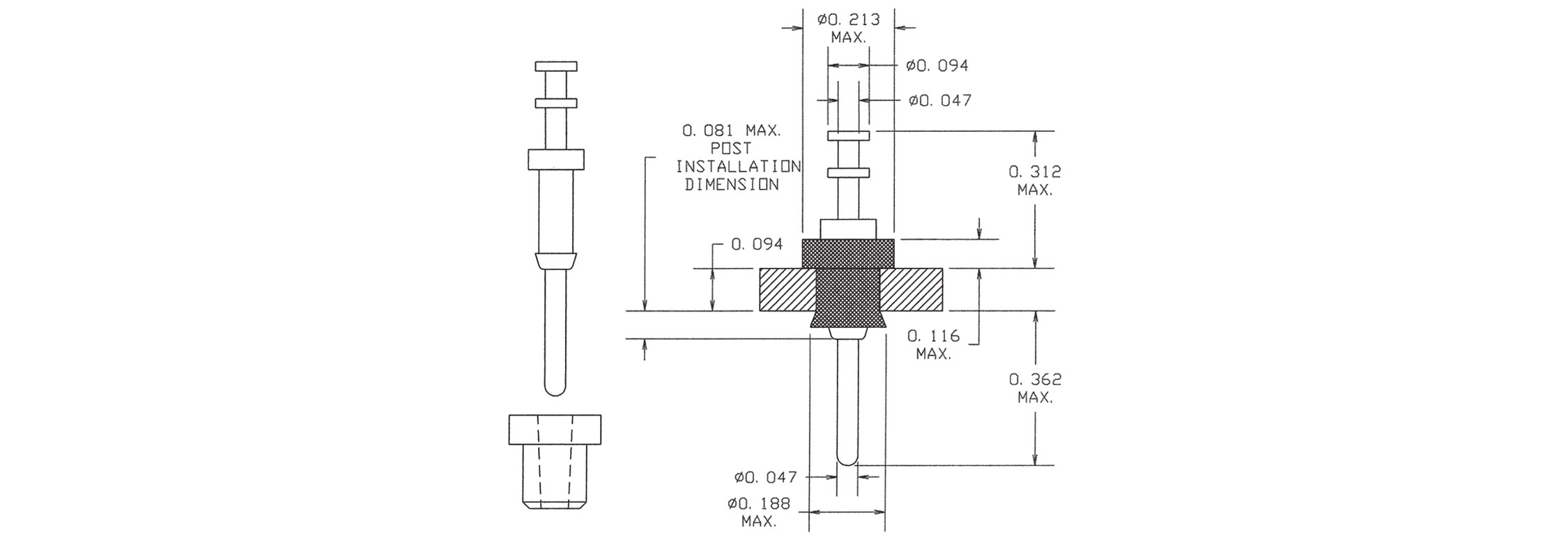

1175-373-0315
1175-373-0315
1175-373-0315
0.768" 0.040 DOUBLE TURRET/PIN PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Green YES

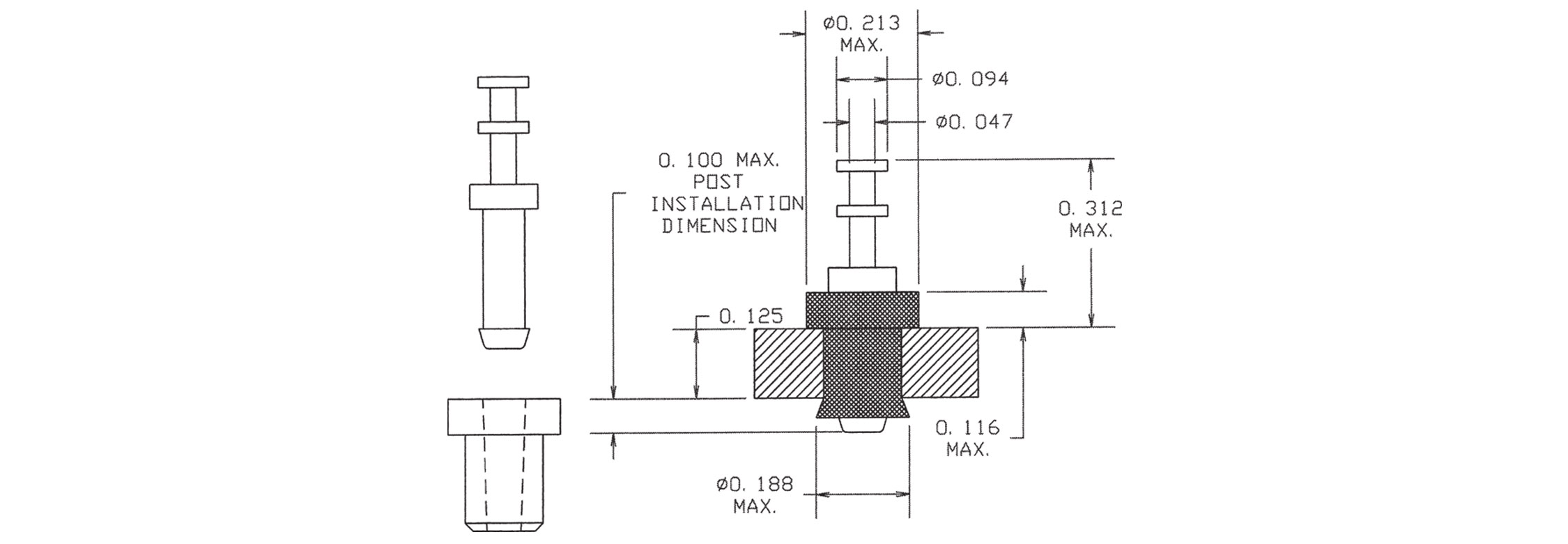

1175-404-04411
1175-404-04411
1175-404-04411
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Brown NO
1175-414-0517
1175-414-0517
1175-414-0517
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Violet NO
1175-431-0113
1175-431-0113
1175-431-0113
0.443" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Orange NO

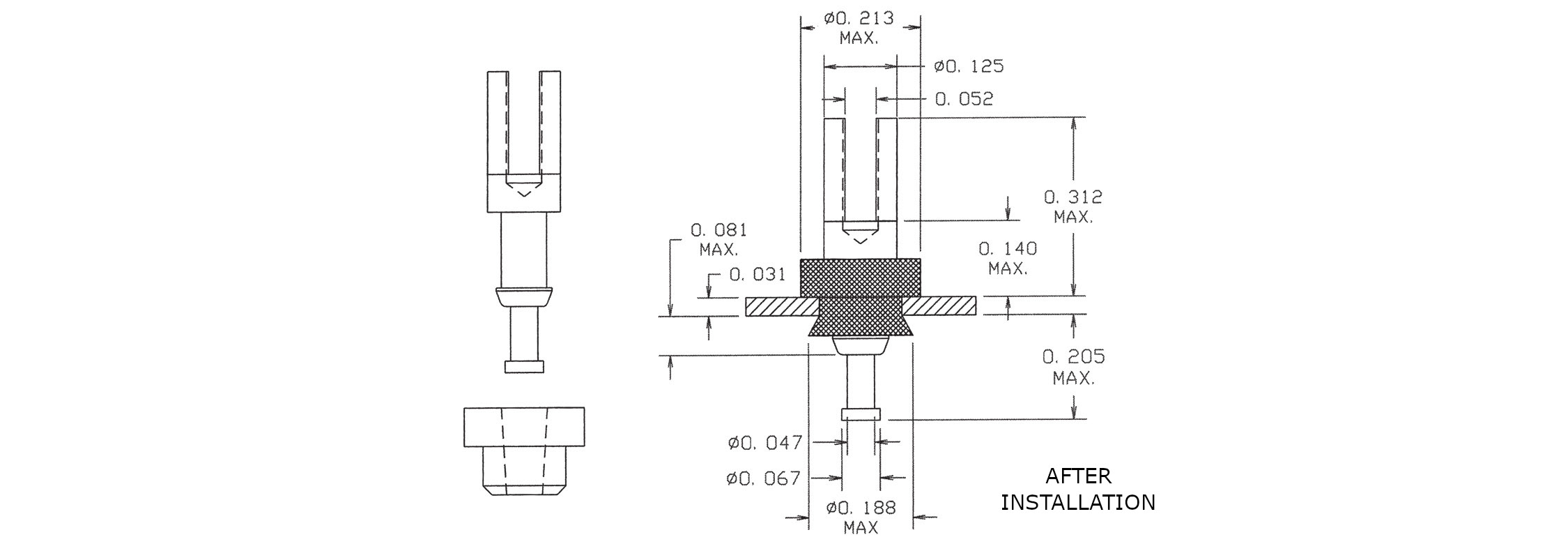

1175-441-0319
1175-441-0319
1175-441-0319
0.548" - TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE White YES
1175-451-04415
1175-451-04415
1175-451-04415
0.662" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Green YES
1175-462-08811
1175-462-08811
1175-462-08811
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Brown NO

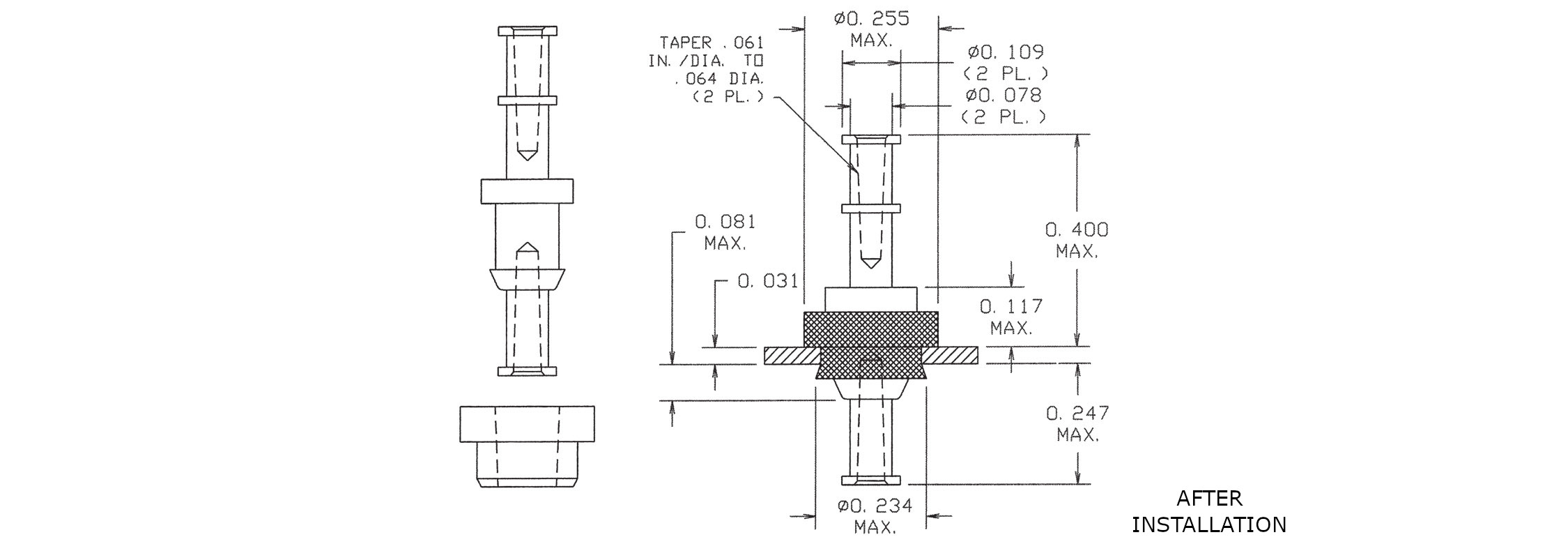

1175-481-0117
1175-481-0117
1175-481-0117
0.678" - DOUBLE Turret/Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Silver - - PTFE Violet YES

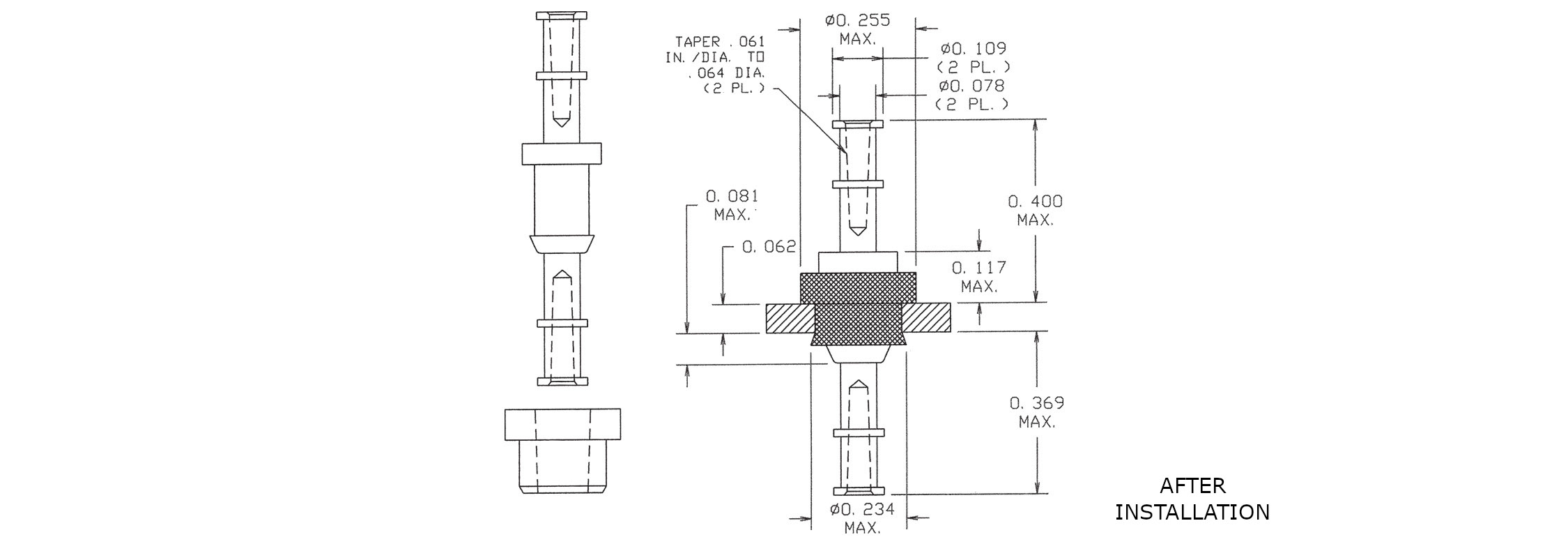

1175-492-0413
1175-492-0413
1175-492-0413
0.831" - Double Turret/Double Turret PRESS LOCK 1/16 0.188 (+0.003/-0.001) Brass Electro-Tin - - PTFE Orange NO
1175-601-04419
1175-601-04419
1175-601-04419
0.424" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE White YES
1175-702-08815
1175-702-08815
1175-702-08815
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Green NO
1175-713-0311
1175-713-0311
1175-713-0311
0.611" - DOUBLE Turret/Turret PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Gold - - PTFE Brown NO
1175-723-0417
1175-723-0417
1175-723-0417
0.725" - Double Turret/Double Turret PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Violet YES

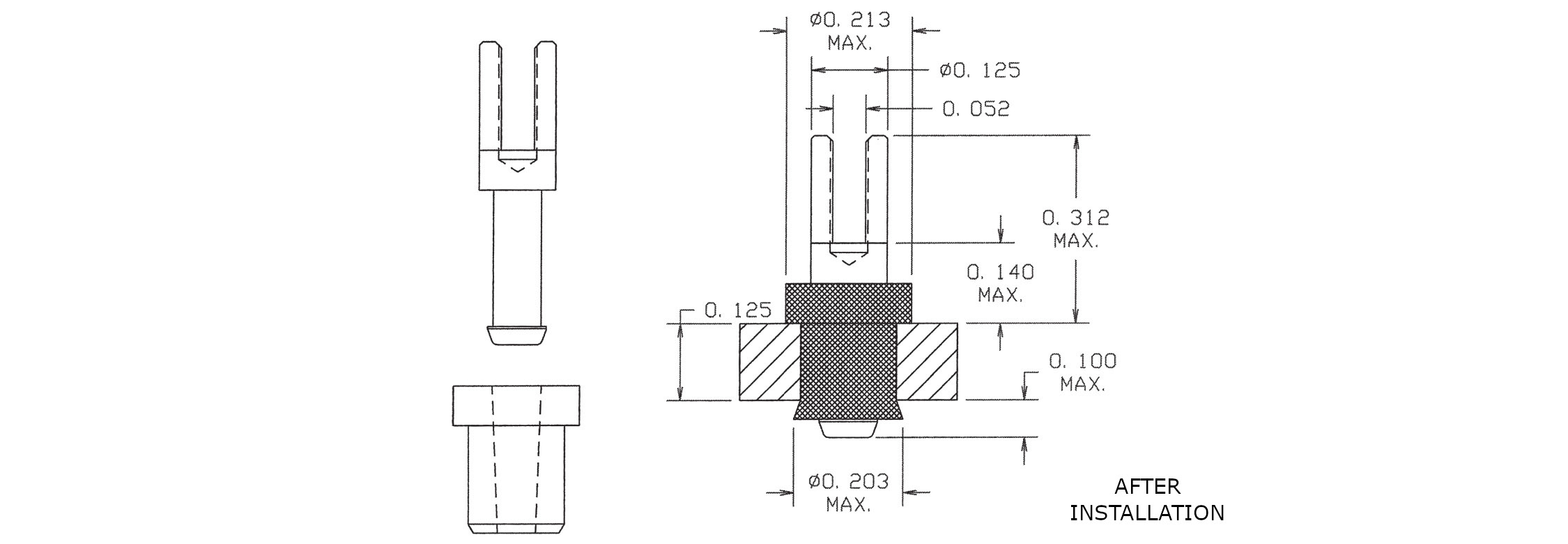

1175-734-0513
1175-734-0513
1175-734-0513
0.537" - - PRESS LOCK 1/8 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Orange NO
1175-751-08819
1175-751-08819
1175-751-08819
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE White NO
1175-763-0315
1175-763-0315
1175-763-0315
0.419" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Gold - - PTFE Green YES
1175-822-04411
1175-822-04411
1175-822-04411
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Bright Tin - - PTFE Brown NO

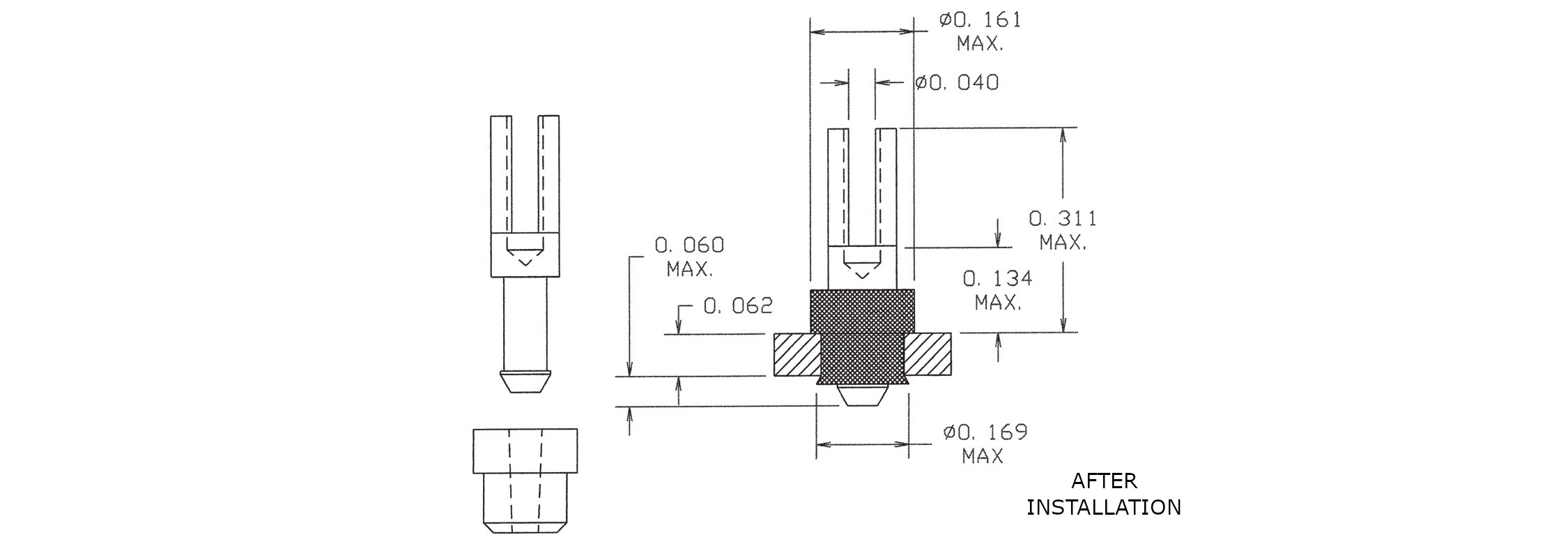

1175-842-0517
1175-842-0517
1175-842-0517
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Electro Solder - - PTFE Violet NO
1175-891-0113
1175-891-0113
1175-891-0113
0.560" 0.040 TIP/SLOTTED PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Silver - - PTFE Orange NO

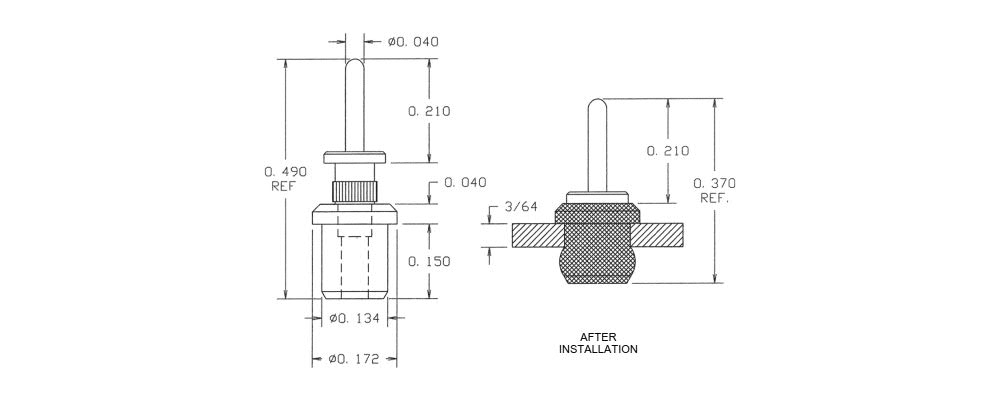

1177-03-0319
1177-03-0319
1177-03-0319
0.370" 0.040 - PRESS LOCK 1/32 - 1/16 0.136 Brass Gold - - PTFE White YES
